ICP DAS USA tZT-P4C4 Quick Start

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

1

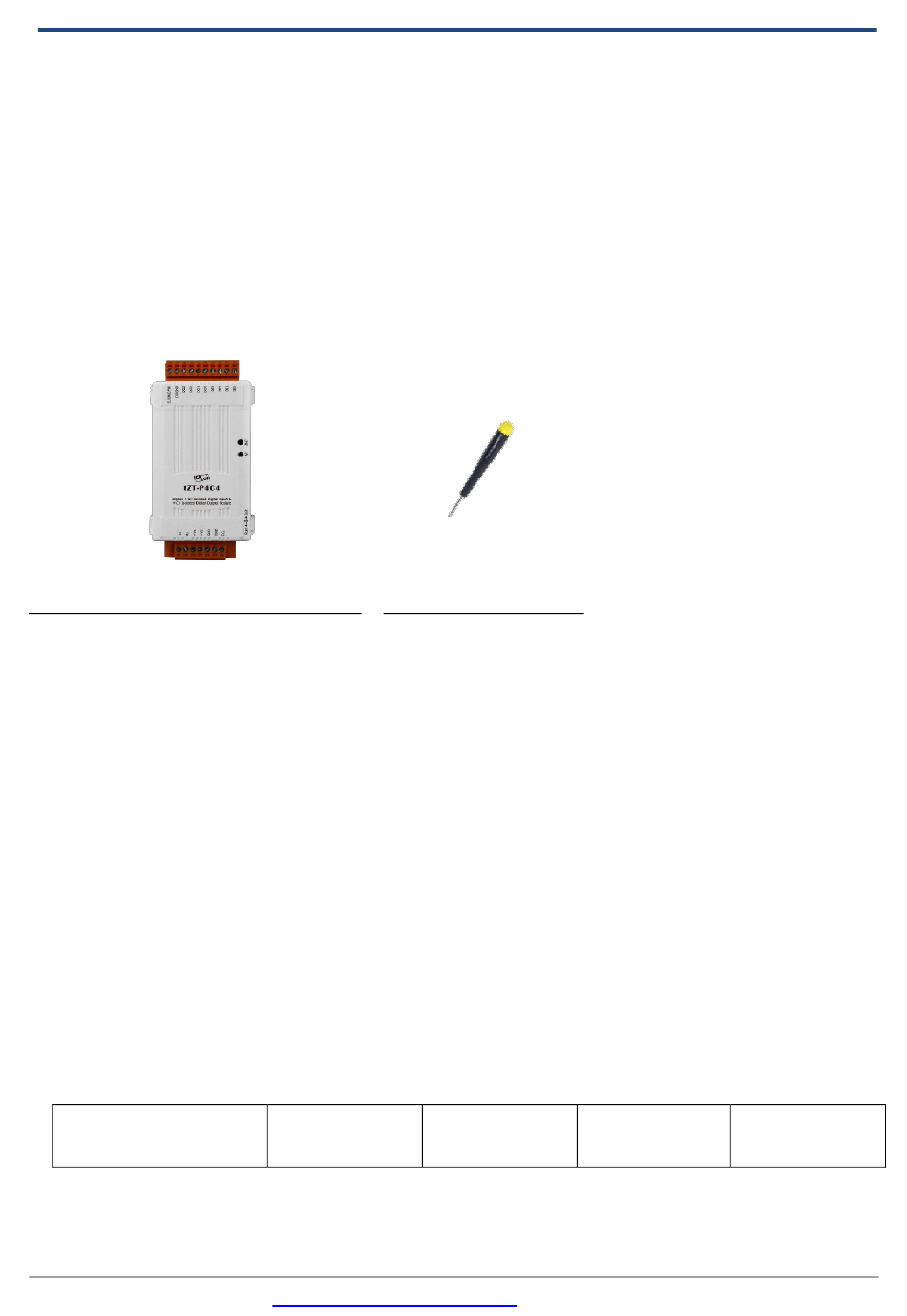

What's in the box?
Without "Quick Start", The package includes the following items:

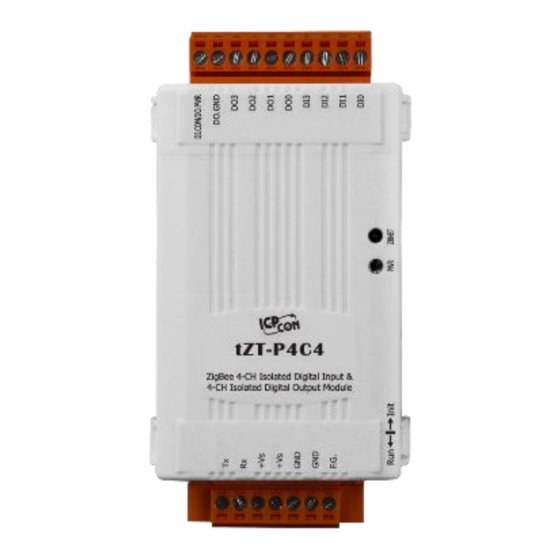

tZT-P4C4
2

Introduction to the Configuration Parameters

1) Pan ID：
group identity for a ZigBee network, and must the same for all devices
in the same ZigBee network. (Setting Range : 0x0000~0x3FFF)
2) Address/Node ID：
distinguish identity of a specific the ZigBee module, and must be
unique for each device connected the same ZigBee network.
(Setting Range : 0x01~0xFF)
3) RF Channel：
indicates the radio frequency channel, and must be set to the same
value as other modules on the same ZigBee network.
Channel
Frequency(MHz)
RF channels 0x04, 0x09, 0x0E or 0x0F are recommended because they
do not overlap with the Wi-Fi frequencies based.
Technical support:
tZT-P4C4 Quick Start
Screw Driver
0x00
2405
service@icpdas.com
v1.0, February. 2018
0x01
......
2410
......
0x0F
2480
P1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the tZT-P4C4 and is the answer not in the manual?

Questions and answers

Related Manuals for ICP DAS USA tZT-P4C4

Summary of Contents for ICP DAS USA tZT-P4C4

  • Page 1 Quick Start v1.0, February. 2018 What’s in the box? Without “Quick Start”, The package includes the following items: tZT-P4C4 Screw Driver Introduction to the Configuration Parameters 1) Pan ID： group identity for a ZigBee network, and must the same for all devices in the same ZigBee network.
  • Page 2 Once configuration of the ZigBee coordinator has been completed. Set the ”Pan ID” and the “RF Channel” values for the tZT-P4C4 to the same values as the network, and then reboot the device. The module will automatically start to function on the ZigBee network using the default protocol.
  • Page 3 Communication Test Once the tZT-P4C4 has joined the ZigBee network, the signal quality can be confirmed by monitoring the status of the ZigBee Net LED indicators. If the LED indicator shows a steady light, communication with the tZT-P4C4 has been successfully established for data acquisition and control.
  • Page 4 Troubleshooting 1. Technical Support If you have any difficulties using your tZT-P4C4, please send a description of the problem to service@icpdas.com Include the following items in your email: A. Set the DIP switch of the ZT-255x device to the [ZBSET] position then reboot the device.
