What's in the box?
The package includes the following items:

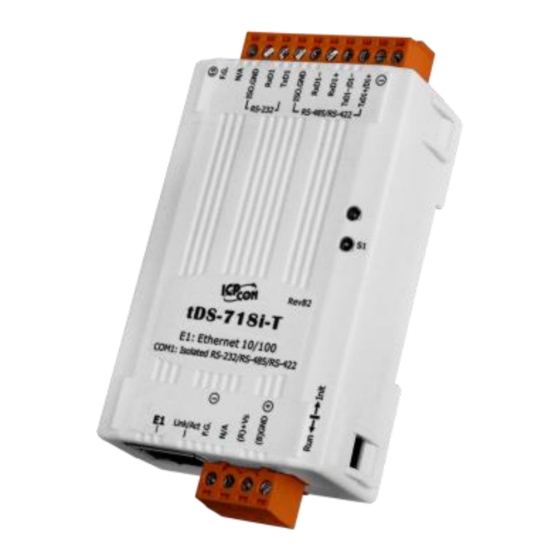

tDS-700-T Series Module x 1
Related Information
tDS Series Product Page:
Documentation & Firmware:
NS-205 Product Page (optional):
Technical support:
tDS-700-T Series Quick Start
service@icpdas.com
Quick Start x1 (This Document)
V1.0, Oct. 2020
P1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA tDS-700-T Series
Summary of Contents for ICP DAS USA tDS-700-T Series
- Page 1 Series Quick Start V1.0, Oct. 2020 What’s in the box? The package includes the following items: tDS-700-T Series Module x 1 Quick Start x1 (This Document) Related Information tDS Series Product Page: Documentation & Firmware: NS-205 Product Page (optional): Technical support: service@icpdas.com...
- Page 2 Connecting the Power and Host PC Make sure your PC has workable network settings. Disable or well configure your Windows firewall and Anti-Virus firewall first, else the “Search Servers” on Chapter 4 may not work. (Please contact with your system Administrator) Connect both the tDS-700-T and your PC to the same sub network or the same Ethernet switch.
- Page 3 Self-Test Wiring Wiring Notes for RS-232/485/422 Interfaces: : Here, the RS-232 and RS-485 wiring is used as an example. RS-232 Wiring RS-422 Wiring TxD+ RxD+ TxD- RxD- RxD+ TxD+ RxD- TxD- RS-485 Wiring Data+ Data+ Data- Data- While using RS-485 modules, you can not wire the Data+ with Data- signals for self-test.
- Page 4 Installing Software on Your PC Install VxComm Utility, which can be obtained from the web site: http://www.icpdas.com/en/download/index.php?nation=US&kind1=& model=&kw=Vxcomm Configuring Network Settings 1) Double-click the VxComm Utility shortcut on the desktop. 2) Click the “Search Servers” to search your tDS-700-T. 3) Double-click the name of tDS-700-T to open the “Configure Server (UDP)”...
- Page 5 4) Contact your Network Administrator to obtain a correct network configuration (such as IP/Mask/Gateway). Enter the network settings and click “OK”. Note: The tDS-700-T will use the new settings 2 seconds later. Configuring Virtual COM Ports 1) Wait 2 seconds and click “Search Servers” button again to ensure the tDS-700-T is working well with new configuration.
- Page 6 3) Click the “Add Server[S]” button. 4) Assign a COM Port number and click “OK” to save your settings. 5) Click on tDS-700-T name and check the virtual COM Port mappings on the PC. Technical support: service@icpdas.com...
- Page 7 6) Click the “Restart Driver” item in the “Tools” menu to display the “VxComm Utility: Restarting Driver” dialog box. 7) Click the “Restart Driver” button. Self-Test 1) Right click Port1 and then choose the “Open COM Port” item. 2) Check that the configuration of the COM Port is correct and then click the “Open COM”...
- Page 8 Type a string in the “Send” field. Click the “Hex/Text” option in the “Display” section. Click the “Send” button to send the message. If a response is received, it will be displayed in the received field. Technical support: service@icpdas.com...
