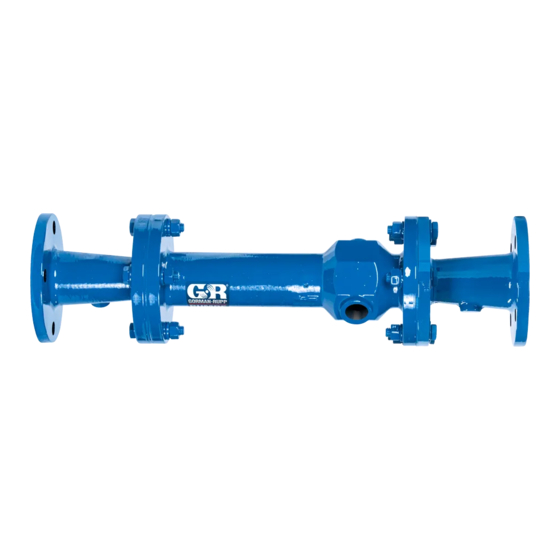

- Page 1 OM-07448-01 May 18, 2021 Rev A 6/24/21 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL WITH PARTS LIST EchoStorm MODELS VA2, VA3, VA4, VA6 GORMAN‐RUPP PUMPS www.grpumps.com 2021 Gorman‐Rupp Pumps Printed in U.S.A.
- Page 2 Register your new Gorman‐Rupp product online at www.grpumps.com Valid serial number and e‐mail address required. RECORD YOUR MODEL AND SERIAL NUMBER Please record your model and serial number in the spaces provided below. Your Gorman‐Rupp distributor needs this in formation when you require parts or service. EchoStorm Model: Serial Number:...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........PAGE I - 1 SAFETY - SECTION A . -
Page 4: Introduction
EchoStorm OM-07448 INTRODUCTION Thank You for purchasing a Gorman‐Rupp EchoS HAZARD AND INSTRUCTION torm. Read this manual carefully to learn how to DEFINITIONS safely install and operate your Unit. Failure to do so could result in personal injury or damage to the The following are used to alert maintenance per... -
Page 5: Safety - Section A
EchoStorm OM-07448 SAFETY - SECTION A This information applies to EchoStorm Products. Refer to the manual accom panying the pump and power source before attempting to begin operation. Do not stand near unit during start up as some fluid may discharge from air in This manual will alert personnel to take ports if not using check valves. - Page 6 OM-07330 SUPER T SERIES operating conditions must be within the Never introduce air or steam pressure into the pip performance range shown on page E‐1. ing to remove a blockage. This could result in per sonal injury or damage to the equipment. PAGE A - 2 SAFETY...
-
Page 7: Installation - Section B
EchoStorm OM-07448 INSTALLATION - SECTION B Review all SAFETY information in Section A. For further assistance, contact your Gorman‐Rupp distributor or the Gorman‐Rupp Company. Since installations are seldom identical, this sec tion offers only general recommendations and practices required to inspect, position, and ar range the EchoStorm and piping. -
Page 8: Preinstallation Inspection
OM-07448 EchoStorm highest point in the system. Consult factory for ver PREINSTALLATION INSPECTION tical mounted application. The assembly was inspected before shipment from the factory. Before installation, inspect the Materials Unit for damage which may have occurred during shipment. Check as follows: Pipe may be used for discharge lines;... -
Page 9: Operation - Section C
OM-07448 EchoStorm OPERATION - SECTION C Review all SAFETY information in Section A. OPERATION Operating condition points must be within Follow the instructions on all tags, labels and de the continuous performance range shown cals attached to the Unit. on the curve(s) shown on page E-1. OPERATIONAL CHECKS This EchoStorm is designed to handle Leakage... -
Page 10: Troubleshooting - Section D
EchoStorm OM-07448 TROUBLESHOOTING - SECTION D Review all SAFETY information in Section A. Before attempting to open or service the EchoStorm: 1. Familiarize yourself with this manual. 2. Shut off pump. 3. Allow the discharge line to complete ly cool if overheated. 4. - Page 11 OM-07448 EchoStorm MAINTENANCE AND REPAIR - SECTION E MAINTENANCE AND REPAIR OF THE WEARING PARTS OF THE UNIT WILL MAINTAIN PEAK OPERATING PERFORMANCE. STANDARD PERFORMANCE FOR ECHOSTORM MODEL VA2 & VA3 Based on 70 F (21 C) clear water at sea level. Since installations are seldom identical, your per...
- Page 12 OM-07448 EchoStorm STANDARD PERFORMANCE FOR ECHOSTORM MODEL VA4 & VA6 Based on 70 F (21 C) clear water at sea level. Since installations are seldom identical, your per formance may be different due to such factors as viscosity, specific gravity, elevation, and tempera Operating condition points must be within ture.
- Page 13 OM-07448 EchoStorm ILLUSTRATION PARTS PAGE From S/N 1742618 up OPTIONAL ELBOW VA2 ONLY Figure 1. Model(s) VA2, VA3, VA4, VA6 MAINTENANCE & REPAIR PAGE E - 3...
- Page 14 OM-07448 EchoStorm PARTS LIST Pump Model VA2 ITEM PART PART NAME NUMBER SPOOL 38642-101 13000 ELBOW 38647-326 13000 PIPE PLUG P04 17000 GASKET 38683-482 19000 NOZZLE, CURVE CODE A 38634-031 19240 NOZZLE, CURVE CODE B 38634-032 19240 NOZZLE, CURVE CODE C 38634-033 19240 BODY 38633-605 13000...
- Page 15 OM-07448 EchoStorm PARTSLIST Pump Model VA3 ITEM PART PART NAME NUMBER SPOOL 38642-102 13000 PIPE PLUG P04 17000 GASKET 25113-033 NOZZLE CURVE CODE A 38634-041 19240 NOZZLE CURVE CODE B 38634-042 19240 NOZZLE CURVE CODE C 38634-043 19240 NOZZLE CURVE CODE D 38634-044 19240 BODY 38633-606 13000...
- Page 16 OM-07448 EchoStorm PARTSLIST Pump Model VA4 ITEM PART PART NAME NUMBER SPOOL 38642-103 13000 PIPE PLUG P04 17000 GASKET 25113-034 NOZZLE CURVE CODE B 38634-052 19240 NOZZLE CURVE CODE C 38634-053 19240 NOZZLE CURVE CODE D 38634-054 19240 BODY 38633-607 13000 SET SCREW GA0402 17000 LINER...
- Page 17 OM-07448 EchoStorm PARTSLIST Pump Model VA6 ITEM PART PART NAME NUMBER SPOOL 38642-104 13000 PIPE PLUG P04 17000 GASKET 25113-036 NOZZLE FOR CURVE CODE A 38634-061 19240 NOZZLE FOR CURVE CODE B 38634-062 19240 NOZZLE FOR CURVE CODE C 38634-063 19240 NOZZLE FOR CURVE CODE D 38634-064 19240 BODY...
- Page 18 For Warranty Information, Please Visit www.grpumps.com/warranty or call: U.S.: 419-755-1280 Canada: 519-631-2870 International: +1-419-755-1352 GORMAN‐RUPP PUMPS...
