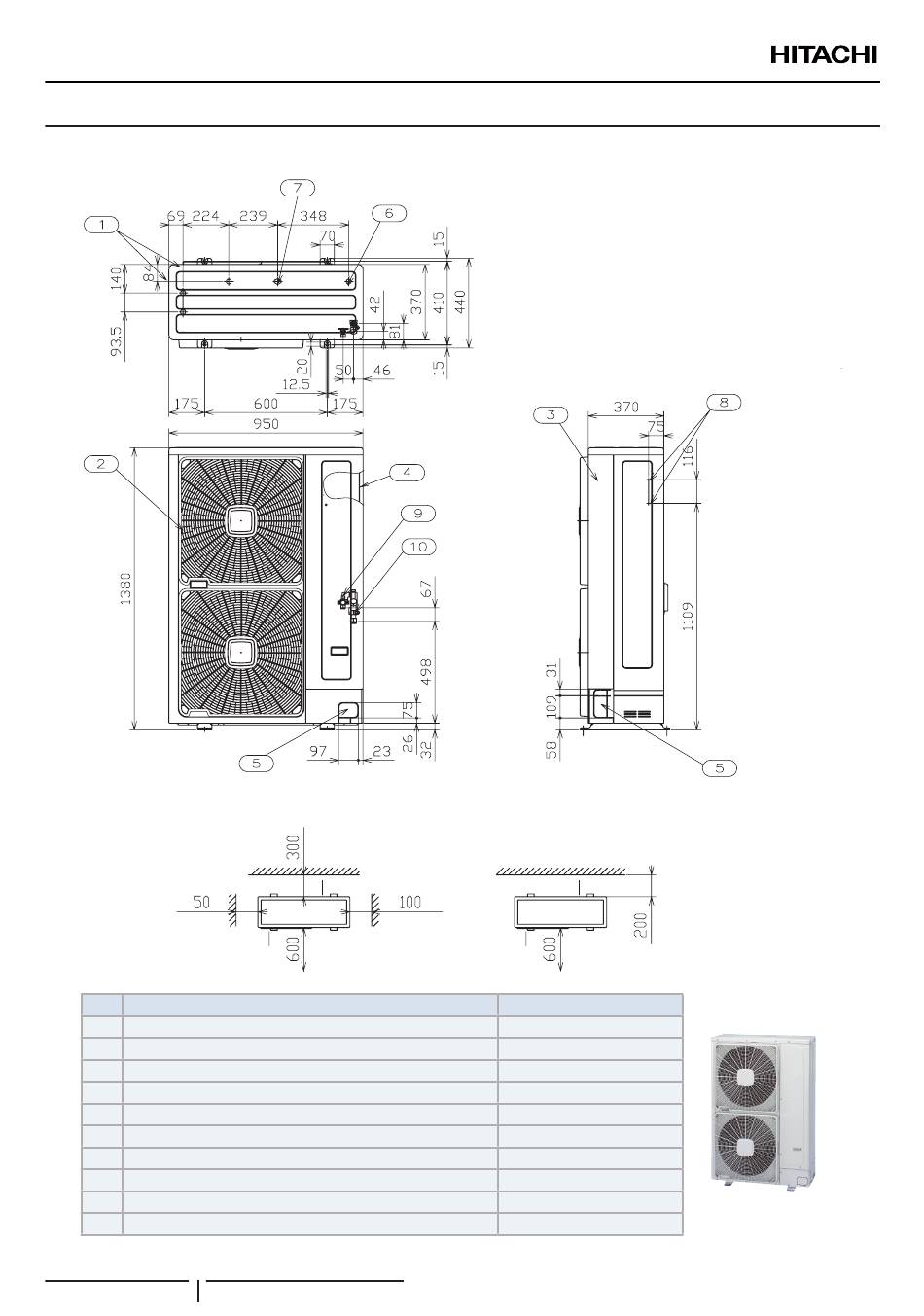

NAME OF PARTS

6 NAME OF PARTS
Nº
1 Air intake
2 Air outlet
3 Service cover
4 Electrical switch box
5 Holes for refrigerant piping and electrical wiring piping
6 Drain holes
7 Drain holes
8 Holes for fixing machine to wall
9 Refrigerant liquid pipe
10 Refrigerant gas pipe
4 PMML0389B rev.1 - 07/2016
Description Remarks
3-Ø24
2-Ø26
4-(M5)
Flare nut: Ø9.52 (3/8")
Flare nut: Ø15.88 (5/8")
