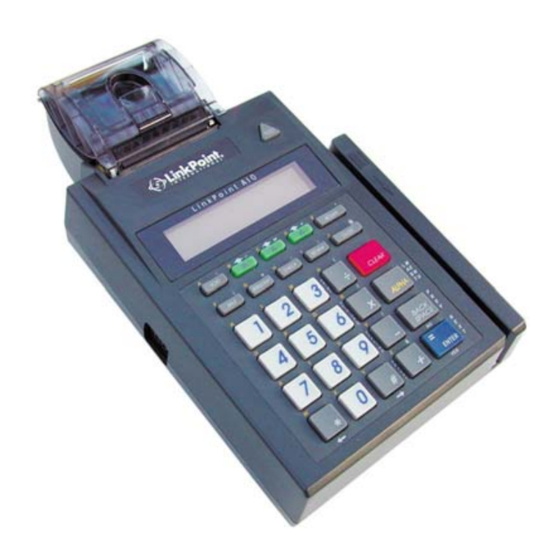

LinkPoint L3FRR30 Quick Reference Card

LinkPoint All-In-One Restaurant
Quick Reference Card
Application: L3FRR30/L3FRR31
FUNCTION DISPLAY MESSAGE
1. READY XXX
DINE IN OR
2. 1) MERCH NAME
TAKE OUT
3. DINE TAB TAKE OUT
4.
5.
6. ENTER EXP DATE MMYY
7. ENTER CVV2
8. ENTER CVV2 VALUE
9. SERVER ID
10. FOOD/BEV AMOUNT
11. TAX AMOUNT
12. TIP AMOUNT
13. DIALING...
14. APPROVAL XXXX
15. PRINT CUST COPY
FUNCTION DISPLAY MESSAGE
ATM/DEBIT
1. READY XXX
CARD SALE
2. 1) MERCH NAME
(OPTIONAL-
PIN PAD
REQUIRED)
3. SERVER ID
4. FOOD/BEV AMT
5. TAX AMOUNT
6. CASH BACK AMOUNT
7. CUSTOMER ENTERS TIP
9. SWIPE CARD
10. WAITING FOR PIN
12. DIALING..
13. APPROVAL
14. PRINT CUST COPY
FUNCTION DISPLAY MESSAGE
REPRINT
1. READY XXX
2. 1) MERCH NAME
3. REPRINT: ENTER ITEM #
4. DUPLICATE
5. PRINTING...
XXXX 0502
<-- YES -->
(optional)
DINE IN
ENTER ACCOUNT #
DINE IN
ENTER LAST 4 DIGITS
(swipe only)
(keyed only)
INDICATOR...
(keyed only)
TEAR NOW, PRESS ENTER
<-- YES -->
(optional)
PIN PAD DISPLAY
8. TIP AMOUNT
PIN PAD DISPLAY
11. TOTAL $XX.XX
ENTER PIN
TEAR NOW, PRESS ENTER
<-- YES -->
(optional)
MERCH CUST
OPERATOR ACTION
1. Press [SALE].
2. If your multi merchant assigned one digit
number is displayed, press the middle [ ]
key, if not, press either the right or left [ ]
key until the one digit number is displayed.
3. Press the left [ ] key for dine in or the right
[ ] key take out.
4. Swipe card or key in the card number and
press [ENTER].
5. Key in the last four digits and press [ENTER].
6. Key in 4-digit expiration date and press
[ENTER].
7. Press either [0], [2] or [9] to not enter the
CVV2 number or press [1] to enter the CVV2
number.
8. Key in the CVV2 number and press [ENTER].
9. Key in the server ID and press [ENTER].
10. Key in transaction amount, press [ENTER].
11. Key in the tax amount and press [ENTER].
12. If known, key in the tip amount and press
[ENTER], if tip amount is unknown, simply
press [ENTER].
13. Please wait...
14. Please wait for the merchant receipt.
15. Press [ENTER] to print a customer receipt.
OPERATOR ACTION
1. Press [ATM/DEBIT].
2. If your multi merchant assigned one digit
number is displayed, press the middle [ ]
key, if not, press either the right or left [ ]
key until the one digit number is displayed.
3. Key in the server ID and press [ENTER].
4. Key in transaction amount, press [ENTER].
5. Key in the tax amount and press [ENTER].
6. Key in cash back amount, press [ENTER].
7. Customer tip amount on the PIN pad.
PIN PAD ACTION
8. Customer keys in the tip amount and then
presses [ENTER] on the PIN pad.
9. Swipe card.
10. Please wait...
PIN PAD ACTION
11. Customer keys in the PIN and presses
[ENTER] on the PIN pad.
12. Please wait...
13. Please wait for the merchant receipt copy.
14. Press [ENTER] to print a customer receipt.
OPERATOR ACTION
1. Press [PRINT] key.
2. If your multi merchant assigned one digit
number is displayed, press the middle [ ]
key, if not, press either the right or left [ ]
key until the one digit number is displayed.
3. Key in the item number to be reprinted
and press [ENTER].
4. Either press the left [ ] key to reprint the
merchant receipt or the right [ ] key to
reprint the customer receipt.
5. Please wait for the receipt copy to print.
©
LinkPoint International, Inc.
