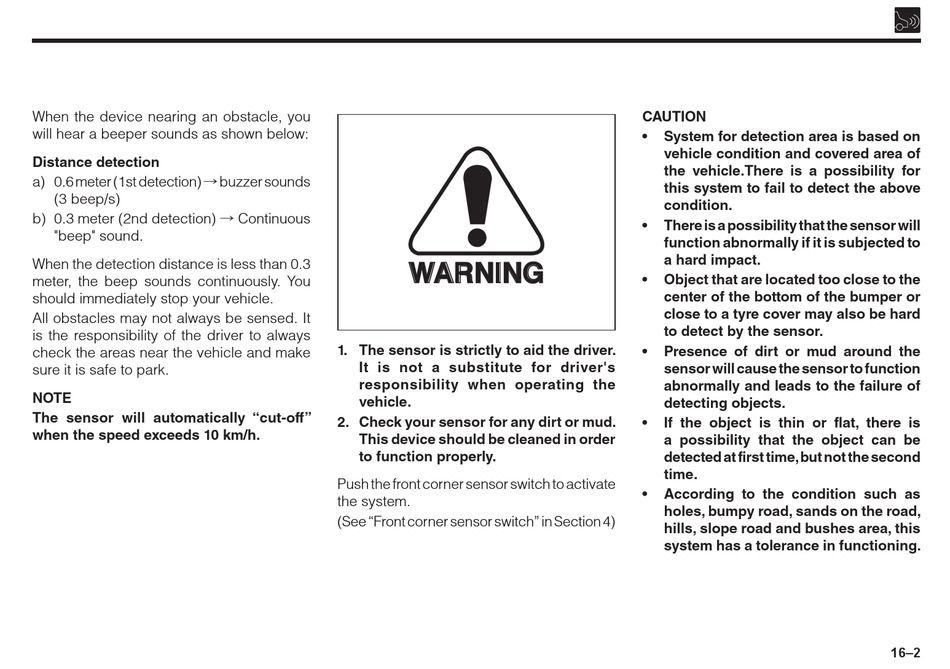

PERODUA Bezza Owner's Manual page 592

When the device nearing an obstacle, you
will hear a beeper sounds as shown below:
Distance detection
a) 0.6 meter (1st detection) ! buzzer sounds
(3 beep/s)
b) 0.3 meter (2nd detection) ! Continuous
"beep" sound.
When the detection distance is less than 0.3
meter, the beep sounds continuously. You
should immediately stop your vehicle.
All obstacles may not always be sensed. It
is the responsibility of the driver to always
check the areas near the vehicle and make
sure it is safe to park.
NOTE
The sensor will automatically "cut-off"
when the speed exceeds 10 km/h.
WARNING
1. The sensor is strictly to aid the driver.
It is not a substitute for driver's
responsibility when operating the
vehicle.
2. Check your sensor for any dirt or mud.
This device should be cleaned in order
to function properly.
Push the front corner sensor switch to activate
the system.
(See "Front corner sensor switch" in Section 4)
CAUTION
• System for detection area is based on
vehicle condition and covered area of
the vehicle.There is a possibility for
this system to fail to detect the above
condition.
• There is a possibility that the sensor will
function abnormally if it is subjected to
a hard impact.
• Object that are located too close to the
center of the bottom of the bumper or
close to a tyre cover may also be hard
to detect by the sensor.
• Presence of dirt or mud around the
sensor will cause the sensor to function
abnormally and leads to the failure of
detecting objects.
• If the object is thin or flat, there is
a possibility that the object can be
detected at first time, but not the second
time.
• According to the condition such as
holes, bumpy road, sands on the road,
hills, slope road and bushes area, this
system has a tolerance in functioning.
16–2
