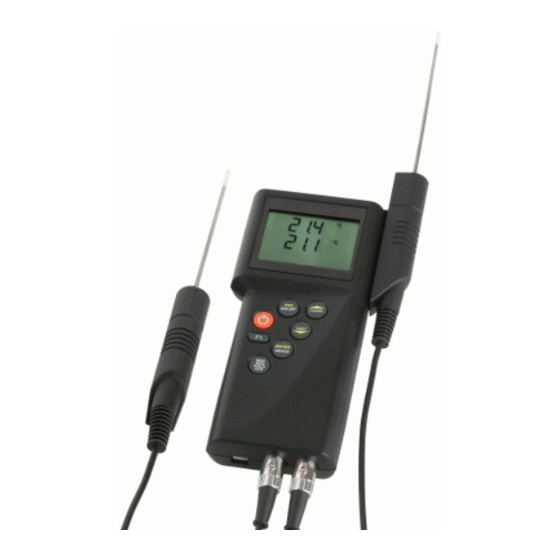

- Page 1 D O S T M A N N e l e c t r o n i c Version 30/03/2021 Precision Measuring Instrument P700-EX/P705-EX/P750-EX/P755-EX/P755- LOG-EX Dostmann electronic GmbH Waldenbergweg 3b D-97877 Wertheim-Reicholzheim Operation manual Tel.: ++49 (0)9342 / 30890 Fax: ++49 (0)9342 / 30894...
- Page 2 Manual List of Contents I. Safety Advice II. Handling 1. Setting to work 2. On/off button, Display 3. Changing units from °C to °F 4. Recalling memory data (MAX, MIN, Hold) 5. Delete Memory 6. Difference temperature Auto-Off-function Memory setup (Lo6) III.
- Page 3 I. Safety Advice following operating instructions contain precautionary advice which for the described conditions, must be taken into consideration to guarantee safe operation. For Operation in explosion-prone areas 1.) Test centre: TÜV Nord Cert GmbH 2.) By operating the instrument in explosion-prone areas all standards must be kept: A) Only use batteries which are approved by the manufacturer.
- Page 4 II. Handling 1. Setting to work Notes Before switching on the instrument connect the probe/s to the instrument. 2. On/off button By operating the ON/OFF-key the instrument switched on or off. After switching on the instrument indicates a full segment test for 1,5 sec., afterwards the display shows for appr.

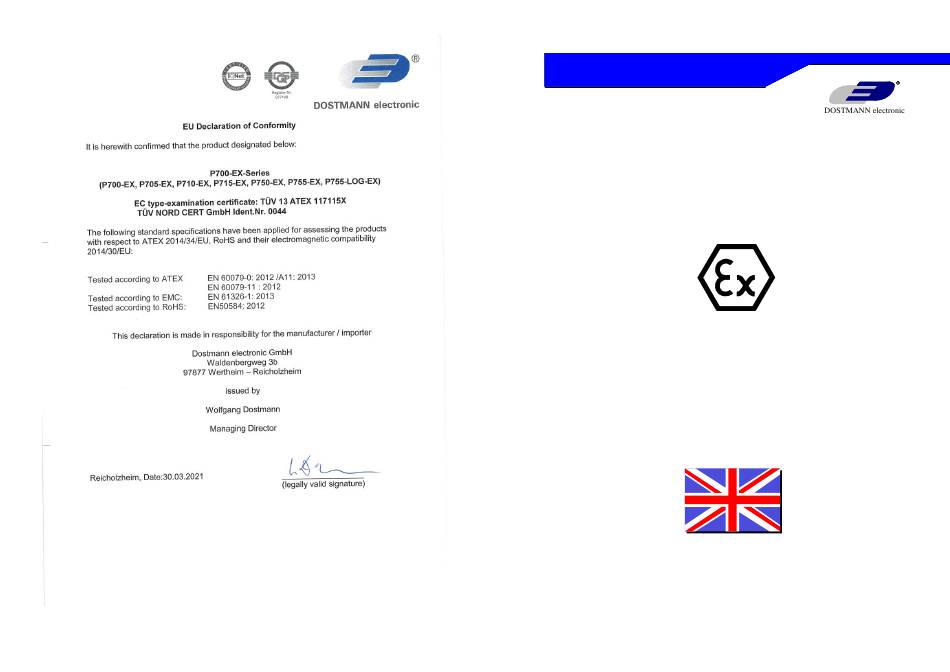

- Page 5 VIII. Ex-data Note for 2-channel instruments: First the MAX-MIN-AVE- values of channel 1 will be displayed – afterwards the Certificate of Conformity TÜV 13 ATEX 117115 X Certification II 2 G Ex ib IIB T4 Gb values of the channel 2 will be displayed. Is there only one probe on a 2-channel instrument we suggest to deactivate CE-Conformity 0044...
- Page 6 8. Memory setup(Lo6) Push [ENTER/MENUE] and use the up and down keys [] to select Lo6. Push [ENTER/MENUE] to confirm. Use the up and down keys [] again to start [on] or Stop [off] the logger. Push [ENTER/MENUE] to confirm. Use the up and down keys [] again to select between automatic storage [Auto] or manually operated storage [SPot].
- Page 7 V. Error codes III. Calibration By displaying the following error codes the instrument support the Despite high quality manufacturing techniques, each probe operation of the instrument. is slightly different from specified standards. To eliminate inaccuracies caused by exchanging or ageing of probes, Error Meaning the instrument offer easy calibration functions which...
- Page 8 Note: After confirming oP1 by pushing [ENTER/MENUE] the Battery check and Battery changing function oP1(calibration by code) is activated, even though you leave the menu by pressing[ESC]. 1. Battery check By showing the „BAT“ segment the instrument indicates, that the battery has to be exchanged. After showing the „BAT“...
