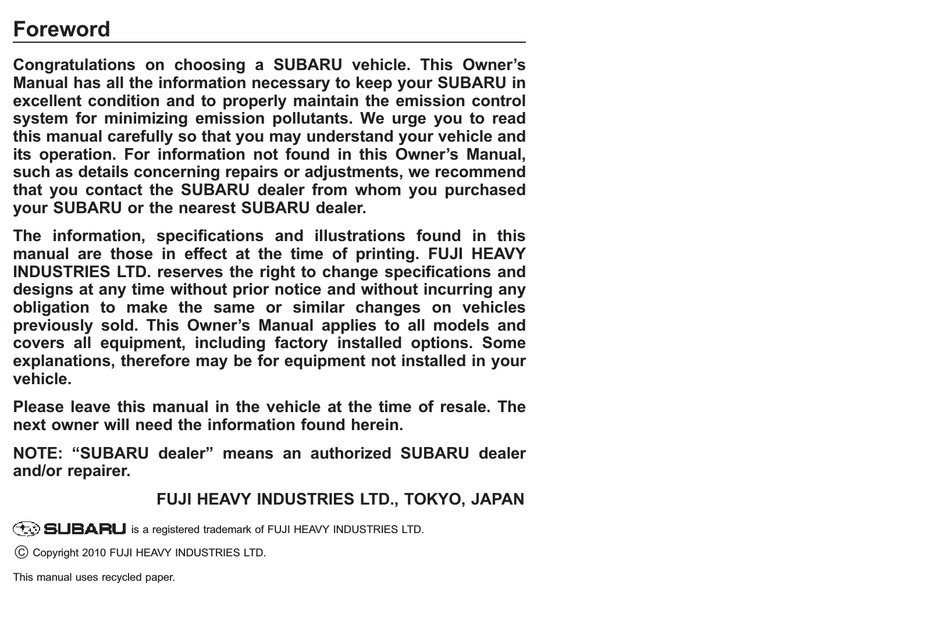

Page 1 Foreword Congratulations on choosing a SUBARU vehicle. This Owner’s Manual has all the information necessary to keep your SUBARU in excellent condition and to properly maintain the emission control system for minimizing emission pollutants. We urge you to read this manual carefully so that you may understand your vehicle and its operation.
Page 2 This manual describes the following vehicle types. Sedan Wagon Outback...
Page 3 This chapter informs you when you need Chapter 3: Instruments and controls to take your SUBARU to the dealer for This chapter informs you about the opera- scheduled maintenance and informs you tion of instrument panel indicators and...
Page 4 Please read these safety warnings as well bution as all other portions of this manual care- Emergency locking retractor fully in order to gain a better understand- ing of how to use your SUBARU vehicle Front-wheel drive safely. Global positioning system High intensity discharge...
Page 5 Mark Name axle weight Fuel Right-hand drive WARNING Research octane number Front fog lights SI-DRIVE SUBARU Intelligent Drive CAUTION Supplemental restraint sys- Rear fog lights Read these instructions care- Vehicle dynamics control fully Hazard warning flasher Wear eye protection Seat heater...
Page 6 Mark Name Mark Name Mark Name Trunk lid open (Sedan)/Rear Instrument panel outlets and Rear window wiper gate unlock (Station wagon) foot outlets (transmitter) Rear window washer Foot outlets Windshield defroster and foot Lights outlets Headlight beam leveler Windshield defroster Tail lights, license plate lights Rear window defogger/Out- and instrument panel illumi-...
Page 7 & Child safety Safety precautions when considerable speed and force. Occupants who are out of proper driving position when the SRS airbag WARNING & Seatbelt and SRS airbag deploys could suffer very serious . Never hold a child on your lap or injuries.
Page 8 System airbag)” F1-44. with considerable speed and They could accidentally injure force and can injure or even kill themselves or others through & Engine exhaust gas (carbon inadvertent operation of the ve- children, especially if they are monoxide) not restrained or improperly re- hicle.
Page 9 & Drinking and driving & Drugs and driving . If at any time you suspect that exhaust fumes are entering the vehicle, have t he probl em WARNING WARNING checked and corrected as soon Drinking and then driving is very There are some drugs (over the as possible.
Page 10 & Driving when tired or sleepy & Modification of your vehicle & Driving vehicles equipped with navigation system WARNING CAUTION WARNING When you are tired or sleepy, your Your vehicle should not be modified. reaction will be delayed and your Modification could affect its perfor- Do not allow the monitor to distract perception, judgment and attentive-...
Page 11 handle. Never restrain pets or pet carriers EU Battery directive 2006/66/ The following devices utilize batteries that in the front passenger’s seat. For further do not have the symbol: information, consult your veterinarian, local animal protection society or pet Followings are the symbol of EU Battery shop.
Page 12: Table Of Contents
Table of contents Seat, seatbelt and SRS airbags Keys and doors Instruments and controls Climate control Audio Interior equipment Starting and operating Driving tips In case of emergency Appearance care Maintenance and service Specifications Supplement Index...
Page 13 Engine hood (page 11-11) Illustrated index Headlight switch (page 3-43) & Exterior Replacing bulbs (page 11-58) Wiper switch (page 3-53) Sunroof (page 2-33) Door locks (page 2-4) Tire pressure (page 11-43) Flat tires (page 9-8) Tire chains (page 8-13) 10) Fog light switch (page 3-49) 11) Tie-down hooks (page 9-23) 12) Towing hook (page 9-23) 13) License plate bracket (3.6 L Australia...
Page 14 Rear window defogger button (page 3-56) Fuel filler lid and cap (page 7-3) Child safety locks (page 2-27) Towing hook (page 9-23) Tie-down hooks (page 9-24) Trunk lid (page 2-31) Rear gate (page 2-32) Bulb replacement (page 11-62) Rear wiper switch (page 3-55) –...
Page 15 & Interior Anchor bars for ISOFIX child restraint system (page 1-39) ! Passenger compartment area Seatbelt (page 1-15) Center console (page 6-6) Front seat (page 1-2) Rear seat (page 1-10)
Page 16 Shift lever (MT) (page 7-17)/Select lever (AT and CVT) (page 7-19) Climate control (page 4-1) Pocket (page 6-7) Navigation system (Refer to the Owner’s Manual supplement for the navigation system) Audio (page 5-1) Multi function display (page 3-40) Glove box (page 6-6) Cup holder (page 6-8) –...
Page 17 & Instrument panel Door locks (page 2-4) Electronic parking brake switch ! Left-hand drive models (page 7-38) Hill Holder switch (page 7-40) Trunk lid opener switch (page 2-32) Vehicle Dynamics Control OFF switch (page 7-37) Remote control mirror switch (page 3-59) Illumination brightness control (page 3-46) Headlight beam leveler (page 3-47)
Page 18 ! Right-hand drive models Door locks (page 2-4) Electronic parking brake switch (page 7-38) Hill Holder switch (page 7-40) Trunk lid opener switch (page 2-32) Vehicle Dynamics Control OFF switch (page 7-37) Remote control mirror switch (page 3-59) Illumination brightness control (page 3-46) Headlight beam leveler (page 3-47) Light control switch (page 3-43) or wiper...
Page 19 & Light control and wiper control levers/switches Windshield wiper (page 3-53) Mist (page 3-53) ! Except Australia models Windshield washer (page 3-54) Rear window wiper and washer switch (page 3-55) Wiper intermittent time control switch (page 3-54)/Sensor sensitivity control (page3-53) Wiper control lever (page 3-50) Light control switch (page 3-43) Fog light switch (page 3-49)
Page 20 ! Australia models Windshield wiper (page 3-53) Mist (page 3-53) Windshield washer (page 3-54) Rear window wiper and washer switch (page 3-55) Wiper intermittent time control switch (page 3-54)/Sensor sensitivity control (page3-53) Wiper control lever (page 3-50) Light control switch (page 3-43) Fog light switch (page 3-49) Headlight ON/OFF/AUTO (page 3-43) 10) Headlight flasher High/Low beam...
Page 21 & Combination meter Trip meter A/B selection and trip meter reset knob (left-hand drive models) (page 3-13)/Multi function display ! Petrol engine models switching knob (right-hand drive models) (page 3-40) Tachometer (page 3-13) Trip meter and odometer (page 3-12) Speedometer (page 3-12) Multi function display switching knob (left-hand drive models) (page 3-40)/Trip meter A/B selection and trip meter reset...
Page 22 ! Diesel engine models Trip meter A/B selection and trip meter reset knob (left-hand drive models) (page 3-13)/Multi function display switching knob (right-hand drive models) (page 3-40) Tachometer (page 3-13) Trip meter and odometer (page 3-12) Speedometer (page 3-12) Multi function display switching knob (left-hand drive models) (page 3-40)/Trip meter A/B selection and trip meter reset knob (right-hand drive models)
Page 23 & Warning and indicator light Mark Name Page Mark Name Page Vehicle Dynamics Con- Mark Name Page Brake system warning 3-24 trol warning light/Vehicle light 3-23 Dynamics Control op- eration indicator light Seatbelt warning light 3-16 Electronic parking brake 3-26 warning light Vehicle Dynamics Con- 3-24...
Page 24 Mark Name Page Cruise control set indi- 3-38 cator light (if equipped) Low fuel warning light 3-27 Shift-up indicator light (if 3-36 equipped) Sport (S) mode indicator light (models with SI- 3-36 DRIVE) Intelligent mode indica- tor light (models with SI- 3-36 DRIVE) Sport Sharp (S#) mode...
Page 25 Function settings A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. We recommend that you contact the nearest SUBARU dealer for details. Item Function Possible settings Default setting Page...
Page 26 Seat, seatbelt and SRS airbags Front seats............Seatbelt with shoulder belt and lap belt pretensioners (driver’s side – except Australia Manual seat ............models) ............1-26 Power seat (if equipped) ........System monitors ..........1-27 Head restraint adjustment........System servicing ..........1-28 Seat heater (if equipped) ........
Page 27: Seat, Seatbelt And Srs Airbags
Seat, seatbelt and SRS airbags Front seats If the front seatbacks are not improperly restrained. Because chil- used in the upright position in a dren are lighter and weaker than collision, the risk of sliding under adults, their risk of being injured WARNING the lap belt and of the lap belt from deployment is greater.
Page 28: Manual Seat
Seat, seatbelt and SRS airbags & Manual seat ! Reclining the seatback ! Forward and backward adjustment WARNING Pull the reclining lever up and adjust the seatback to the desired position. Then To prevent the passenger from slid- Pull the lever upward and slide the seat to release the lever and make sure the ing under the seatbelt in the event of the desired position.
Page 29: Power Seat (If Equipped)
Seat, seatbelt and SRS airbags & Power seat (if equipped) ! Seat cushion height adjustment (if the seat cushion angle or seat cushion height. equipped) Seat cushion angle control switch To adjust the seat cushion angle, pull up or push down the front end of the control switch.
Page 30 Seat, seatbelt and SRS airbags ! Memory function (driver’s seat — if adjusting mechanism. equipped) . When any unusual conditions or malfunctions occur during the WARNING retrieval of the seat position, stop the retrieval of the seat position . Never adjust the seat while driv- by performing any of the follow- ing to avoid the possibility of ing procedures.
Page 31 Seat, seatbelt and SRS airbags . The select lever is in the “P” position the desired button “1” or “2”. (AT and CVT models). 3. The chirp sound sounds once, and the seat position is registered. ! Registration of seat position with each access key 1.
Page 32 Seat, seatbelt and SRS airbags 2. While the select lever is in the “P” ! Retrieval of the seat position regis- involving serious injury or death. position (AT and CVT models) and the tered with access key parking brake is applied, press button “1” 1.
Page 33: Head Restraint Adjustment
Seat, seatbelt and SRS airbags & Head restraint adjustment driver’s door. To remove: (2) Press the “ ” button on the While pressing the release button, pull out access key or the door lock button the head restraint. to lock the doors. To install: (3) Perform the prior procedures Install the head restraint into the holes that...
Page 34: Seat Heater (If Equipped)
Seat, seatbelt and SRS airbags The seat heater operates when the igni- Seat heater (if equipped) tion switch is either in the “Acc” or “ON” position. CAUTION To turn on the seat heater, press the “LOW” or “HIGH” position on the switch, .
Page 35: Rear Seats
1-10 Seat, seatbelt and SRS airbags & Head restraint adjustment Rear seats Both the rear window side seats and the rear center seat are equipped with head restraints. WARNING . Never drive the vehicle with the head restraints removed because they are designed to reduce the risk of serious neck injury in the event that the vehicle is struck...
Page 36 1-11 Seat, seatbelt and SRS airbags To raise: head restraint to the click position. Pull the head restraint up. To lower: Push the head restraint down while pressing the release button on the top of the seatback. To remove: While pressing the release button, pull out the head restraint.
Page 37: Reclining The Seatback (Station Wagon)
1-12 Seat, seatbelt and SRS airbags & Reclining the seatback (Sta- To raise: CAUTION tion wagon) Pull the head restraint up. When using the cargo area cover, To lower: observe the following precautions. Push the head restraint down while . Be careful not to pinch your hand pressing the release button on the top of the seatback.
Page 38: Folding Down The Rear Seatback (Station Wagon)
1-13 Seat, seatbelt and SRS airbags & Folding down the rear seat- move out from the cargo area, back (Station wagon) which could cause serious injury or death. . After returning the rear seatback WARNING to its original position, be certain .
Page 39: Armrest
1-14 Seat, seatbelt and SRS airbags & Loading long objects (Sedan) Armrest operation of the vehicle, possibly causing an accident and serious injury. Folding down the armrest and opening the To lower the armrest, pull on the top edge seatback panel affords a loading space for of the armrest.
Page 40: Seatbelts
1-15 Seat, seatbelt and SRS airbags . Put children in the REAR seat “Child restraint systems” F1-29. Seatbelts properly restrained at all times in & Seatbelt safety tips a child restraint device or in a ! Infants or small children seatbelt, whichever is appropri- Use a child restraint system that is ate for the child’s age, height and...
Page 41: Emergency Locking Retractor (Elr)
SUBARU dealer. slightly, the retractor locks the seatbelt in ! Europe and Australia models & Emergency Locking Retrac- that position and the seatbelt cannot be extended.
Page 42 1-17 Seat, seatbelt and SRS airbags either of the unfastened seatbelts is fastened at this time, the warning light corresponding to that seatbelt will imme- diately turn off but the buzzer will continue operating unless the remaining seatbelt is fastened. This condition (continued opera- tion of the buzzer unless the remaining seatbelt is fastened) will continue for approximately 108 seconds.
Page 43: Rear Seatbelt Indicator Light (Australia Models)
1-18 Seat, seatbelt and SRS airbags & Rear seatbelt indicator light light(s), however, will remain illuminated If the vehicle subsequently reaches a continuously unless the corresponding speed of approximately 20 km/h (12.5 (Australia models) seatbelt(s) is fastened. mph) with the driver’s seatbelt not fas- tened, the warning light will start a ! Other models repeated cycle consisting of 5 seconds...
Page 44 1-19 Seat, seatbelt and SRS airbags . Keep the lap belt as low as ! Front seatbelts possible on your hips. In a colli- 1. Adjust the seat position: sion, this spreads the force of the Driver’s seat: Adjust the seatback to the lap belt over stronger hip bones upright position.
Page 45 1-20 Seat, seatbelt and SRS airbags ! Adjusting the front seat shoulder until you hear a click. WARNING belt anchor height When wearing the seatbelts, make sure the shoulder portion of the webbing does not pass over your neck. If it does, adjust the seatbelt anchor to a lower position.
Page 46 1-21 Seat, seatbelt and SRS airbags ! Rear seatbelts (except rear center Push the button on the buckle. seatbelt on Station wagon) Before closing the door, make sure that the belts are retracted properly to avoid 1. Sit well back in the seat. catching the belt webbing in the door.
Page 47 1-22 Seat, seatbelt and SRS airbags Rear center seatbelt is stowed in the WARNING WARNING recess of the ceiling. Fastening the seatbelt with the web- Be sure to fasten both tongue plates 1. Retrieve the connector (tongue) plate from the slot in the recess by pulling the bing twisted can increase the risk or to the respective buckles.
Page 48 1-23 Seat, seatbelt and SRS airbags “CENTER” on the left-hand side until it 2. Pull out the seatbelt slowly from the retractor. clicks. 4. After fastening the seatbelt, make sure that the “ ” mark on the connector (tongue) and the “ ”...
Page 49 1-24 Seat, seatbelt and SRS airbags ! Unfastening the seatbelt You should hold the webbing end and guide it back into the retractor while it is rolling up. Neatly store the tongue plate in the recess and then insert the connector (tongue) plate into the slot.
Page 50: Seatbelt Maintenance
. Never attempt to make modifica- retractor assemblies replaced with the frontal SRS airbag sensor. If the tions or changes that will prevent genuine SUBARU parts by your author- sensor detects a certain predetermined the seatbelt from operating prop- ized SUBARU dealer.
Page 51: Seatbelt With Shoulder Belt And Lap Belt Pretensioners (Driver's Side - Except Australia Models)
1-26 Seat, seatbelt and SRS airbags & Seatbelt with shoulder belt contact your SUBARU dealer as soon y o u c o n s u l t y o u r n e a r e s t as possible.
Page 52: System Monitors
This smoke does not indicate a we recommend that you contact your reasons, we recommend that fire in the vehicle. SUBARU dealer as soon as possible. you consult your SUBARU deal- . When you sell your vehicle, we urge Once the seatbelt pretensioner has been...
Page 53: System Servicing
If the warning light exhibits any of collision, we recommend that the following conditions, there may pact sensor) you consult your SUBARU deal- . Frontal airbag module (driver’s side) be a malfunction in the seatbelt pretensioners, lap belt pretensioner . Frontal airbag module (front passen- .
Page 54: Precautions Against Vehicle Modification
We recommend that you consult your NOTE commend that you have the work SUBARU dealer if you want to install any performed by your authorized For Australia models: accessory parts to your vehicle. SUBARU dealer.
Page 55: Where To Place A Child Restraint System
When installing the child restraint system, care- straint system fully follow the manufacturer’s instructions. The following descriptions are SUBARU’s recommendations on where to place a According to accident statistics, children are safer when properly restrained in the child restraint system in your vehicle.
Page 56 1-31 Seat, seatbelt and SRS airbags . Top tether anchorages REAR seats at all times. The SRS airbag deploys with considerable Some types of child restraints might not be speed and force and can injure or able to be secured firmly due to projection even kill children, especially if of the seat cushion.
Page 57: Choosing A Child Restraint System
1-32 Seat, seatbelt and SRS airbags & Choosing a child restraint ! Warning label Group 0: for children of a mass less than 10 kg system Group 0 : for children of a mass less than 13 kg Group I: for children of mass from 9 to 18 Group II: for children of mass from 15 to 25 kg Group III: for children of mass from 22 to...
Page 58: Child Restraint Suitability For Each Seating Position (Europe)
II, III : Suitable for “SUBARU Baby-safe plus” that is approved for the use in this mass group. : Suitable for “SUBARU Baby-safe ISOFIX plus” that is approved for the use in this mass group. (* : With ISOFIX fastening only) : Recommended for “SUBARU Duo plus”...
Page 59: Installing Child Restraint Systems With Seatbelt
6: ISOFIX position not suitable for ISOFIX child restraint systems in the mass group and/or this size system, follow the manufacturer’s class. instructions supplied with it. After IL1: SUBARU BABY-SAFE ISOFIX Plus IL2: SUBARU KIDFIX installing the child restraint system, check to ensure that it is held securely in position.
Page 60 1-35 Seat, seatbelt and SRS airbags buckle. child suffering personal injury in the event of an accident may be in- creased. WARNING ! Installing a rearward facing child NEVER INSTALL A REARWARD FA- CING CHILD SEAT IN THE FRONT restraint PASSENGER’S SEAT.
Page 61 1-36 Seat, seatbelt and SRS airbags If the ALR is equipped for the seatbelt, until you hear a click. can be more firmly secured by pushing it refer to “Models with ALR” F1-36. down into the seat cushion and then tightening the seatbelt.
Page 62 1-37 Seat, seatbelt and SRS airbags Sedan 4. Take up the slack in the lap belt. 6. Before having a child sit in the child restraint system, try to move it back and 5. Pull out the seatbelt fully from the forth and right and left to check that it is retractor to change the retractor over from firmly secured in the center of the seat.
Page 63: Installing A Booster Seat
1-38 Seat, seatbelt and SRS airbags & Installing a booster seat “Top tether anchorages” F1-41. 4. To remove the booster seat, press the release button on the seatbelt buckle and 9. To remove the child restraint system, 1. Place the booster seat in the rear allow the belt to retract.
Page 64: Installation Of Child Restraint Systems Using Isofix Anchor Bars
1-39 Seat, seatbelt and SRS airbags & Installation of child restraint effective in preventing or redu- cing injury. systems using ISOFIX an- . Place the lap belt as low as chor bars possible on the child’s hips. High-positioned lap belt will in- crease the risk of sliding under the lap belt and of the lap belt sliding up over the abdomen, and...
Page 65 1-40 Seat, seatbelt and SRS airbags seatbacks of the rear seats. These marks indicate the positions of the ISOFIX anchor bars. Inserting aid 2. While following the instructions sup- plied by the child restraint system manu- NOTE facturer, connect the connectors of the Each anchor bar is located where the seat child restraint system to the anchor bars.
Page 66: Top Tether Anchorages
1-41 Seat, seatbelt and SRS airbags child suffering personal injury in the event of an accident may be in- creased. NOTE Before installing a child restraint sys- tem, ask the manufacturer of the sys- tem to confirm that it is one approved for your vehicle.
Page 67 1-42 Seat, seatbelt and SRS airbags ! Anchorage location ! Station wagon ! Sedan 1. Remove the head restraint at the window-side seating position where the For right seat child restraint system has been installed For center seat (for Australia models) For left seat with the ISOFIX anchor bars or seatbelt;...
Page 68 1-43 Seat, seatbelt and SRS airbags We recommend that you contact your SUBARU dealer if you have any question regarding the installation of a child re- straint system. Sedan Sedan Station wagon Station wagon 2. Open the cover for the appropriate 3.
Page 69: Srs Airbag (Supplemental Restraint System Airbag)
1-44 Seat, seatbelt and SRS airbags *SRS airbag (Supplemental gers) (if equipped) vehicle has the SRS airbag. Restraint System airbag) For instructions and precautions For some models: concerning the seatbelt system, There is a knee airbag equipped for the refer to “Seatbelts” F1-15. *SRS: This stands for supplemental re- driver’s seat as an additional airbag.
Page 70 1-45 Seat, seatbelt and SRS airbags deploys could suffer very serious ward facing child seats) in the injuries. Because the SRS airbag REAR seats at all times. needs enough space for deploy- According to accident statistics, ment, the driver should always children are safer when properly sit upright and well back in the restrained in the rear seating...
Page 71 1-46 Seat, seatbelt and SRS airbags CAUTION . When the SRS airbag deploys, some smoke will be released. This smoke could cause breath- ing problems for people with a history of asthma or other breathing trouble. If you or your passengers have breathing pro- blems after SRS airbag deploys, get fresh air promptly.
Page 72 1-47 Seat, seatbelt and SRS airbags Airbag control module (including impact Left-hand drive models sensor) Front sub sensor (right-hand side) Front sub sensor (left-hand side) Frontal airbag module (front passenger’s side) Frontal airbag module (driver’s side) SRS airbag system warning light –...
Page 73 1-48 Seat, seatbelt and SRS airbags Side airbag module (left-hand side – if Seatbelt pretensioner (right-hand side) Left-hand drive models Side airbag module (right-hand side – if equipped) Rear wheel house impact sensor (right- hand side – if equipped) equipped) Seatbelt pretensioner (left-hand side) Curtain airbag module (left-hand side –...
Page 74 1-49 Seat, seatbelt and SRS airbags Knee airbag module (if equipped) Right-hand drive models Airbag control module (including impact Front sub sensor (right-hand side) sensor) Front sub sensor (left-hand side) Frontal airbag module (front passenger’s side) Frontal airbag module (driver’s side) SRS airbag system warning light –...
Page 75 1-50 Seat, seatbelt and SRS airbags Side airbag module (right-hand side – if Seatbelt pretensioner (left-hand side) Right-hand drive models Side airbag module (left-hand side – if equipped) Rear wheel house impact sensor (left- hand side – if equipped) equipped) Seatbelt pretensioner (right-hand side) Curtain airbag module (right-hand side –...
Page 76: Srs Frontal Airbag
1-51 Seat, seatbelt and SRS airbags & SRS frontal airbag The driver’s SRS frontal airbag is stowed in the center portion of the steering wheel. The passenger’s SRS frontal airbag is stowed near the top of the dashboard under an “SRS AIRBAG” mark. In a moderate to severe frontal collision, the driver’s and front passenger’s SRS frontal airbags deploy and supplement the...
Page 77 1-52 Seat, seatbelt and SRS airbags seatbelt to help avoid injuries that WARNING can result when the SRS airbag contacts an occupant not in proper Never allow a child to stand up, or to position such as one thrown toward kneel on the front passenger’s seat.
Page 78 1-53 Seat, seatbelt and SRS airbags WARNING WARNING Do not attach accessories to the For models with knee airbag: windshield, or fit an extra-wide mir- . The key must not be attached to ror over the rear view mirror. If the heavy, sharp or hard acces- SRS airbag deploys, those objects sories, or another key.
Page 79 1-54 Seat, seatbelt and SRS airbags ! Operation The SRS airbag can function only when the ignition switch is in the “ON” position. If the front sub sensors located on both the right and left sides at the front of the vehicle and the impact sensor in the airbag control module detect a certain predetermined amount of force during a...
Page 80 1-55 Seat, seatbelt and SRS airbags fairly loud inflation noise will be heard and level differs from one type of collision to ! At what other times might the SRS some smoke will be released. These another, and it may have no bearing on frontal airbag deploy? occurrences are normal result of the the visible damage done to the vehicle...
Page 81 1-56 Seat, seatbelt and SRS airbags plunges into a deep ditch, is severely impacted or knocked hard against an obstacle on the road such as a curb).
Page 82 1-57 Seat, seatbelt and SRS airbags The vehicle strikes an object, such as a ! When is the SRS frontal airbag unlikely to deploy? telephone pole or sign pole. The vehicle slides under the load bed of a truck. The vehicle sustains an oblique offset frontal impact.
Page 83: Srs Side Airbag And Srs Curtain Airbag (If Equipped)
1-58 Seat, seatbelt and SRS airbags & SRS side airbag and SRS ! When will the SRS frontal airbag not low-speed frontal collision. curtain airbag (if equipped) deploy? The SRS side airbag is stored in the door side of each front seat seatback, which bears an “SRS AIRBAG”...
Page 84 1-59 Seat, seatbelt and SRS airbags tion provided by the seatbelt. They deployment may cause injuries if do not do away with the need to your head or other parts of the fasten seatbelts. It is also important body are too close to the SRS to wear your seatbelt to help avoid side airbag.
Page 85 1-60 Seat, seatbelt and SRS airbags back. In the event of an accident, WARNING the force of the SRS side airbag deployment could injure the child . Do not attach accessories to the seriously because his/her head door trim or near either SRS side or arms or other parts of the airbags and do not place objects body are too close to the SRS...
Page 86 1-61 Seat, seatbelt and SRS airbags ! Operation locations. passenger compartment and . In the left and right center pillars cause serious injuries. They could also prevent proper opera- . In the left and right rear wheel houses tion of the SRS curtain airbags. .
Page 87 1-62 Seat, seatbelt and SRS airbags ! When will the SRS side airbag and airbag deploy even when no one occupies basically not designed to deploy in a the seat on the side on which an impact is lesser side impact. SRS curtain airbag most likely de- applied.
Page 88 1-63 Seat, seatbelt and SRS airbags The vehicle is involved in an oblique ! When are the SRS side airbag and SRS curtain airbag unlikely to deploy? side-on impact. The vehicle is involved in a side-on impact in an area outside the vicinity of the passenger compartment.
Page 89: Srs Airbag System Monitor
1-64 Seat, seatbelt and SRS airbags ! When will the SRS side airbag and & SRS airbag system monitor In the event of accidents like those illustrated, the SRS side airbag and SRS SRS curtain airbag not deploy? curtain airbag are basically not designed to deploy.
Page 90: Srs Airbag System Servicing
If the warning light exhibits any of the work performed by an author- the following conditions, there may ized SUBARU dealer. The SRS air- be a malfunction in the seatbelt bag control module, impact sensors – CONTINUED –...
Page 91: Precautions Against Vehicle Modification
. Attachment of additional trim . In each roof side (from the front airbags, we recommend that you con- tact your SUBARU dealer as soon as materials to the dashboard pillar to a point over the rear seat) possible in the following cases.
Page 92 Do not perform any of the following modifications. Such modifications We recommend that you always consult can interfere with proper operation your SUBARU dealer if you want to install of the SRS airbag system. any accessory parts on your vehicle. . Attachment of any equipment (bush bar, bullbar, winches, snow plow, skid/sump plate, etc.) to the...
Page 93 Keys and doors Keys ..............Remote keyless entry system (if equipped) ............ 2-20 Key number plate ..........Locking and unlocking doors ......2-21 Immobilizer ............Opening trunk lid..........2-22 Security ID plate..........Unlocking rear gate ........... 2-22 Immobilizer indicator light ........Replacing battery..........
Page 94: Keys And Doors
Keys and doors Keys key if you lose your key or lock it inside the CAUTION vehicle. Do not attach a large key holder or For information on making replacement NOTE key case to either key. If it bangs keys, refer to “Key replacement” F2-4. For models with “keyless access with against your knees while you are push-button start system”, refer to...
Page 95: Immobilizer
Keys and doors & Security ID plate munications Terminal Equipment Directive Immobilizer 1999/5/EC. A copy of the original Declara- tion of Conformity and the CE marking are The immobilizer system is designed to found in the chapter 13. prevent an unauthorized person from starting the engine.
Page 96: Immobilizer Indicator Light
If this occurs, we recom- Only the driver’s door can be locked the registration of keys with your immo- mend that you contact your SUBARU from the outside using the key. bilizer system, we recommend that you dealer as soon as possible.
Page 97: Locking From The Outside Without Key
Keys and doors ! Models with double locking system 1. Remove the key from the ignition To lock the rear door from the outside switch (models without keyless access without the key, rotate the lock lever To lock the doors and the rear gate with push-button start system) or turn rearward and close the door.
Page 98: Locking And Unlocking From The Inside
& Battery drainage prevention SUBARU dealer. We recommend that function you contact the nearest SUBARU dealer if you would like to change the setting. If a door or the rear gate (Station wagon) is not completely closed, the interior lights NOTE will remain illuminated as a result.
Page 99: Power Door Locking Switch
SUBARU dealer. We recommend that (Station wagon) using the remote you contact a SUBARU dealer for details. transmitter, turning the power door NOTE locking switch to the unlock position When leaving the vehicle, make sure has no effect.
Page 100: Keyless Access With Push-Button Start System (If Equipped)
1999/5/EC. “Disabling keyless access func- tion” F2-17. The setting can also Access key (main) WARNING be changed by a SUBARU dealer. Access key (sub) For more details, we recommend Key number plate If you wear an implanted pacemaker that you contact a SUBARU deal-...
Page 101 Keys and doors waves are periodically output from the antennas installed on the vehicle as shown in the following illustrations. * Radio frequency: 134 kHz Sedan Station wagon Antenna Antenna – CONTINUED –...
Page 102 F2-17. The setting can . Never leave or store the access access key and the vehicle under also be changed by a SUBARU key inside the vehicle (e.g., on the following conditions, and it dealer. For more details, we re-...
Page 103: Locking And Unlocking With "Keyless Access
SUBARU dealer. municating with the vehicle; . For a spare access key, we recom- thus, it is continuously using mend that you contact a SUBARU the battery. Although the life of dealer. the battery varies depending on . Up to 7 access keys can be regis- the operating conditions, it is tered for one vehicle.
Page 104 2-12 Keys and doors rear gate ornament. and rear gate using the door lock operating range, the keyless access . The operating range of the trunk open- button, rear lock button or access key functions may not operate properly. . When the access key is within the button when the push-button ignition ing function is approximately 40 to 80 cm switch is on the “Acc”...
Page 105 2-13 Keys and doors where wireless equipment is used), or button. ! Opening rear gate (Station wagon) while talking on a cell phone, the ! Unlocking operating ranges may be reduced, or the keyless access functions may not operate. In such a case, perform the procedure described in “When access key does not operate properly”...
Page 106 2-14 Keys and doors . While any of the doors, rear gate or ! Opening trunk (Sedan) ! Locking with the door lock button trunk is open, even if you press the door lock button, they cannot be locked. At this time, the hazard warning flashers and warning chimes operate 5 times to notify that any of them is open.
Page 107: Locking And Unlocking Doors By Remote Keyless Entry System (Locking And Unlocking By Buttons)
! Power saving function SUBARU dealer. For more details, we tions may not work. In such a case, the recommend that you contact a SUBARU The keyless access function will be functions will recover by unlocking dealer.
Page 108 The setting can be changed by a For further details, we recommend that gate will be unlocked. SUBARU dealer. For more details, we you consult a SUBARU dealer. recommend that you contact a SUBARU dealer.
Page 109: Opening Trunk Lid/Unlocking Rear Gate By Remote Keyless Entry System (Operating By Buttons)
. The locking and unlocking function by the remote keyless entry system is not disabled. . The setting can also be changed at SUBARU dealers. For more details, we recommend that you contact a When the “ ” button on the access key SUBARU dealer.
Page 110: When Access Key Does Not Operate Properly
2-18 Keys and doors ! Locking and unlocking by mechan- door once. 8. Within 5 seconds after step 7 is ical key performed, close the door. A chirp sound will be heard, and the functions are disabled. NOTE In steps 4 and 6, press the power door locking switch slowly.
Page 111: Replacing Battery Of Access Key
2-19 Keys and doors & Replacing battery of access If the operation of the keyless access function or the operating distance of the remote keyless entry system is unstable, the battery of the access key may be discharged. Replace the battery with a new one.
Page 112: Remote Keyless Entry System (If Equipped)
With a Sedan, it can be used to lock and . It is recommended that the battery unlock all of the doors and to open the should be replaced at a SUBARU deal- trunk lid. The system’s operable distance will be .
Page 113: Locking And Unlocking Doors
2-21 Keys and doors & Locking and unlocking doors gate will be unlocked. CAUTION ! Locking When you carry the remote trans- Pressing the “ ” button locks all doors and mitter on an airplane, do not press the button of the remote transmitter the rear gate (Station wagon).
Page 114: Opening Trunk Lid
SUBARU deal- time period after which locking takes er. If you have to replace the battery by place) can be changed by a SUBARU yourself, use utmost care that no dust and dealer. We recommend that you contact water may enter the transmitter.
Page 115 2-23 Keys and doors CAUTION . Do not let dust, oil or water get on or in the transmitter when repla- cing battery. . Be careful not to damage the printed circuit board in the trans- mitter when replacing the battery. .
Page 116: Double Locking System (If Equipped)
2-24 Keys and doors 7. Reinstall the screw on the transmitter Double locking system (if case. equipped) The double locking system is an anti-theft system. It operates when the doors are locked using the key or remote transmitter. While this system is operating, the power door locking switch and door lock levers inside the cabin cannot be used to unlock the doors.
Page 117: To Set Double Locking System
2-25 Keys and doors & To set double locking system & To cancel double locking ! Setting system using remote trans- mitter system ! Setting system using key 1. Remove the key from the ignition ! Canceling system using key 1.
Page 118: In An Emergency
2-26 Keys and doors & If a battery goes dead ! Canceling system using remote Function disabling unlocking transmitter with the power door locking If the double locking system cannot be Press the “ ” button on the transmitter. canceled because the vehicle battery or switch (Australia models) The hazard warning flashers will flash transmitter battery has gone dead or...
Page 119: Child Safety Locks
2-27 Keys and doors This function is canceled when the doors Child safety locks WARNING are unlocked using the remote keyless entry system or the ignition switch is Always turn the child safety locks to turned to “ON”. the “LOCK” position when children sit on the rear seat.
Page 120: Windows
2-28 Keys and doors ! Operating the driver’s window & Power window operation by Windows driver ! Driver’s side power window WARNING switches To avoid serious personal injury caused by entrapment, you must do the following. . When operating the power win- dows, be extremely careful to prevent anyone’s fingers, arms, neck, head or other objects from...
Page 121 2-29 Keys and doors ! Anti-entrapment function This switch also has a one-touch auto up trapped between the window and the function that allows the window to be window frame, it automatically moves closed fully without holding the switch. down slightly and stops. CAUTION Pull the switch up until it clicks and release ! Operating the passengers’...
Page 122: Power Window Operation By Passengers
2-30 Keys and doors & Power window operation by ! Locking the passengers’ windows ! Operating the windows passengers ! Passenger’s side power window switches Lock To open: Unlock Press the switch down and hold it until the window reaches the desired position. Press the lock switch.
Page 123: Initialization Of Power Window
2-31 Keys and doors & Initialization of power win- & To open and close the trunk Trunk lid (Sedan) lid from outside If the vehicle’s battery is disconnected due The trunk lid can be opened using the WARNING to situations such as battery or fuse keyless access function or remote keyless replacement, the following functions are entry system.
Page 124: To Open The Trunk Lid From Inside
2-32 Keys and doors & To open the trunk lid from Rear gate (Station wagon) To open: First unlock the rear gate lock then push inside the rear gate opener button. The rear gate can be locked and unlocked Press the trunk lid opener switch for more using any of the following systems.
Page 125: Sunroof (If Equipped)
2-33 Keys and doors NOTE Sunroof (if equipped) gate by pulling on the recessed grip from inside the cargo area. If the rear gate cannot be unlocked due There is a danger of your hand to a discharged vehicle battery, a WARNING being caught and injured.
Page 126: Sunroof Switches
2-34 Keys and doors & Sunroof switches . Never try to check the anti-en- may cause damage to the sunroof. trapment function by deliberately The sunroof has both tilting and sliding NOTE placing part of your body in the functions. One-touch operation does not take sunroof.
Page 127: Sun Shade
2-35 Keys and doors Press the “OPEN/CLOSE” switch forward CAUTION to close the sunroof. To stop the sunroof at a selected mid-way Never attempt to test this function position while opening or closing it, mo- using fingers, hands or other parts mentarily press the switch to the “OPEN”...
Page 128 Instruments and controls Ignition switch (models without push- Malfunction indicator lamp (Check Engine light) ............... 3-19 button start system)......... Coolant temperature low indicator light/Coolant LOCK..............temperature high warning light......3-20 Acc..............Charge warning light.......... 3-21 ON..............Oil pressure warning light ........3-21 START ..............
Page 129 Instruments and controls Turn signal indicator lights ......... 3-37 Turn signal lever ..........3-45 High beam indicator light ........3-37 Illumination brightness control......3-46 Cruise control indicator light (if equipped) ..3-37 Headlight beam leveler (if equipped) ....3-46 Cruise control set indicator light Automatic headlight beam leveler (models with (if equipped).............
Page 130: Ignition Switch (Models Without Push- Button Start System)
Instruments and controls slightly to the left and right as you turn Ignition switch (models with- ignition switch for safety and the ignition switch. never allow an unattended child out push-button start sys- to remain in the vehicle. Failure tem) &...
Page 131: Acc
Instruments and controls & Acc NOTE contains an immobilizer transponder. . The key is near or touching another The engine may not start in the follow- In this position the electrical accessories transmitter. ing cases. (audio, accessory power outlet, etc.) can be used.
Page 132: Push-Button Ignition Switch (Models With Push-Button Start System)
“Disabling keyless access func- tion” F2-17. The setting can also WARNING be changed by a SUBARU dealer. For more details, we recommend If you wear an implanted pacemaker that you contact a SUBARU deal- or an implanted defibrillator, stay at least 22 cm (8.7 in) away from the...
Page 133 Instruments and controls status of the access key and the environmental conditions may interfere with the communication between the access key and the vehicle under the following con- ditions, and it may not be possi- ble to lock or unlock the doors or start the engine.
Page 134 F2-17. The setting can – Do not wash the access key in . Never leave or store the access also be changed by a SUBARU an ultrasonic washer. key inside the vehicle (e.g., on dealer. For more details, we re- –...
Page 135: Operating Range For Push-Button Start System
For reregistration of an access key, we recommend that you contact a SUBARU dealer. . For a spare access key, we recom- mend that you contact a SUBARU dealer. . Up to 7 access keys can be regis- tered for one vehicle.
Page 136: Switching Power
Instruments and controls & Switching power – Inside the glove box ignition switch illuminates in orange. – Inside the door trim pocket – On the rear seat Power Indicator color Operation – On the rear shelf (Sedan) status – Inside the trunk (Sedan) Power is turned Turned off –...
Page 137: When Access Key Does Not Operate Properly
“ ” or “ ” position), we recommend that 4. Hold the access key with the buttons you have the vehicle inspected facing you, and touch the push-button at a SUBARU dealer. ignition switch with it.
Page 138: Hazard Warning Flasher
The hazard warning flasher is used to you contact your SUBARU dealer. following sequence. warn other drivers when you have to park 1. Warning lights, indicator lights, meter your vehicle under emergency conditions.
Page 139: Canceling The Function For Meter/Gauge Needle Movement Upon Turning On The Ignition Switch
3-12 Instruments and controls & Canceling the function for & Speedometer meter/gauge needle move- The speedometer shows the vehicle ment upon turning on the speed. ignition switch ! Speed warning chime (if equipped) When the speed is over approximately 120 km/h (75 mph), a chime sounds. &...
Page 140: Double Trip Meter
3-13 Instruments and controls ometer/trip meter, the odometer/trip meter position, the odometer/trip meter will light and keep the knob pressed for more than will turn off. up. It is possible to switch between the A 2 seconds. trip meter and B trip meter indications Also, if you open and close the driver’s CAUTION while the odometer/trip meter is lit up.
Page 141: Fuel Gauge
3-14 Instruments and controls “N” position (CVT models and 3.6 L AT NOTE The fuel gauge shows the approximate models) or the shift lever is in the amount of fuel remaining in the tank. When the ignition switch is in the “LOCK”/ neutral position (for 2.5 L non-turbo MT “OFF”...
Page 142: Eco Gauge
3-15 Instruments and controls & ECO gauge when the fuel tank is nearly empty. It only shown until driving 1 km (0.6 mile). operates when the ignition switch is in the Before that time, the ECO gauge does “ON” position. When this light illuminates, not operate.
Page 143: Warning And Indicator Lights
: Hill Holder indicator light : Seatbelt warning light We recommend that you consult your (The seatbelt warning light turns off authorized SUBARU dealer for repair. : Low fuel warning light only when the driver fastens the & Seatbelt warning light : Door open warning light seatbelt.)
Page 144 3-17 Instruments and controls following locations. either of the unfastened seatbelts is fastened at this time, the warning light corresponding to that seatbelt will imme- diately turn off but the buzzer will continue operating unless the remaining seatbelt is fastened. NOTE .
Page 145: Rear Seatbelt Indicator Light (Australia Models)
3-18 Instruments and controls ! Other models & Rear seatbelt indicator light repeated cycle consisting of 5 seconds Your vehicle is equipped with a seatbelt of flashing followed by 1 second of steady (Australia models) warning device at the driver’s seat. illumination.
Page 146: Malfunction Indicator Lamp (Check Engine Light)
! Models equipped with OBD system vehicle checked/repaired by your If the warning light exhibits any of Vehicles sold in Europe are equipped with SUBARU dealer as soon as possi- the following conditions, there may an enhanced on-board diagnostics sys- ble. Continued vehicle operation...
Page 147: Coolant Temperature Low Indicator Light/Coolant Temperature High Warning Light
! Models NOT equipped with OBD SUBARU dealer immediately for mend that you contact your system an inspection. SUBARU dealer for an inspec- If the malfunction indicator lamp illumi- – It remains blinking in RED. tion. nates when the engine is running, it may –...
Page 148: Charge Warning Light
RED. illuminated, we recommend that you con- changes to BLUE and maintains illumina- However, this is not a malfunction if the tact your nearest SUBARU dealer imme- tion in BLUE. This BLUE illuminated light indicator light/warning light turns off diately.
Page 149: At Oil Temp Warning Light (At And Cvt Models)
! Transmission control system warn- but it does not turn off even recommend that you have the system when the vehicle speed ex- checked by a SUBARU dealer. If the “AT OIL TEMP” warning light flashes ceeds approximately 12 km/h (8 mph).
Page 150: Vehicle Dynamics Control Warning Light/Vehicle Dynamics Control Operation Indicator Light
Vehicle Dynamics Con- you have your vehicle checked at a if the EBD system becomes malfunction- SUBARU dealer as soon as possi- trol operation indicator ing. For further details of the EBD system ble.
Page 151: Vehicle Dynamics Control Off Indicator Light
We recommend that you light immediately, remaining off. have your vehicle checked at a SUBARU . The warning light illuminates after dealer as soon as possible. WARNING the engine has started and turns off .
Page 152 NOTE . The brake system warning light may towed to the nearest SUBARU dealer for . When the ignition switch is turned to repair. For details, refer to “Towing” F9- flash after the electronic parking brake the “LOCK”/“OFF”...
Page 153: Electronic Parking Brake Warning Light
“ON” position and turns off “Electronic parking brake” F7-38. We recommend that you drive carefully to after approximately 2 seconds. the nearest SUBARU dealer and have the ! Parking brake apply inhibit warning This light illuminates when the electronic system inspected.
Page 154: Hill Holder Indicator Light
Immediately stop filter has reached the specified level. If this est SUBARU dealer and have the the vehicle in a safe location. We warning light illuminates, we recommend vehicle inspected immediately.
Page 155: Door Open Warning Light
3-28 Instruments and controls in the “ON” position. When this light Always make sure this light is not illumi- excessively low inflation pressure. illuminates, fill the fuel tank immediately. nated before you start to drive. The All-Wheel Drive warning light illumi- &...
Page 156: Warning Chimes And Warning Light Of The Keyless Access With Push-Button Start System (If Equipped)
F2-32. position, we recommend that you have . Take out the access key from the NOTE your vehicle inspected at your SUBARU trunk, and close the trunk lid. dealer. Close the door that is open, and lock .
Page 157 3-30 Instruments and controls NOTE NOTE ! Warnings by warning light . Switch the push-button ignition When a chirp sound is heard, shift the switch to “OFF”, and lock the doors. select lever to the “P” position, switch When the push-button ignition switch the push-button ignition switch to is in a position other than “OFF”, it is “OFF”, and get out of the vehicle.
Page 158 3-31 Instruments and controls . When the access key is taken out of ! Warning by flashing of operation access key and the environmental conditions. the vehicle through an open window, indicator on push-button ignition the warning will not be provided. switch ! Access key warning ! Passenger access key takeout warn-...
Page 159 In case the keyless access with push- button start system has a malfunction, the operation indicator on the push-button ignition switch flashes in orange. CAUTION When the operation indicator flashes in orange, we recommend that you contact a SUBARU dealer immediately.
Page 160 3-33 Instruments and controls ! List of warnings Operation indi- Outside warning Access key Inside warning cator on push- chime (except warning light on Status Action chime button ignition China models) meter switch Switch the push-button ignition The driver’s door was opened while switch to “OFF”, or close the driver’s the push-button ignition switch is door.
Page 161: Instruments And Controls
3-34 Instruments and controls Operation indi- Outside warning Access key Inside warning cator on push- chime (except warning light on Status Action chime button ignition China models) meter switch The door lock button was pressed Return the access key inside the while carrying the access key and vehicle, or switch the push-button ignition switch to “OFF”.
Page 162 We recommend that you contact a Flashes in or- A malfunction was detected in the — — — SUBARU dealer immediately and ange power system or steering lock. have the vehicle inspected. – CONTINUED –...
Page 163: Immobilizer Indicator Light
Refer to working properly. We recommend that you “Automatic transmission/Continuously contact your nearest SUBARU dealer variable transmission” F7-19. immediately. ! MT models In case an unauthorized key is used, the The shift-up indicator light illuminates and immobilizer indicator light illuminates.
Page 164: Turn Signal Indicator Lights
Refer to “Front turn signal light” F11-61 or simultaneously during driving, we re- “Rear combination lights” F11-62. : MT models only commend that you have the vehicle checked by your nearest SUBARU & 3. To change the current setting, press High beam indicator dealer.
Page 165: Cruise Control Set Indicator Light (If Equipped)
We recommend that you have your (diesel engine models) vehicle checked by your nearest & Rear fog light indicator SUBARU dealer. The diesel particulate filter warning light light (if equipped) will illuminate when the ignition switch is & turned to the ON position and then turn off...
Page 166: Clock
NOTE inate it. The warning light turns off when while the diesel particulate filter the soot is eliminated. Your SUBARU dealer can change the warning light is illuminated, the settings of activating/deactivating the warning light will begin to flash. In...
Page 167: Multi Function Display
3-40 Instruments and controls ments. If you press the “−” button, the With the ignition switch in the “ON” Multi function display indicated time will decrease in one-minute position, each successive press of the decrements. If you keep the button multi function display switching knob pressed, the rate at which the indicated toggles the display in the following se-...
Page 168: Average Fuel Consumption
3-41 Instruments and controls & Average fuel consumption NOTE ! Road surface freeze warning indi- . The indicated values vary in accor- cation dance with changes in the vehicle’s When the outside temperature drops to running conditions. Also, the indicated 38C (378F) or lower, the temperature values may differ slightly from the indication flashes to show that the road...
Page 169: Current Fuel Consumption
3-42 Instruments and controls & Current fuel consumption & Driving range on remaining fuel U.K. models Except U.K. models Type A If the driving range is shown as “ ”, Type B U.K. models Type C there is only a tiny amount of fuel left in the Except U.K.
Page 170: Light Control Switch
3-43 Instruments and controls & Headlights Light control switch CAUTION . Use of any lights for a long period The light control switch operates when the key is inserted into the ignition switch. For of time while the engine is not models with the “Keyless access with running can cause the battery to push-button start system”, the light control...
Page 171: High/Low Beam Change (Dimmer)
SUBARU dealer. We recommend that lights may not operate properly. you contact your SUBARU dealer for details. ! Sensor of the auto on/off headlights (if equipped) To change from low beam to high beam, push the turn signal lever forward.
Page 172: Headlight Flasher
3-45 Instruments and controls & Headlight flasher NOTE Turn signal lever For models with a turn signal lever equipped on the right side of the steering wheel, the pushing direction of the turn signal lever is the opposite of that described here. To flash the headlights, pull the lever To activate the right turn signal, push the toward you and then release it.
Page 173: Illumination Brightness Control
3-46 Instruments and controls NOTE Illumination brightness con- Headlight beam leveler (if . When the control dial is turned fully trol equipped) upward, the illumination brightness & Automatic headlight beam becomes the maximum and the auto- matic dimming function does not work leveler (models with HID at all.
Page 174: Manual Headlight Beam Leveler (Models Without Hid Headlights, If Equipped)
3-47 Instruments and controls & Manual headlight beam leve- ler (models without HID headlights, if equipped) Adjust the headlight beam level with the following dial positions according to the number of passengers and load condition. – CONTINUED –...
Page 175 3-48 Instruments and controls Number of front seat Number of rear seat Load in the luggage Dial position Trailer towing occupants occupants compartment area 1 or 2 No load No load Full load Full load Full load Full load Full load Not applicable Not applicable Not applicable...
Page 176: Fog Light Switch
3-49 Instruments and controls & Rear fog light switch (if Fog light switch equipped) & Front fog light switch The indicator light on the combination meter will illuminate when the front fog lights are illuminated. The rear fog light operates under the The front fog lights operate under the following conditions.
Page 177: Wiper And Washer
3-50 Instruments and controls . The push-button ignition switch is Wiper and washer turned off (models with the “Keyless access with push-button start sys- tem”). WARNING However, this does not mean that the In freezing weather, do not use the rear fog light illuminates when the light windshield washer until the wind- switch is set to “...
Page 178 . Grease, wax, insects or other mate- pectedly and cause injury. winter, use SUBARU Windshield . When having your vehicle rial on the windshield or the wiper Washer Fluid or the equivalent.
Page 179 “ON” position, the We recommend that you contact your SUBARU dealer and have the wipers will operate once. This indicates that the wiper switch is in the “AUTO” system inspected as soon as pos- sible.
Page 180: Windshield Wiper And Washer Switches
The setting can be changed by a SUBARU dealer. For more details, we recommend that you contact a SUBARU dealer. Turn the dial to adjust the sensitivity of the rain sensor.
Page 181 3-54 Instruments and controls ! Windshield wipers (models without ! Windshield washer ! Wiper intermittent time control automatic rain sensing windshield wipers) When the wiper switch is in the “INT” To wash the windshield, pull the wiper control lever toward you. The washer fluid position, turn the dial to adjust the operat- MIST : Mist (for a single wipe) sprays until you release the lever.
Page 182: Rear Window Wiper And Washer Switch (Station Wagon)
3-55 Instruments and controls & Rear window wiper and NOTE mittently at intervals corresponding to the vehicle speed (longer when the vehicle washer switch (Station wa- When the amount of washer fluid is speed is low; shorter when the vehicle getting low, the rear washer fluid will gon) speed is high).
Page 183: Defogger And Deicer
3-56 Instruments and controls Defogger and deicer window defogger. Some models are also equipped with an outside mirror defogger and/or windshield wiper deicer. The de- fogger and deicer system is activated only when the ignition switch is in the “ON” position.
Page 184 SUBARU dealer. We 15 km/h (9 mph) or lower for 15 recommend that you contact your minutes, the windshield wiper deicer SUBARU dealer for details.
Page 185: Headlight Washer (If Equipped)
3-58 Instruments and controls Headlight washer (if Mirrors CAUTION equipped) Do not operate the washer if the Always check that the inside and outside washer fluid tank is empty. This may mirrors are properly adjusted before you cause overheating of the washer start driving.
Page 186: Outside Mirrors
3-59 Instruments and controls & Outside mirrors ! Remote control mirror switch ! Power folding mirror switch (if equipped) The remote control mirrors operate only ! Convex mirror when the ignition switch is in the “ON” or The power folding mirror switch operates “Acc”...
Page 187: Tilt/Telescopic Steering Wheel
3-60 Instruments and controls work. This is not a malfunction. Oper- Tilt/telescopic steering wheel ate after waiting for a short period of time. . When you unfold the outside mirrors WARNING manually, the mirrors may become . Do not adjust the steering wheel wobbly.
Page 188: Horn
3-61 Instruments and controls Horn To sound the horn, push the horn pad.
Page 189 Climate control Ventilator.............. Lubrication oil circulation in the refrigerant circuit.............. 4-11 Airflow selection ..........Checking air conditioning system before summer Ventilators............season ............4-11 Automatic climate control system ..... Cooling and dehumidifying in high humidity and Control panel ............low temperature weather conditions ....4-11 Temperature sensors..........
Page 190: Climate Control
Climate control Ventilator & Airflow selection ! Left-hand drive models Models with rear ventilators...
Page 191 Climate control ! Right-hand drive models Models with rear ventilators – CONTINUED –...
Page 192: Ventilators
Climate control & Ventilators ! Side ventilators ! Rear ventilators (if equipped) ! Center ventilators Open Open Close Close Open Move the tab to adjust the flow direction. Move the tab to adjust the flow direction. Close To open the ventilator, turn the side grille To open the ventilator, turn the rear grille Move the tab to adjust the flow direction.
Page 193: Automatic Climate Control System
Climate control Automatic climate control system NOTE . Operate the automatic climate con- trol system when the engine is running. . The blower fan rotates at a low speed when the engine coolant tem- perature is low. For efficient defogging or dehumidify- ing in cold weather, press the “A/C”...
Page 194: Control Panel
Climate control & Control panel Temperature control button (driver’s side) Dual mode button Airflow mode selection button Fan speed control button Temperature control button (front pas- senger’s side) AUTO button OFF button Air inlet selection button Defroster button 10) Rear window defogger button (Refer to “Defogger and deicer”...
Page 195 Climate control ! AUTO button ! Temperature control button you operated. To change the system back to the FULL AUTO mode, press the FULL AUTO mode operation: “AUTO” button. ! OFF button Left-hand side When the “AUTO” button is pressed, the indicator light “FULL AUTO”...
Page 196 Climate control setting, press the “ ” side of the tempera- pressing the “AUTO” button or turn off by To deactivate the DUAL mode: pressing the “OFF” button. Press the “DUAL” button again. When the ture control button. Alternatively, press the “ ”...
Page 197 Climate control ! A/C – Air conditioner button ! Airflow mode selection button (Heat-def): Windshield defroster out- lets, foot outlets and both side outlets of the instrument panel NOTE When the “ ” mode is selected, the air conditioner compressor automatically operates to quickly defog the wind- shield.
Page 198: Temperature Sensors
4-10 Climate control & Temperature sensors when driving on a dusty road. The properly and become damaged, the sys- indicator light will illuminate. tem may not be able to control the interior temperature correctly. To avoid damaging OFF position (outside air): Outside air is the sensors, observe the following pre- drawn into the passenger compartment.
Page 199: Operating Tips For Heater And Air Conditioner
We recommend because cooling performance is impaired that you have the air conditioning system by any accumulation of insects and leaves checked by your SUBARU dealer. on the condenser. & Cooling and dehumidifying in & Efficient cooling after parking...
Page 200: Refrigerant For Your Climate Control System
Repairs needed as a result of using the mended that you have your filter checked wrong refrigerant are not covered under or replaced by your SUBARU dealer. For warranty. replacement, we recommend that you use only a genuine SUBARU air filter kit.
Page 201 4-13 Climate control (3) Pull out the glove box. 3. Remove the shelf. 5. Remove the air filter. 4. Remove the cover of the air filter. 6. Replace the air filter element with a 2. Disconnect the connector. new one. 7.
Page 202 4-14 Climate control CAUTION The arrow mark on the filter must point UP. 9. Connect the connector. 11. Reinstall the glove box, and connect the damper shaft. 12. Close the glove box. 13. LABEL installation (1) Fill out the information on the 8.
Page 203 4-15 Climate control Service label Caution label (2) Attach the service label to the (3) Attach the caution label on the driver’s side door pillar. driver’s side of the instrument panel as shown in the illustration.
Page 204: Audio
Audio Antenna system ..........Fast-forwarding and fast-reversing ..... 5-18 Repeating ............5-19 Printed antenna........... Random playback ..........5-20 FM reception ............Scan ..............5-21 Installation of accessories........Display selection ..........5-22 Audio set ............. Folder selection ..........5-23 Type A audio set (if equipped) ......How to eject CDs from the player .......
Page 205: Antenna System
Audio & FM reception NOTE Antenna system Antenna performance will deteriorate Although FM is normally static free, & Printed antenna significantly if you apply tinting film or reception can be affected by the surround- any other material over the antenna ing area, atmospheric conditions, station portion of the rear window glass.
Page 206: Installation Of Accessories
Audio Installation of accessories Audio set We recommend that you always consult Your SUBARU may be equipped with one your SUBARU dealer before installing a of the following audio sets. See the pages citizen band radio or other transmitting indicated in this section for operating device in your vehicle.
Page 207: Type A Audio Set (If Equipped)
Audio & Type A audio set (if equipped) The illustration shown is for left-hand drive models. The switch positions for a right- hand drive models are the opposite of those shown. The audio set will operate only when the ignition switch is in the “Acc” or “ON” position.
Page 208: Type B Audio Set (If Equipped)
Audio & Type B audio set (if equipped) The audio set will operate only when the ignition switch is in the “Acc” or “ON” position. . Power and sound controls: refer to page 5-6 . Radio operation: refer to page 5-9 .
Page 209: Power And Sound Controls
Audio & Sound control ! Other sound setting controls Power and sound controls ! Tone and balance control & Power switch and volume control Each brief press of the “MENU” button changes the control modes in the follow- Each brief press of the “TUNE/TRACK” ing sequence.
Page 210 Audio NOTE Type B audio: searches. It is possible to turn the function ON/OFF by selecting the “REG” setting. SRS CS Auto creates a 5.1ch equiva- lent surround field using 6 speakers ! Position setting that are installed in the vehicle. Position setting is used to adjust the SRS CS Auto features:...
Page 211: Adjustable Level Of Each Mode
Audio & Adjustable level of each mode Mode Range of levels Initial setting Turn counterclockwise Turn clockwise (displayed) Volume Volume control 0 to 40 For less volume For more volume AUX volume control* 0 to 40 For less volume For more volume −8 to +8 Tone and balance Bass control For less bass sound...
Page 212: Fm/Am Radio Operation
Audio NOTE Type A audio: FM/AM radio operation For some areas, the LW radio mode is Press the “FM” or “AM” button when the not available. radio is off to turn on the radio. For the type B audio, press the “AM” Type B audio: button when the radio is on to select AM NOTE...
Page 213: Tuning
5-10 Audio ! Stereo indicator & Tuning The stereo indicator “ST” will illuminate ! Manual tuning when an FM stereo broadcast is received. ! Seek tuning (SEEK) Type A 0.05 MHz 9 kHz 1 kHz audio Type B 0.05 MHz 9 kHz (5 kHz*) audio *: For the type B audio: The tuning frequency...
Page 214 5-11 Audio NOTE ! Scan tuning (SCAN) mode. In this mode, the radio scans through the preset channels until a station For some areas, the local seek function is found. The radio will stop at the station is not available. for 5 seconds while displaying the fre- ! Radio Data System (RDS) on FM quency, after which scanning will continue...
Page 215 5-12 Audio vehicle radio is currently receiving and illuminates on the display while the audio the news bulletins. subsequently enters an area where the set is actually receiving traffic information. It is possible to turn the automatically same radio station is available on a It is possible to turn the automatically receiving function ON/OFF by pressing the “T.I/NEWS”...
Page 216: Displaying Radio Ps (Program Service Name)
5-13 Audio & Displaying radio PS (Pro- & Station preset NOTE . If the connection between the radio gram Service Name) and battery is broken for any reason such as vehicle maintenance or radio removal, all stations stored in the preset buttons are cleared.
Page 217 5-14 Audio . For type B audio, when you use the ! Auto-store button for more than 2 seconds. Use Auto- store to quickly find the strongest stations, Auto-store function while selecting the for example when traveling through differ- FM mode, even if you have selected the ent reception areas.
Page 218: Cd Player Operation
5-15 Audio & How to insert a CD(s) repeat steps 1 and 2. The magazine will CD player operation be loaded with discs in the ascending order of position number. NOTE . If you do not insert any disc in 15 .
Page 219 5-16 Audio if you press the “FM” or “AM” button, the ! Inserting a disc in a desired posi- player will enter the standby mode. Press tion the “CD” button to start playback. ! Loading all the magazine (full disc loading mode) Disc select buttons 2.
Page 220: How To Play Back A Cd
5-17 Audio ! When playing back all CDs in the ! When selecting a CD to play 4. When the magazine is filled with discs by repeating steps 2 and 3, the player will player start playback of the discs, beginning with the one inserted first.
Page 221: To Select A Track From Its Beginning
5-18 Audio & To select a track from its & Fast-forwarding and fast-re- ! Backward direction beginning versing ! Forward direction ! Fast-forwarding Turn the “TUNE/TRACK” dial counter- clockwise to skip to the beginning of the current track/file (track). Each time the dial Turn the “TUNE/TRACK”...
Page 222: Repeating
5-19 Audio & Repeating ! Fast-reversing track/file (track) is playing. Each time you briefly press the button, the mode changes in the following se- quences. NOTE . The “TRACK RPT” indication refers to the repeat playback of a single track. Press the “...
Page 223: Random Playback
5-20 Audio & Random playback NOTE button (type B audio). The repeat-play mode will be cancelled Each time you press the button, the mode if you perform any of the following changes in the following sequences. steps. . Press the “RPT/RDM” button and select CANCEL (type A audio) .
Page 224: Scan
5-21 Audio & Scan press the “RPT” button again (type B audio) or “SCAN” button (type B audio) to audio) and select CANCEL. start scanning upward beginning with the The “RDM” indication will turn off, and the track/file(s) following the currently se- lected one.
Page 225: Display Selection
5-22 Audio & Display selection – Turn the ignition switch to the ! Page (track/folder title) scroll “LOCK”/“OFF” position . When the “SCAN/A.S” button (type A audio) or “SCAN” button (type B audio) is pressed while the MP3, WMA or AAC format data is played back, the system scans within the current folder.
Page 226: Folder Selection
5-23 Audio & Folder selection & How to eject CDs from the player NOTE . Avoid driving the vehicle with a CD sticking out, because vibration might make it fall out. . If you do not remove the ejected disc within approximately 15 seconds, a disc protection function will operate, automatically reloading the disc.
Page 227: When The Following Messages Are Displayed
& When the following mes- mend that you contact your SUBARU sages are displayed dealer. If one of the following messages is displayed while operating the CD player, determine the cause based on the follow- ing information.
Page 228: Auxiliary Input Jack
(3.5ø) can be inserted in this jack. . The AUX input jacks of the models The connection cable is available at with the genuine SUBARU navigation electrical appliance or similar stores. system are the RCA type. For detailed To use the AUX input jack: information, refer to the Owner’s Man-...
Page 229: Precautions To Observe When Handling A Compact Disc
5-26 Audio Precautions to observe when handling a compact disc Use only compact discs (CDs, CD-Rs and CD-RWs) that have the mark shown in the following. Also, some compact discs cannot be played. . You cannot use a DualDisc in the CD player.
Page 230: Audio Control Buttons (If Equipped)
5-27 Audio there are deposits, wipe the disc surface Audio control buttons (if from the center outward with a dry, soft equipped) cloth. Be sure not to use a hard cloth, thinner, benzine, alcohol, etc. . Do not use any disc that is scratched, deformed, or cracked.
Page 231: Mode Button
5-28 Audio These buttons are located on the spokes That station’s frequency will be indicated *3: Only when with an auxiliary audio product is of the steering wheel. They allow the on the audio display. connected. driver to control audio functions without ! With CD mode selected NOTE taking his/her hands off the steering...
Page 232: Mute Button (Models Without Hands-Free System)
! Bluetooth ® NOTE . For models with the genuine SUBARU navigation system, refer to the Owner’s Manual supplement for the navigation system. . When selling your vehicle, make sure that you initialize the Hands-free system to prevent personal data from being improperly accessed.
Page 233 5-30 Audio – When the cell phone is too close with it left in the breast pocket or bag. volume may be different from those of cell phones currently used. to the microphone. NOTE . The sound quality may degrade due .
Page 234: Safety Precautions
5-31 Audio & Safety precautions ing condition. a full band and can avoid a band used by a movable body identifi- . In the frequency band used by cation device. WARNING this equipment, along with indus- trial, scientific and medical .
Page 235: Using Hands-Free System
5-32 Audio & Using Hands-free system cell phone while “PASS KEY: ****” is ! Newly registering cell phone displayed. If you input the correct pass ! Turning on/off Hands-free mode 1. Press the OFF hook switch key, “Paired” is displayed and the register- 2.
Page 236 5-33 Audio 4. Press the “TUNE/TRACK” dial. ! Page scroll 5. “Stored” is displayed. 6. Select “Speed Dial” by operating the “TUNE/TRACK” dial. 7. Select the phone number to be regis- tered. Preset buttons 2. Press the preset button in which the If the registered name or phone number desired number is registered.
Page 237 5-34 Audio ! Volume control ! Menu list of the Hands-free system ! Callback 1. Select “Callback” by operating the “TUNE/TRACK” dial. 2. Press the OFF hook switch ! Taking a phone call and declining an incoming call To take a phone call: Press the OFF hook switch To put an incoming call on hold: Press the ON hook switch...
Page 238 5-35 Audio ! Menu list (if a cell phone is not registered) First menu Second menu Details Pair Phone Record Name Recording the name of the cell phone to be registered. Go Back ! Menu list (if a cell phone is already registered) First menu Second menu Third menu...
Page 239 5-36 Audio First menu Second menu Third menu Details Setup Security Set Pin Setting a PIN code Phbk Lock* Locking the phonebook Phbk Unlock* Unlocking the phonebook Go Back Phone setup Pair Phone Registering a new cell phone Select Phone Selecting a cell phone to be used Change Name Changing the registered name of the cell phone...
Page 240 5-37 Audio ! Voice command system The commands available for the voice phone book add entry command system are listed in the follow- ing chart. phone book change name phone book delete entry Command phone book list names 0 (zero, oh) phone book set speed dial 1 (one) phone book delete speed dial...
Page 241 5-38 Audio set pass key list phone add entry delete entry delete speed dial by voice voice by phone phone call history by call history set speed dial next incoming outgoing list names set PIN phone book lock PIN setup send...
Page 242 Interior equipment Interior light ............Rear ashtray (China models) ......6-12 Floor mat (if equipped)........6-13 Dome light ............Map lights ............Coat hook............6-13 Cargo area light (Station wagon)......Shopping bag hook ........... 6-14 Sun visors ............For Sedan models ..........6-14 Vanity mirror with light ........
Page 243: Interior Equipment
(OFF delay timer) can be discharge. access function (if equipped). Refer to changed by a SUBARU dealer. We “Locking and unlocking with “keyless recommend that you contact the nearest & Dome light access”...
Page 244: Map Lights
. The doors are unlocked using the ! Door interlock switch lights remain on (OFF delay timer) can be keyless access function (if equipped). changed by a SUBARU dealer. We Refer to “Locking and unlocking with recommend that you contact your “keyless access” entry function” F2-11.
Page 245 Interior equipment ! Door interlock switch illuminate when only the rear gate is opened.) . The doors are unlocked using the keyless access function (if equipped). Refer to “Locking and unlocking with “keyless access” entry function” F2-11. . The doors are unlocked using the remote keyless entry system.
Page 246: Cargo Area Light (Station Wagon)
Interior equipment & Vanity mirror with light changed by a SUBARU dealer. We Sun visors recommend that you contact your SUBARU dealer for details. CAUTION & Cargo area light (Station wa- Keep the vanity mirror cover closed gon) while the car is being driven to avoid being distracted by the light.
Page 247: Storage Compartment
Interior equipment ! Upper compartment Storage compartment close it, push the lid firmly upward. & Center console box CAUTION . Always keep the storage com- partment closed while driving to reduce the risk of injury in the event of sudden stops or an accident.
Page 248: Overhead Console
Interior equipment & Overhead console & Pocket (if equipped) ! Lower compartment Lower compartment lock release To open the console, push on the lid lightly CAUTION and it will automatically open. Pull up the lower compartment lock release to open the lower compartment. Do not use the pocket as an ashtray CAUTION or leave a lighted cigarette in the...
Page 249: Cup Holders
Interior equipment Cup holders CAUTION Take care to avoid spills. Beverages, if hot, might burn you or your passengers. Spilled beverages may also damage upholstery, carpets or audio equipment. & Front passenger’s cup holder Two cup holders are built in the center The divider in the cup holder can be pulled CAUTION console.
Page 250: Rear Passenger's Cup Holder
Interior equipment & Rear passenger’s cup holder The door pocket equipped on each door Bottle holders trim can be used to hold beverage bottles and other items. CAUTION . Do not pick up a bottle from the bottle holder or put a bottle in the holder while you are driving, as this may distract you and lead to an accident.
Page 251: Accessory Power Outlets
6-10 Interior equipment Accessory power outlets CAUTION . Do not attempt to use a cigarette lighter in the accessory power outlets. . Do not place any foreign objects, especially metal ones such as coins or aluminum foil, into the accessory power outlet. That could cause a short circuit.
Page 252 6-11 Interior equipment power outlet in the center console to be tight for the accessory power used. Pass the cord of the electrical outlet, this can result in a poor appliance through this gap. contact or cause the plug to get stuck.
Page 253: Ashtray (If Equipped)
6-12 Interior equipment & Portable ashtray & Rear ashtray (China models) Ashtray (if equipped) CAUTION . Do not use ashtrays as waste receptacles or leave a lighted cigarette in an ashtray. This could cause a fire. . Always extinguish matches and cigarettes before putting them into the ashtray, and then close the ashtray securely.
Page 254: Floor Mat (If Equipped)
6-13 Interior equipment Floor mat (if equipped) Coat hook CAUTION Retaining pins are located on the driver’s Make sure the driver’s floor mat is WARNING side floor. placed back in its proper location The floor mat is secured using the built-in and correctly secured on its retain- Do not hang coat hangers or other grommets, by placing the grommets over...
Page 255: Shopping Bag Hook
6-14 Interior equipment & For Station wagon models Shopping bag hook CAUTION Never hang anything on the coat CAUTION hook that might obstruct the driver’s view or that could cause injury in Do not hang items on the shopping sudden stops or in a collision. Also, bag hook that weigh 5 kg (11 lbs) or do not hang items on the coat hook more.
Page 256: Cargo Area Cover (Station Wagon)
6-15 Interior equipment & To remove the cover housing Cargo area cover (Station WARNING wagon) 1. Rewind the cover. Do not place anything on the ex- tended cover. Putting excessive The cargo area cover is provided for weight on the extended cover can covering the cargo area and to protect its break it and an object on the cover contents from direct sunlight.
Page 257: Stowage Of The Cargo Area Cover
6-16 Interior equipment & Stowage of the cargo area 2. To keep the lid open, hang the hook area end. (provided on the back of the lid) on the cover & To install the cover housing rear edge of the roof. The cargo area cover can be stowed in under the cargo floor.
Page 258: Cargo Tie-Down Hooks (Station Wagon)
6-17 Interior equipment 2. Make sure to fix the front part of the Cargo tie-down hooks (Sta- CAUTION cargo area cover behind the rear seat. tion wagon) The cargo tie-down hooks are de- signed only for securing light cargo. Never try to secure cargo that exceeds the capacity of the hooks.
Page 259: Under-Floor Storage Compartment (If Equipped)
6-18 Interior equipment Under-floor storage compart- ment (if equipped) NOTE The shape of the storage compartment may be different depending on the model. Station wagon To use the lower compartment, pull out the upper compartment. The storage compartment is located under the floor of the trunk (Sedan) or the cargo NOTE area (Station wagon) and can be used to...
Page 260: Rear View Camera (If Equipped)
Refer to the Owner’s Manual supple- ment for the navigation system. The following descriptions are not applic- able to models with the genuine SUBARU rear view camera system for China. Station wagon A rear view camera is attached to the trunk lid (Sedan) or rear gate (Station wagon).
Page 261: How To Use The Rear View Camera
We recommend that you contact . When replacing the fuse, be sure lens may develop white light stripes your SUBARU dealer for an in- to use a fuse with the specified around the light source. This is not a spection. Continued use may rating.
Page 262: Viewing Range On The Screen
2. Set the shift lever or select lever to “R”. NOTE . For models with the genuine SUBARU navigation system, the image of the rear view camera has priority over other screen displays. Therefore, while the rear view camera is in opera- tion, the operations of other screens are disabled.
Page 263: Help Line
6-22 Interior equipment & Help line tion cannot be seen on the screen. The help line (distance marker and vehicle CAUTION width line) is a guide to help you realize the actual distance from the screen. The range that can be viewed with the rear view camera is limited.
Page 264 6-23 Interior equipment ! When there is an upward slope at the ! When there is a downward slope at CAUTION back the back . When moving backward, always check the back with your eyes without relying on the help lines. .
Page 265 6-24 Interior equipment ! Feature of distance marker 1 m (3 feet) line 2 m (6.5 feet) line 3 m (10 feet) line The distance marker shows the distance on the road. If there is a car or other object close behind, distance cannot be correctly displayed.
Page 266 Starting and operating Fuel ..............SI-DRIVE selector ..........7-26 Power steering........... 7-27 Fuel requirements for petrol engine ..... For 2.5 L turbo models and Australia petrol Fuel requirements for diesel engine ..... engine models ..........7-27 Fuel filler lid and cap........... For other models ..........
Page 267: Fuel
Research Octane number. mance but also serious damage the SUBARU Limited Warranty. to the engine and fuel system. To . The neck of the fuel filler pipe is If unleaded petrol with an octane rating of...
Page 268: Fuel Filler Lid And Cap
SUBARU Limited Warranty. similar object to discharge any static electricity that may be present on your body. If your body is carry-...
Page 269 Starting and operating slowly counterclockwise. the tank and create a fire hazard. WARNING 5. Stop filling the tank after the fuel filler pump automatically stops. Do not add any . Fuel vapor is highly flammable. more fuel. Before refueling, always first 6.
Page 270: Preparing To Drive
8. Check the operation of the warning . We recommend that you always and indicator lights when the ignition use a genuine SUBARU fuel filler switch is turned to the “ON” position. cap. If you use the wrong cap, it 9.
Page 271: Starting Engine
(4) If the engine still does not start, we warning and indicator lights. Refer to recommend that you contact your “Warning and indicator lights” F3-16. nearest SUBARU dealer for assis- 5. Turn the ignition switch to the “START” tance. position without depressing the accelera-...
Page 272 Starting and operating NOTE 6. Confirm that all warning and indicator . The engine may be difficult to start lights have turned off after the engine has started. The fuel injection system auto- when the battery has been discon- matically lowers the idle speed as the nected and reconnected (for mainte- engine warms up.
Page 273: Stopping Engine
(4) If the engine still does not start, we ignition switch in the “ON” position recommend that you contact your for approximately 10 seconds before nearest SUBARU dealer for assis- starting the engine. tance. . For non-turbo models, to protect the 6.
Page 274: Starting And Stopping Engine (Models With Push-Button Start System)
“Disabling keyless access func- tion” F2-17. The setting can also WARNING be changed by a SUBARU dealer. For more details, we recommend If you wear an implanted pacemaker that you contact a SUBARU deal- or an implanted defibrillator, stay at least 22 cm (8.7 in) away from the...
Page 275: Starting And Operating
7-10 Starting and operating attached to the access key CAUTION – When carrying the access key . The push-button start system with electronic appliances uses weak radio waves. The such as a laptop computer status of the access key and the –...
Page 276 F2-17. The setting can – Do not wash the access key in an ultrasonic washer. also be changed by a SUBARU dealer. For more details, we re- – Do not leave the access key in commend that you contact a humid or dusty locations.
Page 277: Operating Range For Push-Button Start System
7-12 Starting and operating & Operating range for push- – Inside the glove box – Inside the door trim pocket button start system – On the rear seat – On the rear shelf (Sedan) – Inside the trunk (Sedan) – At the corner of the cargo area (Station wagon) .
Page 278 We recommend that you contact fuel and the usage condition (repeated initialization of the steering lock a SUBARU dealer immediately. driving of a distance in which the system to start the engine. In . If the indicator on the push-...
Page 279 7-14 Starting and operating NOTE ! MT models switch is pressed while depressing the . In case the engine does not start by clutch pedal (MT models) or the brake pedal (AT and CVT models), the engine the normal engine start procedure, can be started regardless of the power move the shift lever to the neutral status.
Page 280: Stopping Engine
7-15 Starting and operating & Stopping engine ! AT and CVT models 5. While depressing the brake pedal, press the push-button ignition switch. 1. Stop the vehicle completely. 2. Move the select lever to the “P” NOTE position (AT and CVT models). .
Page 281: When Access Key Does Not Operate Properly
SUBARU deal- one. er immediately. When the communication between the access key and the vehicle is completed,...
Page 282: Manual Transmission
7-17 Starting and operating Manual transmission WARNING Do not drive the vehicle with the clutch disengaged (i.e., when the clutch pedal is depressed) or with the shift lever in the neutral position. Engine braking has no effect in either of these conditions and the risk of an accident is consequently increased.
Page 283: Shifting Speeds
7-18 Starting and operating km/h (mph) & Shifting speeds Sedan, Wagon OUTBACK ! Recommended shifting speeds Petrol engine models Gear Diesel en- Petrol en- Diesel en- 2.5 L non-tur- 2.5 L turbo The best compromise between fuel econ- gine models gine models gine models 2.0 L models...
Page 284: Driving Tips
7-19 Starting and operating lower gear before the engine starts to Automatic transmission/Con- WARNING labor. tinuously variable transmis- When shifting down a gear, ensure sion On steep downgrades, downshift the that the vehicle is not travelling at a transmission to 5th, 4th, 3rd or 2nd gear speed exceeding the Maximum Al- as necessary;...
Page 285 7-20 Starting and operating mal timing after the engine has warmed provides superior transmission effi- than 5 seconds in any position except the “N” or “P” position ciency for maximum fuel economy. At . Immediately after transmission fluid times, depending on varying driving when the brake is applied or is replaced, you may feel that the conditions, a chain operating sound...
Page 286: Select Lever
7-21 Starting and operating & Select lever The select lever has four positions, “P”, position is possible for a limited time “R”, “N”, “D” and also has manual gate for period by depressing the brake pedal, using the manual mode. and then it becomes impossible.
Page 287: Shift Lock Function
7-22 Starting and operating ! While climbing a grade depressed. of an accident is consequently in- . The select lever cannot be moved from creased. When driving up a hill, undesired upshift is the “P” position to any other position prevented from taking place when the before the brake pedal is depressed.
Page 288: Selection Of Manual Mode
We pedal depressed. recommend that you contact a SUBARU dealer for an inspection as soon as If you must perform the above procedure, possible.
Page 289 7-24 Starting and operating turns off. the paddle shift levers. Doing so may result in accidental gear shift- Gearshifts can be performed using the paddle shift switch behind the steering ing. wheel. NOTE Please read the following points care- fully and bear them in mind when using the manual mode.
Page 290: Driving Tips
. On a road surface where there is a risk output. It provides better control in difficult SI-DRIVE (SUBARU Intelligent Drive) of wheelspin (for example, a snow- or driving conditions, such as slippery roads...
Page 291: Sport (S) Mode
7-26 Starting and operating & Sport (S) mode & Sport Sharp (S#) mode & SI-DRIVE selector When you rotate the SI-DRIVE selector to ! For all-around performance driving ! For maximum performance driving the left, the current SI-DRIVE mode changes to Sport (S) mode. When you rotate it to the right, the mode changes to Sport Sharp (S#) mode, and when you push it, the mode changes to Intelligent (I)
Page 292: Power Steering
SI-DRIVE system may be combination meter illuminates to inform malfunctioning. We recommend that the driver that the warning system is you contact your SUBARU dealer. NOTE functioning properly. Then, if the engine Right after the engine has been started...
Page 293: Braking
At this time, there will be more resis- Braking that you drive carefully to the near- tance to steering. However this is not a est SUBARU dealer and have the & Braking tips malfunction. Normal steering force will vehicle inspected immediately.
Page 294: Brake System
7-29 Starting and operating NOTE ! Braking when a tire is punctured harder than normal and the braking dis- tance will increase. When you depress the brake pedal Do not depress the brake pedal suddenly ! Brake assist system strongly or suddenly, the following when a tire is punctured.
Page 295: Abs (Anti-Lock Brake System)
SUBARU braking or braking on slippery road sur- er for a vehicle with the ABS dealer.
Page 296: Abs Warning Light
NOTE have the ABS system repaired at the first available opportunity by If the warning light behavior is as your SUBARU dealer. described below, the ABS system may – The warning light does not be considered normal. . The warning light illuminates right illuminate when the ignition switch is turned to the “ON”...
Page 297: Electronic Brake Force Distribution (Ebd) System
We recommend loading condition and speed. that you drive carefully to the nearest SUBARU dealer and have the system The EBD system is an integral part of the inspected. ABS system and uses some of the ABS system’s components to perform its func-...
Page 298: Vehicle Dynamics Control System
Vehicle Dy- you have the brakes inspected an axle are removed from a namics Control system equipped by a SUBARU dealer immedi- vehicle equipped with the Vehicle vehicle could easily lead to a ser- ately.
Page 299 7-34 Starting and operating NOTE – on gravel-covered or rutted tire. With a temporary spare . Slight twitching of the brake pedal roads tire, the effectiveness of the – on unfinished roads Vehicle Dynamics Control may be felt when the Vehicle Dynamics –...
Page 300: Vehicle Dynamics Control System Monitor
Control system. If any of these situations four brakes. Thus Vehicle Dynamics occur, we recommend that you have an Control system operation halts and authorized SUBARU dealer carry out an the warning light illuminates. inspection of the system at the first Although both the Vehicle Dynamics available opportunity.
Page 301 ! Vehicle Dynamics Control OFF in- is operating normally. tions occurs, we recommend that you . Although illuminating after the en- have an authorized SUBARU dealer carry dicator light out an inspection of that system at the first gine has been started, the warning light available opportunity.
Page 302: Vehicle Dynamics Control Off Switch
7-37 Starting and operating & Vehicle Dynamics Control ON position. You should not deactivate the Vehicle . The indicator light does not turn off Dynamics Control system except under OFF switch the above-mentioned situations. approximately 2 seconds after the ignition switch has been turned to the ON position.
Page 303: Parking Your Vehicle
7-38 Starting and operating & Electronic parking brake “LOCK”/“OFF” position and restart the Parking your vehicle engine. . When the switch is pressed to deactivate the Vehicle Dynamics Con- WARNING trol system, the vehicle’s running per- . Never leave unattended children formance is comparable with that of a or pets in the vehicle.
Page 304 . If the parking brake switch is pulled you contact your SUBARU deal- brake is applied because this will with the ignition switch in the “Acc” or cause unnecessary wear on the “LOCK”/“OFF”...
Page 305 7-40 Starting and operating ! Hill Holder function malfunction, you can release it by parking brake warning light illuminates. . The Hill Holder function does not using the parking brake release tool. The electronic parking brake system has a Refer to “Electronic parking brake – if reactivate when parking with the elec- Hill Holder function.
Page 306 7-41 Starting and operating ! Emergency brake NOTE . If the Hill Holder switch is pressed CAUTION for more than 30 seconds, the Hill Holder indicator light turns off, electro- Use the emergency brake only in nic parking brake warning light illumi- case of an emergency.
Page 307: Parking Tips
“P” (Park) position. SUBARU dealer. Never rely on the transmission alone to When facing downhill, the front wheels hold the vehicle.
Page 308: Cruise Control (If Equipped)
7-43 Starting and operating switch is turned off when the cruise Cruise control (if equipped) control is not in use to avoid uninten- tionally setting of the cruise control. Cruise control enables you to maintain a constant vehicle speed without holding &...
Page 309: To Temporarily Cancel The Cruise Control
7-44 Starting and operating & To temporarily cancel the the accelerator pedal. cruise control The cruise control can be temporarily canceled in the following ways. To resume the cruise control after it has been temporarily canceled and with vehi- At this time, the cruise control set indicator cle speed of approximately 32 km/h (20 light is illuminated on the combination mph) or more, press the “RES/SET”...
Page 310: To Change The Cruising Speed
7-45 Starting and operating & To change the cruising speed Except U.K. models vehicle speed when the button is pressed and the speed last time you When the difference between the actual ! To increase the speed (by the “RES/ set is less than 4.4 km/h (3 mph), the vehicle speed and the set speed is less SET”...
Page 311: Cruise Control Indicator Light
When the difference between the actual commend that you have the vehicle vehicle speed and the set speed is less checked by your nearest SUBARU than 4 mph (6.8 km/h), the set speed can dealer. be lowered 1 mph (1.6 km/h) each time by .
Page 312: Cruise Control Set Indicator Light
7-47 Starting and operating & Cruise control set indicator light The cruise control set indicator light illuminates when the ignition switch is turned to the “ON” position and turns off after approximately 3 seconds. The light illuminates when vehicle speed has been set.
Page 313 Driving tips New vehicle break-in driving – the first Corrosion protection.......... 8-13 1,600 km (1,000 miles) ........Snow tires ............8-13 Tire chains ............8-13 Fuel economy hints ..........Rocking the vehicle ........... 8-14 Engine exhaust gas (carbon monoxide).... Loading your vehicle......... 8-14 Catalytic converter ..........
Page 314: New Vehicle Break-In Driving - The First 1,600 Km (1,000 Miles)
Driving tips New vehicle break-in driving Fuel economy hints Engine exhaust gas (carbon – the first 1,600 km (1,000 monoxide) The following suggestions will help to save miles) your fuel. WARNING . Select the proper gear position for the The performance and long life of your vehicle are dependent on how you handle speed and road conditions.
Page 315: Catalytic Converter
Driving tips Catalytic converter exhaust fumes are entering the vehicle, have t he probl em checked and corrected as soon as possible. If you must drive under these conditions, drive only with all windows fully open. . Keep the trunk lid (Sedan) or rear gate (Station wagon) closed while driving to prevent exhaust gas from entering the vehicle.
Page 316: Diesel Particulate Filter (Diesel Engine Models)
In most cases, the accumulated soot is SUBARU dealer. . Do not apply undercoating or rust automatically burned in the filter while driving. However, accumulated soot in the...
Page 317: Periodic Inspections
(diesel engine models)” F3-38. for service or maintenance of the diesel particulate filter. Fully trained me- WARNING chanics are on standby at the SUBARU dealer to utilize the special tools and . Avoid fire hazards. Do not drive spare parts.
Page 318: Driving In Foreign Countries
Driving tips & All models except Outback Driving in foreign countries Driving tips for AWD vehicles All-Wheel Drive distributes the engine When planning to use your vehicle in power to all four wheels. AWD vehicles WARNING another country: provide better traction when driving on .
Page 319: Outback Models
Driving tips traverse difficult areas covered with snow, original temporary spare tire stored in the steeper roads under snowy or slippery mud and slush, or sand and dirt. It is, vehicle. Using other sizes may result in conditions than a two wheel drive vehicle. however, designed as an all-road vehicle severe mechanical damage to the drive There is little difference in handling,...
Page 320: Off Road Driving
& Except Outback off-roads. But please keep in mind that an Your AWD vehicle is neither a conven- AWD SUBARU is a passenger car and is tional off-road vehicle nor an all terrain neither a conventional off-road vehicle nor vehicle. It is a passenger car designed an all-terrain vehicle.
Page 321 Driving tips . Drive carefully. Do not take unneces- vehicle and may cause it to stall. Never could be thrown around in the vehicle and sary risks by driving in dangerous areas or attempt to drive through rushing water, cause injury. Do not pile heavy loads on over rough terrain.
Page 322: Winter Driving
If the concentration is SUBARU Windshield Washer Fluid con- inappropriate, sprayed washer fluid tains 58.5% methyl alcohol and 41.5% may freeze on the windshield and surfactant, by volume.
Page 323: Driving On Snowy And Icy Roads
“ABS (Anti-lock Brake braking action. Check for snow or ice If your SUBARU is not going to be used System)” F7-30 and “Vehicle Dynamics buildup on the suspension, disc brakes for an extended period, it is best to have Control system”...
Page 324: Corrosion Protection
8-12 Driving tips to stick on the surface of the windshield CAUTION CAUTION despite wiper operation, use the defroster with the airflow selection in “ ” and the Avoid prolonged continuous driving During high-speed driving, non- temperature set for maximum warmth. in snowstorms.
Page 325: Tire Chains
When the road surface is extremely recommend that you contact the handling characteristics and lead slippery, you can obtain better traction by nearest SUBARU dealer. to an accident. starting the vehicle with the transmission in 2nd than 1st (both for MT and AT and...
Page 326: Loading Your Vehicle
8-14 Driving tips Loading your vehicle event of a sudden stop or a WARNING collision. This could cause ser- ious injury. Never stack luggage or other cargo WARNING higher than the top of the seatback because it could tumble forward and Never allow passengers to ride on a CAUTION injure passengers in the event of a...
Page 327 8-15 Driving tips ! Installing carrying attachments on ings must never be used alone to carry cargo. Otherwise, damage the roof rack to the roof or paint or a danger- When installing any carrying attachments ous road hazard due to loss of such as a bike carrier, ski carrier, kayak cargo could result.
Page 328: Trailer Towing
SUBARU dealer or the vehicle registration recommend that you seek the advice of documents and make sure your trailer is your SUBARU dealer to assist you in within the towing capacity. purchasing a hitch and other necessary The total trailer weight (trailer weight with...
Page 329: Trailer Hitches
Both the For more information about the safety maximum permissible weight (MPW) and chain connection, refer to the instructions The use of a genuine SUBARU trailer maximum permissible rear axle weight for your hitch and trailer. hitch is recommended. Genuine SUBARU (rear MPAW) must not be exceeded.
Page 330: Trailer Lights
SUBARU dealer. If your vehicle is equipped with SI-DRIVE, and/or less stability of the vehicle Check for proper operation of the turn and when towing a trailer on an uphill and may lead to an accident.
Page 331 . You should allow for considerably more nearest SUBARU dealer. added weight and length caused by stopping distance when towing a trailer. attaching the trailer to your vehicle.
Page 332: Additional Information For Europe
8-20 Driving tips & Additional information for engine braking effect and prevent over- parking brake or foot brake. That may heating of your vehicle’s brakes. Do not cause the transmission fluid to overheat. Europe . For AT and CVT models, place the make sudden downshifts.
Page 333 8-21 Driving tips ! Maximum permissible vehicle weight (MPW) and maximum per- missible rear axle weight (rear MPAW) for trailer towing Rear MPAW – CONTINUED –...
Page 334 8-22 Driving tips ! Maximum permissible static verti- Rear MPAW at towing Model MPW at towing (kg) cal load on the coupling device (kg) 82 kg 2,000 2.0 L petrol engine 1,100 ! Mounting points of the coupling 2,020 device 2.0 L diesel engine 2,100 1,170...
Page 335: Driving Tips
8-23 Driving tips Sedan Maximum permissible overhang of the coupling device: 1,093 mm (43 in) Coupling Fixing points: Three places under the rear frame and four places on the rear side of the rear frame for each side Rear frame –...
Page 336 8-24 Driving tips Wagon Maximum permissible overhang of the coupling device: 1,139 mm (45 in) Coupling Fixing points: Three places under the rear frame and four places on the rear side of the rear frame for each side Rear frame...
Page 337 8-25 Driving tips Outback Maximum permissible overhang of the coupling device: 1,142 mm (45 in) Coupling Fixing points: Three places under the rear frame and four places on the rear side of the rear frame for each side Rear frame...
Page 338 In case of emergency If you park your vehicle in case of an If no steam is coming from the engine compartment ........... 9-23 emergency ............Towing ..............9-23 Temporary spare tire (if equipped) ....Towing and tie-down hooks........ 9-24 Maintenance tools ..........
Page 339: In Case Of Emergency
In case of emergency NOTE If you park your vehicle in Temporary spare tire (if When the hazard warning flasher is on, case of an emergency equipped) the turn signals do not work. WARNING Never tow a trailer when the tem- porary spare tire is used.
Page 340: Maintenance Tools
In case of emergency porary spare tire periodically to keep the the tread, replace the tire. Maintenance tools . The temporary spare tire must be used tire ready for use. The correct pressure is indicated on the tire pressure label located only on a rear wheel.
Page 341: Sedan
In case of emergency & Sedan Jack handle Jack Towing hook (eye bolt) ! Models without flat tire repair kit The jack handle is stored on the back of the floor cover of the trunk. The electronic parking brake release tool is stored under the floor of the trunk.
Page 342 In case of emergency tronic parking brake – if the electronic ! Models with flat tire repair kit parking brake cannot be released” F9-27. Wheel nut wrench Towing hook (eye bolt) Hex-head wrench (only models with sunroof) Screwdriver Flat tire repair kit Jack The jack handle is stored on the back of the floor cover of the trunk.
Page 343: Station Wagon
In case of emergency & Station wagon Jack handle Jack Spare tire Towing hook (eye bolt) ! Models without flat tire repair kit Tool bucket The jack handle is stored under the cargo area. The electronic parking brake release tool is stored under the floor of the cargo area.
Page 344 In case of emergency parking brake cannot be released” F9-27. ! Models with flat tire repair kit Wheel nut wrench Towing hook (eye bolt) Under-floor storage compartment (if Hex-head wrench (only models with equipped) (Refer to “Under-floor storage sunroof) compartment” F6-18.) Screwdriver Electronic parking brake release tool Flat tire repair kit...
Page 345: Flat Tires
In case of emergency . Always turn off the engine before Flat tires ever possible, then stop the engine. raising the flat tire off the ground 2. Apply the parking brake and shift the using the jack. Never swing or shift lever to the reverse position (MT If you have a flat tire while driving, never models) or the select lever to the “P”...
Page 346 In case of emergency NOTE If the spare tire provided in your vehicle is a temporary spare tire, read carefully “Temporary spare tire” F9-2 and strictly follow the instructions. Sedan 8. Loosen the wheel nuts using the wheel nut wrench but do not remove the nuts. Notch Valve hole 7.
Page 347 9-10 In case of emergency head engages firmly into the jack-up point. WARNING Do not use oil or grease on the wheel studs or nuts when the spare tire is installed. This could cause the nuts to become loose and lead to an accident.
Page 348: Sealing Flat Tire (Models With Flat Tire Repair Kit)
9-11 In case of emergency torque checked at the nearest automotive 16. Only for models without flat tire repair and lead to loss of vehicle control. service facility. kit, store the flat tire in the spare tire This may result in serious injury or compartment.
Page 349 . Do not use tire chains on a sealed condition. nearest SUBARU dealer. You may reuse tire. – The tire damage is not located the wheel if the attached sealant is wiped .
Page 350 Regulations concerning tire repair after usage of flat tire repair kit may differ from country to country. We recommend that you consult your SUBARU dealer Label (denoting the maximum permissi- or tire dealer for advice. Expiration date ble speed) .
Page 351 9-14 In case of emergency sure of the damaged tire (step 2). After 2. Take the hose and power plug with WARNING that, you can continue to drive carefully no cable out of the flat tire repair kit casing. faster than 80 km/h (50 mph) and within Do not attach the label to the steer- the maximum distance of 200 km (125 ing wheel pad or dashboard.
Page 352 9-15 In case of emergency 4. Unscrew the red cap of the sealant bottle. CAUTION Leave the bottle seal intact. Screw- ing the bottle onto the bottle holder will pierce the seal of the bottle. Avoid skin contact with the sealant, which contains natural rubber latex.
Page 353 9-16 In case of emergency outlets” F6-10. there are any cracks, bumps or 10. Turn the ignition switch to the “Acc” similar damage, do not attempt to position. inflate the tire. . Do not stand directly next to the WARNING tire while the compressor is pumping.
Page 354 9-17 In case of emergency tire. WARNING . Do not drive for more than 10 13. Once a tire inflation pressure of at minutes and do not drive any least 180 kPa (1.8 kgf/cm , 26 psi) has faster than 80 km/h (50 mph) been reached, perform the following pro- (observe the label indicating the cedure.
Page 355 9-18 In case of emergency 8. Turn the ignition switch to the “Acc” position. WARNING Running the engine in a non-venti- lated or poorly ventilated area (e.g., inside a building) may cause as- phyxiation. Do not start the engine. 9. Switch the compressor on to “I” and pump the tire up to the specified tire pressure.
Page 356: Jump Starting
To ensure safe and correct handling of your battery, read the following New sealant and replacement parts can 13. Drive to the nearest SUBARU dealer precautions carefully before using be purchased from your authorized or other workshop to have the damaged the battery or inspecting it.
Page 357: Precautions When Jump Starting
9-20 In case of emergency and protective gloves when inspect- can cause blindness and burns. gen gas. To prevent an explosion, ing your vehicle’s battery. Avoid charge your vehicle’s battery in a tipping the battery and subjecting it well ventilated area and keep flames Keep flames away: to shocks since this could cause away.
Page 358: How To Jump Start
9-21 In case of emergency for jump starting, consult a com- petent mechanic. CAUTION The battery used for boosting must be 12 V. Do not jump start unless you are sure that the booster battery is correct. When your vehicle does not start due to a run down (discharged) battery, the vehicle may be jump started by connecting your battery to another battery (called the...
Page 359 9-22 In case of emergency (1) Connect one jumper cable to the positive (+) terminal on the discharged battery. (2) Connect the other end of the jumper cable to the positive (+) term- inal of the booster battery. (3) Connect one end of the other cable to the negative (−) terminal of the booster battery.
Page 360: Engine Overheating
If towing is necessary, it is best done by WARNING the fan is not turning, immediately turn off your SUBARU dealer or a commercial the engine and contact your authorized towing service. Observe the following Never attempt to remove the radia- dealer for repair.
Page 361: Towing And Tie-Down Hooks
9-24 In case of emergency & Towing and tie-down hooks 2. Pry off the cover on the front bumper using a flat-head screwdriver, and you will The towing hooks should be used only in find a threaded hole for attaching the an emergency (e.g., to free a stuck vehicle towing hook.
Page 362 9-25 In case of emergency After towing, remove the towing hook from CAUTION the vehicle and stow it in the tool bucket. To prevent deformation to the bum- Fit the towing hook cover on the bumper. per and the towing hook, do not WARNING apply excessive lateral load to the towing hook.
Page 363: Using A Flat-Bed Truck
9-26 In case of emergency & Using a flat-bed truck & Towing with all wheels on the The front tie-down hooks are located between each of the front tires and the ground front bumper. Rear tie-down hooks: This is the best way to transport your vehicle.
Page 364: Electronic Parking Brake - If The Electronic Parking Brake Cannot Be Released
We recommend bed truck. that you contact your SUBARU tronic parking brake release tool, . Do not run the engine while being make sure that the ignition dealer for inspection as soon as towed in this method.
Page 365 2. Turn the ignition switch to the “LOCK”/ . If the cap cannot be removed, we “OFF” position. recommend that you contact your SUBARU dealer for inspec- 3. Make sure that the brake system tion. warning light and the indicator light on .
Page 366: Trunk Lid (Sedan Models With Key Cylinder On The Trunk Lid) - If The Trunk Lid Cannot Be Opened
9-29 In case of emergency wise. Trunk lid (Sedan models with CAUTION key cylinder on the trunk lid) . Do not turn the electronic parking – if the trunk lid cannot be brake release tool counterclock- opened wise or turn it around more than 300 times.
Page 367: Rear Gate (Station Wagon) - If The Rear Gate Cannot Be Unlocked
9-30 In case of emergency Rear gate (Station wagon) – if Sunroof – if sunroof cannot gate lock release lever. the rear gate cannot be un- be closed 2. Locate the rear gate lock release lever locked behind the rear gate trim panel. If the sunroof cannot be closed with the CAUTION sunroof switch, you can close the sunroof...
Page 368: Running Out Of Fuel (Diesel Engine Models)
15 seconds of starter motor operation. If the engine still does not start the second time, we recommend that you contact your nearest SUBARU dealer for assistance. 4. After starting the engine, depress the accelerator pedal lightly until the engine runs smoothly.
Page 369 9-32 In case of emergency off. The fuel injection system automatically lowers the idle speed as the engine warms up.
Page 370 Appearance care Exterior care ............10-2 Cleaning the interior.......... 10-5 Washing............. 10-2 Seat fabric ............10-5 Waxing and polishing ......... 10-3 Leather seat materials........10-5 Cleaning aluminum wheels ......... 10-4 Synthetic leather upholstery....... 10-5 Corrosion protection.......... 10-4 Climate control panel, audio panel, instrument panel, console panel, switches, combination Most common causes of corrosion .....
Page 371: Appearance Care
10-2 Appearance care Exterior care wipers may operate unexpectedly while sing windshield wipers: When washing the vehicle and the wiper washing the vehicle, turn the & Washing wiper switch to the “OFF” posi- blades could be damaged. tion. If the wiper switch is in the The best way to preserve your vehicle’s “AUTO”...
Page 372: Waxing And Polishing
Always wash and dry the vehicle before in doubt, we recommend that you always the underbody. waxing and polishing. contact your SUBARU dealer or an auto Carefully flush the suspension and axle paint specialist. Use a good quality polish and wax and...
Page 373: Cleaning Aluminum Wheels
We above freezing. recommend that you contact your 3. Dampness in certain parts of the SUBARU dealer to perform this kind of vehicle remains for a long time, even...
Page 374: Cleaning The Interior
If snow, that can cause dampness. using a solution of mild soap and luke- your SUBARU is to be parked for a long warm water then dry thoroughly. time in bright sunlight, it is recommended...
Page 375: Climate Control Panel, Audio Panel, Instrument Panel, Console Panel, Switches, Combination Meter, And Other Plastic Surfaces
10-6 Appearance care & Navigation monitor (if or detergent and water, after first vacuum- ing or brushing away loose dirt. Allow the equipped) soap to soak in for a few minutes and wipe To clean the navigation monitor, wipe it off with a clean, damp cloth.
Page 376: Maintenance And Service
Maintenance and service Maintenance schedule ........11-3 Spark plugs (petrol engine models) ....11-29 Maintenance precautions........11-7 Recommended spark plugs......11-29 Drive belts ............11-29 Before checking or servicing in the engine compartment............ 11-7 Models with a hydraulic power steering When checking or servicing in the engine system ............
Page 377 Maintenance and service Rear window wiper blade rubber (Station Brake pedal............11-40 wagon) ............11-52 Checking the brake pedal free play ....11-40 Battery .............. 11-54 Checking the brake pedal reserve distance ..11-40 Battery Precautions! ........11-54 Clutch pedal (MT models)........ 11-41 Fuses ..............
Page 378: Maintenance Schedule
Therefore there may be special requirement in your country. We recommend that you ask your authorized SUBARU dealer for the actual maintenance schedule applied to your vehicle. Continue periodic maintenance beyond 120,000 km (75,000 miles) or 96 months by returning to the second column of the maintenance schedule and adding 120,000 km (75,000 miles) or 96 months to the column headings.
Page 379 (2.0 L and 2.5 L petrol engine models only) miles) Cooling system, hoses and connections 1st replacement: 132 months (11 years)/220,000 km (137,500 miles) Replace engine coolant (SUBARU Super On and after the 2nd replacement: Every 72 months (6 years)/120,000 Coolant or equivalent) km (75,000 miles)
Page 380 11-5 Maintenance and service MAINTENANCE INTERVAL (Number of months or km (miles), whichever occurs first) Months MAINTENANCE ITEM REMARKS 6 1,000 km 6 1,000 miles Transmission/differential (front & rear) lubri- See NOTE 4) cants (gear oil) Automatic transmission fluid See NOTE 4) Continuously variable transmission fluid See NOTE 6) Brake fluid...
Page 381 11-6 Maintenance and service NOTE 1) When the vehicle is used under severe driving conditions mentioned in the following examples*, the engine oil and oil filter should be changed more frequently. 2) When the vehicle is used under severe driving conditions mentioned in the following examples*, inspection should be performed at every 15,000 km (9,000 miles) or 12 months whichever occurs first.
Page 382: Maintenance Precautions
SUBARU dealer. maintained. that you consult your nearest . Never get under the vehicle sup- If you perform maintenance and service SUBARU dealer.
Page 383: When Checking Or Servicing In The Engine Compartment (2.0 L Petrol Engine Models And 2.5 L Non-Turbo Models)
11-8 Maintenance and service . Always remove the key from the cover and result in an unexpected ignition switch. When the ignition injury. switch is in the “ON” position, the cooling fan may operate & When checking or servicing suddenly even when the engine is stopped.
Page 384: Maintenance Tips
11-9 Maintenance and service 3. Remove the entire clip by pulling it up. ! Type C clips Maintenance tips ! Type B clips Some clips and fender linings must be removed before replacing the air cleaner elements or specific bulbs. &...
Page 385: Removing Air Intake Duct
11-10 Maintenance and service & Removing air intake duct ! Reinstalling clips Type C clips Insert the clip without the center portion Type A clips Use a screwdriver to undo the clips on the first and then push the center portion of air intake duct, then remove the air intake the clip into the hole.
Page 386: Engine Hood
11-11 Maintenance and service Engine hood To open the hood: 1. If the wiper blades are lifted off the windshield, return them to their original positions. 3. Remove the clip from the fender lining. 3. Release the secondary hood release Refer to “Type B clips”...
Page 387 11-12 Maintenance and service WARNING Always check that the hood is properly locked before you start driving. If it is not, it might fly open while the vehicle is moving and block your view, which may cause an accident and serious bodily in- jury.
Page 388: Engine Compartment Overview
11-13 Maintenance and service Manual transmission oil level gauge (MT) Engine compartment overview (page 11-32) Clutch fluid reservoir (MT) (page 11-38) & 2.0 L petrol engine models Brake fluid reservoir (page 11-37) Fuse box (page 11-55) Battery (page 11-54) Windshield washer tank (page 11-48) Engine oil filler cap (page 11-18) Engine coolant reservoir (page 11-23) Radiator cap (page 11-23)
Page 389: L Non-Turbo Models
11-14 Maintenance and service & 2.5 L non-turbo models Power steering fluid reservoir (Australia models) (page 11-36) Manual transmission oil level gauge (MT) (page 11-32) Clutch fluid reservoir (MT) (page 11-38) Brake fluid reservoir (page 11-37) Fuse box (page 11-55) Battery (page 11-54) Windshield washer tank (page 11-48) Engine oil filler cap (page 11-18)
Page 390: L Turbo Models
11-15 Maintenance and service & 2.5 L turbo models Power steering fluid reservoir (page 11-36) Manual transmission oil level gauge (MT) (page 11-32) or Differential gear oil level gauge (AT) (page 11-34) Clutch fluid reservoir (page 11-38) Brake fluid reservoir (page 11-37) Automatic transmission fluid level gauge (AT) (page 11-33) Fuse box (page 11-55)
Page 391: L Models
11-16 Maintenance and service & 3.6 L models Power steering fluid reservoir (Australia models) (page 11-36) Differential gear oil level gauge (AT) (page 11-34) Automatic transmission fluid level gauge (page 11-33) Brake fluid reservoir (page 11-37) Fuse box (page 11-55) Battery (page 11-54) Windshield washer tank (page 11-48) Engine oil filler cap (page 11-18)
Page 392: Turbo Diesel Engine Models
11-17 Maintenance and service & Turbo diesel engine models Manual transmission oil level gauge (page 11-32) Priming pump (page 9-31) Clutch fluid reservoir (page 11-38) Brake fluid reservoir (page 11-37) Engine oil filter (page 11-20) Fuse box (page 11-55) Battery (page 11-54) Windshield washer tank (page 11-48) Engine oil filler cap (page 11-18) 10) Engine coolant reservoir (page 11-23)
Page 393: Engine Oil
. When the engine low oil level warn- ing light illuminates, we recommend that you have your vehicle inspected by your SUBARU dealer as soon as possible. . The engine oil consumption rate is not stabilized, and therefore cannot be 2.
Page 394 11-19 Maintenance and service engine oil gets on the exhaust pipe, be sure to wipe it off. NOTE . Just after driving or while the engine is warm, the engine oil level reading may be in a range between the upper level and the notch mark.
Page 395: Changing The Oil And Oil Filter
. Changing the engine oil and oil filter recommended grade and vis- cosity. should be performed by a well-trained expert. We recommend that you con- . Be careful not to spill engine oil tact your SUBARU dealer for changing when adding it. If oil touches the...
Page 396 Fully trained (1) Push the rear window defogger mechanics are on standby at a switch to ON. SUBARU dealer to utilize the special tools, spare parts and recommended oil for this work, and also, used oils are properly disposed of.
Page 397: Recommended Grade And Viscosity
11-22 Maintenance and service & Recommended grade and NOTE viscosity Synthetic oil of the grade and viscosity noted in chapter 12 is the recom- mended engine oil for optimum engine CAUTION performance. Conventional oil may be Use only engine oil with the recom- used with no detriment to engine dur- mended grade and viscosity.
Page 398: Cooling System
3. After refilling the reserve tank and the . Mixing with a different coolant system checked by your SUBARU dealer. radiator, reinstall the cap and check that – CONTINUED –...
Page 399 11-24 Maintenance and service the rubber gaskets inside the radiator cap maintenance schedule. 2. Place a proper container under the are in the proper position. drain plug and loosen the drain plug. 1. Remove the under cover. 3. Loosen the radiator cap to drain the coolant from the radiator.
Page 400: Air Cleaner Element
. Do not splash the engine coolant genuine SUBARU air cleaner ele- ment. If it is not used, there is the over painted parts. The alcohol possibility of causing a negative contained in the engine coolant effect to the engine.
Page 401: Replacing The Air Cleaner Element
11-26 Maintenance and service & Replacing the air cleaner Connector cable 6. Open the air cleaner case and remove Clamp the air cleaner element. element Clips 7. Clean the inside of the air cleaner case ! Non-turbo models and case cover with a damp cloth and 1.
Page 402 11-27 Maintenance and service ! Turbo petrol engine models the air intake duct. 2. Remove the hydraulic hose from the clip on the right side of the air cleaner case. 3. Unsnap the two clamps holding the air cleaner case cover. 6.
Page 403 11-28 Maintenance and service ! Diesel engine models cleaner case cover. scratching the air cleaner element. 5. Clean the inside of the air cleaner case and case cover with a damp cloth. 3. Open the air cleaner case, and then 1.
Page 404: Spark Plugs (Petrol Engine Models)
It may be difficult to replace the spark plugs. It is recommended that you have ! Except 3.6 L models the spark plugs replaced by your SUBARU dealer. The spark plugs should be replaced according to the maintenance schedule. Refer to “Maintenance schedule” F11-3.
Page 405: Models With An Electric Power Steering System
We recommend malfunction. that you consult your SUBARU dealer for replacement. To check the tension of the front side belt, Except 3.6 L models...
Page 406 We recommend malfunction. that you consult your SUBARU dealer for replacement. To check the deflection of the front side belt, place a straightedge (ruler) across...
Page 407: Manual Transmission Oil
11-32 Maintenance and service & Recommended grade and Manual transmission oil viscosity & Checking the oil level Each oil manufacturer has its own base oils and additives. Never use different brands together. For details, refer to “Manual transmission, front differential and rear differential gear oil”...
Page 408: Automatic Transmission Fluid
11-33 Maintenance and service fluid level on the gauge. If it is below the Automatic transmission fluid lower level on the “HOT” range, add the & Checking the fluid level recommended automatic transmission fluid up to the upper level. The automatic transmission fluid expands largely as its temperature rises;...
Page 409: Recommended Fluid
However, damage inside the transmission. When if necessary, we recommend that you replacing the automatic transmission consult your SUBARU dealer for inspec- fluid, be sure to use the specified type. tion. Yellow handle Check the differential oil level monthly.
Page 410: Recommended Grade And Viscosity
There is no oil level gauge. To check the front differential gear oil level, we recom- rear differential gear oil level, we recom- mend that you consult your SUBARU mend that you consult your SUBARU dealer for inspection. dealer for inspection.
Page 411: Power Steering Fluid (If Equipped)
If the fluid level is extremely low, it may dirt into the tank. And never use indicate possible leakage. We recom- different brands together. mend that you consult your SUBARU . Be careful not to spill power dealer for an inspection.
Page 412: Checking The Fluid Level
. If the vehicle requires frequent refilling, there may be a leak. If you suspect a problem, we re- commend that you have the vehicle checked at your SUBARU dealer. CAUTION “MAX” level mark . When adding brake fluid, be care- “MIN”...
Page 413: Recommended Brake Fluid
11-38 Maintenance and service & Recommended brake fluid Clutch fluid (MT models) Refer to “Fluids” F12-9. & Checking the fluid level CAUTION Never use different brands of brake fluid together. Also, avoid mixing DOT 3 and DOT 4 brake fluids even if they are the same brand.
Page 414: Recommended Clutch Fluid
If the brake booster does not operate as CAUTION described in the following, we recommend CAUTION that you have it checked by your SUBARU . Clutch fluid absorbs moisture Never use different brands of clutch dealer. from the air. Any absorbed moist- fluid together.
Page 415: Brake Pedal
10 N you contact with your SUBARU dealer. (1 kgf, 2 lbf). If the free play is not within proper specification, we recommend that you contact your SUBARU dealer.
Page 416: Clutch Pedal (Mt Models)
If you hear this scraping noise each time you apply the brake pedal, we recommend that you have the brake pads serviced by your SUBARU dealer as soon as possible. CAUTION If you continue to drive despite the scraping noise from the audible brake pad wear indicator, it will –...
Page 417: Breaking-In Of New Brake Pads And Linings
We recommend that you contact your km/h (30 to 40 mph), step on the brake winter (snow) tires in heavy or loose snow SUBARU dealer immediately if you find pedal lightly. Repeat this five or more or on icy roads.
Page 418: Tire Pressures And Wear
Driving even a short distance warms up We recommend that you drive slowly to the tires and increases the tire pressures. the nearest authorized SUBARU dealer Also, the tire pressures are affected by the and have the vehicle inspected. outside temperature. It is best to check tire pressure outdoors before driving the &...
Page 419: Wheel Balance
We recommend that you con- Driving at high speeds with exces- tact your SUBARU dealer if you notice sively low tire pressures can cause abnormal tire wear. the tires to deform severely and to rapidly become hot.
Page 420: Wear Indicators
We and replace the tires before their tread recommend that you have the tires wear indicators become visible. rotated by your SUBARU dealer. & Tire rotation direction mark New tread Worn tread Tread wear indicator...
Page 421: Tire Replacement
After driving approximately 1,000 km (600 For safe vehicle operation, SUBARU miles), check the wheel nuts again and recommends replacing all four tires at retighten any nut that has become loose.
Page 422: Wheel Replacement
Replacement wheels are available from SUBARU dealers. WARNING Use only those wheels that are specified for your vehicle. Wheels not meeting specifications could...
Page 423: Aluminum Wheels (If Equipped)
. Be sure to fit tire chains on uniformly and completely around the tire, otherwise the chains may scratch the wheel. . When wheel nuts, balance weights, or the center cap is replaced, we recommend that you replace them with genuine SUBARU parts designed for aluminum wheels.
Page 424 In areas where water freezes in winter, tration appropriately for the out- use an anti-freeze type windshield washer side temperature. If the concen- fluid. SUBARU Windshield Washer Fluid tration is inappropriate, sprayed contains 58.5% methyl alcohol and 41.5% washer fluid may freeze on the surfactant, by volume.
Page 425: Replacement Of Wiper Blades
11-50 Maintenance and service & Windshield wiper blade as- Replacement of wiper blades carefully return the wiper arms on the windshield by hand. You sembly should not return the wiper arms Grease, wax, insects, or other material on 1. Raise the wiper arm off the windshield. to the windshield only by the the windshield or the wiper blade results in return spring.
Page 426: Windshield Wiper Blade Rubber
11-51 Maintenance and service & Windshield wiper blade rub- grooves in the rubber and slide the blade rubber assembly into the support until it locks. Metal spines 2. If the new blade rubber is not provided Support with two metal spines, remove the metal Claw spines from the old blade rubber and 1.
Page 427: Rear Window Wiper Blade Assembly (Station Wagon)
11-52 Maintenance and service & Rear window wiper blade & Rear window wiper blade assembly (Station wagon) rubber (Station wagon) 1. Raise the wiper arm off the rear window. 3. Pull the wiper blade assembly toward you to remove it from the wiper arm. 4.
Page 428 11-53 Maintenance and service install them in the new blade rubber. with the stoppers on the plastic support ends. If the rubber is not retained properly, the wiper may scratch the rear window glass. 2. Pull the blade rubber assembly out of the plastic support.
Page 429: Battery
11-54 Maintenance and service Battery and protective gloves when inspect- can cause blindness and burns. ing your vehicle’s battery. Avoid & Battery Precautions! tipping the battery and subjecting it Keep flames away: to shocks since this could cause fluid to spill. WARNING Before working on or near your vehicle’s battery, extinguish all ci-...
Page 430: Fuses
11-55 Maintenance and service Fuses gen gas. To prevent an explosion, CAUTION charge your vehicle’s battery in a well ventilated area and keep flames Never use more than 10 amperes CAUTION away. when charging the battery because it will shorten battery life. Never replace a fuse with one hav- ing a higher rating or with material other than a fuse because serious...
Page 431 The spare fuses are stored in the main indicates that its system has a problem. Blown fuse box cover in the engine compart- We recommend that you contact your ment. If any lights, accessories or other electrical SUBARU dealer for repairs. controls do not operate, inspect the...
Page 432: Main Fuse
(3.6 L Australia models and We recommend that you always consult 3.6 L Middle East models) your SUBARU dealer before installing fog lights or any other electrical equipment in your vehicle. Such accessories may cause the electronic system to malfunc- tion if they are incorrectly installed or if they are not suited for the vehicle.
Page 433: Replacing Bulbs
. It may be difficult to replace the contact your SUBARU dealer. bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
Page 434 11-59 Maintenance and service ! Low beam light bulbs 3. Disconnect the electrical connector. 7. Install the bulb cover. 1. Pull off the fender lining. For details, refer to “Pulling off the fender lining” F11- 4. Remove the retainer spring. 8.
Page 435: Front Position Light
11-60 Maintenance and service ! High beam light bulbs surface. 6. Reconnect the electrical connector. 1. Remove the air intake duct (right-hand 7. To install the bulb to the headlight side). For the method to remove the air intake duct, refer to “Removing air intake assembly, turn it clockwise until it clicks.
Page 436: Front Turn Signal Light
5. Pull out the bulb from the socket and We recommend that you have the bulbs replace the bulb with a new one. replaced by your SUBARU dealer if necessary. 2. Disconnect the electrical connector. 6. After replacing the bulb, reattach the fender lining.
Page 437: Rear Combination Lights
! Sedan NOTE It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary. Brake/tail light Rear turn signal light 1. Undo the clips. For the method to undo Back-up light the clips, refer to “Type C clips”...
Page 438 11-63 Maintenance and service Tail light 4. Slide the rear combination light as- 8. Reinstall the rear combination light Brake light sembly straight rearward and remove it assembly by sliding the two-pronged part Rear turn signal light from the vehicle. of the combination light assembly securely to each holder of the vehicle side.
Page 439: Tail/Back-Up Light/Rear Fog Light (Station Wagon - If Equipped)
5. Install the light cover on the rear gate. & Tail/Rear fog light (Sedan) NOTE It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary. 1. Open the trunk. Back-up/Rear fog light Tail light 2.
Page 440: Rear Fog Light (Outback - If Equipped)
! Sedan NOTE It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary. 1. Open the trunk. 4. Pull the bulb out of the bulb socket and replace it with a new one.
Page 441 11-66 Maintenance and service replace it with a new one. 5. Install the bulb socket by turning it clockwise. 6. Reinstall the trunk trim lining. ! Station wagon 2. Remove the trunk trim lining by re- 3. Pull the bulb out of the socket. moving the 12 clips and the trunk trim 4.
Page 442: Map Light
11-67 Maintenance and service & Map light 3. Pull the bulb straight downward to remove it. 4. Install a new bulb. 5. Reinstall the lens. & Dome light Type B 1. Remove the lens by prying the edge of 1. Remove the lens by prying the edge of the lens with a flat-head screwdriver.
Page 443: Vanity Mirror Light
11-68 Maintenance and service & Door step light remove it. 4. Install a new bulb. 5. Reinstall the lens. & Vanity mirror light 2. Pull the bulb out of the socket. 3. Install a new bulb. 1. Remove the lens by prying the edge of 4.
Page 444: Cargo Area Light (Station Wagon)
3. Install a new bulb. 4. Reinstall the cover. & Other lights on the vehicle It may be difficult to replace the bulbs of other lights on the vehicle. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
Page 445 Specifications Specifications ............. 12-2 Fuses and circuits ........... 12-14 Dimensions............12-2 Fuse panel located in the passenger compartment ..........12-14 Engine ............... 12-5 Fuse panel located in the engine Fuel ..............12-5 compartment ..........12-16 Lubricants............12-6 Bulb chart............12-18 Fluids ..............
Page 446: Specifications
12-2 Specifications Specifications These specifications are subject to change without notice. & Dimensions ! Sedan mm (in) Petrol engine models Diesel engine models Item 2.0 L 2.5 L non-turbo 2.5 L turbo 3.6 L 2.0 L Drive system Transmission type 4,730 (186.2) Overall length 4,745 (186.8)*...
Page 447 12-3 Specifications ! Wagon mm (in) Petrol engine models Diesel engine models Item 2.0 L 2.5 L non-turbo 2.5 L turbo 2.0 L Drive system Transmission type 4,775 (188.0) Overall length 4,785 (188.4)* Overall width 1,780 (70.1) Overall height 1,535 (60.4) Wheelbase 2,750 (108.3) 1,545 (60.8)*...
Page 448 12-4 Specifications ! OUTBACK mm (in) Item Low-ground clearance models High-ground clearance models Drive system 4,775 (188.0)* Overall length 4,790 (188.6)* Overall width 1,820 (71.7) Overall height 1,605 (63.2) 1,615 (63.6) Wheelbase 2,745 (108.1) Front 1,540 (60.6) 1,535 (60.4) Tread Rear 1,540 (60.6) 1,530 (60.2)
Page 449: Engine
12-5 Specifications & Engine Petrol engine Diesel engine EJ204 EZ36 Engine model EJ253 EJ255 EE20Z (2.0 L, DOHC, (3.6 L, DOHC, (2.5 L, SOHC) (2.5 L, DOHC, turbo) (2.0 L, DOHC, turbo) non-turbo) non-turbo) Horizontally opposed, Horizontally opposed, Engine type Horizontally opposed, liquid cooled 4 cylinder, 4-stroke petrol engine liquid cooled 6 cylinder, liquid cooled 4 cylinder,...
Page 450: Lubricants
12-6 Specifications & Lubricants ! Engine oil ! Petrol engine models — Oil grade* API classification SM or SN with the words ILSAC GF-4 or GF-5, which can be “ENERGY CONSERVING” or “RESOURCE identified with the ILSAC certification ACEA specification A3 or A5 CONSERVING”...
Page 451 12-7 Specifications 2.0 L models 2.5 L non-turbo models 4.2 liters (4.4 US qt, 3.7 Imp qt) Oil capacity* 5AT models 2.5 L turbo models 6MT models 4.3 liters (4.5 US qt, 3.8 Imp qt) 3.6 L models 6.5 liters (6.9 US qt, 5.7 Imp qt) *1: For the API specification and the ILSAC specification, the recommended oil grades can be identified by looking for its original marks indicated on the oil container.
Page 452 12-8 Specifications ! Manual transmission, front differential and rear differential gear oil Oil grade API classification GL-5 SAE viscosity No. and applicable temperature – Remarks* “Manual transmission oil” F11-32 Manual transmission oil 3.7 liters (3.9 US qt, 3.3 Imp qt) Oil capacity* “Front differential gear oil (AT and Front differential gear oil...
Page 453: Fluids
& Fluids Fluid Fluid type* Fluid capacity* Remarks* “Automatic transmission Automatic transmission fluid (5AT · SUBARU ATF 9.8 liters (10.4 US qt, 8.6 Imp qt) fluid” F11-33 models) · IDEMITSU ATF HP “Continuously variable Continuously variable transmission We recommend that you consult your 12.5 liters (13.2 US qt, 11.0 Imp qt)
Page 454: Engine Coolant
6.5 liters (6.9 US qt, 5.7 Imp qt) 2.5 L non-turbo models CVT models 6.4 liters (6.8 US qt, 5.6 Imp qt) SUBARU Super Coolant 6MT models 6.6 liters (7.0 US qt, 5.8 Imp qt) 2.5 L turbo models 5AT models 6.9 liters (7.3 US qt, 6.1 Imp qt)
Page 455: Electrical System
12-11 Specifications & Electrical system Battery type and capacity (5HR) Petrol engine models Europe, China, Latin America, MT models 12V-48AH (55D23R) Russia and Israel models 3.6 L models 12V-64AH (95D26R) Other models 12V-52AH (65D23R) Middle East models 2.0 L and 2.5 L models 12V-48AH (55D23R) 3.6 L models 12V-52AH (65D23R)
Page 456: Tires
12-12 Specifications & Tires For the tire specifications, see the tire pressure label located on the door pillar on the driver’s side. Wheel nut tightening torque 120 N·m (12 kgf·m, 89 lbf·ft)* *1: This torque is equivalent to applying approximately 40 to 50 kgf (88 to 110 lbf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible.
Page 457: Specifications
12-13 Specifications Wagon Petrol engine models Diesel engine models Item 2.0 L 2.5 L non-turbo 2.5 L turbo 2.0 L Front 0+3 mm (0+0.12 in), Toe angle (sum of both wheels): 08+0815’ Rear 0+3 mm (0+0.12 in), Toe angle (sum of both wheels): 08+0815’ −0830’+0845’* −0830’+0845’* Camber*...
Page 458: Fuses And Circuits
12-14 Specifications Fuses and circuits Fuse Fuse Circuit panel rating & Fuse panel located in the passenger compartment Trailer hitch connector Rear fog light Rear power window (left side) Power window (driver’s side) 7.5A Navigation system Front wiper deicer Sunroof 7.5A Combination meter 7.5A...
Page 459 12-15 Specifications Fuse Fuse Fuse Fuse Circuit Circuit panel rating panel rating Empty Power window (passenger’s side) Rear power window Empty (right side) Empty 7.5A Automatic condi- tioner unit Front wiper deicer 7.5A Steering lock unit 7.5A Back-up light 7.5A ABS/Vehicle dynamics 7.5A Electronic...
Page 460: Fuse Panel Located In The Engine Compartment
12-16 Specifications & Fuse panel located in the engine compartment Fuse Fuse Circuit panel rating 7.5A CVT control unit 7.5A Horn (right side) 7.5A Horn (center) beam headlight (right side) beam headlight (left side) Fuel pump High beam headlight (left side) High beam headlight (right side) Continuously...
Page 461 12-17 Specifications Fuse Fuse Fuse Fuse Circuit Circuit panel rating panel rating Engine control unit Audio unit Ignition coil Sub fan Engine control unit Main fan Engine control unit ABS/Vehicle dynamics control unit Automatic transmission 7.5A control unit Glow plug (diesel en- gine models) Illumination Fog light (right side)
Page 462: Bulb Chart
12-18 Specifications Bulb chart NOTE Lights from A to C are the LED (Light Emitting Diode) type. We recommend that you consult your SUBARU dealer for replacement.
Page 463 12-19 Specifications Wattage Bulb No.* High beam headlight 12V-60W Front position light 12V-5W Low beam headlight Models with HID headlights 12V-35W Models without HID headlights 12V-55W Front turn signal light 12V-21W WY21W Map light 12V-8W Dome light 12V-8W Door step light 12V-5W Front fog light 12V-51W...
Page 464 High mount stop light (Sedan) self. – – High mount stop light (Station wagon) – Do not remove any headlight- *: ECE specification assembly components by yourself. For replacement, we recommend that you contact your SUBARU dealer.
Page 465 12-21 Specifications CAUTION Replace any bulb only with a new bulb of the specified wattage. Using a bulb of different wattage could result in a fire.
Page 466: Vehicle Identification
12-22 Specifications Vehicle identification number Vehicle identification ID label (Europe models) & For vehicle body Tire inflation pressure label Year of manufacture label (Middle East models) Model number label (General models) Built date label (Australia models) ADR compliance plate (Australia models) Fuel label Air conditioner label 10) Vehicle identification number plate (if...
Page 467: For Engine
12-23 Specifications & For engine ! Diesel engine ! Petrol engine Engine serial number (punch mark) Engine type (casting) crankcase upper Engine serial number (punch mark) side Engine type (casting) crankcase upper side...
Page 468 Supplement Year of manufacture (Middle East models Technical information and instruction of only) ..............13-2 the radio and telecommunication devices for China models .......... 13-11 Speed limit, maximum torque and maximum power at rpm (Middle East Transmitter ............13-11 models only)............ 13-2 Immobilizer............
Page 469: Year Of Manufacture
13-2 Supplement Year of manufacture (Middle Speed limit, maximum torque and maximum power at rpm East models only) (Middle East models only) Sedan 2.0 L 2.5 L non-turbo 2.5 L turbo Model Speed limit 210 (130) 203 (126) 210 (130) 245 (152) km/h (mph) Maximum torque...
Page 470: Fuel Consumption And Co
13-3 Supplement Fuel consumption and CO -emissions (EU only) Petrol engine models that conform to “Euro 5” Model and Type Fuel consumption according to Regulation -emissions according to Regulation (EC) No. 715/2007-692/2008 (L/100km) (EC) No. 715/2007-692/2008 (g/km) Urban Extra-urban Total Urban Extra-urban Total...
Page 471 13-4 Supplement Diesel engine models that conform to “Euro 5” Model and Type Fuel consumption according to Regulation -emissions according to Regulation (EC) No. 715/2007-692/2008 (L/100km) (EC) No. 715/2007-692/2008 (g/km) Urban Extra-urban Total Urban Extra-urban Total 2.0D Sedan 2.0D Wagon 2.0D-S Sedan 2.0D-S Wagon 2.0D Outback...
Page 472: Declaration Of Conformity In Accordance With The Radio And Telecommunications Terminal Equipment Directive 1999/5/Ec
13-5 Supplement Declaration of conformity in accordance with the radio and telecommunications terminal equipment directive 1999/5/EC & Transmitter for the keyless entry system – CONTINUED –...
Page 473: Receiver For The Keyless Entry System
13-6 Supplement & Receiver for the keyless entry system...
Page 474: Integrated Unit (Car Immobilizer)
13-7 Supplement & Integrated unit (car immobilizer) Integrated unit (car immobilizer) for models without “Keyless access with push-button start system” – CONTINUED –...
Page 475: Immobilizer
13-8 Supplement & Immobilizer Immobilizer for models with “Keyless access with push-button start system” Hereby, Fuji Heavy Industries Ltd., declares that this SSPIMB01 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Page 476: Lf Oscillator
13-9 Supplement & LF Oscillator LF Oscillator for models with “Keyless access with push-button start system” Hereby, Fuji Heavy Industries Ltd., declares that this SSPLF01 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. – CONTINUED –...
Page 477: Supplement
13-10 Supplement & Bluetooth ® module...
Page 478: For China Models
13-11 Supplement & Immobilizer & Push-button ignition switch Technical information and instruction of the radio and telecommunication devices for China models & Transmitter – CONTINUED –...
Page 479 13-12 Supplement & Access key & Antenna for keyless access & Bluetooth ® module...
Page 480 13-13 Supplement & Remote keyless entry trans- & Keyless access with push- Technical information for mitter button start system Singapore models & Access key – CONTINUED –...
Page 481: Bluetooth Module
13-14 Supplement & Bluetooth ® module Technical information for Is- rael models & Bluetooth ® module...
Page 482: Index
Index...
Page 483 14-2 Index Automatic headlight beam leveler ......... 3-46 ABS (Anti-lock Brake System) ........7-30 Warning light............3-28 Warning light ..........3-22, 7-31 Automatic rain sensing windshield wipers ...... 3-53 Access key ..............2-8 Sensor ..............3-53 Warning light ..........3-30, 3-33 Sensor sensitivity control .........
Page 484 14-3 Index Clutch pedal free play ........... 11-41 System ..............7-29 Brake pedal Coolant level............11-23 Free play ............. 11-40 Fluid level (automatic transmission fluid)....11-33 Reserve distance ..........11-40 Fluid level (brake fluid) .......... 11-37 Brake system ............7-29 Fluid level (clutch fluid)..........
Page 485 14-4 Index Fluid............11-34, 12-9 Dome light ............6-2, 11-67 Manual mode ............7-23 Door Oil temperature warning light (AT OIL TEMP) .... 3-22 Locks..............2-4 Select lever ............7-21 Open indicator light..........3-28 Shift lock function........... 7-22 Open warning light..........3-28 Coolant............
Page 486 14-5 Index Fog light indicator light ..........3-38 Emergency Locking Retractor (ELR)......1-16 EN590 ................ 7-2 Fog light switch ............3-49 Engine Position light ............11-60 Compartment overview .......... 11-13 Seatbelt pretensioners ..........1-25 Coolant............11-23, 12-10 Turn signal light............ 11-61 Exhaust gas (carbon monoxide)......
Page 487 14-6 Index Rear seat.............. 1-10 Cruise control set ........... 3-38, 7-47 Headlight ............3-43, 11-58 Door open ............. 3-28 Beam leveler ............3-46 Front fog light............3-38 Bulb wattage ............12-18 Headlight............... 3-38 Control switch............3-43 High beam............. 3-37 Flasher ..............3-45 Immobilizer .............
Page 488 14-7 Index Tail light (Station wagon) ........11-62 Opening rear gate ..........2-13 Opening trunk..........2-14, 2-17 Trunk ..............11-69 Unlocking rear gate ..........2-17 Turn signal ........3-45, 11-61, 11-62 Warning chimes and warning light ....2-17, 3-29 Vanity mirror ..........6-5, 11-68 When access key does not operate Loading your vehicle ...........
Page 489 14-8 Index Windows ............... 2-28 Odometer..............3-12 Precautions against vehicle modification....1-29, 1-66 Off road driving............8-8 Preheating indicator light ..........3-38 Oil filter..............11-20 Preparing to drive ............7-5 Oil level Priming pump ..........9-31, 11-17 Engine..............11-18 Printed antenna............5-2 Front differential gear ..........
Page 490 14-9 Index Headlight............. 11-58 Clutch fluid ........... 11-39, 12-9 Engine oil............. 11-22, 12-6 License plate light..........11-65 Front differential gear oil ........ 11-35, 12-8 Map light ............. 11-67 Manual transmission oil ......... 11-32, 12-8 Rear combination light .......... 11-62 Power steering fluid........11-37, 12-9 Rear fog light ..........
Page 491 14-10 Index Seatbelt ..............5, 1-15 Warning light............3-18 Fastening.............. 1-18 Starting & stopping engine........7-6, 7-9 Maintenance............1-25 Steering wheel Pretensioners ............1-25 Power ..............7-27 Safety tips............. 1-15 Tilt/telescopic ............3-60 Warning light and chime ......... 1-16, 3-16 Storage compartment...........
Page 492 14-11 Index Ventilator ..............4-2 Towing..............9-23 All wheels on the ground ........9-26 Flat-bed truck ............9-26 Hooks..............9-24 Warning and indicator lights ......... 3-16 Weight..............8-17 Warning chimes Trailer Keyless access with push-button start system.... 3-29 Hitch ..............8-17 Seatbelt............
Page 493 14-12 Index Wheel Alignment............12-12 Aluminum............. 11-48 Balance ............... 11-44 Covers..............11-47 Nut tightening torque ..........12-12 Replacement ............11-47 Windows..............2-28 Windshield Washer fluid ............11-48 Wiper and washer switches........3-53 Wiper blades ............11-50 Wiper deicer............3-56 Winter Diesel..............
Page 494 GAS STATION REFERENCE & & Fuel: Engine oil: ! Non-turbo petrol engine models ! Petrol engine Use only the following oils. ! Australia models . API classification SM or SN with the words “ENERGY Use only unleaded petrol with 90 Octane or higher. This CONSERVING”...
Page 495 & Engine oil capacity: 2.0 L models 2.5 L non-turbo models 4.2 liters (4.4 US qt, 3.7 Imp qt) Petrol engine models 5AT models 2.5 L turbo models 6MT models 4.3 liters (4.5 US qt, 3.8 Imp qt) 3.6 L models 6.5 liters (6.9 US qt, 5.7 Imp qt) 5.9 liters (6.2 US qt, 5.2 Imp qt) Diesel engine models...

Subaru Outback 2011 Owner's Manual

Table of Contents

Table of Contents

Front Seats

Seat Heater (if Equipped)

Rear Seats

Armrest

Seatbelts

Front Seatbelt Pretensioners

Child Restraint Systems

SRS Airbag (Supplemental Restraint System Airbag)

Keys and Doors

Keys

Immobilizer

Door Locks

Power Door Locking Switch

Keyless Access with Push-Button Start System (if Equipped)

Remote Keyless Entry System (if Equipped)

Double Locking System (if Equipped)

Function Disabling Unlocking with the Power Door Locking Switch (Australia Models)

Child Safety Locks

Windows

Trunk Lid (Sedan)

Rear Gate (Station Wagon)

Sunroof (if Equipped)

Table of Contents

Climate Control

Ventilator

Automatic Climate Control System

Operating Tips for Heater and Air Conditioner

Air Filtration System

Audio

Antenna System

Installation of Accessories

Audio Set

Power and Sound Controls

FM/AM Radio Operation

CD Player Operation

Auxiliary Input Jack

Precautions to Observe When Handling a Compact Disc

Audio Control Buttons (if Equipped)

Hands-Free System (if Equipped)

Interior Equipment

Interior Light

Sun Visors

Storage Compartment

Cup Holders

Bottle Holders

Accessory Power Outlets

Ashtray (if Equipped)

Coat Hook

Floor Mat (if Equipped)

Shopping Bag Hook

Cargo Area Cover (Station Wagon)

Cargo Tie-Down Hooks (Station Wagon)

Under-Floor Storage Compartment (if Equipped)

Rear View Camera (if Equipped)

Table of Contents

Fuel

Preparing to Drive

Starting and Stopping Engine (Models with Push-Button Start System)

Manual Transmission

Automatic Transmission/Continuously Variable Transmission

DRIVE (if Equipped)

Power Steering

Braking

ABS (Anti-Lock Brake System)

Electronic Brake Force Distribution (EBD) System

Vehicle Dynamics Control System

Parking Your Vehicle

Cruise Control (if Equipped)

Quick Links

Chapters

Related Manuals for Subaru Outback 2011

Summary of Contents for Subaru Outback 2011
