Subaru Tribeca 2011 Quick Reference Manual

Hide thumbs Also See for Tribeca 2011:
Table of Contents

Advertisement

Quick Links

See also: Maintenance and Service Manual , Owner's Manual
Tribeca
2011
Quick Reference Guide.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tribeca 2011 and is the answer not in the manual?

Questions and answers

Related Manuals for Subaru Tribeca 2011

Summary of Contents for Subaru Tribeca 2011

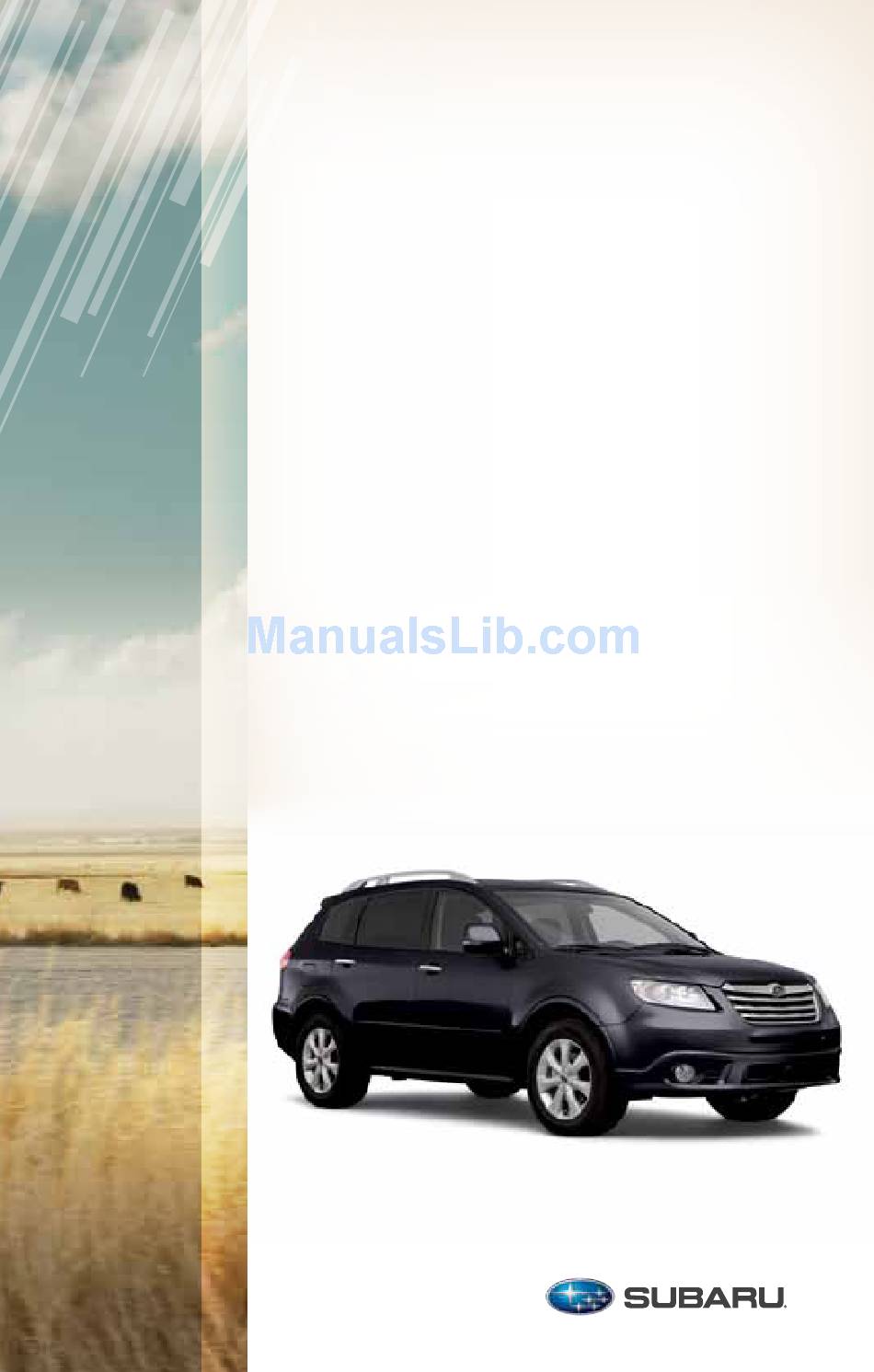

  • Page 1 Tribeca 2011 Quick Reference Guide.
  • Page 2 Lineartronic, Alcantara, Circle Surround, Audyssey, MultiEQ, XM and Sirius are registered trademarks. All rights reserved. Contents may not be reprinted or electronically reproduced in whole or in part without prior written approval of Subaru of America, Inc. © 2010 Subaru of America, Inc.
  • Page 3 Table of Contents Getting Started 2 - 3 Instrument Panel 4 - 5 Gauges 6 - 7 Personalize 8 - 9 Controls 10 - 17 While Operating 18 - 19 Safety/In Case of Emergency 20 - 21 Additional Information 22 - 23...

  • Page 4: Remote Keyless Entry

    Remote Keyless Entry Lock/Arm • Press to lock all doors and rear gate. • If any of the doors or the rear gate are not fully closed, an electronic chirp will sound five times and the hazard lights will flash five times to alert you that the doors or the rear gate are not properly closed.
  • Page 5 Seating Power Driver Seat: Power Driver’s Seat: 8-way Adjust Memory (if equipped) 1. Forward/Backward, Angle You can memorize two seat positions. and Height To memorize seat positions: Move the switch toward the front or rear 3. Press the “SET” button. to move the seat forward or backward.

  • Page 6: Instrument Panel

    Instrument Panel...
  • Page 7 12-13 14-15...
  • Page 8 Gauges Immediate Attention Caution Informational Tachometer Trip meter A/B selection and trip meter reset knob Temperature Gauge Seatbelt warning Brake system Front passenger Rear Differential oil seatbelt warning temperature warning SRS airbag system High beam indicator light Security indicator light AT OIL TEMP warning Door open ABS warning...
  • Page 9 Speedometer Fuel Gauge Trip meter and odometer Vehicle Dynamics Turn signals Control/Vehicle Dynamics Control operation Front fog light indicator Vehicle Dynamics Control OFF light (if equipped) CHECK ENGINE / Headlight indicator light Malfunction indicator Cruise Control Tire pressure warning light indicator light Front passenger frontal Cruise control set...

  • Page 10: Steering Column

    Personalize Steering Column Push the lever down firmly to adjust the vertical and lengthwise position of the column. Firmly push the lever back up to lock the column in place. Do not adjust while driving. Power Exterior Mirrors Turn knob to the “L” side to adjust the left-hand mirror or to the “R”...

  • Page 11: Power Moonroof

    Power Moonroof Rear Seat Entertainment System (if equipped) (if equipped) With the moonroof in the fully closed You can enjoy watching movies or position, press the switch to tilt listening to music when a movie DVD or the moonroof up. Press and hold the music CD is inserted into the rear seat switch to lower the moonroof.

  • Page 12: Light Controls

    Controls Light Controls Push up for right turn signal. Turns on headlights, instrument panel illumination, front side marker lights, taillights and license plate lights. Turns on fog lights (if equipped). Push down for left turn signal. Turns on instrument panel lights, tail lights, front side marker lights and license plate lights.

  • Page 13: Daytime Running Lights

    INT. HIGH Windshield Wipers Daytime Running Lights To turn wipers on, press the wiper Daytime running lights are standard control lever down one level for on your vehicle. A reduced brightness intermittent, two levels for low, or three high beam will be automatically turned levels for high speed.

  • Page 14: Automatic Climate Control

    Controls AUTOMATIC 3. Heated Seats The left button is for the driver’s seat CLIMATE CONTROL and the right button is for the front 1. Rear A/C Cooling passenger’s seat. To warm the seats, A fan speed control dial is located on the press the appropriate button.
  • Page 15 8. Air Flow 6. Recirculated/Outside Air Press the air inlet selection button to Push the “MODE” button to select prevent outside air from being drawn the desired air flow mode: ventilation, into the passenger compartment. bi-level, heat or heat-defrost will Press the button again to allow be displayed on the fan speed outside air into the compartment.

  • Page 16: Audio Controls

    Controls Audio controls 6. Presets You can save up to six favorite stations for Radio Functions each band – FM1, FM2, and AM. Select a frequency and press one of the preset 1. Power/Volume Control buttons for more than 1.5 seconds to Push the “POWER/VOL”...
  • Page 17 9. Load Disc (single disc player) 15. Scan Insert a disc into the slot. The CD Press the “SCAN” button to begin previewing the first 10 seconds will automatically be drawn in and will begin play at the first track. of each track on the disc.

  • Page 18: Steering Wheel Audio Controls

    Controls Steering Wheel Audio Controls (if equipped) • With any of the radio modes selected, push • Push the switch the switch up or down to find the desired to increase or frequency. In CD mode, push the switch up reduce volume.

  • Page 19: Cruise Control

    Cruise Control • Resume • Temporary Cancel Push the control lever There are three ways to temporarily cancel up to “RES/ACC.” cruise control: depress the brake pedal; push the control downward to “CANCEL”; or shift the selector lever into the “N” (neutral) position (automatic transmission).

  • Page 20: While Operating

    While Operating AT Shift Mode Ultimate Control The automatic transmission gives you ultimate control with five forward speeds, one reverse speed, and a manual mode. Switch to the optional AT Shift mode when you need that extra boost for uphill driving. Normal Mode When the selector lever is in the “D”...
  • Page 21 Rear View Monitor Navigation (if equipped) Vehicles with Navigation system have 1. Width of the vehicle: Oblique a rear view camera. When the selector vertical lines lever is moved into “R” (Reverse) 2. Approx. 6.5-10 feet from the rear position, the rear view is shown on the bumper: Green horizontal line display.

  • Page 22: Safety / In Case Of Emergency

    Safety / In Case of Emergency Child Restraint System For maximum safety, first carefully read and follow the instructions from the device manufacturer to properly install the restraint system inside your vehicle. Use the appropriate seatbelts or anchorages provided in your vehicle. Please refer to your Owner’s Manual for the proper installation instructions.
  • Page 23 Subaru dealer or a commercial towing service. Subaru Roadside Assistance Subaru Roadside Assistance is free and standard on every 2011 Subaru vehicle. Coverage is automatic; there are no forms to complete. Subaru Roadside Assistance is available anytime during the 3-year/36,000-mile Subaru Limited Warranty, whichever comes first.* A Subaru Roadside Assistance decal has...

  • Page 24: Additional Information

    Subaru ownership. Log on to My.Subaru.com to access features such as: automated service history, e-mail maintenance reminders, online Owner’s Manual, warranty information, maintenance schedules and much more...

  • Page 25: Engine Oil

    Fuel Use regular unleaded gasoline with an octane rating of 87 AKI or higher. Fuel Capacity • 16.9 US gal (64 liters, 14.1 Imp gal) • When the low fuel indicator light is displayed on the instrument panel approximately 2.6 U.S. gallons of fuel remain. •...
  • Page 26 Notes...
  • Page 27 Subaru of America, Inc., Subaru Plaza, P.O. Box 6000, Cherry Hill, NJ 08034-6000 MSA5B1106A Printed in USA 10/10 Issued 10/10...

  • Page 28: Owner Information

    DELIVERY DATE OWNER NAME OWNER NAME Owner Resources & Warranty Present the Subaru Owner’s Manual & Quick Reference Guide (detailed review in “Operation & Controls” section) Review Subaru Roadside Assistance, Owner Cards & Provide Toll-Free Number 1-800-261-2155 Explain 3/36 BASIC Warranty / 5/60 Powertrain Warranty / Explain Wear Items &...

  • Page 29: Operation And Controls

    Operation & Controls Please use & reference the SUBARU OWNER’S MANUAl & QUICK REfERENCE GUIDE OPERAtION & CONtROlS Review Master & Valet Keys Show Yellow Caps & Explain Checking & Filling of Vehicle Fluids Show Keyless Entry, Alarm System & Remote Start (if equipped) Show Fuel Filler Door &...
