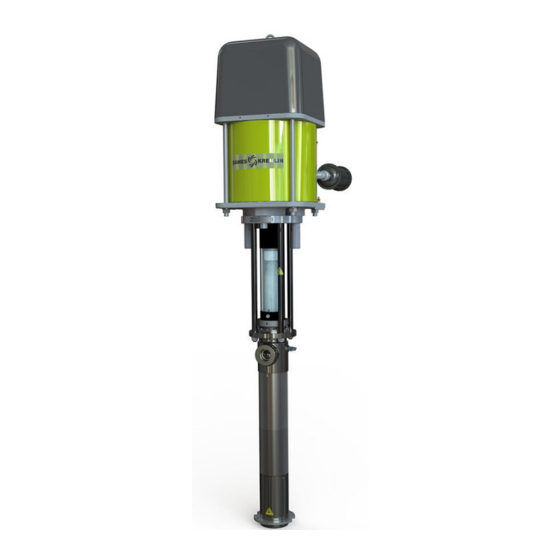

- Page 1 SHOVEL PUMP 910 cm Pump REXSON SH910 User Manual 582179110 2021-03-01 Index B Translation of the original instructions SAMES KREMLIN SAS 13 Chemin de Malacher 38240 Meylan www.sames-kremlin.com 33 (0)4 76 41 60 60...
- Page 2 Any communication or reproduction of this document, in any form whatsoever, and any exploitation or communication of its contents are prohibited, except with the express written consent of SAMES KREMLIN. The descriptions and features contained in this document are subject to change without notice.
-
Page 3: Table Of Contents
Contents Evolution table of the document ..........................5 Additional Documentations ............................5 Guarantee ..................................6 DECLARATION OF CONFORMITY ......................7 SAFETY INSTRUCTIONS ..........................8 ............................8 ERSONAL SAFETY Overview ..................................8 Meaning of the pictograms ............................9 Security devices ................................. 10 Danger of Pressure .............................. - Page 4 USE OF THE PRODUCT ..........................31 ............................31 SER SETTINGS Wet Cup ..................................31 Tightening of the Wet Cup ............................31 Tightening procedure ..............................31 ..........................32 AFETY IN PRODUCTION ..............................32 TART UP ..........................33 HUTDOWN PROCEDURE Pump ..................................33 ....................
-
Page 5: Evolution Table Of The Document
Object Revision Date Modified by SEGUIN Shovel fluid section 910 01/05/2021 REXSON SH910 SEGUIN Shovel fluid section 910 02/09/2021 REXSON SH910 Dear customer, you have just purchased your new equipment and we thank you for it. We have taken the utmost care, from design to manufacture, so that this equipment gives you complete satisfaction. -
Page 6: Guarantee
The warranty excludes wear parts, deterioration or wear resulting from abnormal or unscheduled use by SAMES KREMLIN, failure to observe instructions for proper operation or lack of maintenance. -
Page 7: Declaration Of Conformity
Declaration of Conformity 1 Declaration of Conformity Refer to the existing declaration delivered with the product. -
Page 8: Safety Instructions
It must be used only for the purpose for which it was intended. Do not modify or transform the material. Parts and accessories must only be supplied or approved by SAMES KREMLIN. The equipment must be checked periodically. Defective or worn parts must be replaced. -
Page 9: Meaning Of The Pictograms
Safety instructions Meaning of the pictograms Danger: pinching, Danger: high Danger: moving parts Risks of product crushin pressure emanation Danger: hot parts or Danger: flammability Risk of explosion Danger: electricity surfaces risks Danger (user) Gloves required Warning Danger Grounding Protective helmet Hearing protection Mandatory Safety shoes... -
Page 10: Security Devices
Safety instructions Security devices Attention Guards (motor cover, coupling guard, housings, ...) are set up for safe use of the equipment. The manufacturer cannot be held responsible for any bodily injury as well as failures and / or damage to the equipment resulting from the destruction, the occultation or the total or partial removal of the protectors. -
Page 11: Injection Hazards
Safety instructions Injection hazards "HIGH PRESSURE" technology requires the utmost care. Operation can cause dangerous leaks. There is a risk of product injection into exposed parts of the body, which can lead to serious injury and the risk of amputation: ... -
Page 12: Toxic Products Hazards
Safety instructions Toxic products hazards Toxic products or vapors can cause serious injury through contact with the body, in the eyes, under the skin, but also by ingestion or inhalation. It is imperative: To know the type of product used and the dangers it represents, ... -
Page 13: Integrity Of The Material
Safety instructions 2.2 Integrity of the material Material recommendations Protectors are put in place for safe use of the equipment. The manufacturer cannot be held responsible in case of: Bodily injury. As well as breakdowns and / or damage to the equipment resulting from the destruction, the misuse or the total or partial withdrawal of the protectors. -
Page 14: Products Implemented
It will determine the risks of immediate reactions or due to repeated exposures to the staff. SAMES KREMLIN declines any responsibility, in case of: Bodily or psychic injuries. Direct or indirect material damage due to the use of... -
Page 15: Environment
Environment 3 Environment The equipment must be installed on a horizontal, stable and flat ground (eg concrete slab). Non-moving equipment must be fixed to the ground by suitable fasteners (spit, screws, bolts, ...) to ensure their stability during use. To avoid risks due to static electricity, the equipment and its components must be grounded. - Page 16 Environment Material marking Each device is equipped with an identification plate with the name of the manufacturer, the reference of the device, important information for the use of the device (pressure, power, ...) and sometimes against the pictogram shown below. The equipment is designed and manufactured with high quality materials and components that can be recycled and reused.
-
Page 17: Available Configurations
Rexson parts number of High Viscosity Pumps Presentation of the pompe REXSON SH910 A very versatile pump, the REXSON SH910 hydraulic is used for airless applications as well as for the extrusion of thick products (>50000 cP*). Different configurations are available. - Page 18 Available Configurations 4.2 Table 1 Fluid Section-Air Motor Selection Available Motors Pressure Maximum Air Inlet Maximum Outlet Documentation Ratio Pressure Fluid Pressure reference NONE MOTOR 7200 18 : 1 1600 582144110 MOTOR 9200 30 : 1 2600 582145110 R E X 0910 ...
- Page 19 Available Configurations 4.4 Table 3 Seals Pack Selection Available Seals Packing Static seals Upper seals Piston seals Lower Valve "O"-rings packing packing seals packing PTFE PTFE PTFE PTFE PTFE+FEP PTFE PTFE PTFE PTFE and PE PTFE and PE PTFE Leather Leather and PE Leather and PE PTFE...
-
Page 20: Identification
Identification 5 Identification 5.1 Description of the marking of the plate Principles This equipment complies with the following provisions: Machinery Directive (2006/42 / EC), Low Voltage Directive 2006/95 EEC EMV Directive 2004/108 EEC Safety of machinery - Basic terms, general implementation guidelines DIN EN ISO 12100 T1/T2 ... - Page 21 Identification Description SAMES KREMLIN Manufacturer's mark STAINS FRANCE POMPE / PUMP Pump reference and serial number. The first two digits indicate the year of manufacture. REF / SERIE PROD Maximum product pressure (Bar/Psi) MAX. PRES. (Bar/Psi) Maximum air pressure (Bar/Psi)
-
Page 22: Correspondence Table New Part Number / Significant Designation
Identification 5.2 Correspondence table New part number / Significant designation New Part Number Significant Designation 62 MO 0910 M S F 000 REXSH0910-MO-MA-FO-SE Options Motor MOT7200 MOT9200 Material Mixed Steels Stainless Steel Seal PTFE PTFE +FEP PTFE /PE Leather PTFE G PTFEV SPECIAL UV INK Foot... -
Page 23: Correspondence Table Existant Part Number / Significant Designation
Identification 5.3 Correspondence table Existant part number / Significant designation Existant part Significant designation Motor Material Foot Seal number MOT7200 472 262 060 204 Follower plate REXSH0910-72-CS-FP-04 Mixed Steels 18 : 1 Leather Ø 105 mm MOT9200 492 262 060 205 Follower plate REXSH0910-92-CS-FP -05 Mixed Steels... -
Page 24: Technical Characteristics And Performances
Technical characteristics and performances 6 Technical characteristics and performances 6.1 General characteristics Technical characteristics Volume per 910 cm cycle 30,77 oz Stroke 200 mm / 7,87 in Fluid outlet 1" 1/2 connections F BSPP Weight 44 kg / 97 lb Maximum fluid 80°C / 176°F temperature... - Page 25 Technical characteristics and performances (General characteristics - continued) Pump Foot Technical characteristic Follower Plate Ø 105 mm Plain Cylinder Ø 110 mm Materials of construction Mixed steels Stainless steel Pump body Wet Cup Carbon steel + Zinc Carbon steel + Zinc treatment treatment Upper body...
-
Page 26: Principle Of Operation
Technical characteristics and performances 6.2 Principle of operation Expected use These pumps coupled to air or hydraulic motors are intended for transferring, or spraying different liquid or pasty products with a desired flow rate and output pressure. Functional description When the piston (1) rises, the upper flap (2) closes, the lower flap (3) opens and the pallet (4) closes. - Page 27 Technical characteristics and performances ATTENTION! The friction generated by the movement of the product inside the pump and its accessories, as well as that caused by the seals, creates static electricity that can cause fire or explosion. Therefore, the fluid section system must be earthed via the motor ground cable (see the motor instruction manual for its ground connection).
-
Page 28: Installation
(pneumatic or hydraulic) compatible stroke. It is imperative to comply with an air motor / hydraulic combination provided by SAMES KREMLIN Make sure that all connections of the pump and fluid section components - cables, hoses and pipes - are installed in such a way that they do not cause people to fall. -
Page 29: Air Supply Connection
Installation 7.2.2 Air supply connection Ensure that in bound air supply and hose are of correct size to reduce pressure fluctuations and pressure drops. 7.3 Storage Pump Place the equipment away from moisture after closing the various air inlets and various openings (plugs). Storage before installation: ... -
Page 30: Commissioning
Commissioning 8 Commissioning The fluid sections are integrated in a system, if necessary refer to any additional instructions for further information on commissioning. Pump Pumps are tested for operation at the factory using a light weight oil lubricant. Before commissioning, this lubricant must be removed by flushing with a suitable solvent. -
Page 31: Use Of The Product
Use of the product 9 Use of the product 9.1 User settings Wet Cup Before commissioning, fill the wet cup halfway with lubricant "T". The wetting cup nut must be tightened moderately. Overtightening quickly damages the gland packing. A wrench is supplied to allow proper tightening. -
Page 32: Safety In Production
Use of the product 9.2 Safety in production Guards (motor cover, coupling guard, housings, ...) are set up for safe use of the equipment. The manufacturer can not be held responsible in case of bodily injury as well as breakdowns and / or damage of the material resulting from the destruction, the occultation or the total or partial removal of the protectors. -
Page 33: Shutdown Procedure
Use of the product 9.4 Shutdown procedure Pump To avoid the risk of personal injury, material injections, injuries caused by moving parts or electric arcs, it is imperative that the following procedure be followed before any work is carried out when shutting down the system, assembling, cleaning or changing the nozzle. -
Page 34: Diagnostic Help / Troubleshooting Guide
Use of the product 9.5 Diagnostic help / Troubleshooting guide Possible symptoms of faults / Causes of faults / Remedies to apply Defaults Possible causes Remedies Leakage at the cup seals Insufficient tightening of the Tighten the cup. packing nut Incorrect assembly of seals Check the assembly. - Page 35 Use of the product Defaults Possible causes Remedies Pump strokes quickly Bad feeding of the pump. Check parameters downward (simple effect accessories (pressure follower working) plate or suction rod,…). Accessories can be not adapted or clogged. Product is too viscous. Bad definition of the pump.
-
Page 36: Maintenance
If the information given here does not solve the problem you are experiencing, please contact your local SAMES KREMLIN representative for assistance. During prolonged shutdown, stop the pump when the piston is in the low position. -
Page 37: Preventive Maintenance Plan
Maintenance 10.1 Preventive Maintenance Plan ATTENTION Before pump maintenance service work performed, it is imperative to follow the depressurization procedure and the safety instructions. Routine maintenance after certain number operating hours is recommended. This is defined by the service department of the user and depends on the product, the working cycle and the usual pressure. -
Page 38: General Preconisation Maintenance
Maintenance 10.2 General preconisation maintenance ATTENTION Before pump maintenance service work performed, it is imperative to follow the depressurization procedure and the safety instructions. Before each reassembly Clean the parts with the appropriate cleaning solvent. Fit new seals if necessary, after greasing them. ... -
Page 39: Disassembly / Reassembly Operation
Disassembly / Reassembly Operation 11 Disassembly / Reassembly Operation ATTENTION Before pump maintenance service work performed, it is imperative to follow the depressurization procedure and the safety instructions. ATTENTION The equipment is subject to the ATEX directive and must not be modified under any circumstances. Failure to comply with this recommendation does not engage our responsibility. - Page 40 Disassembly / Reassembly Operation Fluid Section Follower Plate & Plain cylinder REXSH0910---FP- REXSH0910---PC- (For a full description of spare parts, see Part 12 - Spare Parts)
-
Page 41: Disassembly Of The Pump
Disassembly / Reassembly Operation Disassembly of the pump Unscrew the nuts (19) and put aside the flange (1), the tie rods (14) and the protection (4), Clamp the pump horizontally through the body (7) with a vice, Unscrew the nut (35) and take off the shovel (34), the washer (33) and the spacer (32), ... -
Page 42: Lower Valve
Disassembly / Reassembly Operation Lower valve Take off the seat (30) and the lower valve with the valve body (21), Unscrew the cup nut (24), Take off the male washer (25), the seals (26) and the female washer (27), ... -
Page 43: Reassembly Of The Fluid Section
Disassembly / Reassembly Operation Reassembly of the fluid section Lubricate the wetting cup seals and the piston head seals, Locate the seals (9) inside the pump body (7) of the valve body (21) Slide the piston rod assembly (15) inside the pump body (7), push it upwards;... -
Page 44: Spare Parts
Spare parts 12 Spare parts Use only genuine SAMES KREMLIN accessories and spare parts designed to withstand the pump's operating pressures. Fluid Section Follower Plate & Plain cylinder REXSH0910---FP- REXSH0910---PC- WARNING: these parts are not supplied with the fluid section alone as they... - Page 45 Spare parts REXSH0910 - - - Follower Plate Follower Plate Plain Cylinder Mixed Steels Stainless Sreels Mixed Steels Ind. Description # Ref. Spare part maintenance level** Connection flange See motor coupling kit table Protection See motor coupling kit table 210 700 Pump body 210 701...
-
Page 46: Lower Adapter Flange
Spare parts Ind 40 Ind 50 REXSH0910 - - - Follower Plate Follower Plate Mixed Steels Stainless Sreels Ind. Description # Ref. Spare part maintenance level** Cup wrench 044 950 008 Washer 88 550 Wrench 210 946 Servicing kit 106 364 (Ind. -
Page 47: Servicing Kit Composition # 106 364
Spare parts Servicing kit composition # 106 364 Spare part Ind. Description # Ref. level** 'F' washer 210 730 'M' washer 210 731 25+27 'M' washer 211 333 Seat 210 680 'M' washer 210 712 'F' washer 210 713 'F' Spacer 60 220 **Level 1 : Preventive maintenance Level 2 : Corrective... -
Page 48: Seals Pack Composition: 01 To 03
Spare parts Seals pack composition: 01 to 03 Seals Pack: 106 331 106 332 106 333 Ind. Description Material Material Material O-Ring 84 456 84 473 84 456 210 721 PTFE 210 721 PTFE 210 721 PTFE Cup packing 210 722 Piston packing 210 725 PTFE... -
Page 49: Seals Pack Composition: 04 To 06
Spare parts Seals pack composition: 04 to 06 Seals Pack: 106 334 106 335 106 336 Ind. Description Material Material Material O-Ring 84 456 84 456 84 456 210 722 210 603 PTFE G 84 395 Cup packing 210 723 LEATHER 210 722 Piston packing... -
Page 50: Seals Pack Composition: 07 And 08
Spare parts Seals pack composition: 07 and 08 Seals Pack: 107 301 106 575 Ind. Description Material Material O-Ring 84 456 84 473 84 395 211 278 Cup packing 210 722 91 932 PTFE Piston packing 210 726 211 279 211 318 PTFE 91 931...
