CDVI SD500M Manual

2 3

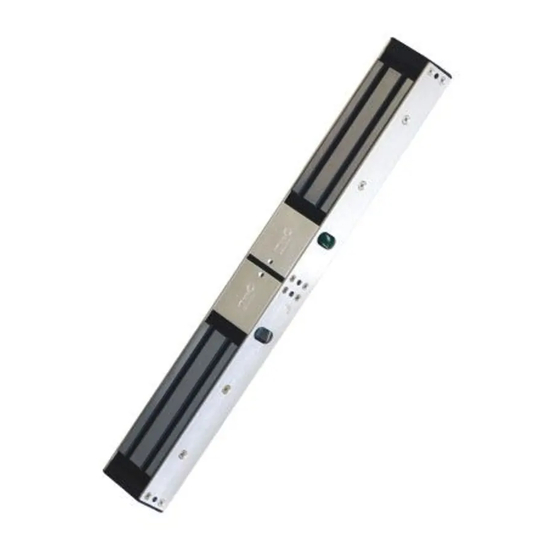

PRODUCT PRESENTATION

500
Monitored
Surface mount
High corrosion resistance
Delivered with armature plate
No mechanical wear
No residual magnetism
Ease of installation
Recommended for interior use
Fail safe (Door unlocked when power off)
Holding force: 2 x 500 kg
Built-in varistor: Built-in electronic protection to
eliminate back EMF
Dimensions (L x W x D): 532 x 66 x 40 mm
Armature plate dimensions (L x W x D): 185 x 60 x 12 mm
Power supply: 12-24V dc
Consumption: 1000 mA @ 12V dc
500 mA @ 24V dc
WEEE & RoHS EC certification

PACKAGE CONTENTS

Magnetic lock Armature plate
1 2
9
185x38x11mm
Allen Key Steel Rubber Rubber washer M8x35 Screw
1 4
185

ELECTRICAL CONNECTIONS

2 3
12V dc Default setup
Terminal
Correspondence
37,9
block
+
12 or 24V dc
- 0V
N.C NC (Normally closed)
COM COM
N.O NO (Normally open)
The NO/NC signal only switches when
the door is closed with the power to it on.
IMPORTANT NOTE
- Check the jumper position before connecting
the lock to the input current. A wrong position
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation. could damage the lock. This type of damage
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
is not covered by the warranty.
C.A. :
S0101DT-SDD300001
- Make sure that the magnet and the armature
S0101DT-SDG300001
meet evenly over their entire mating surfaces.
SD300M-SD500M Board
The Armature plate must be able to pivot
slightly about its center mounting screw
With LED Left and Right
to compensate for any door misalignment.
Material : ...
General tolerance:
3
DES: W.Sainvil
Vol. (mm ) :
CDVI FRANCE + EXPORT CDVI UK
31, av. du Général Leclerc [UNITED KINGDOM - IRE-
93500 PANTIN - France LAND]
Phone +33 (0)1 48 91 01 02 Phone +44 (0)1628 531300
www.cdvi.com www.cdvi.co.uk
CDVI SWEDEN CDVI AMERICAS
[SWEDEN - DENMARK - [CANADA - USA]
NORWAY FINLAND] Phone +1 (450) 682 7945
Phone +46 (0)31 760 19 30 www.cdvi.ca
www.cdvi.se
Manufacturing Access Control since 1985
SD500M
4 5
2 x 500 kg Double Surface Electromagnetic Lock
504
IP42
Fixing plate Security Rope 5x16 Roll pin
1 2
M8x25 Screw
2 2
4 5
Voltage selection jumpers
12V dc

Recommended power supplies

Voltage Voltage
SCALE 1:1
12V
A4V
24V 24V
0.2 Surface condition: Ra 3,2
Weight (g) :
CDVI BENELUX
[BELGIUM - NETHERLAND -
LUXEMBOURG]
Phone +32 (0) 56 73 93 00
www.cdvibenelux.com
CDVI SUISSE
Phone +41 (0)21 882 18 41
www.cdvi.ch
6 7
Fixing plate
10
Wood screw
Maglock
500x25x5mm
YEAR
Roll pin

WARRANTY

504x45x26mm
Rubber washer
Steel washer Steel washer
Cap nut Cap nut
4x25 Wood
4X10 Screw
screw
4 1
Cap nut Manual
2 2
6 7
37,9
24V dc
Plan M2952
Edition 00
Date 10/03/2021
ADC335 ADC612S
Project :
ADC324 ADC624S
31, av du Gal Leclerc
93691 PANTIN CEDEX
F R A N C E
Tel : 33(0)148910102
Fax : 33(0)148912121
www.cdvi.com
CDVI IBÉRICA
[SPAIN - PORTUGAL]
Phone +34 (0)935 390 966
www.cdviberica.com
CDVI ITALIA
Phone +39 0321 90 573
Fax: +39 0321 90 8018
www.cdvi.it
8 9

MOUNTING RECOMMENDATIONS

14
Ce document est la propritété exclusive de CDVI, il ne peut être communiqué à des tiers sans son autorisation.
This document is the exclusive property of CDVI and it may not be disclosed to others without permission.
Armature plate
CA: F0526000010-A
- It is vital to fix the electromagnetic lock and
SD300M
1
armature plate solidly on their supports.
Surface mount electromagnetic lock - 2x300kg
- Make sure that the magnet and the armature
Material : General tolerance: 0.2 Surface condition: Ra 3,2
meet evenly over their entire mating surfaces.
3
DES.: W. Sainvil
Vol. (mm ) :
- The armature plate must be able to pivot slightly
8 9
about its center mounting screw to compensate
for any door misalignment.

Security ropes

The security rope
Throughout its life, the magnetic lock is subject to an
accumulation of repeated shocks and stresses at the
fixing points on the frame, frequencies of opening/
closing, (attempt to open a locked door and attempts
at vandalism) which can cause it to become detached
from the support when it is opened. In order to avoid
the risk of the electronic lock block falling, install the
two safety cables supplied to guarantee the safety of
the users (see diagram above).
