CDVI C3M11 Manual

C3M11

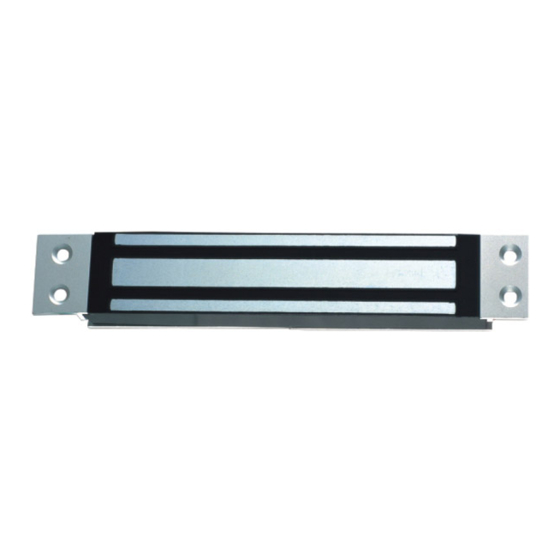

300Kg Mortice Electromagnetic lock
PRODUCT PRESENTATION
NFS 61-937.
Monitored.
Mortice.
Delivered with armature plate.
Corrosion resistance.
No mechanical wear.
Ease of installation.
Recommended for indoor use.
Fail safe (Door unlocked when power off).
Holding force: 300kg.
No residual magnetism.
Built-in varistor: Built-in electronic
protection to eliminate back EMF.
Dimensions (L x W x D): 228 x 38 x 27mm.
Armature dimensions (L x W x D): 185 x 38 x 11mm.
Power supply: 12/24V dc.
Power absorption:
- 12 V DC = 550mA,
- 24 V DC = 275mA.
WEEE & RoHS
EC certifi cation
IP42
ELECTRICAL CONNECTIONS
12V dc Default setup
Terminal
Correspondence
block
+ 12 or 24V dc
- - 0 V
N.C NC (Normally closed)
COM COM
N.O NO (Normally open)
The NO/NC signal only switches when
the door is closed with the power to it on.
IMPORTANT NOTE
- Check the jumper position before connecting
the lock to the input current. A wrong position
could damage the lock. This type of damage
is not covered by the warranty.
- Make sure that the magnet and the armature
meet evenly over their entire mating surfaces.
The Armature plate must be able to pivot
slightly about its center mounting screw
to compensate for any door misalignment.
All the information contained within this document (photos, drawing, features, specifi cations and dimensions) could be perceptibly different and can be changed without prior notice.
Manufacturing Access Control since 1985
Recommended
power supplies
ARD212 BS602
WITH BUILT-IN PCB BOARD
Voltage selection
jumpers
12V dc
Yellow
Blue
Orange
G0301FR0339V01

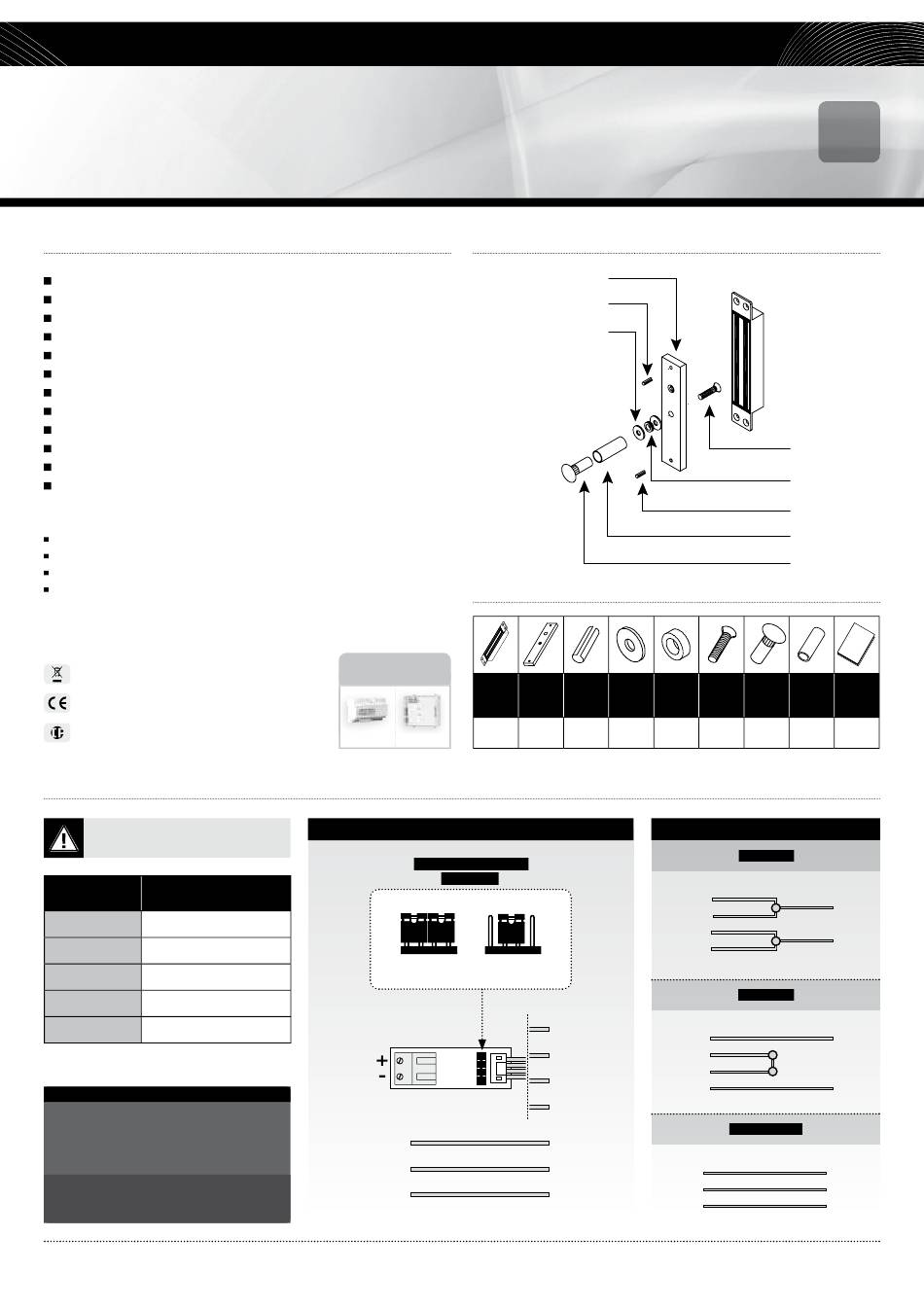

INSTALLATION
Armature plate
Roll pin
Steel washer
PACKAGE CONTENTS
Mortice
Armature Roll pin Steel
magnetic
plate 5x16 washers
lock
1 1 2 2
24V dc
Red
Green
White
Black
NC
COM
NO
EN
Armature screw
Rubber washer
Roll pin
Guide piece
Cap nut
Rubber M8x35 Guide
Cap nut
washers screw piece
2 1 1 1
DIRECT CONNECTION
12V DC
Red
White
Green
Black
24V DC
Red
White
Green
Black
CONTACT
Yellow NC
Blue COM
Orange NO
installation
Manual
1
+
-
+
-
