System Sensor 2100TR Installation And Maintenance Instructions

INSTALLATION AND MAINTENANCE INSTRUCTIONS
2100TR Photoelectronic Smoke
Detector with Fixed Heat

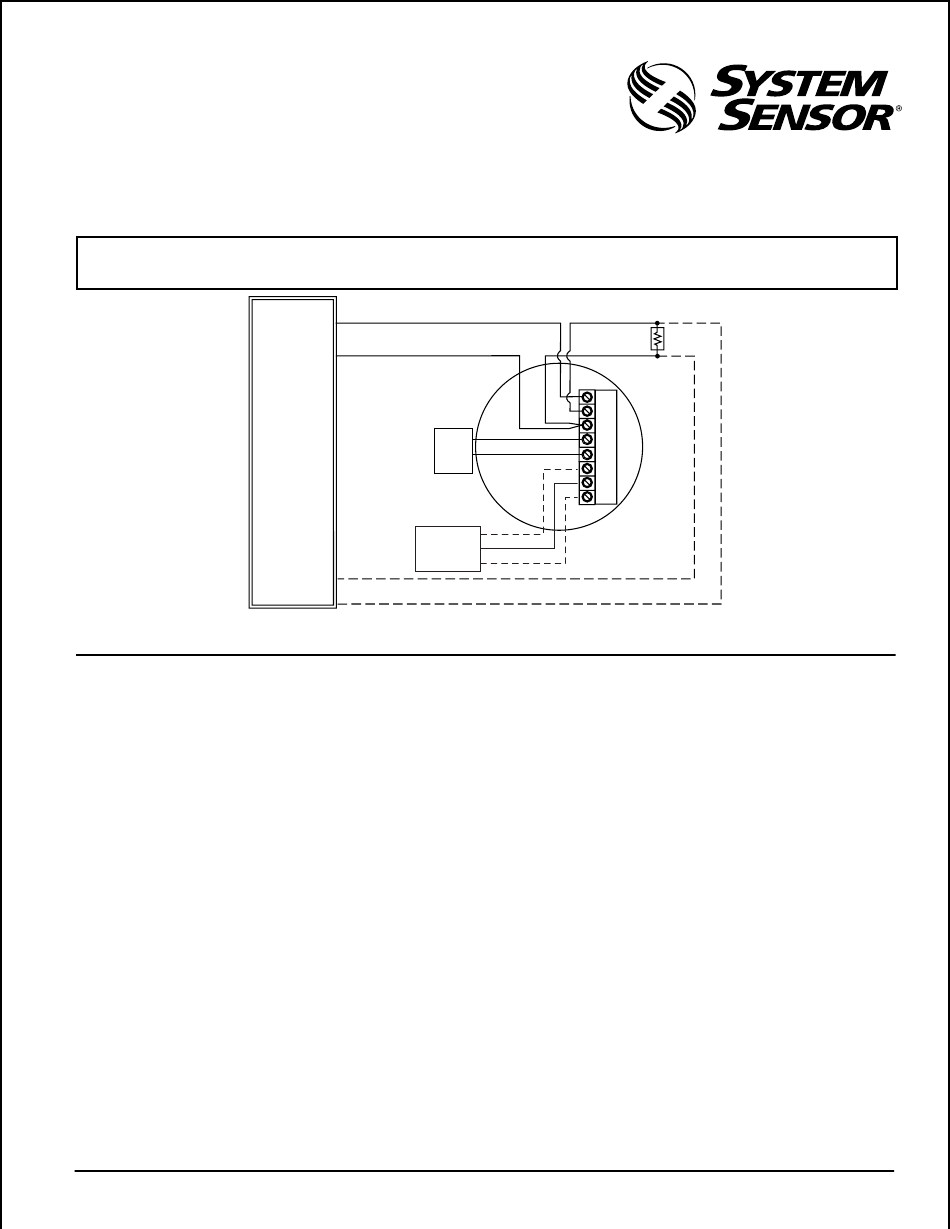

Figure 1. Wiring diagram for the 2100TR detector:
Specifications
Diameter:
Height (including mounting bracket):
Weight:
Operating Temperature Range
Operating Humidity Range:
Latching Alarm:
Heat Sensor:
Electrical Ratings
System Voltage (nominal):
Minimum:
Maximum:
Maximum Ripple Voltage:
Standby Current:
Alarm Ratings:
Reset Voltage:
Reset Time:
Start-up Time:
EOL Relay:
Remote Annunciator Output:
Auxiliary Relay Contact Ratings:
Resistive Load:
Special Considerations:
D200-68-00
IMPORTANT: OBSERVE POLARITY
Polarity must be observed on the remote annunciator connections.
+
INITIATING
LOOP
–
UL LISTED
COMPATIBLE
CONTROL
PANEL
RA400Z
REMOTE
ANNUNCIATOR
(OPTIONAL)
RELEASING
DEVICE
OPTIONAL CLASS A WIRING
NOTE: ONLY ONE DETECTOR PER ZONE CAN BE USED.
5.5 inches (140 mm)
1.7 inches (43 mm)
6.8 oz. (190 g)
32° to 100° F (0° to 38° C)
10% to 93% Relative Humidity, Noncondensing
Reset by momentary power interruption
135° F Fixed Temperature Electronic Thermistor
12 or 24 VDC
8.5 VDC
35 VDC
30% of nom. Voltage (peak to peak)
50 µ A average, 100 µ A maximum
25.5 mA minimum, 100 mA maximum
(Alarm current must be limited to 100mA by the control panel. If used, the RA400Z
Remote Annunciator operates within the specified detector alarm currents.)
1.3 VDC minimum
0.3 seconds maximum
30 seconds maximum (after 60 sec. reset)
A77-716B, 12/24 VDC
7 mA maximum
1A @ 30 VAC
1A @ 30 VDC
Only one detector can be used per zone.
+
P
+
W
– R
+
+
A
-
–
A
NC
A
U
C
X
NO
NC
COMMON
NO
1
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: 630-377-6495
EOL
I56-1144-05R
A78-2336-17
