OWNER'S MANUAL

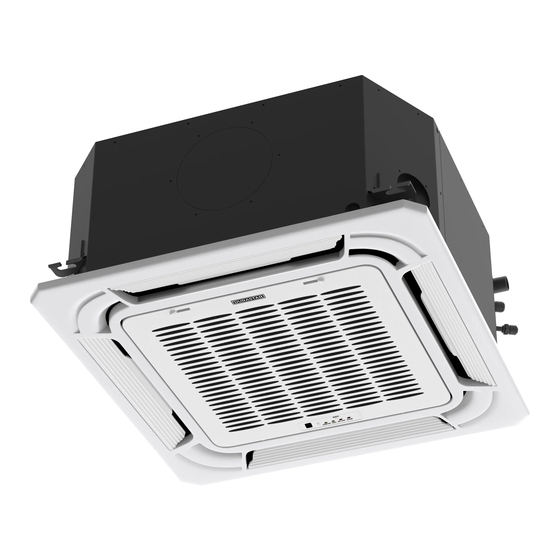

CEILING CASSETTE INDOOR UNIT
SPLIT-STYLE AIR CONDITIONER
DRAC09F1A, DRAC12F1A, DRAC18F1A, DRAC24F1A
Model Number:
Serial Number:
Purchase Date:
Installing Contractor Company Name:
TIP
Capture relevant information about your Durastar mini-split equipment before it is
installed and write it above for future reference.
1
FPO
DURASTAR.COM
Advertisement
Table of Contents
Related Manuals for DURASTAR DRAC09F1A
Summary of Contents for DURASTAR DRAC09F1A
- Page 1 CEILING CASSETTE INDOOR UNIT SPLIT-STYLE AIR CONDITIONER DRAC09F1A, DRAC12F1A, DRAC18F1A, DRAC24F1A Model Number: Serial Number: Purchase Date: Installing Contractor Company Name: Capture relevant information about your Durastar mini-split equipment before it is installed and write it above for future reference. DURASTAR.COM...
-
Page 2: Table Of Contents
REMOTE CONTROL ............................10 OPERATING MODES ............................11 ADVANCED FEATURES ..........................12 LED DISPLAY INDICATORS (DRAC24F1A ONLY) ................15 MANUAL OPERATION (USE WITHOUT REMOTE) .................15 LOUVERED AIR FLOW ...........................16 CARE AND MAINTENANCE .........................17 TROUBLESHOOTING ............................19 ERROR CODES (DRAC24F1A ONLY) ..................... 22 WARRANTY ................................. 23 DURASTAR.COM... -
Page 3: Introduction
• Read the troubleshooting section of this manual as it will help you diagnose and solve common issues. • Visit us on the web at www.durastar.com to download product guides and up-to-date information. • If you need warranty service, our friendly customer service representatives are available via email at questions@durastar.com or by telephone at 1-888-320-0706. -
Page 4: Important Safety Precautions
Do not wash the air conditioner with water as this could cause an electric shock. • Disconnect the power supply by turning it off at the circuit breaker when cleaning the air conditioner. Otherwise, you could risk electric shock. DURASTAR.COM... - Page 5 • The air conditioner’s circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board. DURASTAR.COM...
- Page 6 Do not climb onto or place objects on top of the outdoor unit. • Do not allow the air conditioner to operate for long periods of time with doors or windows open, or if the humidity is very high. DURASTAR.COM...
-
Page 7: Parts Identification
Pipe Cover Pipes Remote Control Remote Control Control Holder Panel (Varies by Unit) OUTDOOR UNIT Signal Cable, Air Inlets Refrigerant Pipes, and Drain Hose Wiring Terminal Valve Cover Air Outlet NOTE Indoor and outdoor units will vary in appearance. DURASTAR.COM... -
Page 8: Included Accessories
The air conditioning system comes with the following accessories. Accessory Quantity Image Accessory Quantity Image Manual Remote Control Drain Pipe Battery Adapter Drain Pipe Remote Control Worm Clamp Holder Copper Nut Remote Control Holder Mounting Screw Drain Joint Installation Template Drain Joint Seal DURASTAR.COM... -
Page 9: Operating Temperatures
Regularly inspect and clean air filters. NOTE Your Durastar air conditioner's outdoor unit is equipped with a base pan heater, allowing it to continue to operate at freezing temperatures as low as -13°F (-25°C). When outdoor air temperatures are at or below 32°F (0°C), we strongly recommend keeping the unit plugged in at all times to ensure smooth ongoing performance. -
Page 10: Remote Control
Press to change the louver angle. Each press will adjust the angle by 6°. 13. FOLLOW ME Button See the "FOLLOW ME" section under "Advanced Features." 14. LED Button (DRAC24F1A only) Press to turn on and off the indoor unit's display screen. DURASTAR.COM... -
Page 11: Operating Modes
You cannot adjust the temperature in FAN mode. As a result, your remote control's LCD display will not display a temperature. DRY (DEHUMIDIFY) 1. Press the MODE button and select DRY. 2. Set your desired temperature using the TEMP down or TEMP up button. 3. Press the ON/OFF button to start the unit. DURASTAR.COM... -
Page 12: Advanced Features
2.5 hours later at 3:30 PM. Setting the TIMER OFF auto- off sequence to 5.0 hours will turn off the air conditioner 5 hours later at 6:00 PM. Unit turns Unit turns Timer starts Current Time 4:00PM 5:00PM 2:00PM 3:00PM 3:30PM 6:00PM 1:00PM 2.5 hours later 5 hours later DURASTAR.COM... - Page 13 After cleaning, the unit will turn off automatically. Pressing the CLEAN button mid-cycle will cancel the operation and turn off the unit. You can use CLEAN as often as you like. NOTE You can only activate the SELF CLEAN function in COOL or DRY modes. DURASTAR.COM...
- Page 14 - it is automatic. REFRIGERANT LEAK DETECTION (DRAC24F1A ONLY) The indoor unit will automatically display “EC” when it detects a refrigerant leak. If a leak is detected, turn off your unit and contact your dealer or certified technician for service. DURASTAR.COM...
-
Page 15: Led Display Indicators (Drac24F1A Only)
2. Press the MANUAL CONTROL button one time to activate FORCED AUTO mode. 3. Press the MANUAL CONTROL button again to activate FORCED COOLING mode. 4. Press the MANUAL CONTROL button a third time to turn the unit off. DRAC09F1A, DRAC12F1A, and DRAC24F1A DRAC18F1A... -
Page 16: Louvered Air Flow
30 seconds, then restart the unit. This will reset the louver. Louvers CAUTION Do not put your fingers in or near the blower and suction side of the unit. The high- speed fan inside the unit may cause injury. DURASTAR.COM... -
Page 17: Care And Maintenance
• Do not use water to clean the inside of the indoor unit. This can destroy insulation and cause electrical shock. • Do not expose filter to direct sunlight when drying. This can shrink the filter. DURASTAR.COM... - Page 18 After long periods of non-use, or before periods of frequent use, do the following: • Inspect for damaged wires • Clean all filters. • Check for leaks. • Replace batteries. • Make sure nothing is blocking any air inlets or outlets. DURASTAR.COM...
-
Page 19: Troubleshooting
The indoor unit makes A rushing air sound may occur when the louver resets its position. noises A squeaking sound may occur after running the unit in HEAT mode due to expansion and contraction of the unit’s plastic parts. DURASTAR.COM... - Page 20 • Press ON/OFF button on remote control to restart operation. NOTE If problem persists, contact a local dealer or your nearest customer service center. Provide them with a detailed description of the unit malfunction as well as your model number. DURASTAR.COM...
- Page 21 10 minutes. The problem continue may resolve itself. flashing or If not, disconnect the power, then connect it again. Turn the unit on. error code If the problem persists, disconnect the power and contact your nearest appears customer service center. DURASTAR.COM...
-
Page 22: Error Codes (Drac24F1A Only)
Outdoor temperature too low Inverter compressor drive error High/Low pressure protection NOTE If your problem persists after performing the checks and diagnostics above, or the error code remains, turn off your unit immediately and contact an authorized service center. DURASTAR.COM... -
Page 23: Warranty
For a period of ten (10) years from the date of installation, if any parts prove defective due to improper workmanship and/or material, Durastar with replace any defective part without charge for the part. Replacement parts carry the balance of the original 10-year parts warranty. - Page 24 Support, please locate your model number, serial number, and proof of purchase. These items will be required to complete any warranty service. A Durastar authorized representative will verify warranty eligibility and determine appropriate service options. Service will be provided during normal business days and hours.
