Summary of Contents for B&B Electronics SPECTRE

  • Page 1 Chipsmall Limited consists of a professional team with an average of over 10 year of expertise in the distribution of electronic components. Based in Hongkong, we have already established firm and mutual-benefit business relationships with customers from,Europe,America and south Asia,supplying obsolete and hard-to-find components to meet their specific needs.
  • Page 2 SPECTRE Router USER MANUAL 710-10001-01 Rev. 4.0 www.bb-elec.com www.bb-europe.com...
  • Page 3 B&B Electronics, Inc. SPECTRE Router User Manual International Headquarters B&B Electronics Mfg. Co. Inc. 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 -- General Fax (815) 433-5105 Website: www.bb-elec.com European Headquarters B&B Electronics Ltd. Westlink Commercial Park Oranmore, Co. Galway, Ireland...

  • Page 4: Table Of Contents

    B&B Electronics, Inc. SPECTRE Router User Manual Contents 1.0 Symbols Used 2.0 Safety instructions Compliance Product disposal instructions 3.0 Router Description Description Examples of possible applications: Contents of package Model numbers Dimensions 4.0 Mounting Recommendations 5.0 User Interfaces Connectors Status Indicators 5.2.1...
  • Page 5 Fig. 5: Space in front connectors ...................... 15 Fig. 6: Front panel SPECTRE Cellular Router .................. 16 Fig. 7: Front panel SPECTRE Cellular Router with Wi-Fi ..............17 Fig. 8: Power connector ........................20 Fig. 9: Connection of power supply connector ................20 Fig.
  • Page 6 B&B Electronics, Inc. SPECTRE Router User Manual Table list Table 1: Auxiliary port possibilities ....................10 Table 2: Model numbers ........................10 Table 3: LTE Model numbers for Verizon ..................11 Table 4: LTE Model numbers for AT&T ..................... 11 Table 5: Front panel description ......................

  • Page 7: Symbols Used

    The properties and settings associated with the cellular network connection are not available in non- cellular SPECTRE RT routers. PPPoE configuration is only available on SPECTRE RT routers. It is used to set the PPPoE connection over Ethernet. Declared quality system ISO 9001 This device complies with part 15 of the FCC Rules.

  • Page 8: Safety Instructions

    B&B Electronics, Inc. SPECTRE Router User Manual 2.0 Safety instructions Compliance Please observe the following instructions: THIS EQUIPMENT IS SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C, AND D HAZARDOUS LOCATIONS, OR NON-HAZARDOUS LOCATIONS ONLY. WARNING – EXPLOSION HAZARD – DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN REMOVED OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.

  • Page 9: Router Description

    3.0 Router Description Description The SPECTRE Cellular industrial router is used to wirelessly connect Ethernet equipment and other devices to the Internet or intranet. Thanks to the high data transfer speed of up to 100 Mbit/s download (LTE models) and 50 Mbit/s upload (LTE models), it is an ideal wireless solution for traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM) and other self-service terminals.

  • Page 10: Contents Of Package

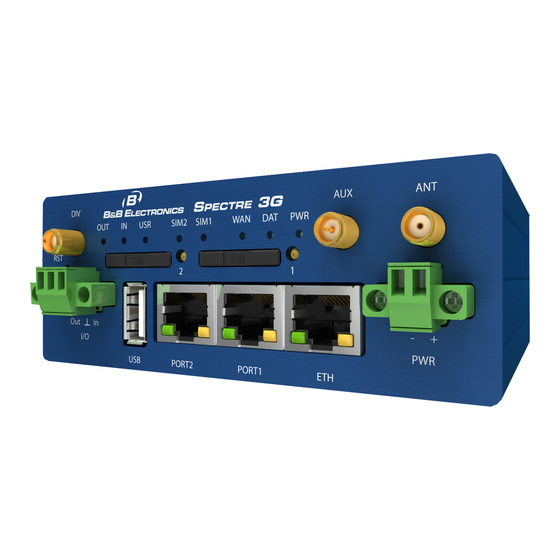

    B&B Electronics, Inc. SPECTRE Router User Manual Contents of package The basic router package includes:  Router  Power supply  Crossover UTP cable  External antennas  Clips for the DIN rail  Documentation CD  Quick Start Guide Spectre 3G with WiFi Fig.

  • Page 11: Model Numbers

    B&B Electronics, Inc. SPECTRE Router User Manual Model numbers Standard Features on Spectre Routers: 10/100 Ethernet, USB Host Port, Binary I/O Port, Dual SIM Card slots Auxiliary Port Functions (Model Dependent): The ports can be connected as follows. PORT 1...
  • Page 12 12-bit I/O (AI, DI, DO) No connect RTLTE1-340-W RS-422/485 No connect “-W” Models Are Wi-Fi enabled Table 3: LTE Model numbers for Verizon Spectre LTE Wireless Routers (AT&T) Auxiliary Ports Model No. Port 1 Port 2 RTLTE2-300 No connect No connect...

  • Page 13: Dimensions

    B&B Electronics, Inc. SPECTRE Router User Manual Dimensions Basic dimensions, metal box Fig. 2: Basic dimensions, metal box 710-10001-01 Rev. 4.0 www.bb-elec.com www.bb-europe.com...

  • Page 14: Mounting Recommendations

    B&B Electronics, Inc. SPECTRE Router User Manual 4.0 Mounting Recommendations • The router may be placed on a work surface. • Clips are included for mounting the router on a standard DIN rail. The router may be installed in an industrial instrument panel.
  • Page 15 B&B Electronics, Inc. SPECTRE Router User Manual We recommend binding the cables together to avoid coupling noise onto the cables. 1. Length: The combination of power supply and data cables can be a maximum of 1.5 meters. 2. If the length of the data cables exceeds 1.5 meters or if the cable leads towards the switch panel, we recommend installing overvoltage protectors (surge suppressors).
  • Page 16 B&B Electronics, Inc. SPECTRE Router User Manual Fig. 5: Space in front connectors We recommend using the switch panel’s earth-bonding distribution frame for grounding the router’s power supply, data cables and antenna. 710-10001-01 Rev. 4.0 www.bb-elec.com www.bb-europe.com...

  • Page 17: User Interfaces

    Diversity cellular antenna. RP-SMA Wi-Fi antenna. USB-A Host USB connector. 3-pin Binary input and output. SIM1 SIM card holder. SIM2 SIM card holder 2 Table 5: Front panel description Fig. 6: Front panel SPECTRE Cellular Router 710-10001-01 Rev. 4.0 www.bb-elec.com www.bb-europe.com...
  • Page 18 B&B Electronics, Inc. SPECTRE Router User Manual Fig. 7: Front panel SPECTRE Cellular Router with Wi-Fi 710-10001-01 Rev. 4.0 www.bb-elec.com www.bb-europe.com...

  • Page 19: Status Indicators

    B&B Electronics, Inc. SPECTRE Router User Manual Status Indicators Label Color State Description Blinking Router is ready Green Router is initializing. Blinking Communication in progress Flashing PPP connection established 1 x flash per Signal strength is from –50 dBm to –69 dBm second Signal strength is from –70 dBm to –89 dBm or the...

  • Page 20: Auxiliary Port Status Indicators

    B&B Electronics, Inc. SPECTRE Router User Manual 5.2.1 Auxiliary Port Status Indicators 5.2.1.1 Ethernet Ports LED port indicator Green LED On ...... selected 100 Mbit/s Off ...... selected 10 Mbit/s Yellow LED On......the network cable is connected Blinking ………..data transmission Off .......

  • Page 21: Power Connector

    B&B Electronics, Inc. SPECTRE Router User Manual Power Connector 2-PIN PANEL SOCKET Signal Description number mark VCC (+) Positive input of DC supply voltage (+10 to +30 VDC) GND (-) Negative input of DC supply voltage Table 12: Connection of power connector Fig.

  • Page 22: Antenna Connector

    DIV. This antenna improves the receive sensitivity of the router and should be used in areas with weak signal strength. On SPECTRE Cellular routers with Wi-Fi, a third antenna is connected to the AUX antenna connector on the front panel.

  • Page 23: Sim Card Reader

    B&B Electronics, Inc. SPECTRE Router User Manual SIM Card Reader The SIM card reader supports 3 V and 1.8 V SIM cards. It is located on the front panel of the router. The router will not operate on UMTS networks unless an activated SIM card with an unblocked PIN is in the reader.

  • Page 24: Ethernet Port

    B&B Electronics, Inc. SPECTRE Router User Manual Ethernet Port PANEL SOCKET RJ45 Signal mark Description Data flow direction number Transmit Data – positive pole TXD+ Input/Output Transmit Data – negative pole TXD- Input/Output Receive Data – positive pole RXD+ Input/Output Receive Data –...

  • Page 25: Rs-232 Ports

    B&B Electronics, Inc. SPECTRE Router User Manual The Ethernet router connection: Fig. 16: Example of router connection Ethernet Port Port 1 Port One may configured for Ethernet, serial communications (RS-232/485/422), or (I/O – CNT) based on the router model number. Port Two may be configured for serial communications (RS-232/485/422), or (I/O –...
  • Page 26 B&B Electronics, Inc. SPECTRE Router User Manual Fig. 17: RS232 port connector Signal mark Description Direction Request To Send Input Clear To Send Output Data Terminal Ready Input Data Set Ready Output Signal ground Receive Data Output Carrier Detect Output...
