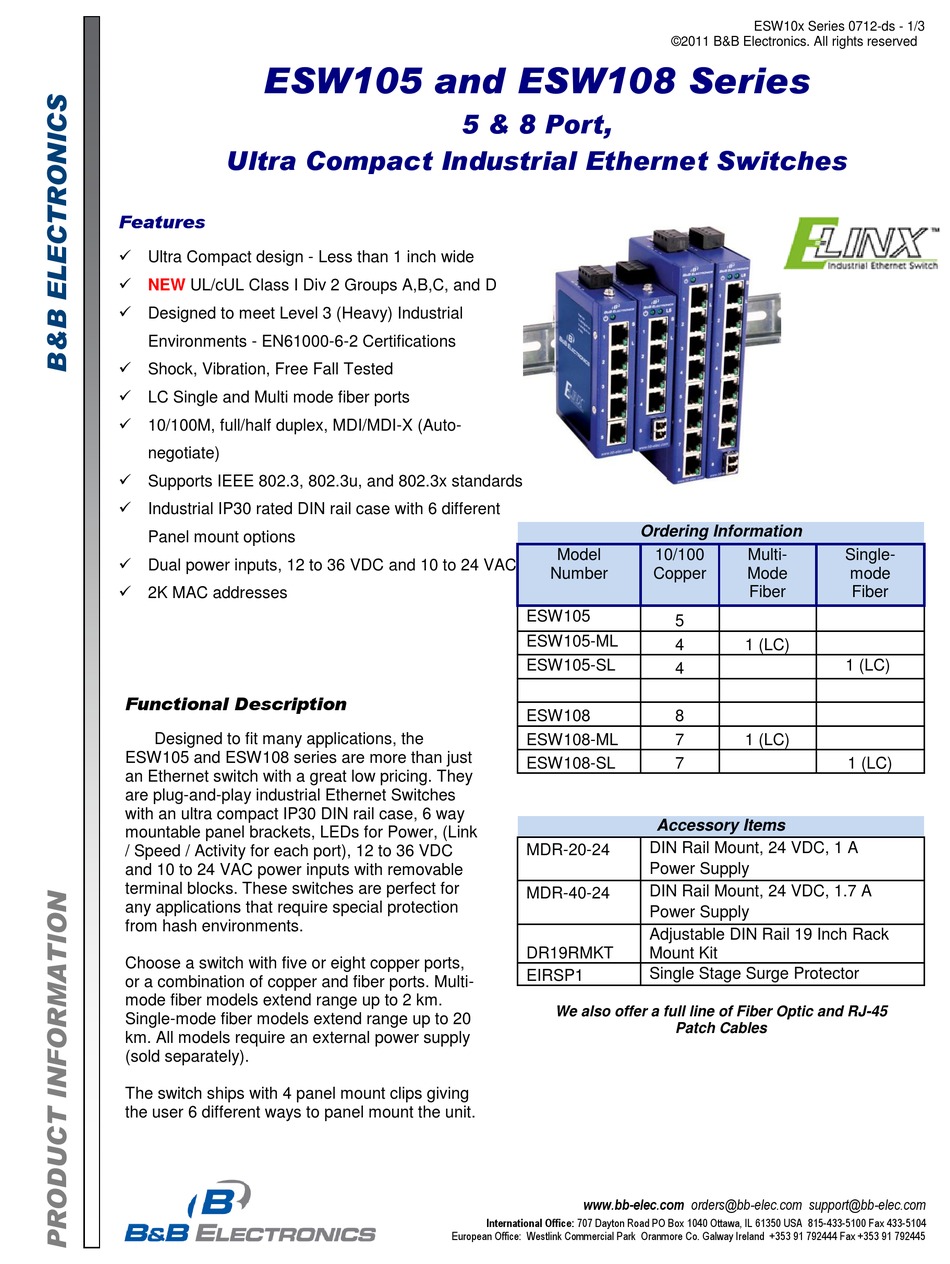

ESW105 and ESW108 Series
Ultra Compact Industrial Ethernet Switches
Features
 Ultra Compact design - Less than 1 inch wide

NEW UL/cUL Class I Div 2 Groups A,B,C, and D
 Designed to meet Level 3 (Heavy) Industrial
Environments - EN61000-6-2 Certifications
 Shock, Vibration, Free Fall Tested
 LC Single and Multi mode fiber ports
 10/100M, full/half duplex, MDI/MDI-X (Auto-
negotiate)
 Supports IEEE 802.3, 802.3u, and 802.3x standards
 Industrial IP30 rated DIN rail case with 6 different
Panel mount options
 Dual power inputs, 12 to 36 VDC and 10 to 24 VAC
 2K MAC addresses

Functional Description

Designed to fit many applications, the
ESW105 and ESW108 series are more than just
an Ethernet switch with a great low pricing. They
are plug-and-play industrial Ethernet Switches
with an ultra compact IP30 DIN rail case, 6 way
mountable panel brackets, LEDs for Power, (Link
/ Speed / Activity for each port), 12 to 36 VDC
and 10 to 24 VAC power inputs with removable
terminal blocks. These switches are perfect for
any applications that require special protection
from hash environments.
Choose a switch with five or eight copper ports,
or a combination of copper and fiber ports. Multi-
mode fiber models extend range up to 2 km.
Single-mode fiber models extend range up to 20
km. All models require an external power supply
(sold separately).
The switch ships with 4 panel mount clips giving
the user 6 different ways to panel mount the unit.
5 & 8 Port,
Model
Number
ESW105
ESW105-ML
ESW105-SL
ESW108
ESW108-ML
ESW108-SL
MDR-20-24
MDR-40-24
DR19RMKT
EIRSP1
We also offer a full line of Fiber Optic and RJ-45
www.bb-elec.com orders@bb-elec.com support@bb-elec.com
International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
ESW10x Series 0712-ds - 1/3
©2011 B&B Electronics. All rights reserved
Ordering Information
10/100 Multi-
Copper Mode
Fiber
5
4 1 (LC)
4
8
7 1 (LC)
7
Accessory Items
DIN Rail Mount, 24 VDC, 1 A
Power Supply
DIN Rail Mount, 24 VDC, 1.7 A
Power Supply
Adjustable DIN Rail 19 Inch Rack
Mount Kit
Single Stage Surge Protector
Patch Cables
Single-
mode
Fiber
1 (LC)
1 (LC)
