PREFACE

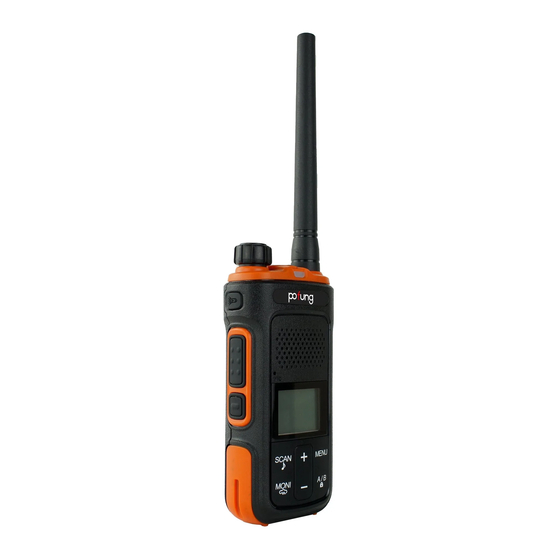

Thank you for purchasing P11UV Two Way Radio, It is a multitask GMRS transceiver. Combining the
latest technology in radio communication along with a sturdy mechanical frame, P11UV is the ideal and
effective solution for the professionals who need to stay in touch with the working team (in
construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up
with friends and family.
This manual is applicable to the following product: P11UV,BF-UV11, GM-50, TH-88, AR-11X, UV11R and
G-11UV Two Way Radios.
IMPORTANT NOTICE:
To help you ward off bodily injury or property loss that may arise from improper operation, please read
all the information carefully before using our products. This contains instructions for safe usage and RF
energy awareness and control for compliance with applicable standards and regulation.
Safety Information for Pofung Radios
Your wireless handheld portable transceiver contains a low power transmitter. When the talk button is
pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor
not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF
exposure guidelines with safety levels for handheld wireless devices.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P11UV and is the answer not in the manual?

Questions and answers

Related Manuals for PO Fung Electronic P11UV

Summary of Contents for PO Fung Electronic P11UV

  • Page 1 PREFACE Thank you for purchasing P11UV Two Way Radio, It is a multitask GMRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, P11UV is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family.

  • Page 2: Table Of Contents

    Table of Contents 1. GETTING STARTED 1.1 Regulations and Safety Warnings 1.2 Content of the packaging 1.3 Main features 2. BATTERY INFORMATION 2.1 Charging the Battery Pack 2.2 Charger Supplied 2.3 Use Caution with the Li-ion Battery 2.4 How to Charge 2.5 LED Indicator 2.6 How to Store the Battery 3.
  • Page 3 5.7 Keypad lock 5.8 A/B switch 5.9 Flashlight and Emergency Alert 5.10 FM Radio (FM) 5.11 NOAA Weather Radio 5.12 1000Hz, 1450Hz, 1750Hz Tone-burst 6. WORKING THE MENU SYSTEM 6.1 Basic use 6.2 Shortcut Menu operations 6.3 Menu settings 7. ON-LINE SERVICE AND SUPPORT Appendix A.

  • Page 4: Getting Started

    1. GETTING STARTED 1.1 Regulations and Safety Warnings WARNING! This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. Important: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.
  • Page 5 FCC RF exposure limits for“Occupational Use Only”. Inaddition, our PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY radio complies with the following Standards and Guidelines with regard to RF energy and electromagnetic energy levels and evaluation of such levels for exposure to humans: ---IEEE Std.
  • Page 6 FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, PO FUNG ELECTRONIC(HK) INTERNATIOANL GROUP COMPANY radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.
  • Page 7 included in the package; any additional or optional accessories are not required for compliance with the guidelines.) Third party accessories (unless approved by the manufacturer) should be avoided as these might not comply with FCC RF exposure guidelines. For more information about RF exposure, please visit the FCC web site at www.fcc.gov. GMRS Communication This GMRS (General Mobile Radio Service) feature is a land-mobile service available for short-distance, two-way communications in the USA.
  • Page 8 FCC Warnings Replacement or substitution of transistors, regular diodes or other parts of a unique nature, with parts other than those recommended by Pofung may cause a violation of the technical regulations of part 95 of the FCC rules, or violation of type acceptance requirements of part 2 of the rules.

  • Page 9: Content Of The Packaging

    1.2 Content of the packaging • 1 P11UV transceiver • 1 Li-Ion battery pack 1500mAh 7.4V • 1 Fast desktop charger • 1 Wall adaptor • 1 Belt clip • Antenna *If any item is missing, please verify with your Pofung dealer.

  • Page 10: Battery Information

    About Range Your P11UV Series radios are designed to give you maximum range under optimum conditions. • Maximum Range: Little to No sight Obstruction. • Medium Range: Partial Obstruction to line of sight. • Short Range: Major Obstruction to Ling of Sight.

  • Page 11: Use Caution With The Li-Ion Battery

    2.3 Use Caution with the Li-ion Battery a. Do not short the battery terminals or throw the battery into a fire. Never attempt to remove the casing from the battery pack, as POFUNG cannot be held responsible for any accident caused by modifying the battery. b.

  • Page 12: Led Indicator

    • The battery must be installed for the unit to operate, even if the unit is also connected to external power. • If battery power is low, you cannot operate the radio even using external power. Allow the battery to charge before using. If you try to transmit while power is low, the radio will automatically turn off.

  • Page 13: Installation Of Accessories

    3. INSTALLATION OF ACCESSORIES Before the radio is ready for use we need to attach the battery pack, as well as charge the battery. 3.1 Installing/ Removing the Antenna a. Installing the Antenna: Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure.

  • Page 14: Radio Overview

    4. RADIO OVERVIEW 4.1 Main controls and parts of the radio...
  • Page 15 Antenna LED Flashlight Power Switch/ Volume control Led: transmission (red) / reception (green) [LAMP]: Press the key once to turn on the flashlight, Press and hold the key again to flash the flashlight, and press the hand again to turn off the flashlight; Press and hold the key to turn on the audible and visual alarm function [PTT]:Transmit key, hold the key to speak, release the key after speaking, and receive incoming calls;...

  • Page 16: Lcd Display

    4.2 LCD Display Transmit and receive instructions In channel mode, display the current channel frequency; In menu mode, display menu items; Battery level indicator. When the battery is almost used up, the icon starts blinking and the transmission is blocked. Charge the radio. Indicates the channel number that you stored Appears when a positive shift is activated.
  • Page 17 This symbol appears during transmission (when you press the PTT key) or reception. When the radio is in rx mode, the led will light up green, while in tx mode it will be red. Press and release to transmit your unique Call Tone signal to another radio. The other person will hear a two second call tone.

  • Page 18: Basic Operations

    For maximum clarity, hold the radio 2 to 3 cm away and avoid covering the microphone while talking. 5.5 SCAN Your P11UV can scan all 30 channels for activity. Pressing and holding [SCAN] key for 2 seconds to enter. Repeat the same procedure to exit.

  • Page 19: Monitor

    5.10 FM Radio (FM) The frequency range to listen to the radio is 78-108MHz. With P11UV turned on, Press [FM] to turn on the radio. Select the desired radio frequency with the [+UP]/[-DOWN] keys. Press [FM] to exit FM radio.

  • Page 20: Noaa Weather Radio

    switch to the channel mode for normal transmitting and receiving. When the signal disappears the radio will automatically switch again to FM radio mode. 5.11 NOAA Weather Radio Your radio can receive weather broadcasts from the NOAA National Weather Service. While using the Weather Radio, you are not able to receive GMRS communications.

  • Page 21: Working The Menu System

    If you have the keypad lock enabled on your radio, you can still send a 1750Hz tone the regular way without having to unlock your radio. 6. WORKING THE MENU SYSTEM 6.1 Basic use Using the menu with arrow keys 1>...

  • Page 22: Shortcut Menu Operations

    6.2 Shortcut Menu operations MENU Name LCD display Selectable (Full Name) OFF;67.0…D754N The Privacy Codes is off, and the display is OFF. RXCODE When the display is OFF, press +key to select CTCSS -Receiver Privacy with priority; Codes When the display is OFF, press - key to select DCS with priority.
  • Page 23 .OFF BEEP - Keypad Beep *Allows audible confirmation of a key press. .OFF will turn off VOX function. .1:Lowest Sensitivity VOX - VOX .5:Highest Sensitivity .HIGH-high power transmission; .LOW-low power transmission. *When set to low power, the screen will display the ‘L’ -Transmit Power icon.
  • Page 24 SAVE OFF: - Battery Saving OFF,30,60…180S *This feature provides a safety switch that limits transmission time to a programmed value. This will promote battery conservation by not allowing you to - Time-Out-Timer make excessively long transmissions, and in the event of a stuck PTT switch it can prevent interference to other users as well as battery depletion BCLO...

  • Page 25: Menu Settings

    You can configure different Receiving Privacy Codes for each channel. The selected Privacy Code may be different for each channel. Note: Selecting a Privacy Code of "OFF" will disable the Privacy feature. To communicate between two P11UV radios, all radios in your group must be set to the same channel and Privacy Code selections.
  • Page 26 You can configure different transmission Privacy Codes for each channel. The selected Privacy Code may be different for each channel. Note: Selecting a Privacy Code of "OFF" will disable the Privacy feature. To communicate between two P11UV radios, all radios in your group must be set to the same channel and Privacy Code selections.
  • Page 27 3> Press [+UP]/[-DOWN] key to select the squelch level, select the range 0, 1-9 4> Press [MENU] key to confirm; 5> Press [PTT] or [A/B] key to exit the menu mode. 6.3.4 Backlight intensity (LIGHT) - MENU 04 The LCD backlight is convenient for you to use at night or in a dark environment. The LCD backlight setting steps are as follows: 1>...
  • Page 28 The steps for setting up VOX voice control transmission are as follows: 1> Press [MENU] key to enter the main menu, and press the [+UP]/[-DOWN] key to enter the MENU 06. 2> Press [MENU] key again to enter the VOX menu; 3>...
  • Page 29 4> Press [MENU] key to confirm; 5> Press [PTT] or [A/B] key to exit the menu mode. 6.3.9 Wide/narrow bandwidth (W/N) - MENU 09 1> Press [MENU] key to enter the main menu, press [+UP]/[-DOWN] key to enter the MENU 09. 2>...
  • Page 30 5> Press [PTT] or [A/B] key to exit the menu and return to normal operation mode. 6.3.14 VOICE Selection (VOICE) - MENU 14 Your P11UV radio has voice prompt function for channel and function operation, you can choose to switch voice function or prompt language type. The setting steps are as follows: 1>...

  • Page 31: On-Line Service And Support

    6.3.15 Restore factory settings (RESET)-MENU 15 Your P11UV radio has a reset function. To reset the radio, proceed as follows: 1>Press [MENU] key to enter the main menu, and press [+UP]/[-DOWN] key to enter the MENU 15, the screen displays RESET.

  • Page 32: Appendix A. - Trouble Shooting Guide

    Appendix A. – Trouble shooting guide Phenomena Analysis Solution The battery may be installed improperly. Remove and reattach the battery. The battery power may run out. Recharge or replace the battery. You cannot turn on the radio. The battery may suffer from poor contact caused by Clean the battery contacts or replace the dirty or damaged battery contacts.

  • Page 33: Appendix B. - Technical Specifications

    Appendix B. - Technical Specifications General Frequency Range GMRS (RX & TX) 136-174 & 400-512MHz (RX) Memory Channel 30 GMRS Channels + 11 NOAA Weather Operation Voltage DC7.4V ±10% Battery Capacity 1500mAH (Li-Ion) Frequency Stability ±2.5ppm Operating Temperature -20℃ to +60℃ Mode of Operation Simplex Antenna Impedance...
  • Page 34 Appendix C. - GMRS Frequency Chart (MHz) Type of Power Type of Power CH.No CH.Freq. CH.No CH.Freq. Radio Output Radio Output 462.5625 GMRS High 462.5750 GMRS High 462.5875 GMRS High 462.6000 GMRS High 462.6125 GMRS High 462.6250 GMRS High 462.6375 GMRS High 462.6500...
  • Page 35 We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the third-party products and contents involved in this manual. PO FUNG ELECTRONIC (HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong...
