Thank you for your favor with our products.
This product is a high-power radio, If you are long time transmit will cause the
heat of this machine is a normal phenomenon, In the case of sufficient distance
recommended to use Middle (Middle power) or Low (Low power) to transmit!
Thanks for using!
LCD 大屏幕显示 LCD Screen
高中低三档功率可选 High/Medium/Low Power are optional
DTMF 编码 DTMF Encoded
U/V 全段接收 UHF/VHF Full frequency receive
128 组存储信道 Up to 128 memory channels.
中转 1750HZ 转发信令 1750 Hz TONE for access to repeaters
ANI 身份码发送 ANI code
数字/模拟亚音自动扫描
快捷菜单操作模式 Shortcut menu operation mode
有线复制功能 Wired Clone
紧急报警呼叫功能 Emergency alarm call function
中英文语音报号 Chinese/English switch over

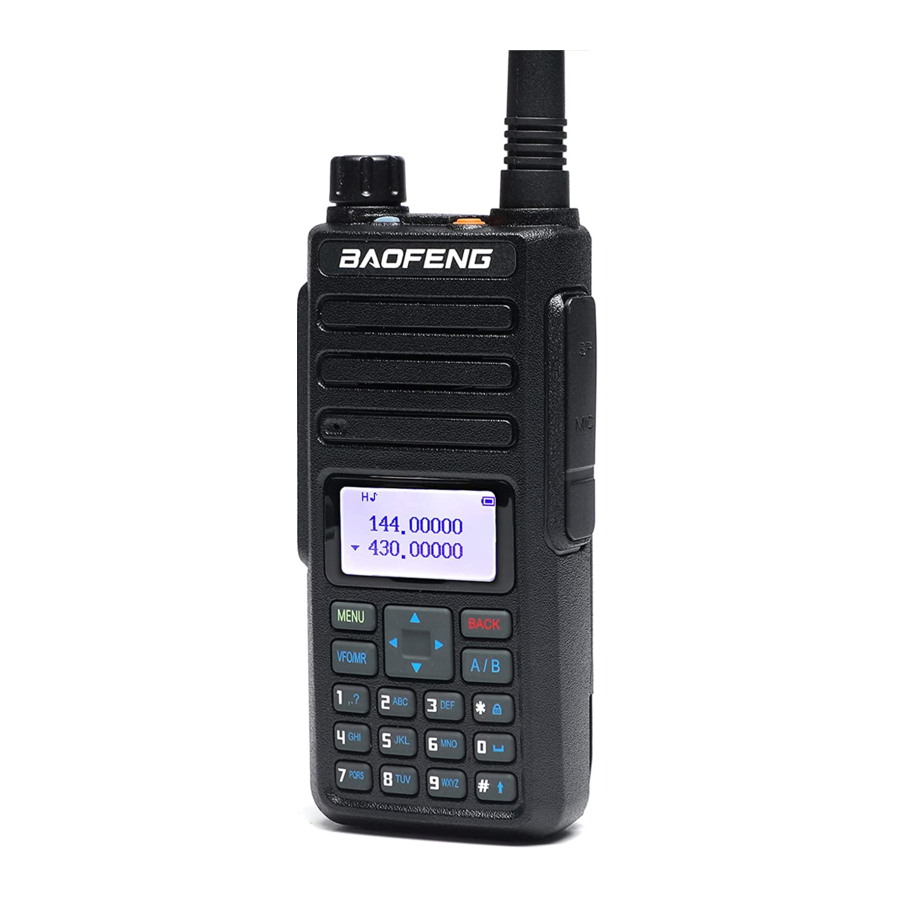

BF-H6 User Manual
To users
CTCSS/DCS to Automatic Scan
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PO Fung Electronic BF-H6
Summary of Contents for PO Fung Electronic BF-H6
- Page 1 BF-H6 User Manual To users Thank you for your favor with our products. This product is a high-power radio, If you are long time transmit will cause the heat of this machine is a normal phenomenon, In the case of sufficient distance...
- Page 2 熟悉本机 Familiar with this Product ■熟悉本机（插图说明） Antenna A helical antenna for receiving and transmitting signals. Battery Push-button This is for fixing the battery Battery Pack This is to power the radio Speaker This is for the radio output voice Microphone This is putting voice into the radio This is for external earphones;...
- Page 3 In channel mode, switch channels up and down; In Menu status, change to set the menu items and menu values, press more than 2 seconds to quickly forward or backward search. In scanning status, Change the scanning direction. In the input status, clear the input information; In standby mode, press this button to [Exit] and A/B switch button switch A/B, Switch 65-75/76-108mhz frequency in the FM mode.
- Page 4 2、Standby for channel mode 功能键盘 Function of the keyboard Menu select/confirm key: [MENU] Use this key to activate menu mode and select items in the menu mode. MENU nterface “▲” UP Key(Long press for more than 2 seconds to move forward quickly) “▼“...
- Page 5 This is for external earphones; Or external write frequency line, can use PC write frequency software to write frequency operation and program upgrade. DTMF After the DTMF is turned on, press the PTT + Side 2 will send out TONE. 点阵屏界面显示...
- Page 6 Arabic In channel mode, the current channel number for B numerals ■用前准备 Preparation before use 充电 Charging Note: Be sure to ensure that the product is off when charging. Battery into the charger may be charging red flashing constantly flashing, this is the battery power is too low, the charger to protect the battery pre-charge process, is a normal phenomenon, Generally continue for 30 seconds to turn the red light of the normal status of charge Please charge the battery with the charger specified by our company.
- Page 7 ●Battery safety attention 1. Do not allow metal contacts (including coins, keys, jewelry, or other conductive metal) to be touched by the battery contacts or pole pieces. Otherwise, the battery may short circuit, discharge, heat or leak, which may result in damage to the item or personal injury. Therefore, be careful when handling any battery.
- Page 8 电池电压、电量指示 Battery Voltage & Power Indication Long press the 【0】 key for display battery voltage, The top right of the screen shows the current battery power icon is as follows: Icon Battery power High Medium Insufficient ■基本操作 Basic Operation 开机与关机 Power on/off To turn on the power, turn the【Power Switch / Volume Control】...
- Page 9 Menu list Description of Level 1 menu Level 2 menu settings English 中文 English 中文 Squelch level, the lower the level is easy to interfere; the Squelch 静噪等级 0,…,9 higher the level of sensitivity is worse, it is best to set the middle.
- Page 10 Prompt Turn on beep prompt Press and hold the PTT key to keep transmits. The number goes from 15 Tx over 发射超时 to 600. In 15 steps, time 15,30,…600 Indicates the maximum transmit time by pressing the PTT key DCS is not set 接收数字...
- Page 11 松开发码 Release PTT to send code Send code when it is BOTH 同时发码 pressed or released the PTT. In channel mode, the A Frequency 信道频率 channel is display channel frequency. A 段显示 In channel mode, the A MDF-A 方式 channel is display Name 信道名称...
- Page 12 In frequency mode, the difference between the Offset 频差频率 00.000,…,99.998 transmitted and received frequencies. When save a channel, indicates the channel number to be saved. Memory 信道存储 000,…,127 If a number is preceded by “CH-”, the channel already has channel parameters.
- Page 13 releases the PTT key, the radio enters receiving status. Due to the delay of repeater, the instant signal transmitted by the repeater can be received. The value of the menu item shall be adjusted to ensure that no noise of this radio is generated when transmitting across the repeater, so as to...
- Page 14 Voltage 电池电压 中文 中文 Language 语言选择 English English 频率模式 Initialize of Menu 恢复出厂 Reset Initialize of Menu and 设置 全部 channel ◆发射DTMF Transmit DTMF Press and hold the 【PTT】 key and press the corresponding number key to launch the corresponding DTMF number ◆声控发射（VOX）...
- Page 15 ▲ ▼ 】/【 】to select “Dual Standby”, Or enter the number 7 directly into the menu item. 2）Press【 ▲ ▼ 】/【 】to select “ON”. 3) Press【MENU】to select, then Press【 4) Press【MENU】the radio voice prompts “confirm” to Save and return to the previous menu. •...
- Page 16 ▲ ▼ 】or【 】 to select ‘HIGH’→ [MENU]， Power Settings：Press the [MENU] → Keyboard [2] → [MENU] →【 ▲ ▼ 】or【 】to select ‘NAWR’→ [MENU]， Bandwidth：Press the Keyboard [5] → [MENU] →【 ▲ ▼ 】or【 】to select ‘D031N’→ [MENU]， Rx DCS：Press the Keyboard [1] and [0] → [MENU] →【 ·...
- Page 17 7）Press the [MENU] → Keyboard [2] and [5], the screen display 8）press the【MENU】,then the radio voice prompts “Memory Channel”, the screen display 9）Press the 【MENU】,then the radio voice prompts “transmit Memory”, the screen display 10）Press [BACK] to frequency mode. ◆亚音扫描 CTCSS/CDCSS Scan Before setting CTCSS/CDCSS scanning, set the receiving frequency to ensure that the signal can be received at the receiving frequency, and cancel the dual standby function, and make the radio work in the frequency mode.
- Page 18 127.3，131.8，136.5，141.3，146.2，151.4，156.7，159.8，162.2，165.5，167.9，171.3，173.8，177.3，179.9，183.5，186.2， 189.9，192.8，196.6，199.5，203.5，206.5，210.7，218.1，225.7，229.1，233.6，241.8，250.3，254.1。 B． CDS (210 Group) D023N，D025N，D026N，D031N，D032N，D036N，D043N，D047N，D051N，D053N，D054N，D065N，D071N，D072N，D073N， D074N，D114N，D115N，D116N，D122N，D125N，D131N，D132N，D134N，D143N，D145N，D152N，D155N，D156N，D162N， D165N，D172N，D174N，D205N，D212N，D223N，D225N，D226N，D243N，D244N，D245N，D246N，D251N，D252N，D255N， D261N，D263N，D265N，D266N，D271N，D274N，D306N，D311N，D315N，D325N，D331N，D332N，D343N，D346N，D351N， D356N，D364N，D365N，D371N，D411N，D412N，D413N，D423N，D431N，D432N，D445N，D446N，D452N，D454N，D455N， D462N，D464N，D465N，D466N，D503N，D506N，D516N，D523N，D526N，D532N，D546N，D565N，D606N，D612N，D624N， D627N，D631N，D632N，D645N，D654N，D662N，D664N，D703N，D712N，D723N，D731N，D732N，D734N，D743N，D754N D023I，D025I，D026I，D031I，D032I，D036I，D043I，D047I，D051I，D053I，D054I，D065I，D071I，D072I，D073I，D074I，D114I， D115I，D116I，D122I，D125I，D131I，D132I，D134I，D143I，D145I，D152I，D155I，D156I，D162I，D165I，D172I，D174I，D205I， D212I，D223I，D225I，D226I，D243I，D244I，D245I，D246I，D251I，D252I，D255I，D261I，D263I，D265I，D266I，D271I，D274I， D306I，D311I，D315I，D325I，D331I，D322I，D343I，D346I，D351I，D356I，D364I，D365I，D371I，D411I，D412I，D413I，D423I， D431I，D432I，D445I，D446I，D452I，D454I，D455I，D462I，D464I，D465I，D466I，D503I，D506I，D516I，D523I，D526I，D532I， D546I，D565I，D606I，D612I，D624I，D627I，D631I，D632I，D645I，D654I，D662I，D664I，D703I,D712I,D723I，D731I，D732I，D734I， D743I，D754I ■故障处理指南 Troubleshooting Guide Problem Reason Solution The battery doesn’t be installed Remove and re-install the battery. correctly. The battery runs out. Charging or change a new battery.
- Page 19 does not work in the frequency/channel/color code/ code/ time slot digital channel time slot Other sound Interference from same Change to new frequency, or correct the channel, which is not frequency squelch from the members The signal is not set yet. Set the signal for all radio in the group Be too away from other members.
- Page 20 or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Page 21 Signal-to-noise ≥-40dB QT/DQT Deviation 0.4±0.1KHz Modulation Sensitivity 8-12mV All specifications may be modified without prior notice or liability.
