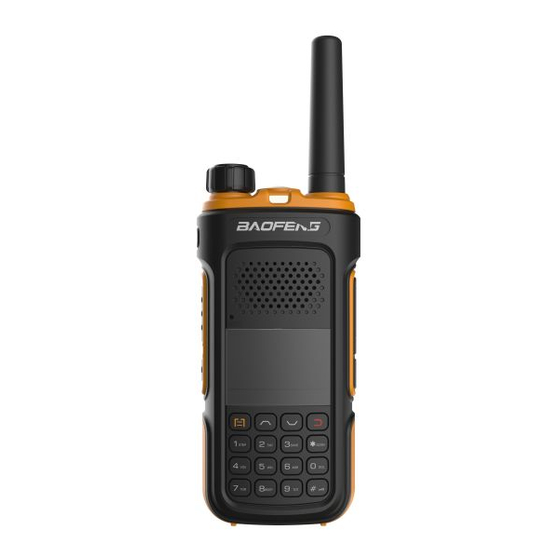

PO Fung Electronic P10UV Operating Manual

Analog uhf/vhf two way radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Analog
UHF/VHF Two Way Radio
Operating Manual
Model: P10UV
Draft Version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P10UV and is the answer not in the manual?

Questions and answers

Related Manuals for PO Fung Electronic P10UV

Summary of Contents for PO Fung Electronic P10UV

  • Page 1 Analog UHF/VHF Two Way Radio Operating Manual Model: P10UV Draft Version...
  • Page 2 PREFACE Thank you for purchasing P10UV Two Way Radio, which is a dual band/dual display radio/dual watch. This easy-to-use radio will deliver you secure, instant and reliable communications at peak efficiency. Please read this manual carefully before use. The information presented herein will help you to derive maximum performance from your radio.

  • Page 3: Table Of Contents

    Table of Contents 1. GETTING STARTED 1.1 Regulations and Safety Warnings 1.2 Main features 1.3 Content of the packaging 2. BATTERY INFORMATION 2.1 Charging the Battery Pack 2.2 Charger Supplied 2.3 Use Caution with the Li-ion Battery 2.4 How to Charge 2.5 LED Indicator 2.6 How to Store the Battery 3.
  • Page 4 5.5 Frequency (VFO) mode 5.6 Channel (MR) mode 6. ADVANCED FEATURES 6.1 Frequency scanning 6.2 Channel scanning 6.3 Search CTCSS/DCS Code 6.4 Cursor▼▲Conversion (A/B) 6.5 High/low power fast selection 6.6 Keypad lock 6.7 FM Radio (FM) 6.8 Flashlight 6.9 1000Hz, 1450Hz, 1750Hz Tone-burst 6.10 Manual Programming (Channels Memory) 6.11 Repeaters Programming 7.

  • Page 5: Getting Started

    1. GETTING STARTED 1.1 Regulations and Safety Warnings This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Important: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this device.
  • Page 6 RF Exposure Information WARNING! Read this information before using the radio. In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters.
  • Page 7 The information listed above provides the user with the information needed to make him or her aware of RF exposure, and what to do to as-sure that this radio operates with the FCC RF exposure limits of this radio. Electromagnetic Interference/Compatibility During transmissions, Our radio generates RF energy that can possibly cause interference with other devices or systems.
  • Page 8 Do not use the radio with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for a replacement antenna. Hand-held Operation (Held-to-Face) This device was evaluated for typical hand-held (held-to- face) operations with a 2 inch spacing from the front of the radio. For hand-held operation, the radio should be held 2 inch from the user's face in order to comply with FCC RF exposure requirements.
  • Page 9 Precautions for Portable Terminals ■ Operating Prohibitions To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions: 1. Do not operate the product in a location containing fuels, chemicals, explosive atmospheres and other flammable or explosive materials.
  • Page 10 To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions: 1. Do not charge or replace your battery in a location containing fuels, chemicals, explosive atmospheres and other flammable or explosive materials. 2.

  • Page 11: Main Features

    • VOICE: vocal indication of the function selected • Frequency step: 2.5/5/6.25/10/12.5/25KHz • Frequency offset (adjustable): 0-69.990MHz • Repeater shift • Squelch adjustable in 9 levels • Power Save • Li-Ion 1500mAh battery pack •Comply with FCC two way radio related standards, FCC ID: 2AJGM-P10UV...

  • Page 12: Content Of The Packaging

    1.3 Content of the packaging • 1 P10UV transceiver • 1 Li-Ion battery pack 1500mAh 7.4V • 1 Fast desktop charger • 1 Wall adaptor • 1 Belt clip •1 Antenna If any item is missing, please verify with your POFUNG dealer.

  • Page 13: How To Charge

    e. Do not recharge the battery pack if it is fully charged. This may shorten the life of the battery pack or damage the battery pack. f. Do not charge the battery or the radio if it is damp. Dry it before charging to avoid damage. WARNING！...

  • Page 14: Led Indicator

    2.5 LED Indicator STATUS No Battery Green and red alternately flashing Charge Normally Fully Charged Green Trouble Red blinks fast for a long time NOTE：Trouble means battery too warm, battery short-circuited or charger short-circuited. 2.6 How to Store the Battery a.

  • Page 15: Installing The Battery Pack

    b. To remove the BELT CLIP, press the LOCK TAB down, and then gently pull the belt clip up toward the top of the radio. 3.3 Installing the battery pack Before attaching or removing the battery make sure your radio is turned off by turning the power/volume knob all the way counter-clockwise.

  • Page 16: Radio Overview

    4. RADIO OVERVIEW...
  • Page 17 1. Antenna 2. Flashlight 3. Power / Switch / Volume control: Rotate to switch on/off the radio and adjust the volume 4. Led: transmission (red) / reception (green) 5. SK1: Short press: turns the flashlight on. Press it again to issue an emergency light. Long press for 3 seconds to activate the alarm function, short press again to exit the alarm function.

  • Page 18: Main Controls And Parts Of The Radio

    19. * : Press this key to invert the receiving and transmitting frequencies. Press for more than 2 seconds to lock or unlock the keyboard. 20. # : Short pressure: Radio status, press this automatically searches for radio channels. Keep it pressed to activate the SCAN function.

  • Page 19: Status Indications

    10. Narrow bandwidth: N = narrow. When the wide (W) bandwidth is activated, no icon is displayed. 11. Battery level indicator. When the battery is almost used up, the icon starts blinking and the transmission is blocked. Charge the radio. 12/16.
  • Page 20 If you press this button for more than 2 seconds you will lock/unlock the keypad. Zero 0 Key • The POFUNG P10UV features a battery voltage meter that the current voltage of the battery on the display. To see the voltage displayed, press and hold the [0] key for about two seconds. ...

  • Page 21: Basic Operations

    5. BASIC OPERATIONS 5.1 Power on the radio Turning the unit on • To turn the unit on, simply rotate the volume/power knob clockwise until you hear a "click". If your radio powers on correctly there should be an audible double beep after about one second and the display will show a message or flash the LCD depending on settings for about one second.

  • Page 22: Channel Selection

    When receiving a call, the green LED is on. NOTE: To ensure the best reception volume, keep the distance between the microphone and the mouth at the time of transmission from 2.5 cm to 5 cm. 5.4 Channel selection There are two modes of operation: Frequency (VFO) mode, and Channel or Memory (MR) mode. For everyday use, Channel (MR) mode is going to be a whole lot more practical than Frequency (VFO) mode.

  • Page 23: Channel (Mr) Mode

    your area. 5.6 Channel (MR) mode The use of Channel (MR) mode is dependent on actually having programmed in some channels to use. Once you have channels programmed and ready, you can use the ▲/▼ keys or the encoder to navigate between channels. 6.

  • Page 24: Cursor▼▲Conversion (A/B)

    Directly press [Back] key to move the cursor up and down. Then, you can modify or confirm the parameters indicated by the cursor. Important1: P10UV has a dual-frequency display function. In frequency mode, you will see on the display two different receiving and transmitting frequencies; while in channel mode the two different channels will be displayed.

  • Page 25: Manual Programming (Channels Memory)

    Memory channels are an easy way to store commonly used frequencies so that they can easily be retrieved at a later date. The POFUNG P10UV features 128 memory channels that each can hold: Receive and transmit frequencies, transmit power, group signaling information, bandwidth, ANI/ PTT-ID settings and a six character alphanumeric identifier or channel name Frequency Mode vs.
  • Page 26 RX = 432.55000 MHz TX = 437.55000 MHz (This is a (+ 5) Offset) TX CTCSS tone 123.0 a. Press the [Back] button to switch between menus. b. Press and hold the [MENU] key to set the radio to VFO mode, and the channel number on the right will disappear. c.

  • Page 27: Repeaters Programming

    Certain Amateur Radio repeaters (especially in Europe) use a 1750Hz tone burst to open up the repeater. To see how this is done with the POFUNG P10UV, see the section called “1750Hz Tone-burst”. If you're still unable to make a connection, contact the person in charge of the radio system with your employer or your local amateur radio club, as the case may be.

  • Page 28: Working The Menu System

    reverse your transmit and receive frequencies. This is indicated in the LCD on the radio with an R in the top row, next to the plus and minus for the offset direction. 7. WORKING THE MENU SYSTEM For a complete reference on available menu items and parameters, see Appendix C, Shortcut Menu operations. Note: in channel mode, the setting of these features is not possible: CTCSS/ DCS tones, wide/narrow bandwidth, PTT-ID, Busy channel lock out, channel name edit.

  • Page 29: Functions And Operations

    Thanks to this function you can adjust the squelch in 10 different levels: • Level 0: opened squelch. With this setting, P10UV will detect all signals, also the weakest ones, but will also receive the background noise or undesired signals.
  • Page 30 DCS code. You can choose amongst: • OFF: • D023N-D754N (Normal DCS), D023I-D754I (Inverse DCS) Note: In P10UV there are 208 groups of normal and inverse DCS codes. This function cannot be amended in channel mode.
  • Page 31 (12) Receiving CTCSS (Rx CTCSS) - MENU No.11 As DCS codes, the CTCSS codes can be added to the channels for creating new private channels. Note: there are 50 groups of CTCSS tones. In channel mode the CTCSS tones cannot be changed. (13) Transmitting DCS (Tx DCS) - MENU No.12 In this Menu you activate DCS codes in tx mode.
  • Page 32 Selects 1 of 15 DTMF codes. The DTMF codes are programmed with software and are up to 5 digits each. (19) SCAN Resume Mode (Scan Mode) - MENU No.18 Thanks to this function, P10UV can SCAN in frequency or channel mode. You can choose amongst three options: • Time-operated SCAN Whenever a signal is detected, the radio will suspend the SCAN for 5 seconds, and then will continue to SCAN even if the signal is still present.
  • Page 33 Note: Channel name mode must be set by the programming software. Up to three numbers or characters can be edited. (22) Channel B Display Mode (MDF-B) - MENU No.21 This function is used to set the display mode of channel B. Display modes: •...
  • Page 34 (26) Frequency offset (Offset) - MENU No. 25 In this MENU you can set the deviation between tx and rx. The frequency offset of this radio is 00.000-99.998MHz. (27) Channel store - (Memory) - MENU No. 26 When the radio is in frequency working mode or standby mode, input the desired frequency or parameters directly. NOTES: If you want to set CTCSS tones, DCS codes or the frequency offset, you have to do it before storing the channel.
  • Page 35 NOTES: The function cannot be activated when the radio is set in Channel mode. The Scan will start only when the receiving band will detect a signal. (32) Squelch tail elimination (TAIL) - Menu No. 31 This function is used eliminate squelch tail noise between POFUNG handhelds that are communicating directly (no repeater). Reception of a 55 Hz or 134.4 Hz tone burst mutes the audio long enough to prevent hearing any squelch tail noise.

  • Page 36: On-Line Service And Support

    (37) Power on image (Power on Msg) - Menu No.36 With this function you can set the display mode when the radio is turned on. Available options: • Preset Logo: Display the preset startup picture. • Preset Msg: Welcome message. •...

  • Page 37: Appendix A. - Trouble Shooting Guide

    Appendix A. – Trouble shooting guide Phenomena Analysis Solution The battery may be installed improperly. Remove and reattach the battery. The battery power may run out. Recharge or replace the battery. You cannot turn on the radio. The battery may suffer from poor contact caused by Clean the battery contacts or replace the dirty or damaged battery contacts.

  • Page 38: Appendix B. - Technical Specifications

    Appendix B. - Technical Specifications General Frequency Range 150-174 & 400-480MHz(TX) 136-174 & 400-520MHz(RX) Memory Channel 128 Groups Operation Voltage DC 7.4 V ±10% Battery Capacity 1500mAh (Li-Ion) Frequency Stability ±2.5ppm Operating Temperature -10℃ to +50℃ Mode of Operation Simplex Antenna Impedance 50ohm Transmitter Part...

  • Page 39: Appendix C. - Shortcut Menu Operations

    Appendix C. - Shortcut Menu operations MENU Name Enter item LCD display Selectable (Full Name) 0-9 Levels Squelch - Squelch MENU+0 0:Lowest Level 9:Highest Step –Step 2.5K/5.0K/6.25K/10.0K MENU+1 12.5K/20.0K/25.0K/50.0K Frequency OFF/ Mode 1/ Mode 2/ Mode 3 *Selects the ratio of sleep cycles to awake cycles Power save –...
  • Page 40 Beep Prompt - MENU+8 Keypad Beep *Allows audible confirmation of a key press. 15,30…600S *This feature provides a safety switch that limits transmission time to a programmed value. This will Tx over time - promote battery conservation by not allowing you MENU+9 to make excessively long transmissions, and in the Time-Out-Timer...
  • Page 41 unlock the squelch of a distant receiver (usually a repeater). 67.0HZ…254.1HZ Tx CTCSS - MENU+13 *Transmits a specific and continuous sub audible Transmitter CTCSS signal to unlock the squelch of a distant receiver (usually a repeater). FHSS- Frequency MENU+14 hopping system VOICE - Voice MENU+15 Reminding...
  • Page 42 Time - scanning will resume after a fixed time has Scan Mode - passed Scanner Resume MENU+18 Carrier -scanning will resume after the signal disappears Method Search -scanning will not resume OFF: No ID is sent BOT: The selected S-CODE is sent at the beginning PTT-ID - PTT-ID MENU+19 EOT: The selected S-CODE is sent at the ending...
  • Page 43 Direction – None: TX = RX (simplex) Frequency Offset MENU+24 Plus: TX will be shifted higher in frequency than RX Minus : TX will be shifted lower in frequency than RX Direction Offset -Frequency 00.000…69.990 shift MENU+25 *Specifies the difference between the TX and RX frequencies amount 000…127...
  • Page 44 Scan DCS -Scan of D023N,…,D754I frequencies with MENU+30 *Automatic stop after receiving the DCS signal *This function is used eliminate squelch tail noise STE - Squelch Tail MENU+31 between POFUNG handhelds that are Elimination communicating directly (no repeater). Reception of a 55 Hz or 134.4 Hz tone burst mutes the audio long enough to prevent hearing any squelch tail noise.
  • Page 45 *Controls the behavior of the display when the transceiver is turned on. Language- Chinese MENU+37 English Language selection VFO: Menu initialization RESET – Restore ALL: Menu and channel initialization MENU+38 *Resets the radio to factory defaults, with some defaults exceptions.
  • Page 46 We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the third-party products and contents involved in this manual. PO FUNG ELECTRONIC (HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong E-mail: sales@pofungshop.com...
