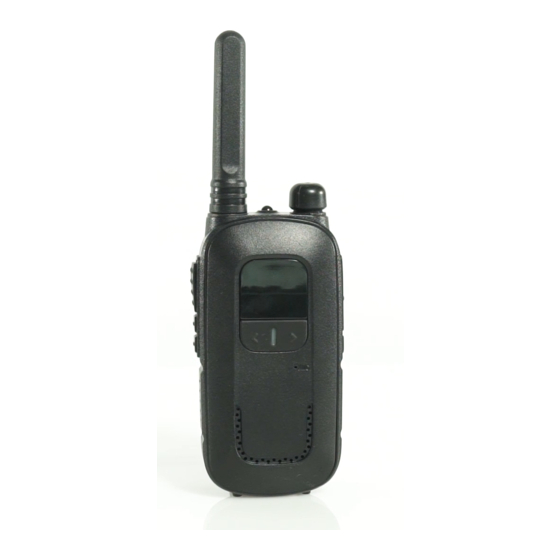

Thank you for purchasing F12 Two Way Radio, It is a multitask FRS transceiver. Combining the latest
technology in radio communication along with a sturdy mechanical frame, F12 is the ideal and
effective solution for the professionals who need to stay in touch with the working team (in
construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up
with friends and family.
This manual is applicable to the following product: BF-UV12, AR12, PR-12, 12E and VT-12 Two Way
Radios.
To help you ward off bodily injury or property loss that may arise from improper operation, please
read all the information carefully before using our products. This contains instructions for safe usage
and RF energy awareness and control for compliance with applicable standards and regulation.
Safety Information for Pofung Radios
Your wireless handheld portable transceiver contains a low power transmitter. When the talk button
is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty
factor not to exceed 50%. In August 1996, the Federal Communications Commissions (FCC) adopted RF
exposure guidelines with safety levels for handheld wireless devices.
PREFACE
IMPORTANT NOTICE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PO Fung Electronic F12

Summary of Contents for PO Fung Electronic F12

  • Page 1 PREFACE Thank you for purchasing F12 Two Way Radio, It is a multitask FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, F12 is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family.

  • Page 2: Table Of Contents

    Table of Contents 1. GETTING STARTED 1.1 FCC RF Exposure 1.2 FCC Part 15 /IC Compliance 1.3 Precautions for Batteries 1.4 Maintenance 1.5 Content of the packaging 1.6 Main features 2. BATTERY INFORMATION 2.1 Charging the Battery Pack 2.2 Charger Supplied 2.3 Use Caution with the Li-ion Battery 2.4 How to Charge 2.5 LED Indicator...
  • Page 3 5.3 Choosing a Channel 5.4 Talking and Listening 5.5 SCAN 5.6 Monitor 5.7 Keypad lock 5.8 A/B switch 5.9 Flashlight and Emergency Alert 5.10 FM Radio (FM) 5.11 NOAA Weather Radio 5.12 1000Hz, 1450Hz, 1750Hz Tone-burst 6. WORKING THE MENU SYSTEM 6.1 Basic use 6.2 Shortcut Menu operations 6.3 Menu settings...

  • Page 4: Getting Started

    Pofung F12 is a multi-task FRS transceiver. Combining the latest technology in radio communication along with a sturdy mechanical frame, F12 is the ideal and effective solution for the professionals who need to stay in touch with the working team (in construction sites, buildings, shows, trade fairs or hotels) or for leisure users that just want to keep up with friends and family.

  • Page 5: Fcc Part 15 /Ic Compliance

    ■ Hand-Held Operation (Held-to-Face) This device was evaluated for typical hand-held (held-to-face) operations with a 1 inch spacing from the front of the radio. For hand-held operation, the radio should be held 1 inch from the user's face in order to comply with FCC RF exposure requirements.

  • Page 6: Precautions For Batteries

    d’interférences nuisibles et; 2) Il doit pouvoir supporter les parasites qu’il reçoit, incluant les parasites pouvant nuire à son fonctionnement. Tout changement ou modification non approuvé expressément par la partie responsable pourrait annuler le droit à l’utilisateur de faire fonctionner cet équipement. ■...

  • Page 7: Maintenance

    6. Overcharge shall always be prohibited for it may shorten the life of your battery. ■ Maintenance Instructions To help your battery work normally or prolong its life, be sure to observe the following instructions: 1. Accumulated dust on charging connector may affect normal charging. Please use a clean and dry cloth to wipe it on a regular basis.
  • Page 8 To be safe and sure: • Never open your radio’s case. • Never change or replace anything in your radio except the batteries. ■ Care and Safety Your F17 was designed to fulfill any warranty obligations and to enjoy this product for many years. As for all the electronically devices, we recommend you to follow this few suggestions: •...
  • Page 9 WARNING! Read this information before using the radio. In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S.

  • Page 10: Content Of The Packaging

    1.5 Content of the packaging • 1 F12 transceiver • 1 Li-Ion battery pack 1500mAh 3.7V • 1 Fast desktop charger • 1 Wall adaptor • 1 Belt clip *If any item is missing, please verify with your Pofung dealer.

  • Page 11: Battery Information

    About Range Your F12 Series radios are designed to give you maximum range under optimum conditions. • Maximum Range: Little to No sight Obstruction. • Medium Range: Partial Obstruction to line of sight. • Short Range: Major Obstruction to Ling of Sight.

  • Page 12: Use Caution With The Li-Ion Battery

    2.3 Use Caution with the Li-ion Battery a. Do not short the battery terminals or throw the battery into a fire. Never attempt to remove the casing from the battery pack, as POFUNG cannot be held responsible for any accident caused by modifying the battery. b.

  • Page 13: Led Indicator

    • Charge time may vary depending on the battery life remaining. • The battery must be installed for the unit to operate, even if the unit is also connected to external power. • If battery power is low, you cannot operate the radio even using external power. Allow the battery to charge before using. If you try to transmit while power is low, the radio will automatically turn off.

  • Page 14: Installation Of Accessories

    3. INSTALLATION OF ACCESSORIES Before the radio is ready for use we need to attach the battery pack, as well as charge the battery. 3.1 Installing the belt clip a. To install the BELT CLIP, slide the clip down into the slot on the back of the radio until the BELT CLIP LATCH clicks. b.

  • Page 15: Radio Overview

    4. RADIO OVER VIEW 4.1 Main controls and parts of the radio...
  • Page 16 Antenna LED Flashlight Power Switch/ Volume control Led: transmission (red) / reception (green) [LAMP]: Press the key once to turn on the flashlight, Press and hold the key again to flash the flashlight, and press the hand again to turn off the flashlight; Press and hold the key to turn on the audible and visual alarm function [PTT]:Transmit key, hold the key to speak, release the key after speaking, and receive incoming calls;...

  • Page 17: Lcd Display

    4.2 LCD Display Transmit and receive instructions In channel mode, display the current channel frequency; In menu mode, display menu items; Battery level indicator. When the battery is almost used up, the icon starts blinking and the transmission is blocked. Charge the radio. Indicates the channel number that you stored Appears when a positive shift is activated.
  • Page 18 This symbol appears during transmission (when you press the PTT key) or reception. When the radio is in rx mode, the led will light up green, while in tx mode it will be red. Press and release to transmit your unique Call Tone signal to another radio. The other person will hear a two second call tone.

  • Page 19: Basic Operations

    For maximum clarity, hold the radio 2 to 3 cm away and avoid covering the microphone while talking. 5.5 SCAN Your F12 can scan all 30 channels for activity. Pressing and holding [SCAN] key for 2 seconds to enter. Repeat the same procedure to exit.

  • Page 20: Monitor

    5.10 FM Radio (FM) The frequency range to listen to the radio is 78-108MHz. With F12 turned on, Press [FM] to turn on the radio. Select the desired radio frequency with the [+UP]/[-DOWN] keys. Press [FM] to exit FM radio.

  • Page 21: Noaa Weather Radio

    switch to the channel mode for normal transmitting and receiving. When the signal disappears the radio will automatically switch again to FM radio mode. 5.11 NOAA Weather Radio Your radio can receive weather broadcasts from the NOAA National Weather Service. While using the Weather Radio, you are not able to receive GMRS communications.

  • Page 22: Working The Menu System

    If you have the keypad lock enabled on your radio, you can still send a 1750Hz tone the regular way without having to unlock your radio. 6. WORKING THE MENU SYSTEM 6.1 Basic use Using the menu with arrow keys 1>...

  • Page 23: Shortcut Menu Operations

    6.2 Shortcut Menu operations MENU Name LCD display Selectable (Full Name) OFF;67.0…D754N The Privacy Codes is off, and the display is OFF. RXCODE When the display is OFF, press +key to select CTCSS -Receiver Privacy with priority; Codes When the display is OFF, press - key to select DCS with priority.
  • Page 24 .OFF BEEP - Keypad Beep *Allows audible confirmation of a key press. .OFF will turn off VOX function. .1:Lowest Sensitivity VOX - VOX .5:Highest Sensitivity TDR – Dual Watch *Monitor [A] and [B] at the same time. Activate the Operation dual watch, and the screen will display the ‘S’...

  • Page 25: Menu Settings

    other users as well as battery depletion BCLO *Disables the[PTT] key on a channel that is already in -Busy Channel use. The transceiver will sound a beep tone and will not Lock-out transmit if the[PTT] key is pressed when a channel is already in use.
  • Page 26 You can configure different Receiving Privacy Codes for each channel. The selected Privacy Code may be different for each channel. Note: Selecting a Privacy Code of "OFF" will disable the Privacy feature. To communicate between two F12 radios, all radios in your group must be set to the same channel and Privacy Code selections.
  • Page 27 4> Press [MENU] key to confirm; 5> Press [PTT] or[A/B] key to exit the menu mode. 6.3.3 Squelch level (SQL) - MENU 03 This function turns on the Squelch when the signal is strong; the Squelch will stay off when the signal is weak. Set the same DCS codes of your group and turn on the squelch.
  • Page 28 6.3.5 Beep tone (BEEP) - MENU 05 If you enable this function, every time a key is pressed, you will hear a Beep tone. You can set it as follows: 1> Press [MENU] key to enter the main menu, and press the [+UP]/[-DOWN] key to enter the MENU 05. 2>...
  • Page 29 2> Press [MENU] key again to enter the TDR menu; 3> Press [+UP]/[-DOWN]key to select the dual-frequency wait switch, and the selection range is ON/OFF; Note: OFF-turn off the dual watch function; ON-turn on the dual watch function. Turn on the dual watch function; the screen will display the 'S' icon. 4>...
  • Page 30 5> Press [PTT] or [A/B] key to exit the menu and return to normal operation mode. 6.3.14 VOICE Selection (VOICE) - MENU 14 Your F12 radio has voice prompt function for channel and function operation, you can choose to switch voice function or prompt language type. The setting steps are as follows: 1>...

  • Page 31: On-Line Service And Support

    6.3.15 Restore factory settings (RESET)-MENU 15 Your F12 radio has a reset function. To reset the radio, proceed as follows: 1>Press [MENU] key to enter the main menu, and press [+UP]/[-DOWN] key to enter the MENU 15, the screen displays RESET.

  • Page 32: Appendix A. - Trouble Shooting Guide

    Appendix A. – Trouble shooting guide Phenomena Analysis Solution The battery may be installed improperly. Remove and reattach the battery. The battery power may run out. Recharge or replace the battery. You cannot turn on the radio. The battery may suffer from poor contact caused by Clean the battery contacts or replace the dirty or damaged battery contacts.

  • Page 33: Appendix B. - Technical Specifications

    Appendix B. - Technical Specifications General Frequency Range FRS (RX & TX) Memory Channel 22 FRS Channels + 11 NOAA Weather Operation Voltage DC3.7V ±10% Battery Capacity 1500mAH (Li-Ion) Frequency Stability ±2.5ppm Operating Temperature -20℃ to +60℃ Mode of Operation Simplex Antenna Impedance 50ohm...
  • Page 34 Appendix C. - FRS Frequency Chart (MHz) Power Power CH.No CH.Freq. CH.No CH.Freq. Output Output 462.5625 High 467.6625 462.5875 High 467.6875 462.6125 High 467.7125 462.6375 High 462.5500 High 462.6625 High 462.5750 High 462.6875 High 462.6000 High 462.7125 High 462.6250 High 467.5625 462.6500 High...
  • Page 35 We do not guarantee, for any particular purpose, the accuracy, validity, timeliness, legitimacy or completeness of the third-party products and contents involved in this manual. PO FUNG ELECTRONIC (HK) INTERNATIOANL GROUP COMPANY Address: 3/F FULOK BLDG 131-133 WING LOK ST SHEUNG WAN, Hong Kong Mail: sales@pofungshop.com...
