- Page 1 OPERATING MANUAL MODEL 2370 FLAT BED PLASTIC MULCH LAYER...
-
Page 2: Table Of Contents
Table Of Contents Cover Disk ............. 5 Dirt Shield .............. 5 Drip Pipe ..............6 Drip Roll ..............6 Features ..............2 Helpful Tips ............13 Options ..............2 Parts Breakdown, Descriptions ......10-12 Parts Breakdown, Exploded Views .....7-9 Plastic Roll, Installing..........3 Plastic Tension ............ -
Page 3: Features

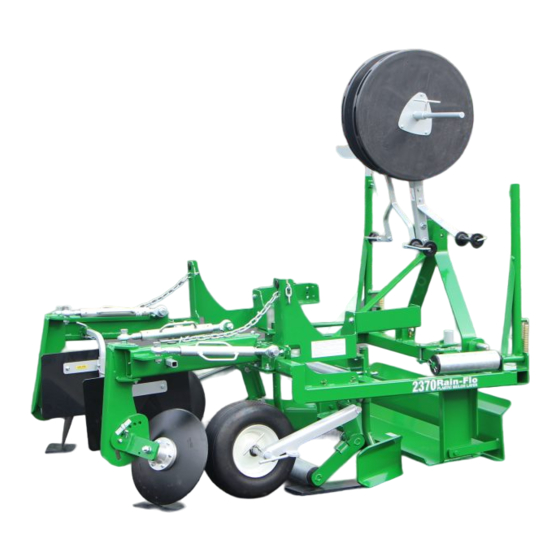

Do not adjust the machine when it is moving. Do not stand on machine. Tractor operator is responsible for extra worker(s) around machine. Rain-Flo Irrigation is not responsible for accidents if any should occur. Features • The Model 2370 Flat Bed Mulch Layer will lay 3’, 4’... -
Page 4: Plastic Roll, Installing
Installing Plastic Rolls Place plastic rolls on top of rollers (A). Pull end of plastic down and underneath the bottom roller (B). Secure plastic and drip tape at end of row. Feed plastic Spare rolls like this Roll Plastic Roll Plastic Bottom Roller Adjusting Plastic Tension... -
Page 5: Plastic Width
Changing Plastic Width Model 2370 will lay 3’, 4’, or 5’ wide plastic. Loosen bolts (No. 1) and slide trench openers and roll holders so plastic roll fits between brackets. Adjust approximately 1½” wider than plastic width to compensate for the roll’s core. -
Page 6: Cover Disk
Trench Opener Adjustment Trench openers are to cut a trench along the sides of the bed. This will give a ‘cup’ at the edge of the bed for disk to cover the plastic. Depth Setting Adjust trench openers 3” lower than bed press rench rench... -
Page 7: Drip Pipe
Drip Irrigation Roll Carrier NOTICE: Make sure drip roll Drip Tape is com- pressed Roller firmly Guides between plates for positive braking effect. Slide drip roll onto roll carrier rod so that drip emitter will be turned up toward plastic (for less clogging). Feed drip tape through the guide on the swing arm and through the second guide that’s bolted on the drip roll carrier frame. -
Page 11: Parts Breakdown, Descriptions
Model 2370 Flat Bed Layer escrIptIon 1....(9) ....Tee Handle 1A........Complete Single Top Drip Roll Carrier 1D ........Complete Double Top Drip Roll Carrier 2........Roll Carrier Clamp 3A ........Drip Attach Adjustable Brake Tension Plate 3B ........Drip Attach Brake Plate 3C ........ - Page 12 Model 2370 Flat Bed Layer escrIptIon 66....(2) ....Dirt Shield 66-70CL ......Left Side Dirt Shield Complete 66-70CR ......Right Side Dirt Shield Complete 67....(2) ....¾” x 4½” Hub Center Bolt 68....(10) ....⅜” x 1½” Button Socket Cap Bolt 69-70 ...(2) ....Dirt Shield Bracket 69A ....(2) ....Dirt Shield Flat Plate Bracket...
- Page 13 Model 2370 Flat Bed Layer escrIptIon 452....(2) ....Tire, Axle and Stem 464....(2) ....Depth Wheel Complete [#452 -thru- 458] 515........Bottom Drip Square Bar 515A ......... Complete Single Bottom Drip Attach 515D .........Complete Double Bottom Drip Attach 516....(4) ....½” x 1½” Set Screw 517A .........
-
Page 14: Helpful Tips
Helpful Tips * Adding weight will help make a firmer bed. * Adjust 3-point top link on tractor to level machine. * Moisture in soil is important to build nice square beds. * Stretching plastic in length and side to side, will help plastic from blowing off. -
Page 15: Trouble Shooting
TROUBLE SHOOTING PROBLEM: Machine tends to drift sideways causing press wheels to come off the plastic. SOLUTION: *Use sway bars on tractor 3-point hitch. Cover disk not getting enough soil to cover edge PROBLEM: of plastic. SOLUTION: *Bolt disk on opposite side of upright shank and turn it around for a backward tilt. - Page 16 ~2021 Edition~ Rain-Flo Irrigation (717) 445-3000...
