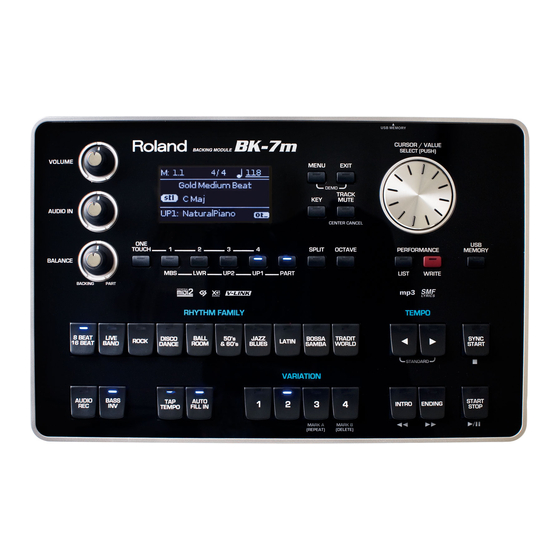

Roland BK-7m Manual

r

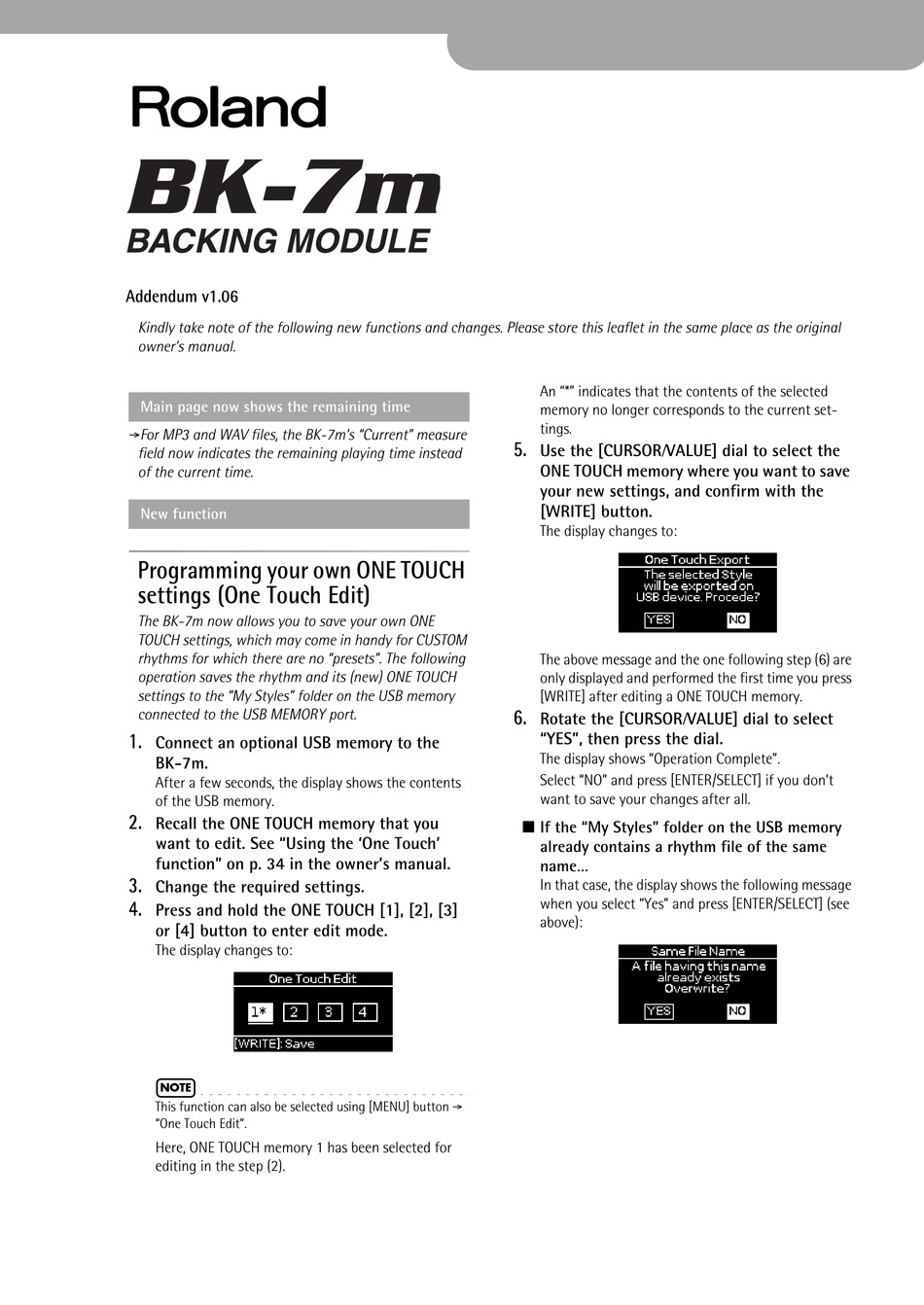

Addendum v1.06
Kindly take note of the following new functions and changes. Please store this leaflet in the same place as the original
owner's manual.
Main page now shows the remaining time
‰For MP3 and WAV files, the BK-7m's "Current" measure
field now indicates the remaining playing time instead
of the current time.
New function
Programming your own ONE TOUCH
settings (One Touch Edit)
The BK-7m now allows you to save your own ONE
TOUCH settings, which may come in handy for CUSTOM
rhythms for which there are no "presets". The following
operation saves the rhythm and its (new) ONE TOUCH
settings to the "My Styles" folder on the USB memory
connected to the USB MEMORY port.
1.
Connect an optional USB memory to the
BK-7m.
After a few seconds, the display shows the contents
of the USB memory.
2.
Recall the ONE TOUCH memory that you
want to edit. See "Using the 'One Touch'
function" on p. 34 in the owner's manual.
3.
Change the required settings.
4.
Press and hold the ONE TOUCH [1], [2], [3]
or [4] button to enter edit mode.
The display changes to:
NOTE
This function can also be selected using [MENU] button ‰
"One Touch Edit".
Here, ONE TOUCH memory 1 has been selected for
editing in the step (2).
An "*" indicates that the contents of the selected
memory no longer corresponds to the current set-
tings.
5.
Use the [CURSOR÷VALUE] dial to select the
ONE TOUCH memory where you want to save
your new settings, and confirm with the
[WRITE] button.
The display changes to:
The above message and the one following step (6) are
only displayed and performed the first time you press
[WRITE] after editing a ONE TOUCH memory.
6.
Rotate the [CURSOR÷VALUE] dial to select
"YES", then press the dial.
The display shows "Operation Complete".
Select "NO" and press [ENTER/SELECT] if you don't
want to save your changes after all.
If the "My Styles" folder on the USB memory
already contains a rhythm file of the same
name...
In that case, the display shows the following message
when you select "Yes" and press [ENTER/SELECT] (see
above):
