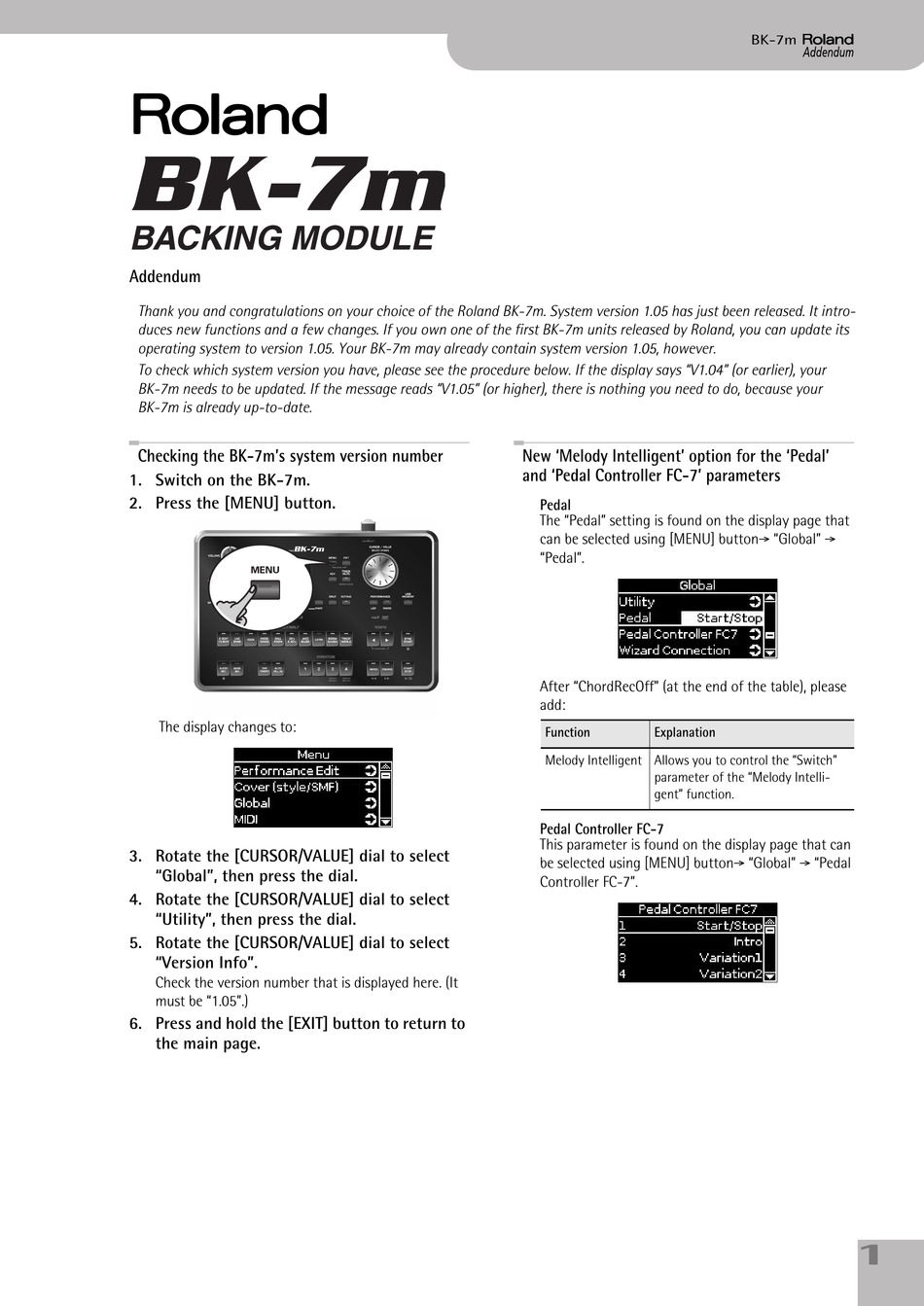

Roland BK-7m Addendum

r
Addendum
Thank you and congratulations on your choice of the Roland BK-7m. System version 1.05 has just been released. It intro-
duces new functions and a few changes. If you own one of the first BK-7m units released by Roland, you can update its
operating system to version 1.05. Your BK-7m may already contain system version 1.05, however.
To check which system version you have, please see the procedure below. If the display says "V1.04" (or earlier), your
BK-7m needs to be updated. If the message reads "V1.05" (or higher), there is nothing you need to do, because your
BK-7m is already up-to-date.
Checking the BK-7m's system version number
1. Switch on the BK-7m.
2. Press the [MENU] button.
MENU
The display changes to:
3. Rotate the [CURSOR/VALUE] dial to select
"Global", then press the dial.
4. Rotate the [CURSOR/VALUE] dial to select
"Utility", then press the dial.
5. Rotate the [CURSOR/VALUE] dial to select
"Version Info".
Check the version number that is displayed here. (It
must be "1.05".)
6. Press and hold the [EXIT] button to return to
the main page.
New 'Melody Intelligent' option for the 'Pedal'
and 'Pedal Controller FC-7' parameters
Pedal
The "Pedal" setting is found on the display page that
can be selected using [MENU] button‰ "Global" ‰
"Pedal".
After "ChordRecOff" (at the end of the table), please
add:
Function Explanation
Melody Intelligent Allows you to control the "Switch"
parameter of the "Melody Intelli-
gent" function.
Pedal Controller FC-7
This parameter is found on the display page that can
be selected using [MENU] button‰ "Global" ‰ "Pedal
Controller FC-7".
r
BK-7m
Addendum
1
