Savant AMP-8040 Series Quick Reference Manual

8 channel amplifier

Advertisement

Quick Links

Savant® 8 Channel Amplifier
Quick Reference Guide
Box Contents
(1) Savant 8 Channel Amplifier (AMP-8040-xx)
(2) Rack Mounting Brackets
(8) Pan Head Phillips Screws for Brackets (M3 x 8 mm)
(1) AC Power cord - 6 ft
(4) 4-pin Screw Down Plug-in Connectors
(4) Rubber Chassis Feet
(1) Trigger Cable - 2.5 mm (3/32") Mono to 3.5 mm (1/8") Mono
(1) Quick Reference Guide (this document)
Specifications
Environmental
Environmental
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 80% RH (non-condensing)
Cooling
102 cubic feet per minute (CFM) recommended
BTU
1950 BTU/hr
Physical
Physical
Height
3.46 in (8.8 cm)
Width
17.30 in (43.94 cm)
Depth
15.53 in (39.4 cm)
Weight
Shipping: 23 lb (10.43 kg)
Power
Power
Input Power
120V AC 5A 60 Hz
Fuse Rating
8A/250V Glass Fuse
Maximum Power
580 watts
Operating Parameters
Operating Parameters
40 WPC at 8 ohms, 50 WPC at 4 ohms; (0.1%
Rated Power
THD+N, 1kHz)
Input Impedance
33k ohms
Input Sensitivity
750mV for 40W at 8 ohms
Overall Voltage
27.5dB
Gain
Frequency
Bandwidth limited from 20Hz to 20kHz +0.8dB
Response
Distortion
THD+N < 0.07% from 20Hz to 20kHz, All
THD+N
channels driven at 8 ohms (1 Watt)
Signal-to-Noise
> 90dB
Ratio
Input Triggers
3 – 24V AC/DC 5mA
Output Triggers
12V DC 100mA
Regulatory
Regulatory
Safety and
FCC Part 15 | UL-60065
Emissions
RoHS
Compliant
Minimum Supported Release
Minimum Supported Release
Savant OS
da Vinci 6.0.1
AMP-8040-00 | 009-1187-02 | 15040
AMP-8040-00 | 009-1187-02 | 15040
Copyright © 2015 Savant Systems, LLC

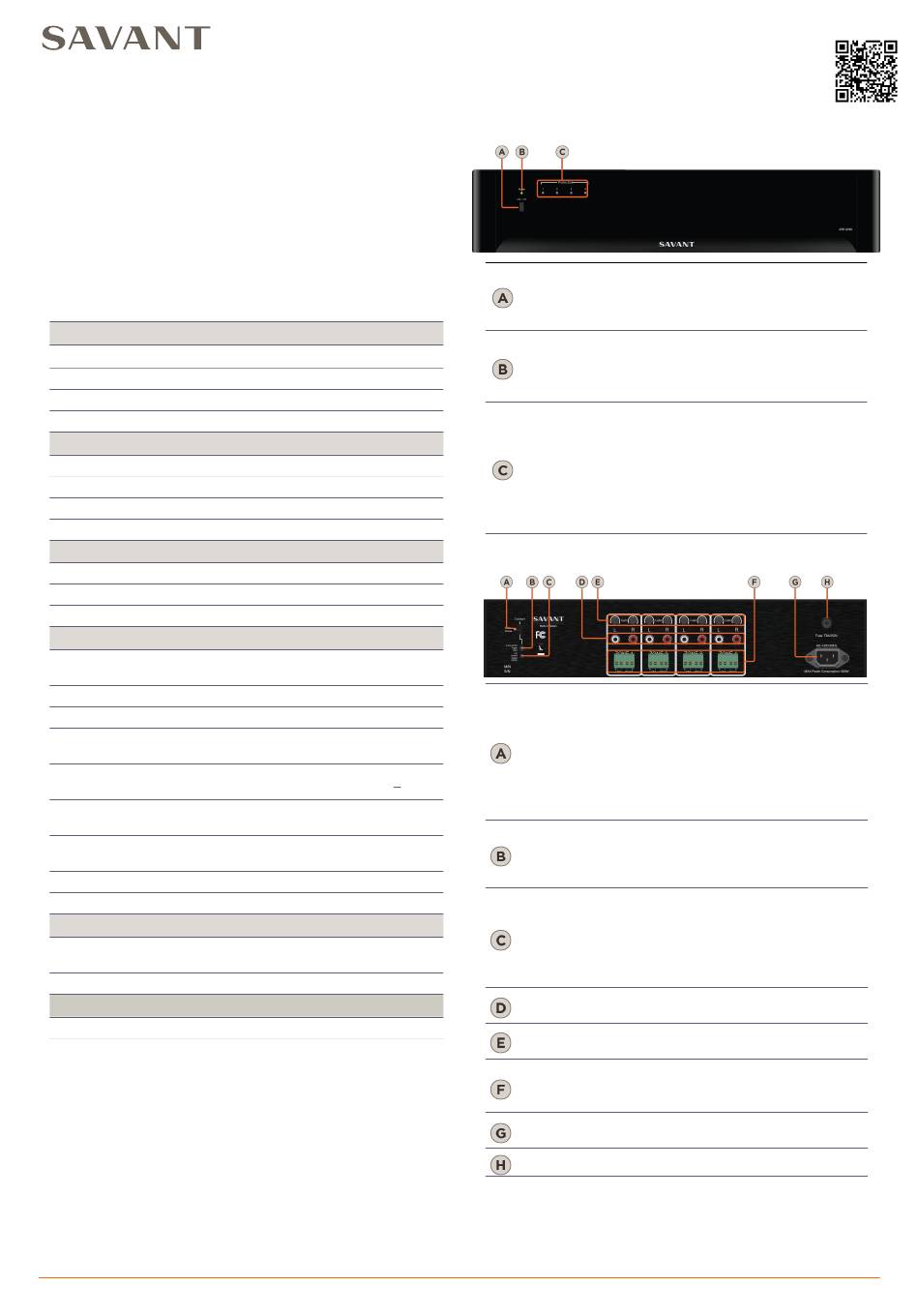

Front Panel
Turns the amplifier On or Off based on the
Turn On Mode settings.
Power Button
(Master)
See
details.
Indicates the power state of the amplifier:
Red: Amplifier is in Standby Mode.
Power LED
Green: Amplifier is On.
Off: No power is supplied to the amplifier.
Indicates the status of each zone or pair of
channels when in the central potential
protection mode.
Protection
Red: The central potential protection mode
Status
has been enabled to protect a zone/channel.
Indicators
(LED)
See
Off: The central potential protection mode
has not been enabled.
Rear Panel
Provides three options for turning the
AMP-8040 On and Off.
• Constant (manual turn-on via the front
Turn-on Mode
Switch
• Audio Sense
• 3-24 AC/DC Voltage Trigger (External)
See
details.
3-24V AC/DC - 3.5 mm (1/8") Mono jack
3-24V AC/DC
Used to control the power state of the
Voltage
amplifier when Turn-on Mode switch is set to
Trigger
3-24 AC/DC Voltage Trigger mode.
12V DC 100mA - 2.5 mm (3/32") Mono jack
Used to trigger an additional AMP-8040 or
12V Trigger
other device that is activated by receiving a
Control
12V DC 100mA signal. This voltage is present
Output
only when the amplifier is active or on.
See
Audio Source
RCA Stereo (L&R) line-level analog audio
Inputs
inputs.
Independent gain controls allowing for fine-
Gain
tuning the output level of each channel.
4-pin Screw Down Plug-in Connectors
Speaker
Note: Specify 4 or 8 ohm speakers when
Connections
designing the system.
IEC 320 power connector with 3-pole
Power Input
detachable power cord.
Fuse
8A/250V Glass Fuse
1 of 2
Setting the Amplifiers Turn On Mode
Protection Modes
for details.
panel master Power button)
Setting the Amplifiers Turn On Mode
External Trigger Connections
45 Perseverance Way, Hyannis, MA 02601
savant.com
| 508.683.2500
For Product Info
for
for
for details
