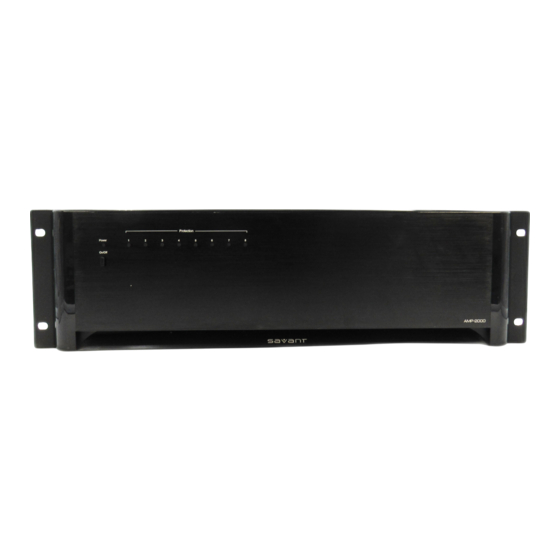

Savant® 16 Channel Amplifier
Quick Reference Guide
This Quick Reference Guide provides all the steps necessary to install
the 16-channel AMP-2000 amplifier.
The following units are supported in this document:
AMP-2000-00 (North America)
AMP-2000I-00 (International)
Box Contents
(1) Savant 16 Channel Amplifier (AMP-2000-xx or AMP-2000I-xx)
(2) Rack Mounting Brackets
(8) Pan Head Phillips Screws for Brackets (M3 x 8 mm)
(1) AC Power cord - 6 ft
(4) 4-pin Screw Down Plug-in Connectors
(4) Rubber Chassis Feet
(1) Trigger Cable - 2.5 mm (3/32") Mono to 3.5 mm (1/8") Mono
(1) Quick Reference Guide (this document)
Note:
The AMP-2000/2000I will be referred to as the AMP-2000 unless
otherwise specified.
Specifications
Environmental
Environmental
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 80% Relative Humidity (non-condensing)
Cooling
202 cubic feet per minute (CFM) recommended
BTU
3925 BTU/hr
Dimensions and Weight
Dimensions and Weight
Height
5.21 in (13.23 cm)
Width
17.30 in (43.94 cm)
Depth
15.00 in (38.20 cm)
Weight
Shipping: 44 lb (19.5 kg)
Power
Power
120V AC 10A 60 Hz - AMP-2000-00
(N. America)
Input Power
230V AC 5A 50 Hz - AMP-2000I-00
(International)
T15AH/250V (120V) (N. America)
Fuse Rating
Fuse Rating
T8AL/250V (230V) (International)
Maximum Power
1150 watts
Operating Parameters
Operating Parameters
40 WPC at 8 ohms, 50 WPC at 4 ohms; (0.1%
Rated Power
THD+N, 1kHz)
Input Impedance
33k ohms
Input Sensitivity
750mV for 40W at 8 ohms
Overall Voltage
27.5dB
Gain
Frequency
Bandwidth limited from 20Hz to 20kHz +0.8dB
Response
< 0.07% THD+N from 20Hz to 20kHz, All
Distortion, THD+N
channels driven at 8 ohms (1 Watt)
Signal-to-Noise
>90dB
Ratio
Input Triggers
3 – 24V AC/DC 5mA
Output Triggers
12V DC 100mA
Regulatory
Regulatory
Safety and
FCC Part 15 | UL-60065
Emissions
RoHS
Compliant
Minimum Supported Release
Minimum Supported Release
Savant OS
da Vinci 5.1.1
AMP-2000-00/AMP-2000I-00 | 009-0421-03 | 150327
AMP-2000-00/AMP-2000I-00 | 009-0421-03 | 150327
Copyright © 2015 Savant Systems, LLC

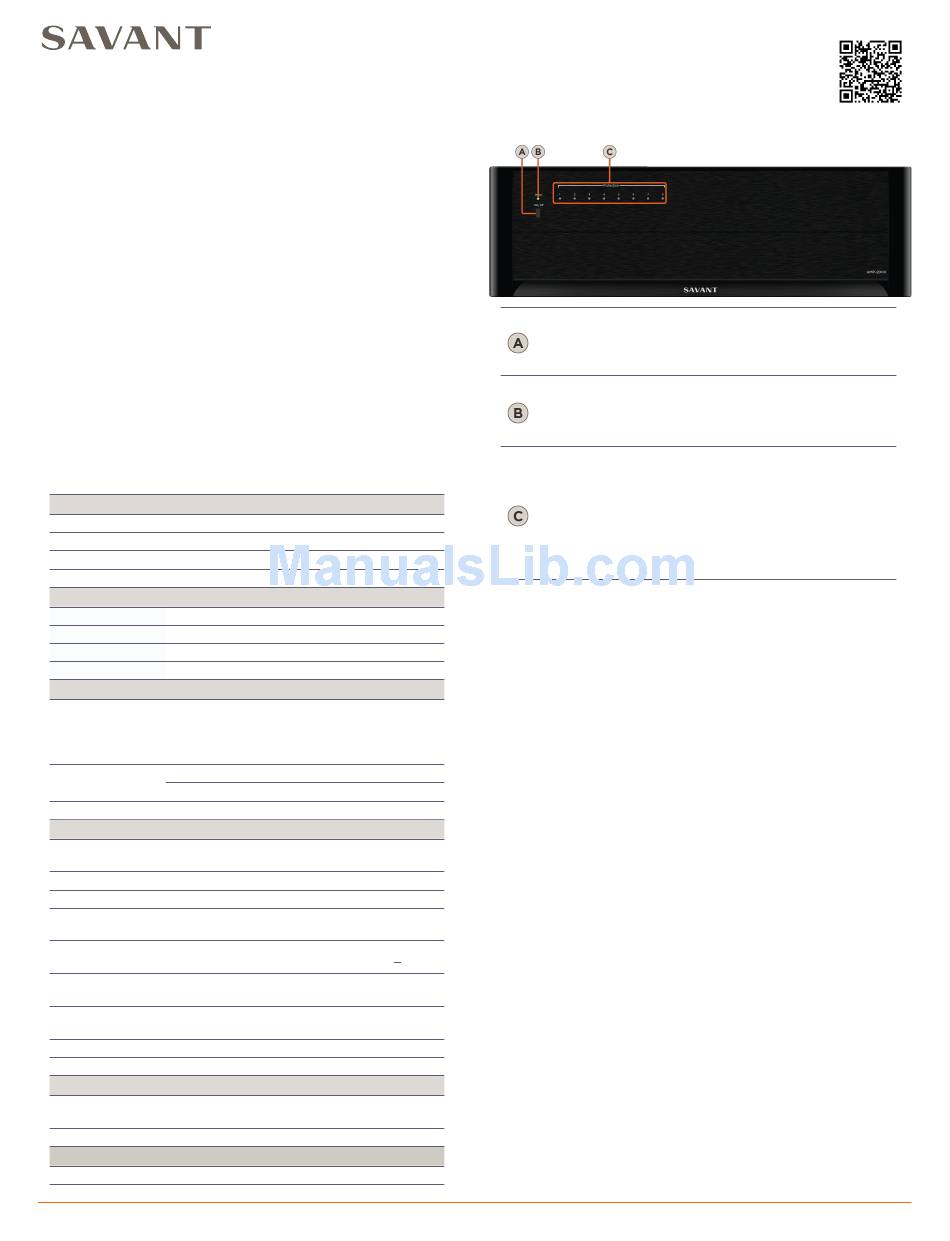

Front Panel
Turns the amplifier On or Off based on the Turn
On Mode settings.
Power Button
(Master)
See
details.
Indicates the power state of the amplifier:
Red: Amplifier is in Standby Mode.
Power LED
Green: Amplifier is On.
Off: No power is supplied to the amplifier.
Indicate the status of each zone or pair of
channels when in the central potential
protection mode.
Protection
Red: The central potential protection mode has
Status
been enabled to protect a zone/channel.
Indicators
(LED)
See
Off: The central potential protection mode has
not been enabled.
1
of 3
Setting the Amplifiers Turn On Mode
Protection Modes
for details.
45 Perseverance Way, Hyannis, MA 02601
savant.com
| 508.683.2500
