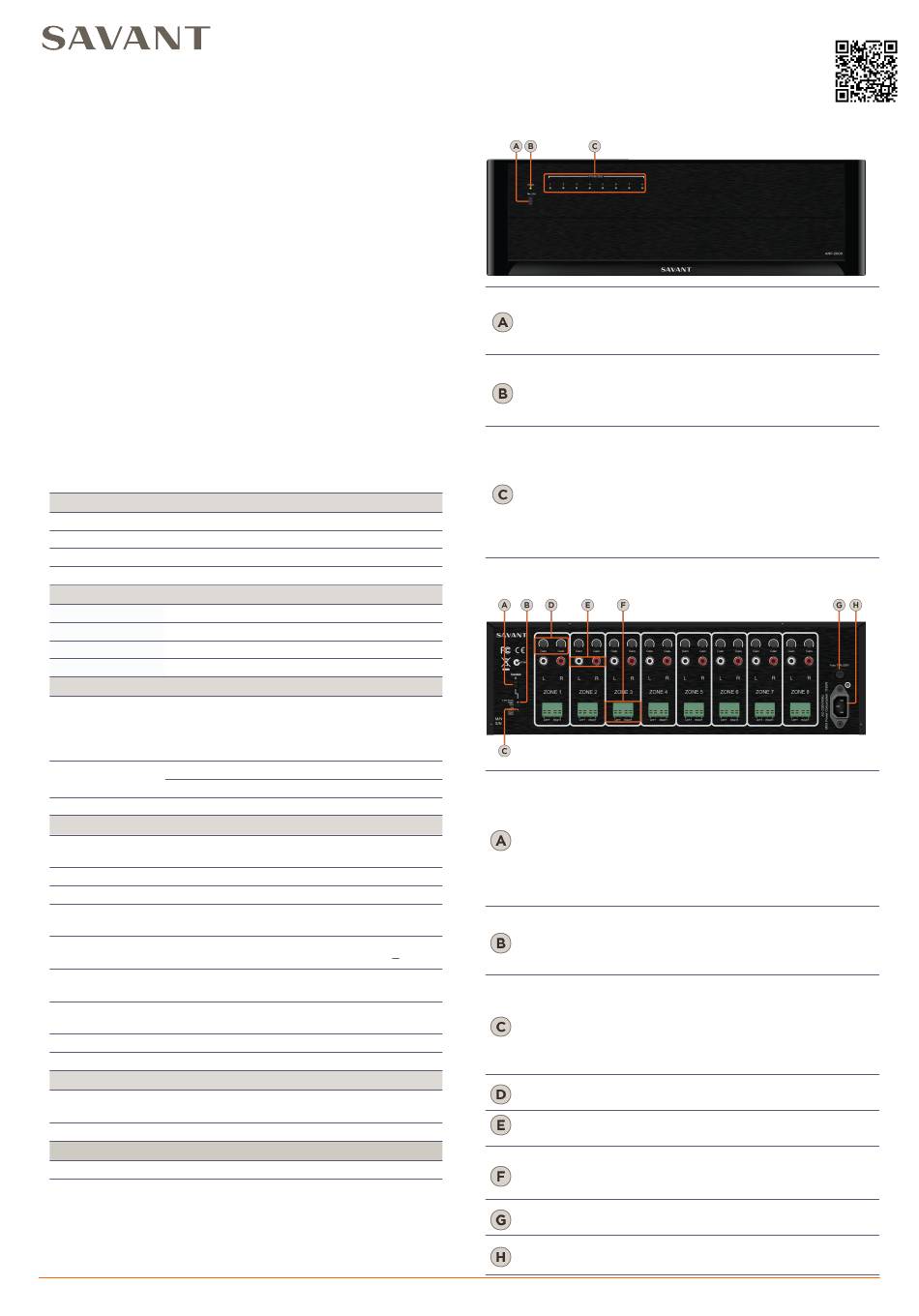

Savant AMP-2000-00 Quick Reference Manual

Savant® 16 Channel Amplifier
Quick Reference Guide
This Quick Reference Guide provides all the steps necessary to
install the 16-channel AMP-2000 amplifier.
The following units are supported in this document:
AMP-2000-00 (North America)
•
AMP-2000I-00 (International)
•
Box Contents
(1) Savant 16 Channel Amplifier (AMP-2000-xx or AMP-2000I-xx)
(2) Rack Mounting Brackets
(8) Pan Head Phillips Screws for Brackets (M3 x 8 mm)
(1) AC Power cord - 6 ft
(4) 4-pin Screw Down Plug-in Connectors
(4) Rubber Chassis Feet
(1) Trigger Cable - 2.5 mm (3/32") Mono to 3.5 mm (1/8") Mono
(1) Quick Reference Guide (this document)
Note:
The AMP-2000/2000I will be referred to as the AMP-2000 unless
otherwise specified.
Specifications
Environmental Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 80% Relative Humidity (non-condensing)
Cooling 202 cubic feet per minute (CFM) recommended
BTU 3925 BTU/hr
Dimensions and Weight Dimensions and Weight
Height 5.21 in (13.23 cm)
Width 17.30 in (43.94 cm)
Depth 15.00 in (38.20 cm)
Weight Shipping: 44 lb (19.5 kg)
Power Power
120V AC 10A 60 Hz - AMP-2000-00
(N. America)
Input Power
230V AC 5A 50 Hz - AMP-2000I-00
(International)
T15AH/250V (120V) (N. America)
Fuse Rating Fuse Rating
T8AL/250V (230V) (International)
Maximum Power 1150 watts
Operating Parameters Operating Parameters
40 WPC at 8 ohms, 50 WPC at 4 ohms; (0.1%
Rated Power
THD+N, 1kHz)
Input Impedance 33k ohms
Input Sensitivity 750mV for 40W at 8 ohms
Overall Voltage
27.5dB
Gain
Frequency
Bandwidth limited from 20Hz to 20kHz +0.8dB
Response
< 0.07% THD+N from 20Hz to 20kHz, All
Distortion, THD+N
channels driven at 8 ohms (1 Watt)
Signal-to-Noise
>90dB
Ratio
Input Triggers 3 – 24V AC/DC 5mA
Output Triggers 12V DC 100mA
Regulatory Regulatory
Safety and
FCC Part 15 | UL-60065
Emissions
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 5.1.1
AMP-2000-00/AMP-2000I-00 | 009-0421-04 | 150407 AMP-2000-00/AMP-2000I-00 | 009-0421-04 | 150407
Copyright © 2015 Savant Systems, LLC
Front Panel
Turns the amplifier On or Off based on the Turn
On Mode settings.
Power Button
(Master)
See
details.
Indicates the power state of the amplifier:
Red: Amplifier is in Standby Mode.
Power LED
Green: Amplifier is On.
Off: No power is supplied to the amplifier.
Indicate the status of each zone or pair of
channels when in the central potential
protection mode.
Protection
Red: The central potential protection mode has
Status
been enabled to protect a zone/channel.
Indicators
(LED)
See
Off: The central potential protection mode has
not been enabled.

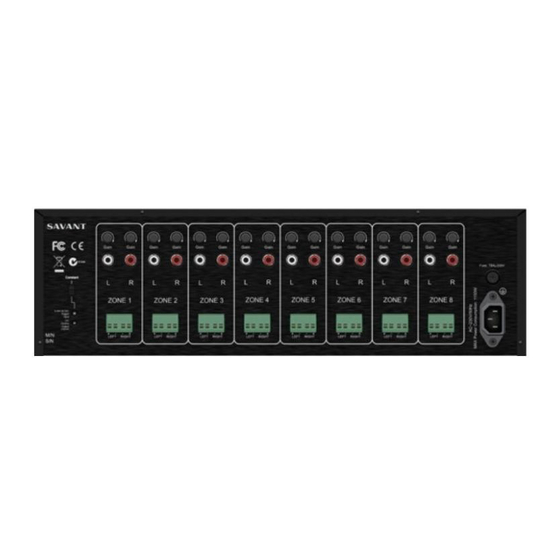

Rear Panel
Provides three options for turning the
AMP-2000 On and Off.
• Constant (manual turn-on via the front panel
Turn-on Mode
Switch • Audio Sense
• 3-24 AC/DC Voltage Trigger (External)
See
details.
3-24V AC/DC - 3.5 mm (1/8") Mono jack
3-24V AC/DC
Used to control the power state of the amplifier
Voltage
when Turn-on Mode switch is set to 3-24 AC/
Trigger
DC Voltage Trigger mode.
12V DC 100mA - 2.5 mm (3/32") Mono jack
Used to trigger an additional AMP-2000 or
12V Trigger
other device that is activated by receiving a 12V
Control
DC 100mA signal. This voltage is present only
Output
when the amplifier is active or on.
See
Independent gain controls allowing for fine-
Gain
tuning the output level of each channel.
Audio Source RCA Stereo (L&R) line-level analog audio
Inputs inputs.
4-pin Screw Down Plug-in Connectors
Speaker
Note: Specify 4 or 8 ohm speakers when
Connections
designing the system.
IEC 320 power connector with 3-pole
Power Input
detachable power cord.
T15AH/250V (120V) (N. America)
Fuse
T8AL/250V (230V) (International)
1 of 2
Setting the Amplifiers Turn On Mode
Protection Modes for details.
master Power button)
Setting the Amplifiers Turn On Mode
External Trigger Connections
