2. Quick Install Your Vigor2900V series Router

Before starting to configure the router, you have to connect your devices correctly.

1. Connect the WAN interface to the external ADSL/Cable modem with a RJ-45 cable.

2. Connect one port of 4-port switch to your computer with a RJ-45 cable.

3. Connect the attached power adapter to the power port.

4. Check the ACT and WAN, LAN LEDs to assure network connections. (For detailed LED

status explanation please refer to section 1.3)

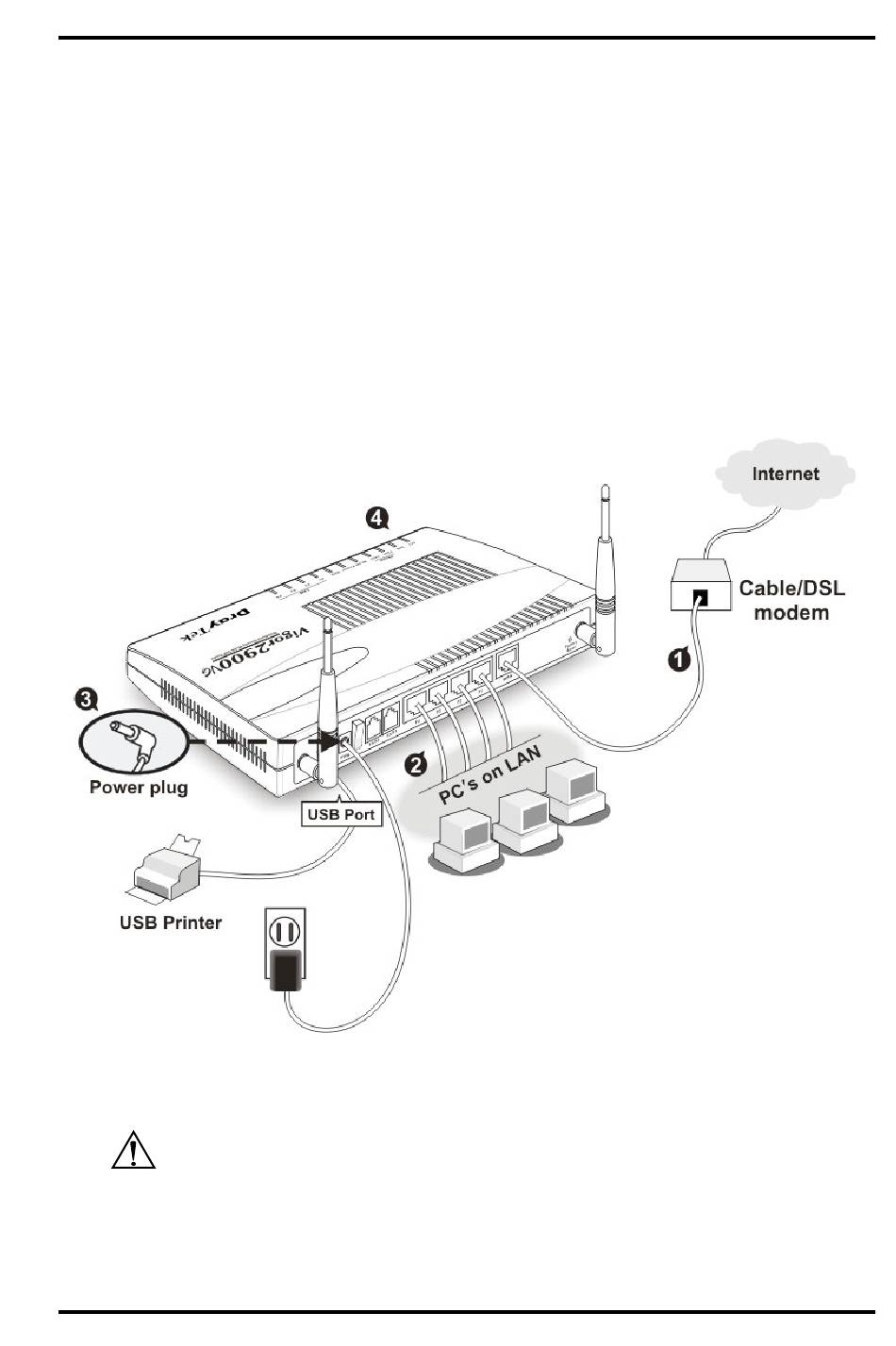

Connection scenario is shown as below:

Caution Each of the FXS ports can be connected to an analog phone only. Do not connect

the FXS ports to the telephone wall jack. This connection might damage your router.
