German pool EFF-512 User Manual page 7

操作說明
網罩和風葉組裝
1. 從電機軸上依次取下螺母，網束。將後網對準電
機前殼的定位支柱套入，再用網束將後網固定在
機身上。（如圖3示）
2. 將風葉後面的凹槽對準電機軸上的插銷套入，再
逆時針旋轉螺母鎖緊風葉。手動檢查風葉旋轉是
否順暢。
3. 鬆開前網底部的網環螺絲，放鬆網環；從後網頂
部開始套入前網，按壓前網周邊使前後網完全吻
合，鎖緊網環螺絲，收緊網環。
前網
Front Guard
網環螺絲
Gurad
Securing
Operating Instructions
螺母
Spinner
Lock Nut
Lock Nut
風葉
Fan
Blade

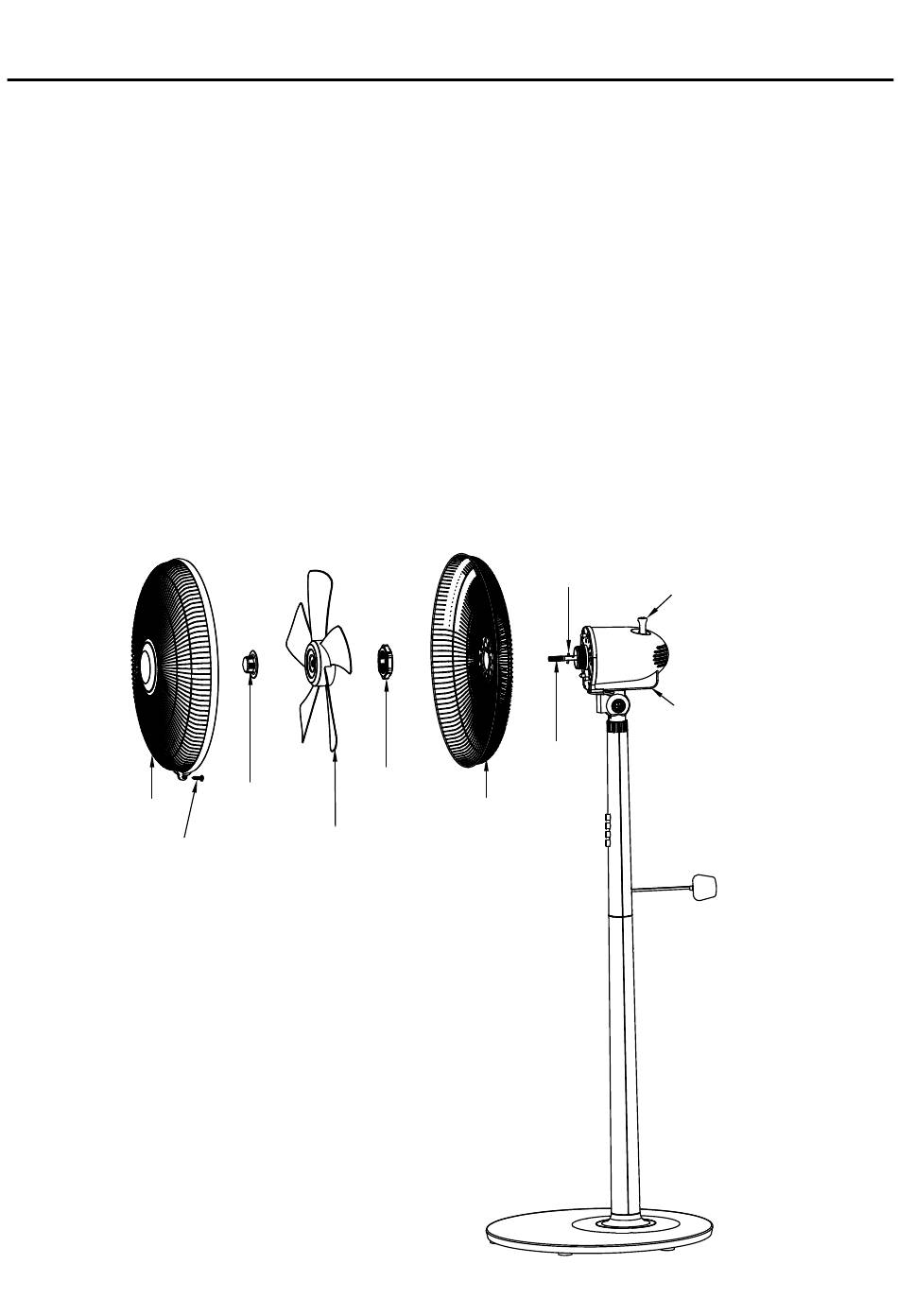

Protection guard and fan blade assemble
1. Remove the spinner lock nut and guard lock nut
from the motor shaft spindle. Fit the rear guard,
by the positioning on the location pins. Secure
the guard to the motor body with the guard lock
nut (fig.3).
2. Push the fan blade onto the motor shaft by matching
the slots on the base of the blade with the shaft
pin. Secure the blade with the spinner lock nut.
The spinner lock nut must be tightened by turning
it in a counter-clockwise direction. Check that the
fan blade rotates freely by turning with your hand.
3. Open the securing clip at the bottom of the front guard
and loosen the clip screw. Position the top clip on the
uppermost part of the rear guard. Push the top clip
down and press rim of the front guard onto the rear
guard. Close the bottom clip and tighten the screw.
Shaft Pin
電機軸
網束
Guard
後網
Rear
Guard
P.7
插銷
拉杆
Oscillation Control
Knob
電機殼
Motor Cover
Motor
Shaft
圖3
FIG.3
