Suncourt THRUWALL TW408 Installation Instructions

INSTALLATION INSTRUCTIONS FOR THE THRUWALL™
2-SPEED
READ AND SAVE THESE INSTRUCTIONS: IMPORTANT NOTICE
WARNING - To reduce the risk of fire or electric shock, do not use this fan with a solid-state speed control device. With the use of any electrical appliance, it is
important to observe all basic precautions to minimize the risk associated with use, such as electrical shock, fire, or injury to persons.
WARNING – For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Do not use to exhaust air laden with lint,
grease or oil.
READ THESE INSTRUCTIONS BEFORE USING YOUR THRUWALL™ 2-SPEED PLUS AIRFLOW ADAPTOR PLATES.
If you have doubts or are unfamiliar with this type of installation work, seek the services of a qualified
installation of the ThruWall™ fan. For your safety and protection follow all instructions and adhere to applicable building and/or electrical codes.
Not for bathroom use.
Do not use in wet or damp locations.
Do not use in a window.
Do not install in fire rated walls.
This fan is not to be installed in an outside wall.
Use only a grounded wall outlet.
Do not operate any fan with a damaged cord or plug. Discard fan or return to
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
Do not route cord under furniture or appliances.
Instructions are available at www.suncourt.com
NEVER EXPOSE YOUR THRUWALL™ TO TEMPERATURES OVER 140°F (60°C)
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated
construction.
2. When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.
3. Do not use any type of speed control.
4. Keep the unit unplugged until all installation steps are completed to prevent power from being switched on accidentally.

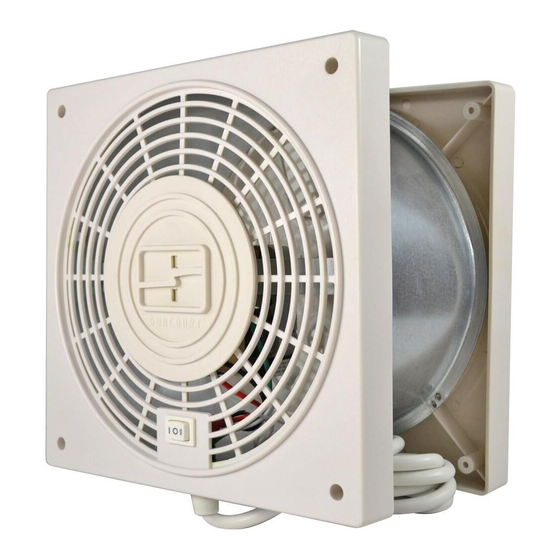

The ThruWall™ fan moves air from room to room quietly and efficiently. Simple to install in any frame wall from 3-3/4" to 6-1/2" thick. A high quality
Thermally Protected motor with balanced fan blade moves up to 130 CFM. The ThruWall™ fan moves heated or cooled air between rooms.
PLEASE READ THESE INSTRUCTIONS BEFORE STARTING INSTALLATION
- The ThruWall™ can be mounted in any normal drywall or paneled stud construction wall with a 3-3/4" to 6-1/2" total thickness.
- Start by making sure that there are NO studs, water, drain, electrical or other obstruction in the wall where you wish to install the unit. The power cord of the
ThruWall™ is 10ft long, please verify that the power cord will reach a 110 Volt AC outlet. The use of extension cords is not recommended. Please see the
airflow direction label on the housing.
- The grilles of your ThruWall™ fan may be painted to suit any decor. Thoroughly wash the grilles with mild household detergent, dry completely, and spray with
a quality, fast dry, spray paint.
- The installation of your ThruWall™ fan is not difficult, but the cutouts must be accurate.
IN THE CARTON YOU WILL FIND:
(1) Telescoping metal sleeve with plastic grille attached. This is the output side of the fan.
(1) Telescoping metal sleeve without plastic grill attached. This is shipped slid over the metal sleeve attached to the plastic grille.
(1) Loose plastic grille
(1) Large airflow adaptor - Installed on the output grille
(2) Small airflow adaptors - (1) Loose, (1) Installed on the inlet grille
(8) #6 Screws
(8) Wall anchors

OPERATION INSTRUCTIONS AND PERFORMANCE:

This ThruWall™ is equipped with a two speed motor and three airflow adaptor plates in two sizes. There is a three position switch on the output side of the fan.
The switches: position (I) is low speed, center (O) off, and position (II) is high speed.
*LOW = Switch on (I) using one small and one large airflow adaptor plate.
MED-LOW = Switch on (I) using the two small airflow adaptor plates.
*MED - HIGH = Swith on (II) using one small and one large airflow adaptor plate.
HIGH = Switch on (II) using the two small airflow adaptor plates.
PLUS AIRFLOW ADAPTOR PLATES
Keep cord away from traffic area and avoid areas where it will be tripped over.
contractor. Suncourt® assumes no responsibility for
Suncourt® for examination and/or repair.
MODEL: TW408
