Suncourt Entreeair Door Frame Fan Operating Instructions

WARNING - To reduce the risk of fire or electric shock, DO NOT do not use this fan with a solid-state speed control device.
This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to
fit in a polarized outlet one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician. DO NOT attempt to defeat this safety feature
With the use of any electrical appliance, it is important to observe all basic precautions to minimize the risk associated with use, such as
electrical shock, fire or injury to persons.
Read the following instructions before using your EntreeAir
WARNING - To reduce the risk of fire, electric shock or injury to persons, observe the following:
1. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
2. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the
heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Agency (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and local code authorities.
3. When cutting into walls or ceilings, do not damage electrical wiring or other hidden utilities.
4. Ducted fans must always be vented outdoors.
5. ®

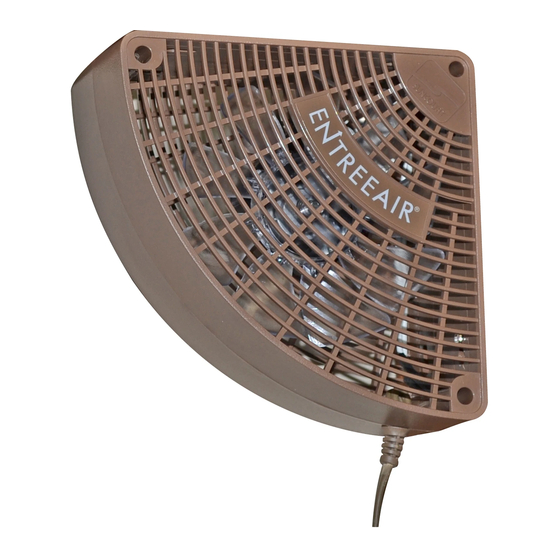

The EntreeAir Door Frame Fan can be installed on the frame of any doorway in either of the top corners. The unit must be installed on the opposite side of the doorstop
that the door shuts against to permit closing the door. Follow instructions to permanently install two screws in the door frame side (screws provided). The EntreeAir
installed over the screws by placing two keyhole slots over the screw heads. Make sure the unit slips down over the screws and locks into place. Multiple keyhole slots in
®
the EntreeAir are provided to allow installation in either left or right corners of the doorway and to allow for choice of direction of airflow. Observe the airflow direction
arrow marked on the outside of the unit when installing. Securely attach any electrical cord to door frame with cord clips (clips provided).
r ®
Before cleaning the EntreeAi always disconnect the power cord from the outlet. Dust may be removed from the exterior surfaces using a soft cloth, the round brush attachment
of your vacuum cleaner or using a cloth that has been lightly moistened with water and a mild, non-abrasive detergent. Dust accumulation in the interior of the EntreeAi
be removed by using the round brush attachment of your vacuum cleaner or by attaching your vacuum cleaner hose to the blower side and blowing the dust out
®
Unplug the EntreeAir when not in use. Turn the unit off before unplugging.
1.)
2.) DO NOT operate the EntreeAir
®
housing is damaged or broken. Return the unit for inspection, replacement or repair.
should never be exposed to moisture. DO NOT use the unit in an open window, bathroom or laundry area where it may come into contact with water.
®
3.) The EntreeAir
®
4.) The EntreeAir is designed for indoor use only.
®
5.) Place the EntreeAir and the electrical cord where it will not be tripped over, and is out of the traffic pattern.
6.) Never run the electrical cord under carpeting, baseboards, scatter rugs or hide it in any other way.
7.) Never insert any object or allow any object to enter the EntreeAir
8.) ®
The motor of the EntreeAir is equipped with a thermal fuse. Blocking rotation of the fan or airflow may cause the motor to overheat. Should the motor overheat and the
fuse open, replacement of the motor is required.
9.) DO NOT use the EntreeAir
®
near flammables such as as gasoline, paint or natural gas.
10.) ®
The EntreeAir is intended for use as described in the instructions only. Other use may cause fire, electrical shock, damage to the unit or injury to persons and will void any
warranty by the manufacturer.
®
11.) The EntreeAir has a polarized plug (one blade is wider than the other). To reduce risk of shock, this plug is intended to fit into a polarized outlet only
one way. If the plug does not fit into the outlet fully, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
12.) If it is necessary to use an extension cord, use a heavy duty cord with adequate wire size.
13.) Pressure on the grills of the EntreeAir
14.) DO NOT use strong detergents or flammable liquids to clean the EntreeAir
®
15.) The housing of your EntreeAir is sealed at the factory. THERE ARE NO SERVICEABLE PARTS INSIDE. Attempting to open the housing will expose you to dangerous electricity,
may cause fire and will void any and all warranty.
16.) DO NOT in any way block the air grills of the EntreeAir

OPERATION INSTRUCTIONS

ENTREEAIR
READ AND SAVE THESE INSTRUCTIONS

IMPORTANT NOTICE

INSTALLATION INSTRUCTIONS

CLEANING & MAINTENANCE

IMPORTANT WARNINGS

with a damaged plug or cord, if the unit malfunctions, becomes noisy when operating, has been dropped or otherwise damaged or if the
®
through the grills, as this may damage the unit or cause it to malfunction.
®
may cause the fan impeller to contact these grills and damage the unit.
® .
FOR THE
®
DOOR FRAME FAN™
.
®
Door Frame Fan™
® .
LISTED
®
is
r ®
may
.
