Step 6 -
Actuator Mounting
Adding Warmup WHS-M-S3-ACT230 actuators to the manifold
enables individual zone control of the heating system. The Warmup
actuators are amongst the most energy efficient UFH actuators
available, using just 1W of power.

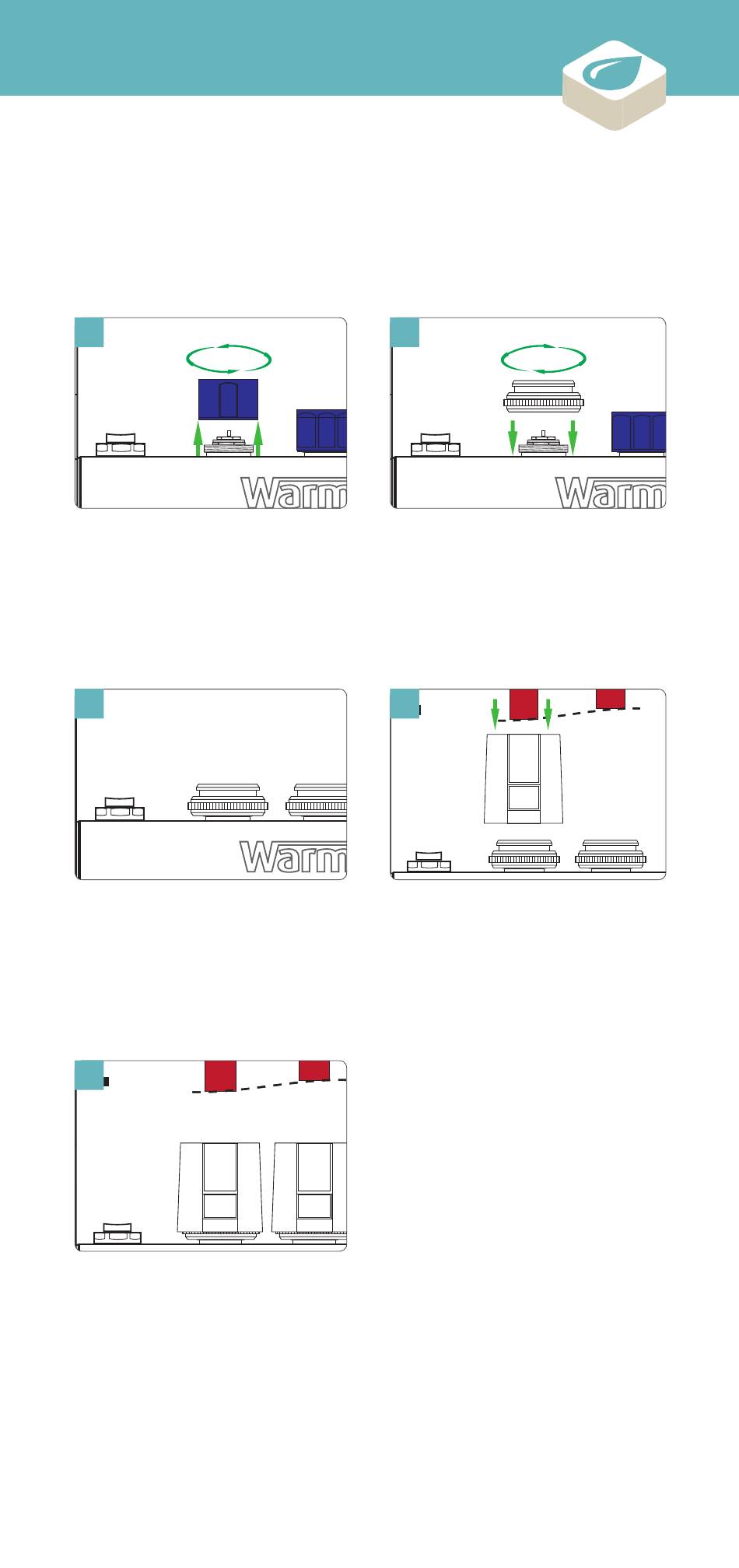

1
• Remove isolating caps by
turning anti-clockwise.
3
• Repeat for all relevant circuits.
5
• Repeat for all relevant circuits,
and wire actuators into the
wiring centre.
NOTE: The actuators are supplied 'open' for easy mounting on the
manifold. They will close the valve after being powered on and fully
'opened' for the first time.
24
40
30
50
90 110
20 60
130
70
150
50
10 70
170
32
°F
0 80
°C
40
30
50
90 110
20
60
130
70
150
50
10 70
170
32
°F
0 80
°C
2
• Hand tighten the actuator
collar onto the valve mounts,
by turning clockwise.
4
• Fit the actuator to the collar
by pressing it down, until a
'CLICK' is heard.
