Step 2 - Assembly - Warmup WHS-M-S3-Series Installation Manual

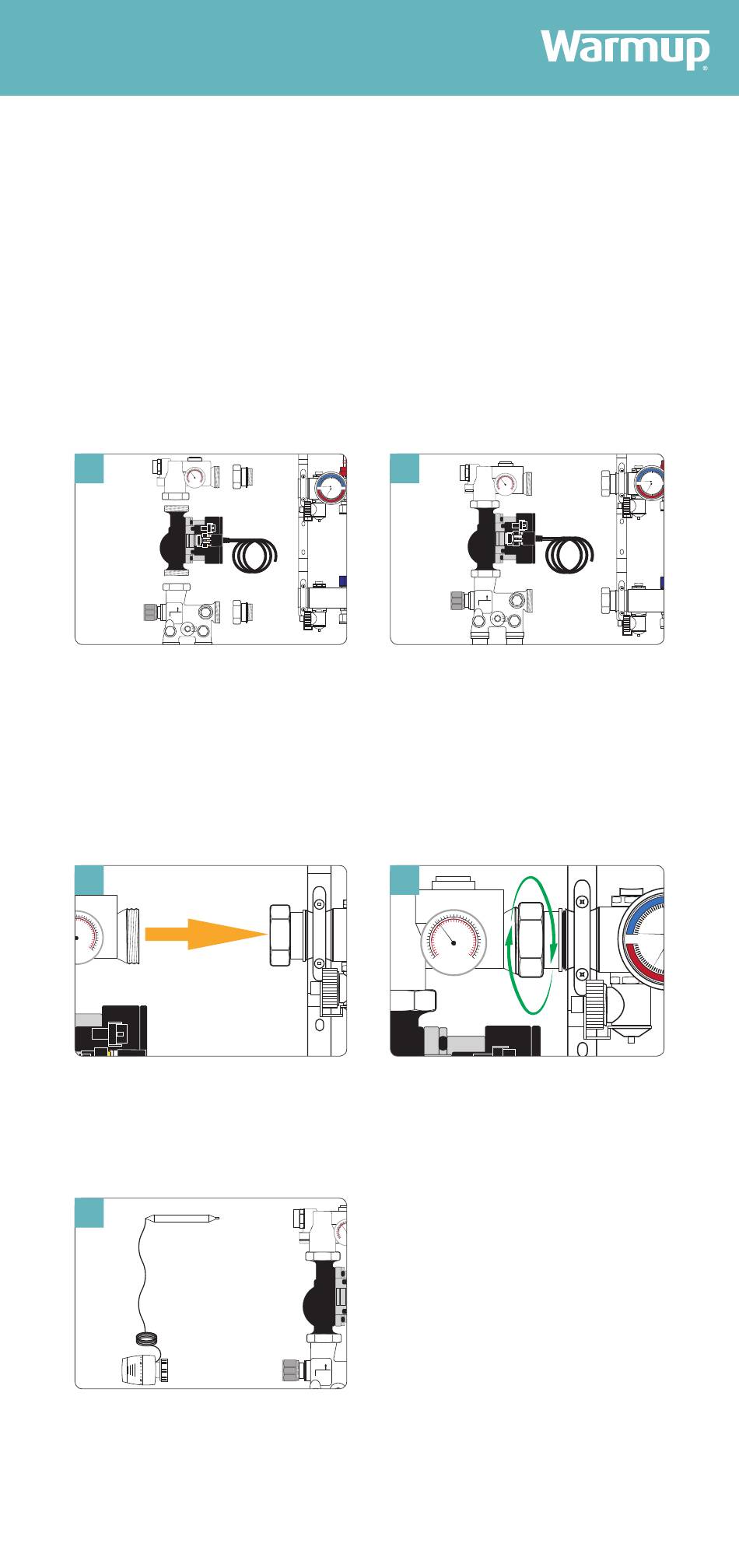

Step 2 -
Assembly - Mixing Unit
The Warmup WHS-M-S3-MIX Mixing Unit is required for all
installations where the temperature of the water provided by the heat
source exceeds the design water temperature of the floor heating
system.
This includes all heat sources which intermittently 'over heat' due to
sterilisation cycles or uncontrolled heating.
The Mixing Unit, enables the manifold to regulate the secondary flow
water temperature to between 20°C and 60°C, for tailored system
performance.
1
• Remove WHS-M-S3-MIX mixing
unit from packaging. Keep
the thermostatic capillary
actuator and sensor to one
side, these will be fitted during
system commissioning.
3
40
30 50
90 110
20 60
130
70
150
50
10 70
170
32
°F
0 80
°C
• Align the WHS-M-S3-MIX
mixing unit with the manifold.
5
• Keep the thermostatic head
and sensor in a safe place.
Take care with the capillary
tube, as it can be easily
kinked.
40
30 50
90 110
20 130 60
70
150
50
10 70
170
32
°F
0 °C 80
2
• Connect the loose nut fittings
to the manifold arms. Insert
the circulator gaskets and
connect the circulator to the
upper and lower bodies of the
mixing unit.
4
40
30 50
90 110
20
130
70
150
50
10
170
32
°F
0
°C
• Hand tighten the loose nut
fittings on to the manifold
before fully tightening using
a 46mm wrench.
40
30 50
90 110
20 60
130
70
150
50
10 70
170
32
°F
0 80
°C
40
30 50
90 110
20 60
70 130
150
50
10 70
170
32
°F
0 °C 80
60
70
80
13
