Warmup WHS-M-S3-Series Installation Manual page 23

Step 5 -
Circuit Balancing
8

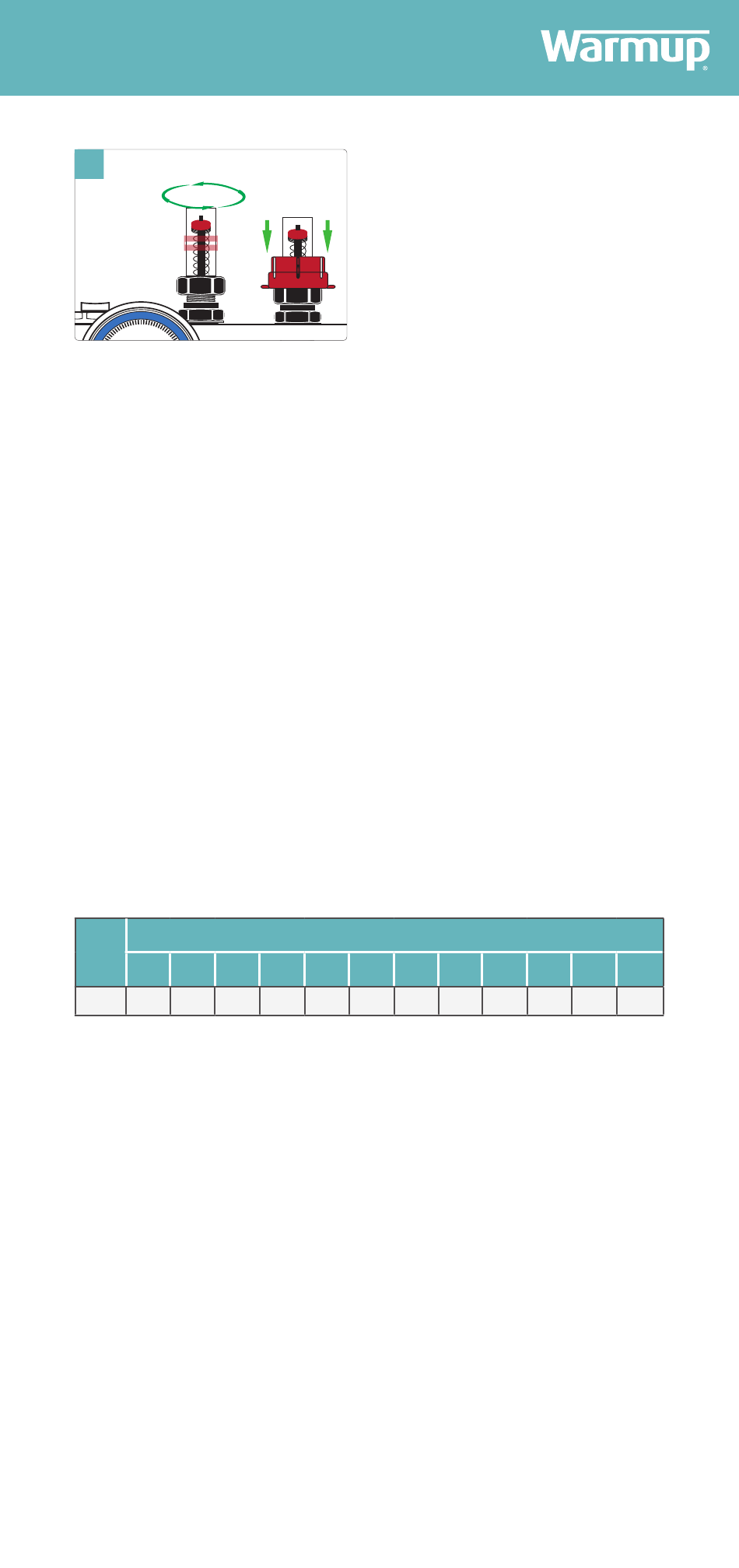

• Adjust the flow gauges for
each circuit starting with the
shortest circuit first. Replacing
locking covers, only when all
adjustments have been made.
Determining your flow-meter settings
1 If your system has been designed by the Warmup Projects Division,
the required flow-rates will be specified on the Working Drawings
used to install the system.
2 In the absence of a design, the table below provides 'typical' flow
rates, based on using a common floor construction with consistent
loading throughout.
3 For guidance on calculating precise Flow Rates and Water
Temperatures yourself, please contact Warmup.
Flow
Rate
10
1.00 1.00
L/min
20 30 40 50
1.00 1.20 1.50
Circuit Length
60 70 80
1.80 2.10 2.40
90 100 110 120
2.70 3.00 3.00 2.70
23
