Warmup WHS-M-S3-Series Installation Manual page 11

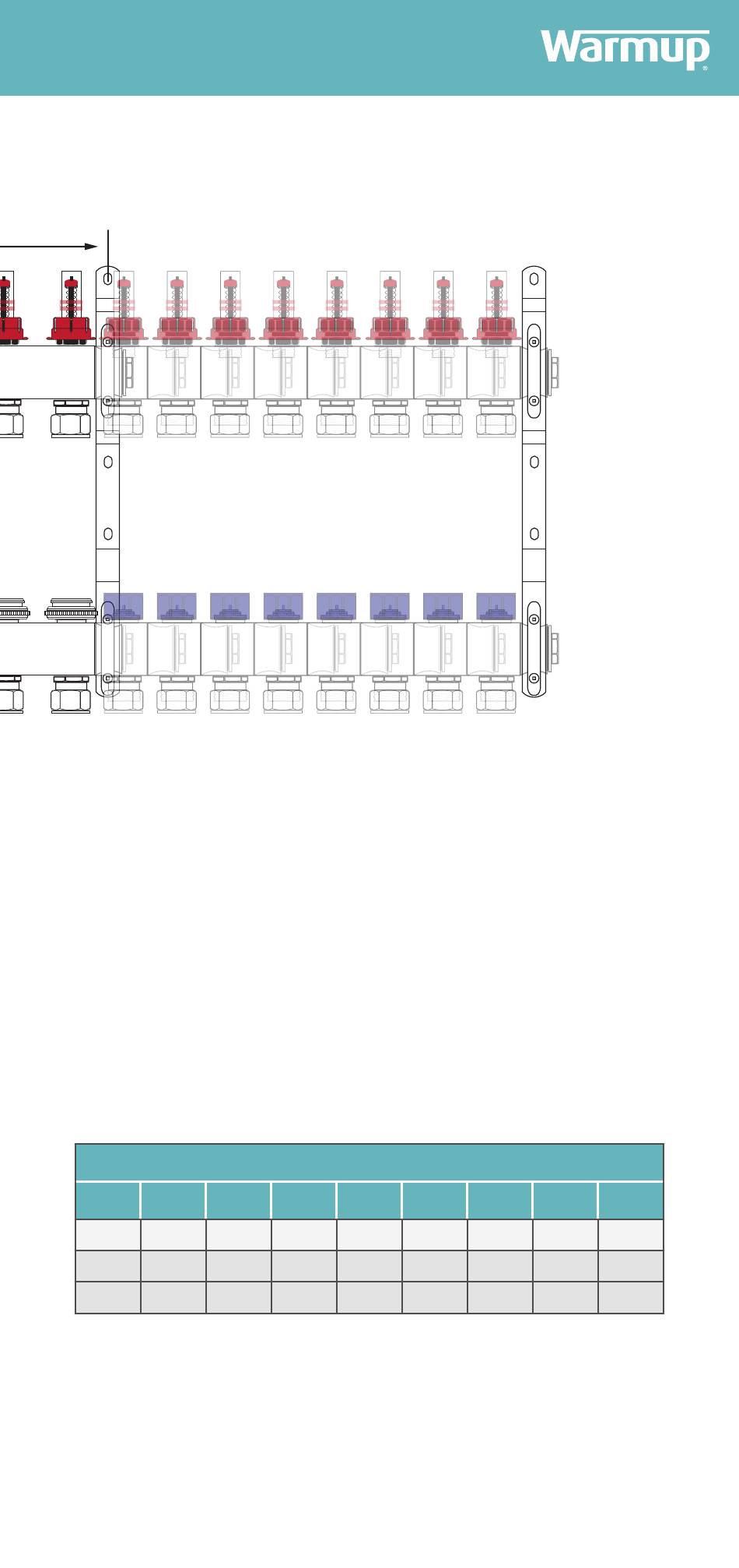

Dimensions
• The manifold can either be used as a standalone setup, or
can be adapted with a Warmup WHS-M-S3-MIX mixing unit
providing regulated temperature control enabling tailored system
performance.
4 5
290 340
590 640
265 315
NOTE: All measurements are in millimetres (mm) unless otherwise
stated.
Width/No. of Ports
6 7 8
390 440 490
690 740 790
365 415 465
9 10 11
540 590 640
840 890 940
515 565 615
12
690
990
665
