MAKOT UMS-04 Series Manual

PRZEDSIĘBIORSTWO
PRODUKCYJNO HANDLOWE
MANUAL
CONTROLLER
SERIES
UMS-04
30-716 KRAKÓW
tel 012 657 91 44
ul.Przewóz 34/304

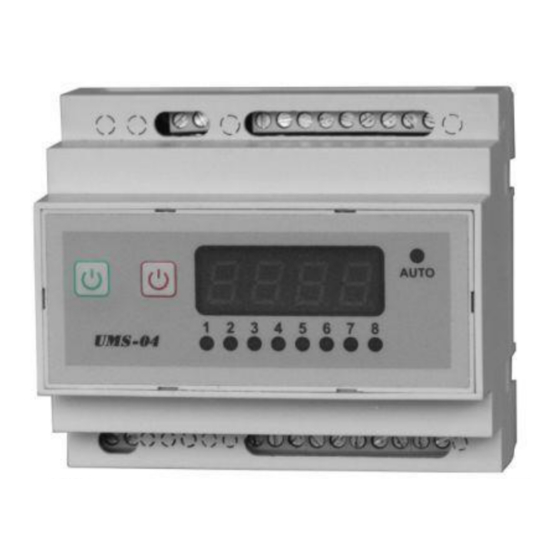

Controllers of UMS-04 series are universal, programmable timing controllers. Main purpose of these
controllers is to control the external devices during process of milk cooling containers and milking
device.
Controllers default settings enables direct applicate of him in the most of the standard devices, intends
for washing of milking device and milk cooling containers.
Controllers also have a great opportunities of individual programming, or configuring work by the
installer, which installs the controller for a specific device. This creates the possibility of controller to be
wide use in various devices.
A characteristic feature of these controllers is the possibility of entering by the installer his own work
program or the edition of the program factory entered.
CONTROLLER'S FUNCTIONS
1.
Washing programs.
The controller has 8 washing programs. Factory settings include 2 milking device washing
programs and 2 programs to wash the cooling containers. The remaining programs are to be
programmed by the installer
2.
Programs setting and modification function.
The controller enables (the installer) to individually set the programs. Each program can
include up to 50 steps and can last up to 99 minutes. The programming is very simple and
intuitive. It is shown in detail in the manual in the form of pictures. The factory set programs
can also be modified according to specific needs
3.
Function allowing to control water heating .
The controller is equipped with a built-in temperature regulator enabling to control the water
heating. For this function to work it is required to install a temperature sensor and to set the
heating temperature (factory set to 40
letter 'T' at the end of the symbol description
4.
Safety function in case of power outage.
In case of power outage the set program is stopped. When the power is back, the program
will be restarted at the same point it was at the moment the outage occurred
5.
Service function enabling to test the correctness of work of the controller set.
This function allows to go to the next sequences of a program without waiting for the time to
pass. Skipping the stages is done by means of pressing a special button. This function is only
available for the installer
6.
Function allowing to return to factory settings.
In case an error occurs when setting the controller's work program, there is always a
possibility to return to factory settings
7.
Function enabling to manually switch on the subpressure pump or the stirrer
8.
Function enabling to start a program.
The program starts when a button located on the face of the controller is pressed manually or
when an external button attached to the controller is pressed. It is also possible to start the
program in an automatic way through an external device
9.
Pause function (suspension) the execution of the program during his lifetime.
This function enables to stop the running of a program at any time until it is restarted. The
restart causes the program to start operating at the same point when it stopped. The pause
function can be enabled by pressing a button, located on the face of the controller or by
pressing an external button attached to the controller
10.
Function switching the program work off.
The controller is equipped with a button which enables to switch the program off without the
possibility to restart it at the same point. When the program is restarted it will start the
program from the very beginning
11.
Function which displays number of the running program and the time for its
completion.
When the program is running, on the controller display there is alternately shown number of
the running program and time to its completion. The time presented doesn't include the time
required to pour the water in
o
C). Controllers which include this function have a
