PPH MAKOT

ul. Przewóz 34/304

30-716 Kraków | Poland

www.makot.pl

537 872 522 (Sales Department)

602 260 992 (Technical Department)

biuro@makot.pl

(Sales Department)

dt@makot.pl

(Technical Department)

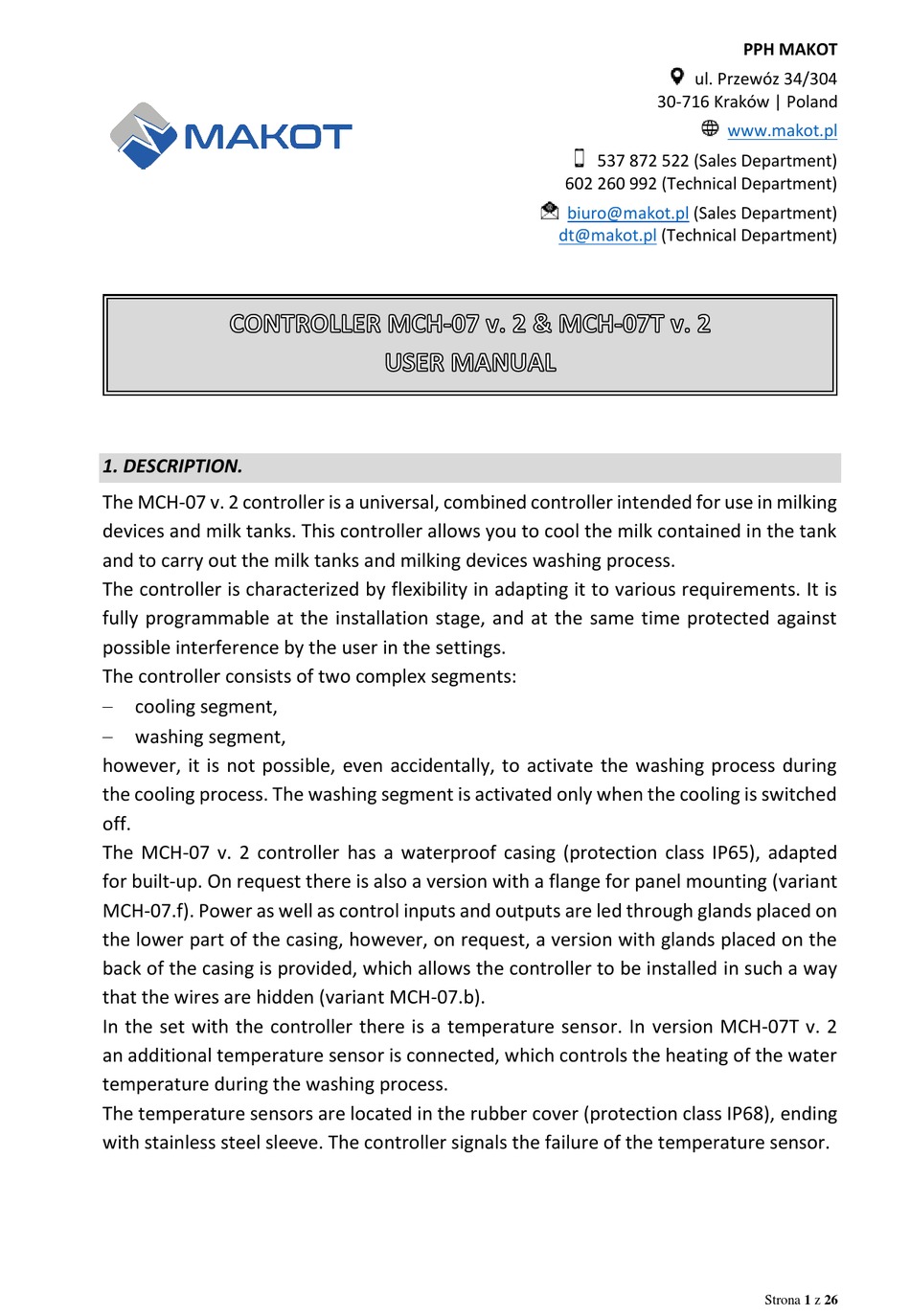

1. DESCRIPTION.

The MCH-07 v. 2 controller is a universal, combined controller intended for use in milking

devices and milk tanks. This controller allows you to cool the milk contained in the tank

and to carry out the milk tanks and milking devices washing process.

The controller is characterized by flexibility in adapting it to various requirements. It is

fully programmable at the installation stage, and at the same time protected against

possible interference by the user in the settings.

The controller consists of two complex segments:

 cooling segment,

 washing segment,

however, it is not possible, even accidentally, to activate the washing process during

the cooling process. The washing segment is activated only when the cooling is switched

off.

The MCH-07 v. 2 controller has a waterproof casing (protection class IP65), adapted

for built-up. On request there is also a version with a flange for panel mounting (variant

MCH-07.f). Power as well as control inputs and outputs are led through glands placed on

the lower part of the casing, however, on request, a version with glands placed on the

back of the casing is provided, which allows the controller to be installed in such a way

that the wires are hidden (variant MCH-07.b).

In the set with the controller there is a temperature sensor. In version MCH-07T v. 2

an additional temperature sensor is connected, which controls the heating of the water

temperature during the washing process.

The temperature sensors are located in the rubber cover (protection class IP68), ending

with stainless steel sleeve. The controller signals the failure of the temperature sensor.

Strona 1 z 26

Need help?

Do you have a question about the MCH-07 v. 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for MAKOT MCH-07 v. 2

Page 1 (Technical Department) 1. DESCRIPTION. The MCH-07 v. 2 controller is a universal, combined controller intended for use in milking devices and milk tanks. This controller allows you to cool the milk contained in the tank and to carry out the milk tanks and milking devices washing process.
Page 2 zasilanie 230V AC 50/60 HZ stopień ochrony IP65 znak bezpieczeństwa 2. INSTALLING AND CONNECTING THE CONTROLLER. In order to install the controller, unscrew the six screws and swivel the front of the controller, paying attention to the cable connecting the upper PCB board with the bottom board.
Page 3 ATTENTION Fixing the casing can be done only by screwing using the marked holes. It is forbidden to drill the housing and fix the casing through such holes, because it causes loss of tightness of the casing. MCH-07T version In the event that the relay no. 4 in the washing segment is set as the stirrer control, then the control of the stirrer of the cooling segment and the washing segment can be combined.
Page 4 Control of 230V AC power via relay no. 5. 3. COOLING SEGMENT. Activation of the cooling process by the user blocks the possibility of switching on the washing process, which results in the total turning off of the washing segment display. view of the controller with the cooling process on Strona 4 z 26...
Page 5 10A 250V AC stirrer 3.2. Controller functions in the cooling mode. The cooling segment of the MCH-07 v. 2 controller is equipped with the functions described below. 1. Function that allows controlling the operation of the unit according to two set temperatures, e.g.
Page 6 of temporally delaying the recording of temperature data to the controller's memory from the moment of its switching on. 7. Function of saving the maximum temperature value in the washing process. 8. Function of monitoring and signaling of the measuring sensor damage. 3.3.
Page 7 DESCRIPTION FACTORY SYMBOL RANGE OF SETTINGS OF THE FUNCTION SETTING entry in the settings access code 12.0 limitation of the lower value the possibility of setting the temperature for the control temperature 2.0 ( from -40 C to +99 C, every 1,0 range limitation of the upper value the possibility of setting the temperature...
Page 8 1 – on scaling the temperature the possibility of setting the temperautre sensor from -10,0 C to +10,0 C, every 0,1 exit from the settings Adjustments must be made so that the condition b1<b2 is always met. The values of parameters b1 and b2 they are not control temperature settings;...
Page 9 ATTENTION The set hysteresis value automatically limits the extreme values of the control range so that the operating range of the controller is not exceeded. 3.4.3. Delaying the activation of the cooling process. This function makes it possible to switch on the controller by pressing the button and the cooling process will be delayed.
Page 10 3.4.6. Manual work of the stirrer. In addition to the automatic work of the stirrer, the controller allows you to manually switch on the stirrer at any time (when the stirrer is not working). Depending on the settings made in the CP parameter, you can set two variants of manual work: ...
Page 11 during inactive cooling, the stored temperature is the maximum value that occurred at that time. The deletion of data contained in the memory occurs automatically after starting the cooling process. In the absence of data saved in the controller's memory after setting the data reading parameter –...
Page 12 3.5. Table of settings for the cooling segment available for the direct user. ATTENTION The controller is equipped with a function that makes it impossible to change the control temperature set by the installer. This function is activated by setting parameter LF=1 (default LF=0).
Page 13 3.6. Description of the cooling segment operation. When the controller is connected to the main, the display shows the currently measured temperature. In addition to displaying the temperature value, the controller does not control any external elements. Pressing the button causes the cooling control operation to start.
Page 14 Disconnecting the controller from the power supply erases the data contained in its memory. 4. WASHING SEGMENT. The washing segment in the MCH-07 v. 2 controller is activated only when cooling is switched off; this activation is indicated by the appearance of the - - - - symbol on the display.
Page 15 (MCH-07T v. 2) type of display power supply 23 V AC 50Hz 4.2. Controller functions in washing mode. The MCH-07 v. 2 controller has a number of functions of the washing segment described below. Strona 15 z 26...
Page 16 4.2.1. Washing programs. Controller’s memory has capacity for 8 programs, with two programs for washing the milking devices and two programs for washing the cooling devices pre-programmed. The remaining 4 spots allow an installer to create programs adapted to the individual needs of an user.
Page 17 4.2.8. Pausing the program. The controller allows to pause (hold) the program execution during its duration. This function allows you to interrupt the program at any time and resume it, which happens exactly in the same place, in which the program was paused. 4.2.9.
Page 18 4.3.1. Table of settings for the washing segment. DESCRIPTION OF THE FACTORY SYMBOL RANGE OF SETTING FUNCTION SETTING entry in the settings U000 access code 8 programs – the ability to edit factory programs see section 4.3.3. and create your own programs – editing the programs EdPr Factory programs...
Page 19 All changes in programming are made with the washing process switched off and at the same time active washing segment (cooling is off). 4.3.2.1. Entering the settings. The procedure for entering the access code to enter the settings and programming is shown below –...
Page 20 4.3.2.3. Editing the programs. The controller is equipped with: 4 washing programs (pre-programmed), which can be freely edited by the installer as required, as well as 4 washing programs to be programmed by the installer (they are empty as default). Each program can contain up to 50 steps.
Page 21 ATTENTION 1. When programming the activation of the hydrostatic input (relay no. 8), it is necessary to program the maximum allowable time of pouring water. The time parameter is superior to the hydrostatic signal, providing protection against too much water. Not programming this parameter will result in the lack of reaction to the hydrostatic signal and at the same time the lack of pouring water.
Page 22 ATTENTION 1. Using the procedure described above will remove any settings from the controller's memory while restoring factory settings. Therefore, be consciously using this option. 2. The return to factory settings takes place only after disconnecting and restarting the controller's power supply; changing the Pd0d parameter by itself will not return to the factory settings.
Page 23 4.3.5. Factory (default) programs for washing segment. The controller contains 4 factory programs, which are shown in the following tables. The remaining 4 programs are empty. the signs used in the following tables: the markings used in the following tables: hot water relay dump valve relay cold water relay...
Page 24 PROGRAM NO. 3 No. of LED diode No. of relay comments No. of step CW ZW PM PPR ZZ PMY step duration 02:00 00:30 02:00 02:30 02:30 00:30 05:00 03:00 02:00 00:30 03:30 04:00 28:00 maximum total time PROGRAM NO. 4 No.
Page 25 (i) by deactivating the relay in individual steps or (ii) by creating a new step with active relay, and in other steps deactivate it. 4. Relay no. 7 is not used in the default programs. It can be used, for example, to dispense detergent or another purpose.
Page 26 4.4.3. Disabling the washing program. In the event of such a necessity, the current washing program can be disabled at any time. This is done by pressing the off button. When this button is pressed, the washing program is completely interrupted and deactivated and the controller goes into the ready status.
