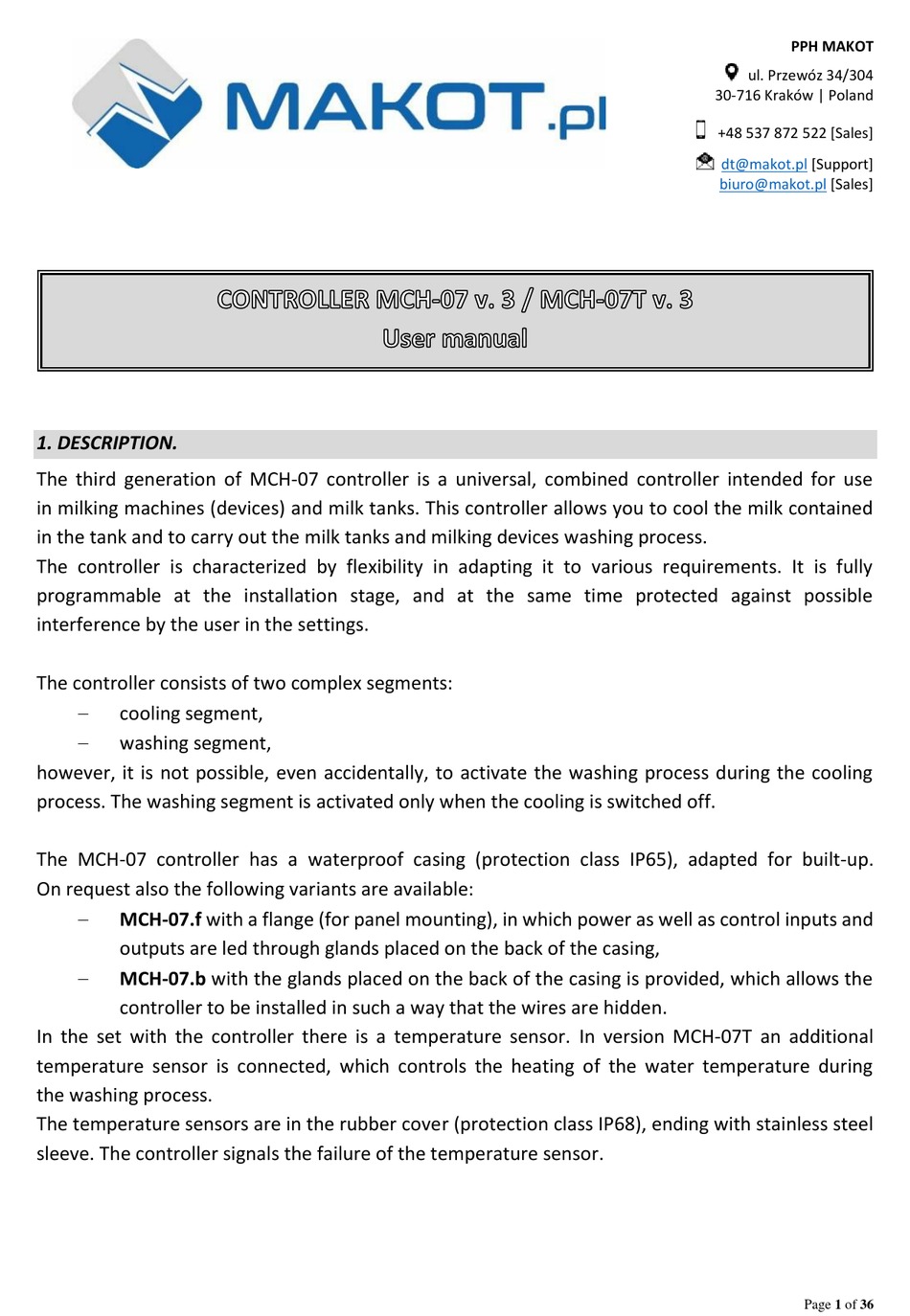

1. DESCRIPTION.
The third generation of MCH-07 controller is a universal, combined controller intended for use
in milking machines (devices) and milk tanks. This controller allows you to cool the milk contained
in the tank and to carry out the milk tanks and milking devices washing process.
The controller is characterized by flexibility in adapting it to various requirements. It is fully
programmable at the installation stage, and at the same time protected against possible
interference by the user in the settings.
The controller consists of two complex segments:
cooling segment,
washing segment,
however, it is not possible, even accidentally, to activate the washing process during the cooling
process. The washing segment is activated only when the cooling is switched off.
The MCH-07 controller has a waterproof casing (protection class IP65), adapted for built-up.
On request also the following variants are available:
MCH-07.f with a flange (for panel mounting), in which power as well as control inputs and
outputs are led through glands placed on the back of the casing,
MCH-07.b with the glands placed on the back of the casing is provided, which allows the
controller to be installed in such a way that the wires are hidden.
In the set with the controller there is a temperature sensor. In version MCH-07T an additional
temperature sensor is connected, which controls the heating of the water temperature during
the washing process.
The temperature sensors are in the rubber cover (protection class IP68), ending with stainless steel
sleeve. The controller signals the failure of the temperature sensor.
PPH MAKOT
ul. Przewóz 34/304
30-716 Kraków | Poland
+48 537 872 522 [Sales]
dt@makot.pl
[Support]
biuro@makot.pl
[Sales]
Page 1 of 36
Advertisement
Related Manuals for MAKOT MCH-07 v.3
Summary of Contents for MAKOT MCH-07 v.3
- Page 1 PPH MAKOT ul. Przewóz 34/304 30-716 Kraków | Poland +48 537 872 522 [Sales] dt@makot.pl [Support] biuro@makot.pl [Sales] 1. DESCRIPTION. The third generation of MCH-07 controller is a universal, combined controller intended for use in milking machines (devices) and milk tanks. This controller allows you to cool the milk contained in the tank and to carry out the milk tanks and milking devices washing process.
- Page 2 MCH-07 casing dimensions 177 x 126 x 56 mm MCH-07.f casing dimensions 206 x 140 x 56 mm power supply 230V AC 50/60 HZ protection class IP65 safety class basic version of MCH-07 controller Page 2 of 36...
- Page 3 MCH-07.f variant (with flange) Page 3 of 36...
- Page 4 2. INSTALLING AND CONNECTING THE CONTROLLER. In order to install the controller, unscrew the six screws and swivel the front of the controller, paying attention to the cable connecting the upper PCB board with the bottom board. After opening the casing, disconnect this cable. The cable is disconnected by removing the connector plug located in the bottom plate.
- Page 5 dimensioning for assembly MCH-07.f variant (with flange) connection diagram Page 5 of 36...
- Page 6 3. COOLING SEGMENT. Activation of the cooling process by the user blocks the possibility of switching on the washing process, which results in the total turning off of the washing segment display. view of the controller with the cooling process on 3.1.
- Page 7 stirrer / ventilator operation time from 1 min. to 60 min. stirrer / ventilator standstill time from 1 min. to 60 min. stirrer / ventilator temporary operation from 1 min. to 60 min. time delay time for switching on the chiller (unit) / stirrer after the controller is from 1 s.
- Page 8 switching on the stirrer / ventilator operation for a strictly defined time, independently whether the control work of the controller is switched on. 6. The chiller (unit) operation supervision function, consisting in the possibility of setting the maximum and the minimum operation time of the chiller, as well as the minimum standstill time of the chiller –...
- Page 9 3.4. Table of settings for the cooling segment. ATTENTION The parameters from the table below, which are marked in gray, must not be changed. The warranty granted by the manufacturer does not cover damage to the controller due to the change of these parameters.
- Page 10 from 0,2 C to 10 C, every C – in the scope from -10 to +100 from 1,0 C to 10 C, every C – in the scope <-10 C and >+100 0 – inactive minimum operation time of the 1 –...
- Page 11 wartość scaling the temperature sensor every 0,2 skalowalna function not available to the installer / user delay time of switching on the chiller and the stirrer after setting the time from 1 s. to 999 s., 5 (s.) connecting the controller to the every 1 s.
- Page 12 4. DESCRIPTION OF THE COOLING SEGMENT OPERATION CYCLE. At the moment of connecting to the mains and starting with the button, the controller – after the delay set in the dE parameter – goes to the control phase. The controller controls two control circuits: ...
- Page 13 ATTENTION If the controller is set in heating mode, the hysteresis operation has the opposite character, i.e. the heating system is switched off after the temperature has dropped below the set value, taking into account the value of the programmed hysteresis. 4.2.
-
Page 14: Description Of The Controller Functions
5. DESCRIPTION OF THE CONTROLLER FUNCTIONS. Below, some specific controller functions will be discussed, enabling the controller to be used for various applications. 5.1. Registering the minimum and maximum temperatures. The MCH-07 controller has the function of recording in the internal memory the values of maximum and minimum temperatures that occur throughout the controller's entire cycle. - Page 15 5.2. Alarming the exceeding of the correct temperature range. The controller has the function of signaling the exceeding of the set temperature range. In order for the function to work properly, the appropriate temperature range must first be programmed, that is: parameter A1 –...
- Page 16 ATTENTION Sensor damage indication also occurs if the temperature range measured by the controller is exceeded. 5.4. Delay of switching on the chiller and the stirrer’s motoreducer after voltage decay. Controller has the ability to protect the chiller and motoreducer in the event of momentary decays and the appearance of the supply voltage –...
- Page 17 6. WASHING SEGMENT. The washing segment in the MCH-07 controller can only be started with the cooling off. This segment may vary depending on the version of the controller: basic version (MCH-07), MCH-07T1 – version with the possibility of water heating control and thermostatic control, equipped with one sensor common with the cooling segment, ...
- Page 18 view of the MCH-7T controller with the washing process on The washing segment is equipped with: LED type display, indicating: with the washing process off – current time (clock) during implementation of a washing program – time remaining until its completion (without taking into account the time of pouring water, when using the hydrostatic) ...
- Page 19 button with the symbol, used for manual switching on and off the operation of relay 3, and as a setting button in the service mode (changing settings of the controller) button with the symbol, that allows you to enter the setting mode ...
- Page 20 6.2. Controller functions in the washing mode. The controller is equipped with a number of functions that, together with the option to create your own program, allows to adapt the controller to the individual needs (see section 6.4). 1. Washing programs. The controller has 8 programs; three programs for washing the milking machines (devices) and one program for washing milk coolers are pre-programmed.
- Page 21 7. Test / service function. Allows to go sequentially to the next steps (sequences) of the program, without waiting for the duration of the step to expire. The transition is made by pressing the appropriate button. This function can be used by the user: (i) to skip any step or (ii) to go back to the previous steps during the washing program, as well as (iii) to test the correct operation of the system.
- Page 22 2. Setting the temperature, after reaching which the heater is turned off (function symbol: 3. Function defining further controller operations after reaching the set temperature (function symbol: Hi): Hi parameter set to 0 means that after reaching the set temperature the heater will turn off and the controller will proceed to the next step (sequence);...
- Page 23 The graphical procedure for entering the access code, allowing entry into the settings and programming mode is shown below: 6.5. Description of the purpose of the buttons when setting/editing. – entering the setting mode – confirmation of changes made (without it no changes will be saved) –...
- Page 24 6.6. Table of setting for the washing segment. In the table of settings, all available parameters (functions) are given along with their description and possible values to be set. If it is necessary to change any parameter, enter the setting mode and then select the parameter that will be subject to change.
- Page 25 C is indicated by a dot lighting up on the set digit 0 – inactive return to factory settings 1 – active; return to factory settings, (only after restarting Pd0d after turning the controller power the controller) off and on again 0 –...
- Page 26 6.8. Editing programs – EdPr parameter. The controller is by default equipped with 4 washing programs that can be edited, depending on the user's needs. The remaining 4 places in the controller's memory are designed for creation of the programs by the installer; they are empty (they do not contain any steps). Each program can contain up to 100 steps (sequences), lasting from 1 sec.
- Page 27 Recommendation Before you start creating a new program or making a significant modification to an existing program, it is recommended to create a table with a new/modified program beforehand. For convenience the table should look similar to the tables of the factory programs. It should be remembered that after 30 sec.
- Page 28 The editing of the controller program in the MCH-07T version is similar to the basic version, with the addition of editing and settings related to temperature. 6.9. Return to factory settings. To return to the default settings, enter the controller settings mode. Using the ▲ and ▼ buttons select the Pd0d parameter, confirm the selection by pressing the S button and change the value of this parameter from 0 to 1, using the ▲...
- Page 29 7. WASHING SEGMENT OPERATION BY THE DIRECT USER. 7.1. Launching the controller. After connecting the supply voltage, the controller remains in a ready state. The current time is shown on the display of the washing segment. The correction of the clock display or its setting should be carried out according to the following diagram.
- Page 30 7.3. Starting and pausing the washing program. By pressing the program start button marked with the symbol [5], the previously set or programmed program is executed. The display shows the time to complete the washing process (instead of the current time). The displayed time does not take into account the time needed to pour water.
- Page 31 7.4. Stopping the washing program. In the event of such a need, user can deactivate the currently running program at any time. This is done by pressing the button marked with the symbol [6]. The program execution is switched off and the controller goes into the ready state.
- Page 32 7.7. Factory programs. The controller is factory equipped with four washing programs, which can be freely edited, depending on the user's needs. These are three programs for washing milking machines (PRO1, PRO2, PRO3) and one program for washing the milk tank (PRO4). Below are the tables containing these programs.
- Page 33 7.7.1. Factory programs for basic version of the controller. PRO1 – WASHING A MILKING DEVICE diode no. relay no. comments mode step time CW ZW PP PML ZD1 ZD2 15:00 max. time 05:00 00:30 15:00 max. time 00:20 08:00 04:00 00:30 15:00 max.
- Page 34 PRO3 – WASHING A MILKING DEVICE diode no. comments relay no. mode step time ZW PP PML ZD2 w 15:00 max. time 03:00 00:30 15:00 max. time 05:00 00:30 15:00 max. time 00:20 08:00 04:00 00:30 15:00 max. time 05:00 00:30 total time does not take into account the time of pouring water –...
- Page 35 7.7.2. Factory programs for MCH-07T version. PRO1 – WASHING A MILKING DEVICE diode no. relay no. comments mode step time CW ZW PP PML ZZ ZD1 ZD2 G H di C Hi 15:00 max. time 05:00 00:30 15:00 max. time 30:00 1 40 max.
- Page 36 PRO3 – WASHING A MILKING DEVICE diode no. relay no. comments mode step time CW ZW PP PML ZZ ZD1 ZD2 C Hi 15:00 max. time 03:00 00:30 15:00 max. time 05:00 00:30 15:00 max. time 30:00 max. time 00:20 08:00 04:00 00:30...
