1. DESCRIPTION.

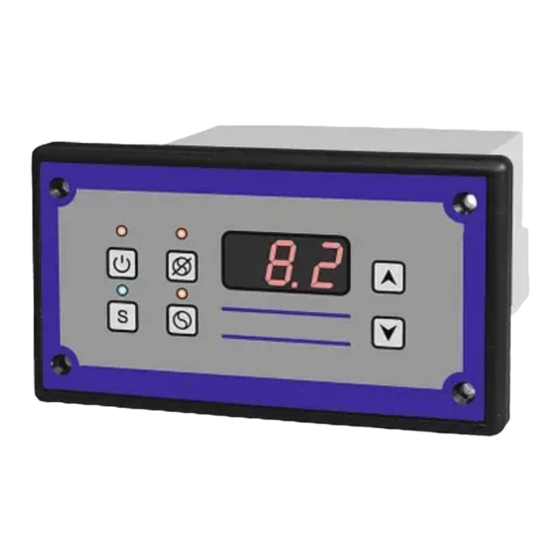

Temperature regulators of SMT series are a microprocessor-based, programmable
temperature controllers, intended for use i.a. in milk coolers and all types of dryers.
The series includes the following regulators:
−
SMT-01,
−
SMT-02,
−
SMT-02H,
−
SMT-03.
Individual types differ from each other in the way of output of control inputs and
outputs. The casing of regulators in this series are adapted for panel mounting.
2. TECHNICAL DATA.
temperature measuring range
control temperature range
measuring resolution of the
temperature measurer (resolution
of control temperature settings)
control hysteresis
[programmable parameter]
working time of the stirrer
(ventilator)
[programmable parameter]
standstill time of the stirrer
(ventilator)
[programmable parameter]
temporary work time of the stirrer
(ventilator)
[programmable parameter]
time delay for switching the unit /
stirrer on after the regulator is
between -40
between -40
(decreased by a set hysteresis)
1
O
C for the range below -9,9
O
0,2
C for the range from -10
O
1
C for the range over +100
between 0,2
O
C and 10
O
C for the range from -10
O
O
between 1
C and 10
C for the range <-10
between 1 min. and 60 min.
between 1 min. and 60 min.
between 1 min. and 60 min.
between 1 s. and 999 s.
ul. Przewóz 34/304
30-716 Kraków | Poland
+ 48 537 872 522 (Sales Department)
+ 48 602 260 992 (Technical Department)
biuro@makot.pl
(Sales Department)
dt@makot.pl
(Technical Department)
O
O
C and +120
C
O
O
C and +120
C
O
C
O
O
C to +100
C
O
C
O
C to +100
O
C and >+100
PPH MAKOT
www.makot.pl
O
C
O
C
Page 1 of 13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MAKOT SMT-01
Summary of Contents for MAKOT SMT-01
- Page 1 PPH MAKOT ul. Przewóz 34/304 30-716 Kraków | Poland www.makot.pl + 48 537 872 522 (Sales Department) + 48 602 260 992 (Technical Department) biuro@makot.pl (Sales Department) dt@makot.pl (Technical Department) 1. DESCRIPTION. Temperature regulators of SMT series are a microprocessor-based, programmable temperature controllers, intended for use i.a.
- Page 2 turned on or the power supply decay occurs length of control sensors type of temperature sensor thermistor NTC type of temperature measurer digital LED load capacity of relay contacts 30 A 250 V AC controlling the unit (heating system) load capacity of relay contacts 10 A 250 V AC controlling the stirrer (ventilator) power supply...
- Page 3 ✓ LEDs signaling the current operating status of the cooling (heating) unit and the stirrer (fan) [7] [8] [9] [10] ✓ input for connecting the limit switch, ✓ control outputs, that is: − unit control output (heating system), − stirrer (fan) control output. In the figure above, the types of outputs and inputs are shown, depending on the type of regulator.
- Page 4 If the regulator’s control operation is switched off, a dot is displayed on the regulator's display (factory settings). By changing the parameter d1 (see 6. PROGRAMMING) from the value 0 for value 1, when the regulator is switched off, the display will show the current measured temperature.
-
Page 5: Regulator Functions
5. REGULATOR FUNCTIONS. The regulator is equipped with a number of functions that, together with the possibility of creating your own program, enable adjusting the regulator's work to the individual needs of the user. Some of the functions listed below are activated after the appropriate programming of the regulator (see 6. - Page 6 − switched off stirrer (fan) operation, b. operation triggered manually: − switching on continuous stirrer (fan) operation, regardless of whether the control operation of the regulator is switched on; in order to end the stirrer (fan) operation, press the button [3], −...
- Page 7 the setting mode is made by setting the EE parameter and confirmation with the S button or automatically after 17 seconds of inactivity. The following figure illustrates the programming procedure: 7. THE REGULATOR’S WORK CYCLE. When the regulator is connected to the mains and its operation is switched on with the button [1], the regulator –...
- Page 8 The unit control in the cooling phase takes place depending on the temperature present in the refrigeration chamber. The regulator can control the cooling temperature in the range of -40 C up to +120 C. In order to limit the scope of the control so as to prevent the user of the cooling device from setting the temperature outside this range, set the proper parameters: b1 (limitation of the lower control temperature range) and b2 (limitation of the upper control temperature range).
-
Page 9: Additional Functions
The stirrer's operation can be switched off at any time by means of the [2] button (see 3. CONSTRUCTION), except when the F0 parameter is set to 2 or 3. Switching off the regulator by pressing the [1] button also turns off the stirrer operation. 7.2.2. - Page 10 8.2. The function of registering the minimum and maximum temperatures. The SMT regulator has the function of recording in its internal memory the values of maximum and minimum temperatures that occur throughout the regulator's operating cycle. This function makes it possible to check whether the milk is stored under the correct temperature conditions.
- Page 11 8.3. The function of alarm signaling the exceeding of the correct temperature range. The regulator has the function of signaling the exceeding of the set temperature range. In order for the function to work properly, the appropriate temperature range must first be programmed, this is: parameter A1 –...
- Page 12 8.4. Temperature sensor damage indication. If the regulator etects damage to the temperature sensor, the letters ACU appears on the display, and at the same time the audible alarm signal is activated. The operation of the unit and the stirrer is interrupted until the failure is removed. ATTENTION Sensor damage indication also occurs if the range of temperatures measured by the regulator is exceeded.
- Page 13 parameters E1 and E2 2 – as in setting 1, but disabling with the stirrer's working button causes its operation only during the operation of the unit 3 – as in setting 1, but the button that disables the stirrer operation is inactive 4 –...
