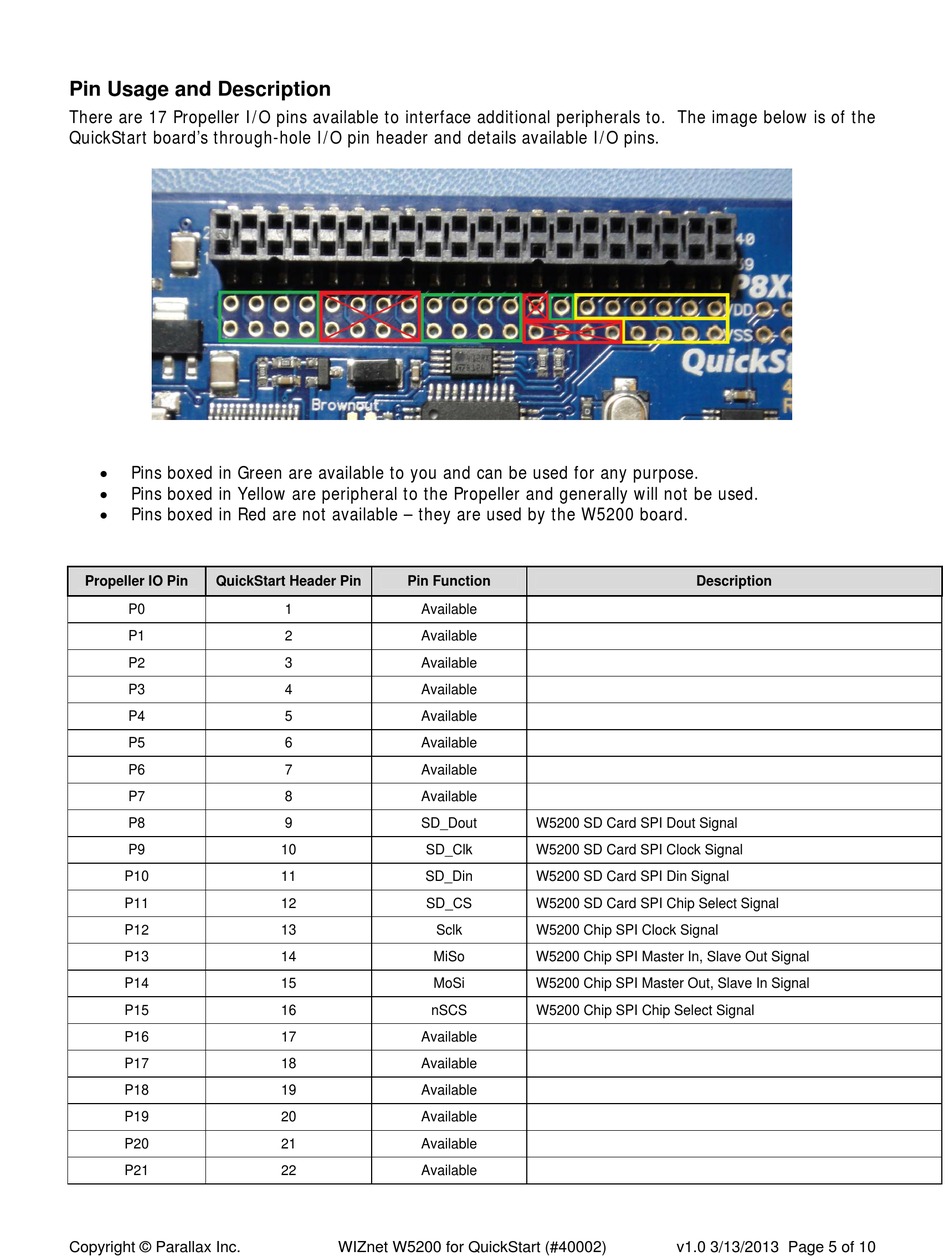

Pin Usage and Description
There are 17 Propeller I/O pins available to interface additional peripherals to. The image below is of the
QuickStart board's through-hole I/O pin header and details available I/O pins.

Pins boxed in Green are available to you and can be used for any purpose.
 Pins boxed in Yellow are peripheral to the Propeller and generally will not be used.
 Pins boxed in Red are not available – they are used by the W5200 board.
Propeller IO Pin QuickStart Header Pin
P0
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
Copyright © Parallax Inc.
Pin Function
1 Available
2 Available
3 Available
4 Available
5 Available
6 Available
7 Available
8 Available
9 SD_Dout
10 SD_Clk
11 SD_Din
12 SD_CS
13 Sclk
14 MiSo
15 MoSi
16 nSCS
17 Available
18 Available
19 Available
20 Available
21 Available
22 Available
WIZnet W5200 for QuickStart (#40002)
Description
W5200 SD Card SPI Dout Signal
W5200 SD Card SPI Clock Signal
W5200 SD Card SPI Din Signal
W5200 SD Card SPI Chip Select Signal
W5200 Chip SPI Clock Signal
W5200 Chip SPI Master In, Slave Out Signal
W5200 Chip SPI Master Out, Slave In Signal
W5200 Chip SPI Chip Select Signal
v1.0 3/13/2013 Page 5 of 10
