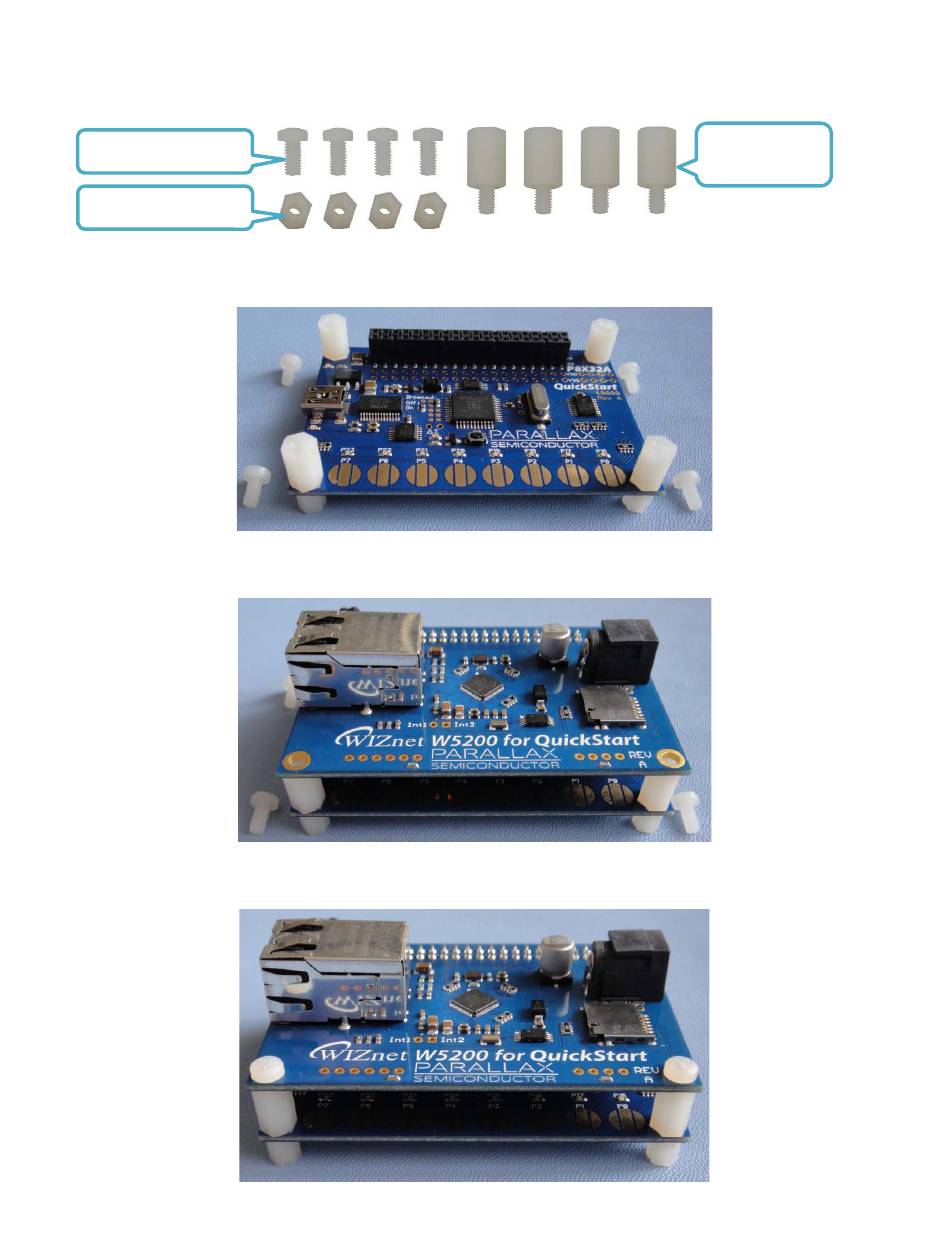

Assembly Instructions
Nylon M3 Screws
Nylon M3 Screws
1. Place the four nylon M3 standoffs through the mounting holes on the top side of your QuickStart
board and secure them in place on the bottom, each with a nylon M3 nut.
2. Carefully insert the WIZnet W5200 for QuickStart add-on board into the QuickStart header so
that the add-on board covers the QuickStart board.
3. Secure the WIZnet W5200 board to the QuickStart board by screwing the included nylon M3
screws into the standoffs, through the WIZnet W5200 board's mounting holes. That's it!
Copyright © Parallax Inc.
WIZnet W5200 for QuickStart (#40002)
Nylon M3
Standoffs
v1.0 3/13/2013 Page 3 of 10
