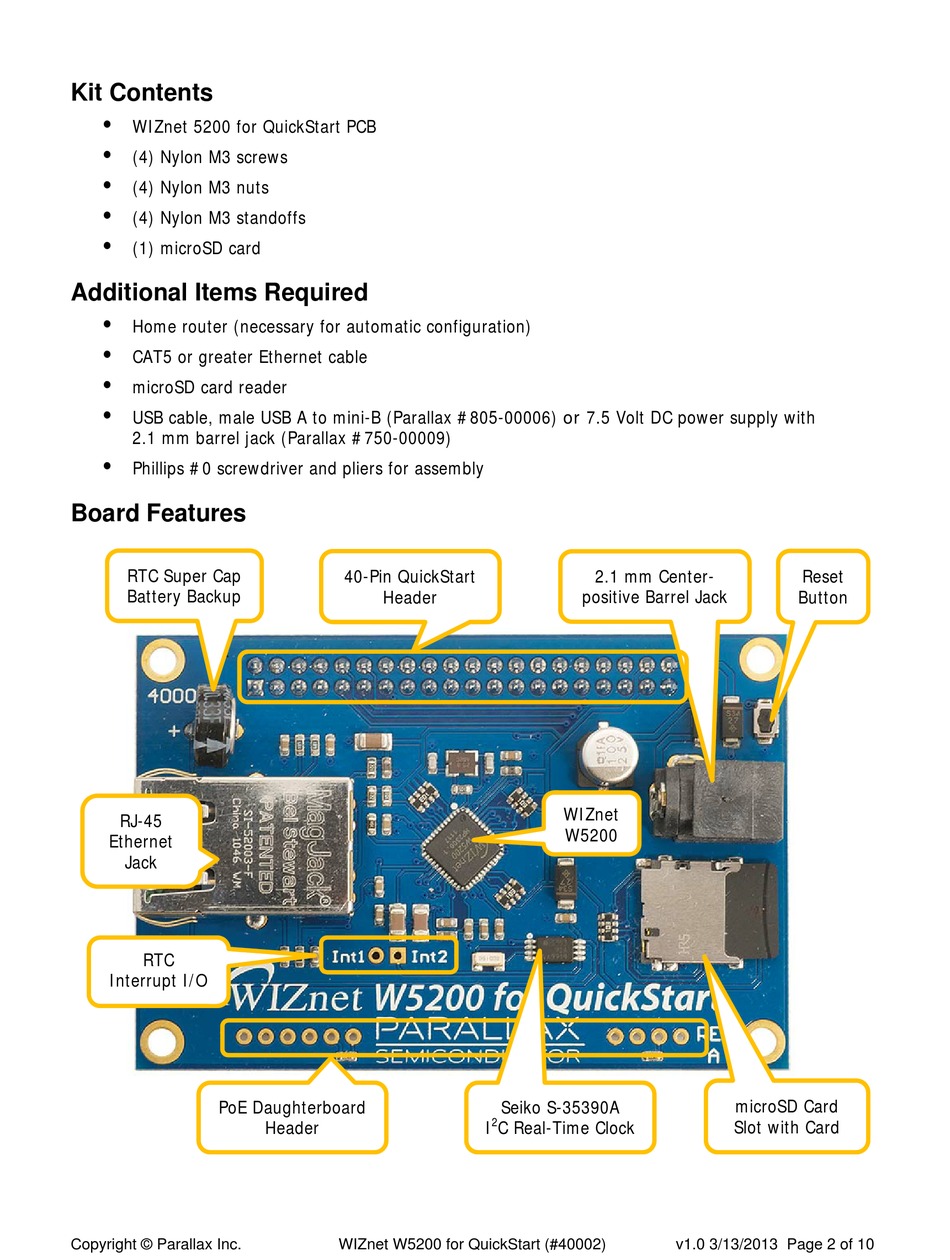

Kit Contents; Additional Items Required; Board Features - Parallax WIZnet W5200 Quick Start Manual

Kit Contents


WIZnet 5200 for QuickStart PCB

(4) Nylon M3 screws

(4) Nylon M3 nuts

(4) Nylon M3 standoffs

(1) microSD card

Additional Items Required


Home router (necessary for automatic configuration)

CAT5 or greater Ethernet cable

microSD card reader

USB cable, male USB A to mini-B (Parallax #805-00006) or 7.5 Volt DC power supply with
2.1 mm barrel jack (Parallax #750-00009)

Phillips #0 screwdriver and pliers for assembly

Board Features

RTC Super Cap
Battery Backup
RJ-45
Ethernet
Jack
RTC
Interrupt I/O
PoE Daughterboard
Copyright © Parallax Inc.
40-Pin QuickStart
Header
Header
WIZnet W5200 for QuickStart (#40002)
2.1 mm Center-
positive Barrel Jack
WIZnet
W5200
Seiko S-35390A
2
I C Real-Time Clock
Reset
Button
microSD Card
Slot with Card
