Power Supply Options - Parallax WIZnet W5200 Quick Start Manual

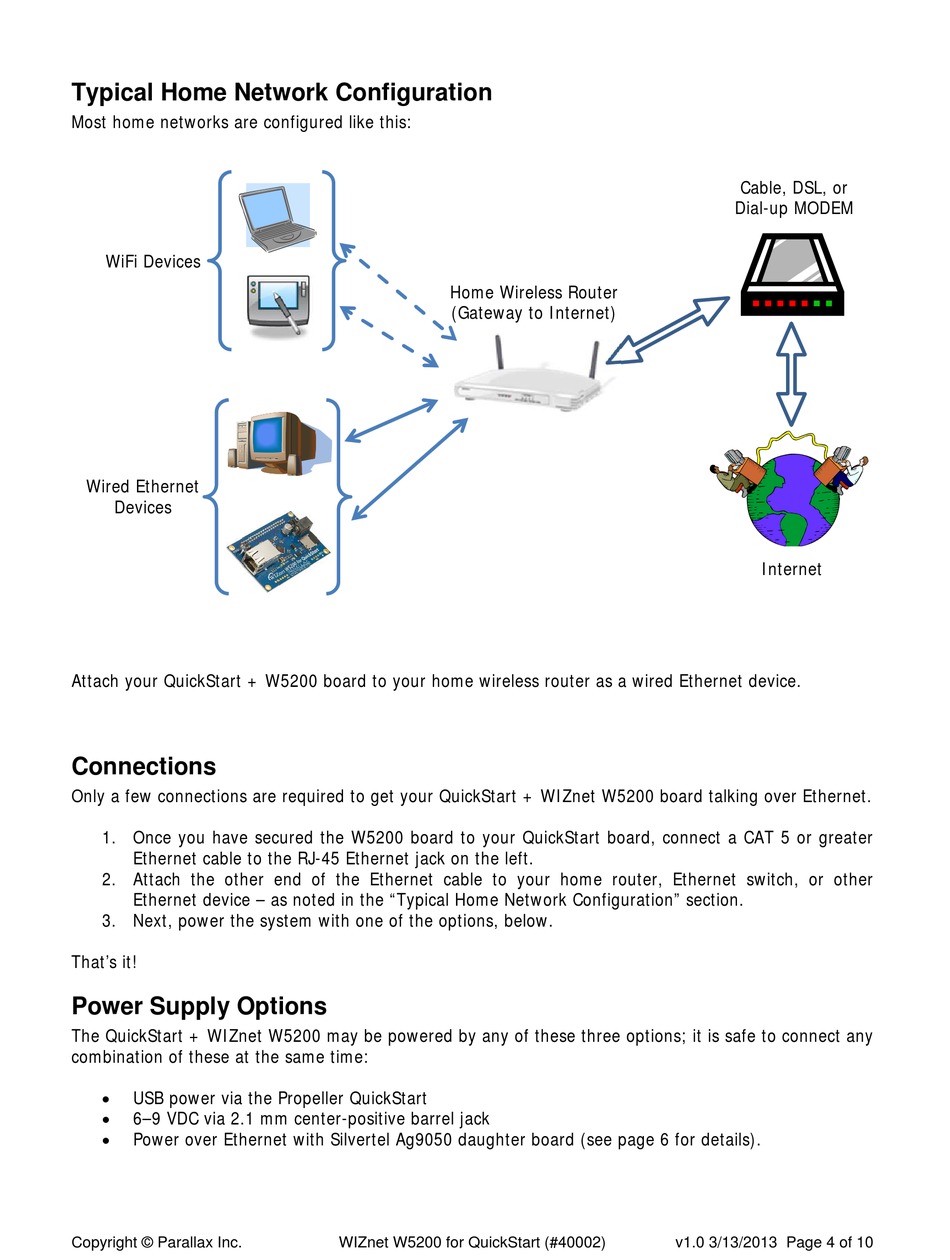

Typical Home Network Configuration
Most home networks are configured like this:
WiFi Devices
Wired Ethernet
Devices
Attach your QuickStart + W5200 board to your home wireless router as a wired Ethernet device.
Connections
Only a few connections are required to get your QuickStart + WIZnet W5200 board talking over Ethernet.
1. Once you have secured the W5200 board to your QuickStart board, connect a CAT 5 or greater
Ethernet cable to the RJ-45 Ethernet jack on the left.
2. Attach the other end of the Ethernet cable to your home router, Ethernet switch, or other
Ethernet device – as noted in the "Typical Home Network Configuration" section.
3. Next, power the system with one of the options, below.
That's it!

Power Supply Options

The QuickStart + WIZnet W5200 may be powered by any of these three options; it is safe to connect any
combination of these at the same time:
 USB power via the Propeller QuickStart
 6–9 VDC via 2.1 mm center-positive barrel jack
 Power over Ethernet with Silvertel Ag9050 daughter board (see page 6 for details).
