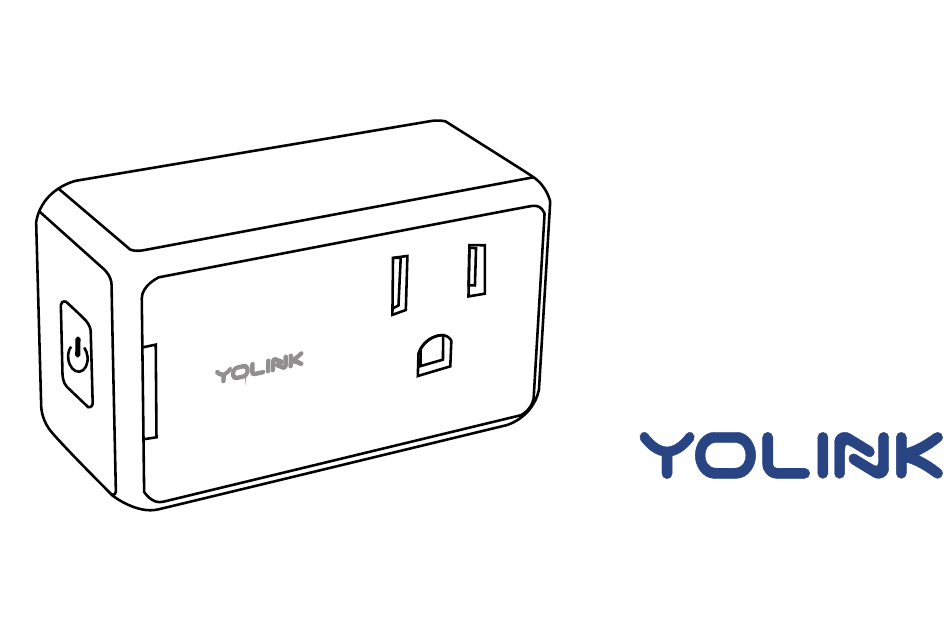

- Page 1 YoLink Plug Mini YS6604-UC User Guide Rev 1.1...
-
Page 2: Table Of Contents
······················ ····· ····· ···················································· · · · ·· · ·1 Introduc on ······························································································2 Set Up ····································································································· ·4 · Using the YoLink App ·················································································6 About YoLink Control ······························ ················ ··································13 Maintenance ······················································································· ····19 · Specifica ons ····················································································· ·····21 · Troubleshoo ng ················································································· ·····22 ·... -
Page 3: In The Box
In the Box YoLink Plug Mini Quick Start Guide... -
Page 4: Introduc
Introduc on With control of the plug, you can easily control lights and home electric devices via YoLink App on your iOS or Android devices, as well as popular voice assistants and 3rd-party automa on apps such as IFTTT. Power Plug... - Page 5 The LED light indicates the current status of the plug mini: Blue Plug mini is On Plug mini is Off Blinking Blue Connec ng to Cloud Fast Blinking Blue Establishing Connec on with YoLink System Slow Blinking Blue Upda ng...
- Page 6 To set up and use your YoLink Plug Mini, you will need an Apple iPhone or tablet that is iOS 9.0 or higher, or an Android phone or tablet that is Android 4.4 or higher Download YoLink app through Apple App Store or Google Play Store...
- Page 7 Add Device Tap “ ” bu on, then scan QR Code on the device Plug into an outlet, the Status LED will blink several mes (red, then blue). The blue LED indicates the device is online and ready to use * Status LED will blink red once, then blue several mes(If device is working well...
-
Page 8: Using The Yolink App
Connec on status Device name of plug mini and Hub * Edit name on Details page * Tap to turn on/off the plug mini Real- me status: Turned on or turned off Timer Set the one- me- mer dura on for... - Page 9 Plug mini turned on Device SN (unique) or turned off, logged with date & me Connec on status Device status of plug mini and Hub * Turned on or turned off Firmware version Device me “#### ready now ” indicates a...
- Page 10 Timer With YoLink app, you can set up a mer to turn on or/and off the plug mini Note One mer will run only once. You can set a new mer a er the mer has already run or once you...
- Page 11 Schedule Create on/off schedules to automate your plug mini to work around your home and work schedules Note You can have a maximum 6 schedules at one me A er se ng up, the schedule is running at device without internet You may add as many schedules as you want in Automa on se ngs.
- Page 12 Scene Set one-click control for mul ple devices in your YoLink app. You can only run a scene via your YoLink app Go to “Smart”, tap “Scene” followed by the “ ” icon to add a scene Fill in details followed by the “...
- Page 13 ” bu on Edit trigger to enable or disable the automa on * YoLink Plug Mini can be set * Click to edit the automa on. as a trigger or ac on device Swipe le to view the history logs and to edit or delete the...
- Page 14 Go to Se ngs > Voice Assistants for the applicable voice assistant integra on guide * YoLink Plug Mini is integrated with Alexa and Google Assistant, and is also integrated with IFTTT .com, works as ac on devices using IFTTT...
-
Page 15: About Yolink Control
Hub or an internet connec on. (Use of YoLink Control is op onal; you can use the Automa on feature in the app OR use YoLink Control, but YoLink Control offers the benefit of opera on without the Hub or internet connec on.) One device controls another, directly. - Page 16 In-wall Switch first, and let it enter pairing mode For the same YoLink Plug Mini and In-wall Switch, you can only choose to either turn on or turn off the In-wall Switch when the plug turns on If you want to turn on or off...
- Page 17 In-wall Switch manual for more informa on: In-wall Switch YS5705-UC_ Turn on the plug * verify the Status LED of YoLink Plug Mini displays blue POWER Bu on POWER Bu on Hold the POWER button on the YoLink Hold the POWER button on the In-wall...
- Page 18 When the plug turns on, the In-wall Switch will now immediately turn on. The switch will remain turned on un l turned off using the POWER bu on or via the app More advanced sequences, controlling mul ple outputs (e.g. turn off switch) are available via the YoLink app Turned off Turned on Turned on Turned off...
- Page 19 Unpairing At the YoLink Plug Mini (controller), turn on the plug using POWER bu on or via YoLink app (verify the Status LED of YoLink Plug Mini displays blue). Press and hold the POWER bu on for 10-15 seconds un l the LED quickly blinks blue, then red...
- Page 20 Turn on the plug * verify the Status LED of YoLink Plug Mini displays blue POWER Bu on POWER Bu on Hold the POWER button on the YoLink Hold the POWER button on the In-wall Plug Mini (Turned on) for 10-15 seconds,...
-
Page 21: Maintenance
Maintenance Firmware Update To ensure our customers have the best user experience, we highly recommend you update to the newest version firmware when an update is available In “Firmware”, if a new version is listed as available (#### ready now), click it to start the firmware update process You may use your device during the update as it is performed in the background. - Page 22 Factory reset will erase all of your se ngs and restore it to factory defaults. A er the factory reset, your device will remain in your Yolink account Hold the POWER bu on for 20-25 seconds un l the Status LED blinks red and blue alternately...
-
Page 23: Specifica Ons
Specifica ons Input: 100 - 120V AC, 60Hz Output: 100 - 120V AC, 10A MAX (Resis ve) Dimensions: 2.75 x 1.57 x 1.24 (L x W x D) Environment: Temperature: -4°F - 113°F -20°C - 45°C Humidity: ≤80 non-condensing... - Page 24 - If Hub is not on, power on the Hub again and press the POWER bu on on plug mini once - If plug mini is out of range with Hub, reloca ng the plug mini or Hub may be required - If plug mini is not plugged into an outlet, plug it into an outlet 2.
-
Page 25: Warning
, a n d w i l l v o i d t h e w a r ra n t y If your YoLink Plug Mini does get dirty, please clean it by wiping it down with a clean, dry cloth. -
Page 26: Customer Service & Warranty
God (such as floods, lightning, earthquakes, etc.). This warranty is limited to repair or replacement of the YoLink Plug Mini only at YoSmart's sole discre on. YoSmart will NOT be liable for the cost of installing, removing, nor reinstalling this product, nor direct, indirect, or consequen al damages to persons or property resul ng from the use of this product. - Page 27 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec on against harmful interference in a residen al installa on. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc ons, may cause harmful interference to radio communica ons.
- Page 28 Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifica ons to this equipment. Such modifica ons could void the user’s authority to operate the equipment. FCC RF Radia on Exposure Statement This equipment complies with FCC RF radia on exposure limits set forth for an uncontrolled environment.
