Yolink Plug Mini YS6604-UC User Manual

Hide thumbs Also See for Plug Mini YS6604-UC:

Advertisement

Quick Links

Download this manual
User Guide

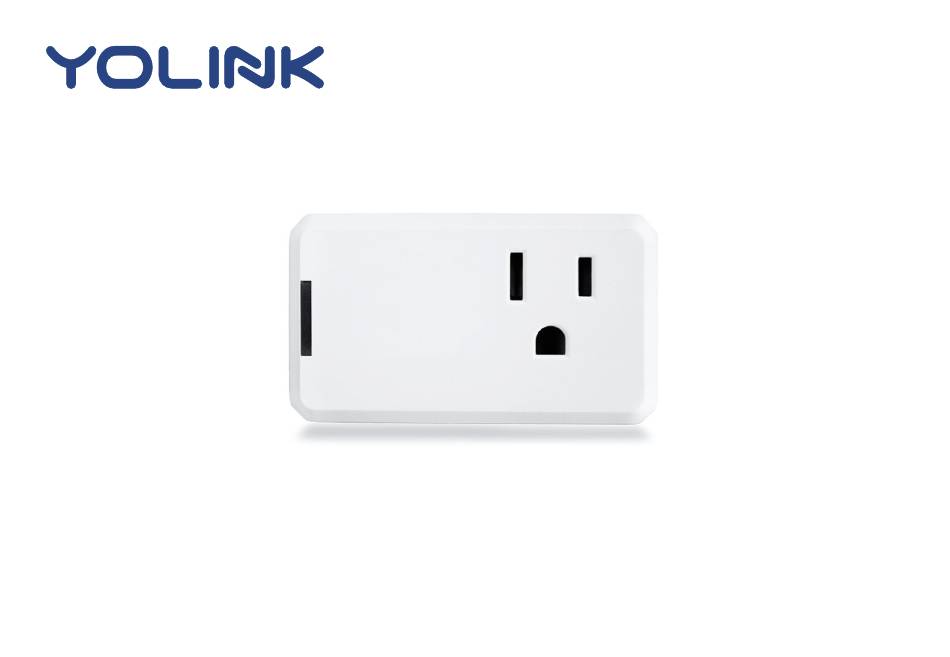

YoLink Plug Mini
YS6604-UC
REV 1.0

Advertisement

loading

Related Manuals for Yolink Plug Mini YS6604-UC

Summary of Contents for Yolink Plug Mini YS6604-UC

  • Page 1 User Guide YoLink Plug Mini YS6604-UC REV 1.0...

  • Page 2: Table Of Contents

    Contents Introduction··············································· 1 Features··················································· 2 Product Requirements·································· 2 Set Up YoLink Plug Mini································· 3 Using YoLink App with YoLink Plug Mini·············· 4 YoLink Control·············································8 Maintaining the YoLink Plug Mini·····················11 Specifications············································13...

  • Page 3: Introduction

    Introduction YoLink Plug Mini turns a typical electrical wall outlet into a multi-function smart outlet. You can easily control lights and home electric devices via YoLink App on your iOS or Android device. Blue The plug mini is on. The plug mini is off.

  • Page 4: Features

    Features Control from anywhere - Control your YoLink plug mini remotely via YoLink App on your iOS or Android device. YoLink Control No internet is required , turn on or off your YoLink plug m when you set up your plug with a YoLink controller.

  • Page 5: Set Up Yolink Plug Mini

    Set Up YoLink Plug Mini Follow the steps below to set up your YoLink plug mini via YoLink App. Get Ready Add To YoLink App Plug In and Enjoy Get the YoLink App from Tap the “ ” in YoLink App.

  • Page 6: Using Yolink App With Yolink Plug Mini

    Details You can enter a descriptive name, set the room, add to/ remove from favorite, check device history. Name – Set a name for your YoLink Plug Mini. Room – Choose a room for your YoLink Plug Mini. Favorite – Click to add to/remove from Favorite.
  • Page 7 Timer With YoLink App, you can set up a timer to turn on or/and off your Plug Mini. Tap the Plug Mini's icon in App to go to its controls. Tap “Timer” for timer setting. Choose action from “ON”, “OFF”, or “ON then OFF”.
  • Page 8 Schedule You can create ON/OFF schedules to automate your plugged-in devices to work around your home and work schedules. Tap Plug Mini's icon in App to go to its controls. Tap “Schedule” to open the Schedule screen, tap “ ” to add a new schedule. Within the Add Schedule screen, set the time, your preferred state (“ON”,”OFF”...
  • Page 9 Scene Set one-click control for multiple devices in your YoLink App. You can run a scene via your YoLink App or a YoLink Remote. Tap “Smart” and switch to Smart screen. Tap “ ” to create your own scene. To set a scene, you will need to select one or more devices to be controlled, and then define...

  • Page 10: Yolink Control

    YoLink Control YoLink Control is our unique “device to device” control technology. Under YoLink Control, the devices could be controlled without internet or Hub. Devices which send out command is called controller(Master). Devices which receive command and act accordingly is called responder(Slave).
  • Page 11 Pairing Find a plug mini as controller(Master). Hold the set button for 5-10 seconds, the lights will flash blue quickly. Find another action device as responder(Slave). Hold the set button for 5-10 seconds, the device will enter pairing mode. After pairing is done, the light will stop flashing. When the plug mini is detected to be turned on, the action device will be turned on as well.
  • Page 12 Automation Automation allows you to set up IFTTT rules so the devices could act automatically. Tap “Smart” to switch to Smart screen and tap “Automation”. Tap “ ” to create an automation. To set an Automation, you will need to set a trigger time, local weather condition, or choose a device with certain stage as a triggered condition.

  • Page 13: Maintaining The Yolink Plug Mini

    Maintaining the YoLink Plug Mini Firmware Update To keep the YoLink Plug Mini working well and enjoy all the latest improvement and fixes, we recommend that you update the firmware when an update is available. Tap the Plug Mini's icon in App to go to its controls.
  • Page 14 Factory Reset Factory reset will erase all your settings and bring it back to default. This will not unlink the device from your account, which you will have to do so through APP if needed. H old the power button for 20 seconds until the LED blinks red and blue. Factory reset will be done when the light stops flashing.

  • Page 15: Specifications

    Specifications Button: Power Button Input: 100-120V~, 60Hz 10A (Resistive) Maximum Current: -20°C ~ 45°C (Humidity ≤80%) Environment:...
  • Page 16 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 17 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations.
