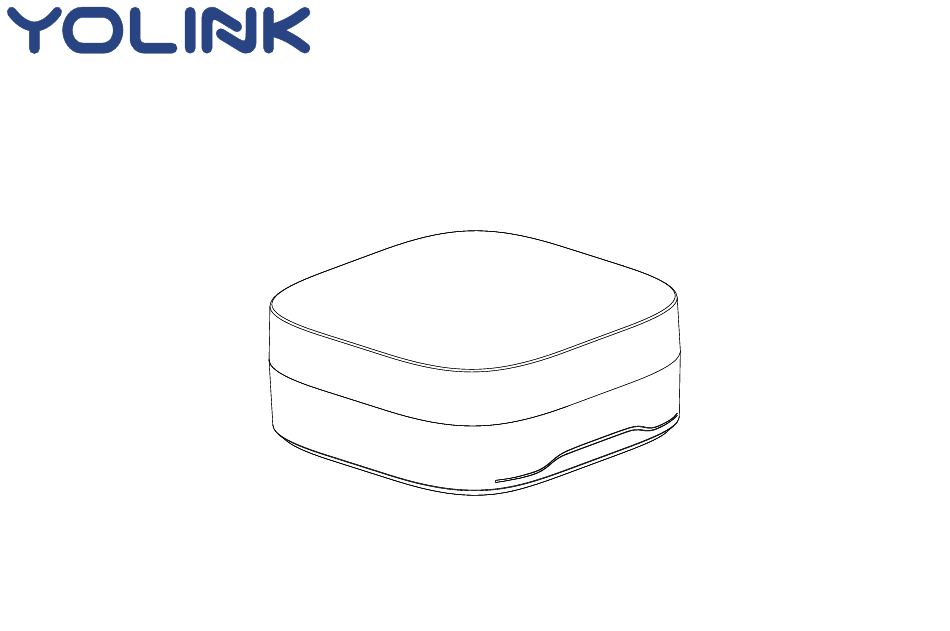

- Page 1 User Guide YS4803-UC Smart IR Remote...
-
Page 2: Table Of Contents
What’s In The Box······· ······················ ····· ····· ·········· · · · ·· · ·2 Set Up mart IR Remote····················· ················· ··· ···· ·3 · Using YoLink A with Smart IR Remote···························10 Maintaining the Smart IR Remote·········· ···· ········· ········14 · ·· Specifications····································· ····... -
Page 3: Introduction
Worked as All-in-one IR remote controller, Smart IR Remote allows you to copy all frequency of 38k infrared remote. Place it to wherever in front of the TV, DVD or other infrared appliance, download YoLink App, add Smart IR Remote to your smart home system, which will able to remote control the infrared appliance. -
Page 4: Features
Features Control from anywhere - Control your infrared appliance remotely via YoLink App on your iOS or Android device. Battery Status - Update battery level and send low battery alert. Schedule - Automatically control your infrared appliance at a certain time. -
Page 5: Set Up Mart Ir Remote
Set Up Smart IR Remote Follow the steps below to set up your Smart IR Remote via YoLink App. Step 1: Set up YoLink App Get the YoLink App from the Apple App Store or Google Play. - Page 6 Step 2: Log in or sign up with YoLink account Open the App. Use your YoLink account to log in. If you don’t have a YoLink account, tap Sign up for an account and follow the steps to sign up an account.
- Page 7 Name - Name Smart IR Remote. b. Room - Choose a room for Smart IR Remote. c. Favourite - Click “ ” icon to add/remove from Favourite. Tap the “Bind Device” to add the device to your YoLink account.
- Page 8 Step 4: Connect to the cloud Press the SET button once and your device will connect to the cloud automatically. Note Make sure you hub is connected to internet. POWER BUTTON Internet Cloud...
-
Page 9: Smart Ir Remote
Step 5: Copy the remote button Tap the “Smart IR Remote” in App to go to its controls. Tap “Add Remote” in App to add a remote controller. Select a type of remote controller and set a name. Tap each of the button to copy the remote controller, LED light blinks red, press the corresponding button on the remote controller with aiming the remote at the middle of the Smart IR Remote. - Page 10 Diagram Press the button on Button Copied Copy Failed the remote controller...
- Page 11 Step 6: Device placement Place your Smart IR Remote in front of your infrared appliance. Note Please keep no objects between the Smart IR Remote and controlled infrared appliance.
- Page 12 Using YoLink App with Smart IR Remote Details You can customize the name, set the room, add to/remove from favourite, check device history. a . N a m e - N a m e S m a r t I R R e m o t e .
- Page 13 Schedule You can create button control schedules to automate your switch to cooperate with your home and work schedules. Ta p t h e “ S m a r t I R R e m o t e ” i n A p p t o g o t o i t s c o n t r o l s .
- Page 14 Scene Set one-click control for multiple devices in your YoLink App. Only one scene can be run at a time on YoLink App. Tap “Smart” to switch to Smart Screen. Tap “ ” to create your own Scene. To set a Scene, you will be able to put one or more devices under this scene, and define their actions...
- Page 15 Automation Automation allows you to set up “If this then that” rules so the devices could act automatically. Tap “Smart” to switch to Smart screen and tap “Automation”. Tap “ ” to create an automation. To set an Automation, you will need to set a trigger time, local weather condition, or choose a device with certain stage as a triggered condition.
- Page 16 Maintaining the Smart IR Remote Firmware Update To ensure our customer have the best user experience, we highly recommend you could update our newest version firmware. Ta p t h e “ S m a r t I R R e m o t e ” i n A p p t o g o t o i t s c o n t r o l s .
- Page 17 Factory reset will erase all your settings and bring it back to default. After the factory reset, your device will still in your Yolink account. Hold the power button for 20-25 seconds until the LED blinks red and green alternately.
- Page 18 Specifications Voltage: 3V DC (2 - AA Battery) Infrared Remote Distance: 7~8m Environment: Working Temperature: 0°C~50°C (32°F~122°F) Working Humidity: 0%~90% non-condensing...
- Page 19 Troubleshooting Problem Possible Reason Solution Please reconnect your hub to the Internet and press the set button of Smart IR Hub is offline. Remote once. Please power on the hub again and press Smart IR Remote is Hub is powered off. the set button of Smart IR Remote once.
- Page 20 WARNING O n l y s u p p o r t 3 8 k s e r i e s r e m o t e s . Keep away from high temperature or fire. Keep away from dusty, wet or dirty. This product is not waterproof, please keep it dry.
- Page 21 If you are unable to get your smart IR remote working Please contact Our Customer Service during business hours US Live Tech Support: 1-949-825-5958 M-F 9am - 5pm PST Email: support@YoSmart.com YoSmart Inc. 17165 Von Karman Avenue, Suite 105, Irvine, CA 92614 WARRANTY 2 Year Limited Electrical Warranty YoSmart warrants to the original residential user of this product that it will be free from defects in materials...
- Page 22 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 23 FCC RF Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. “To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations.
