Summary of Contents for Moza Slypod

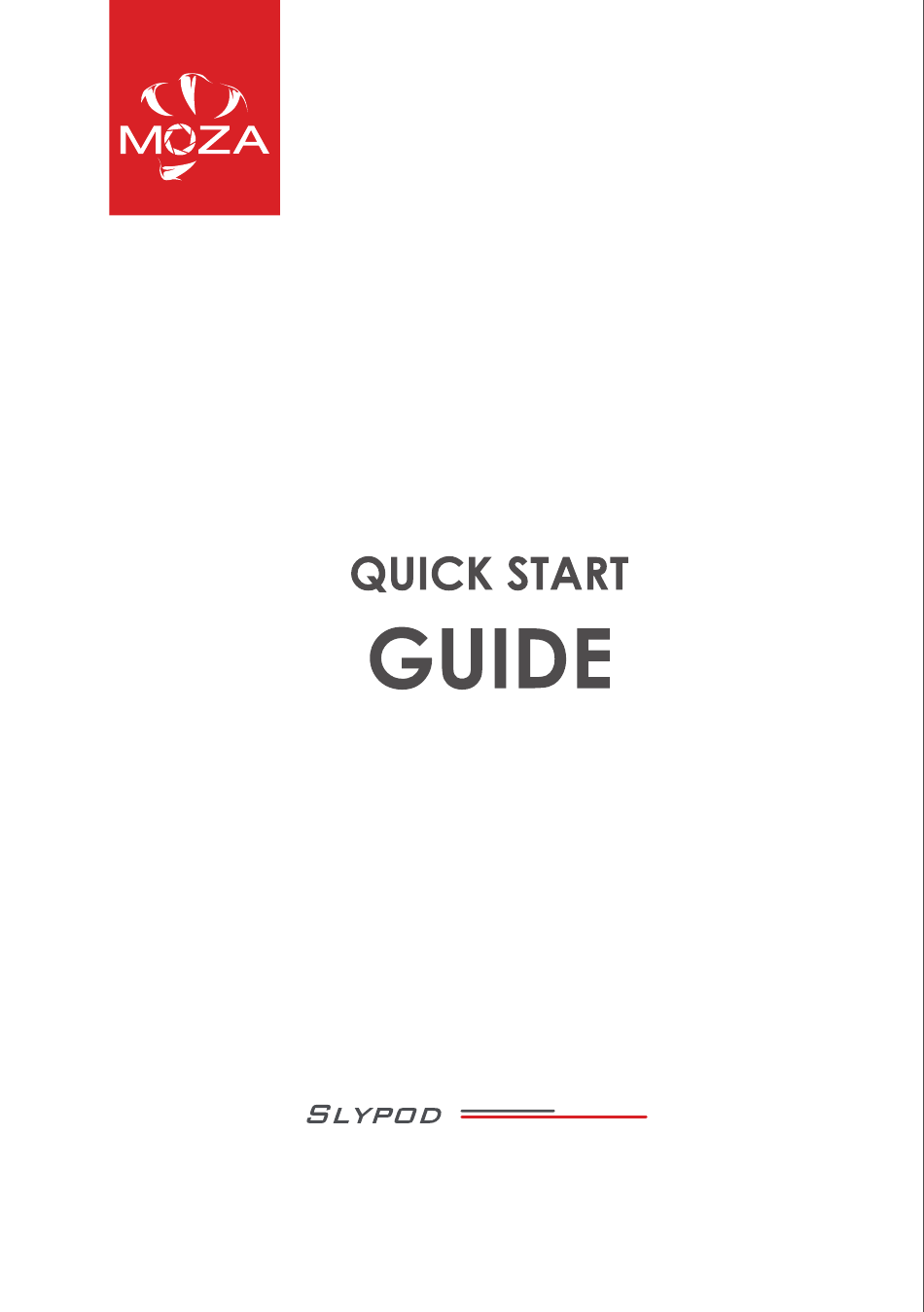

- Page 1 用户手册...
- Page 2 Slypod is under charging, solid blue indicates the charging is completed. With a Type-C interface, the Slypod is able to be charged by a mobile phone charger or external power bank. It will automatically stop charging when the battery is full.

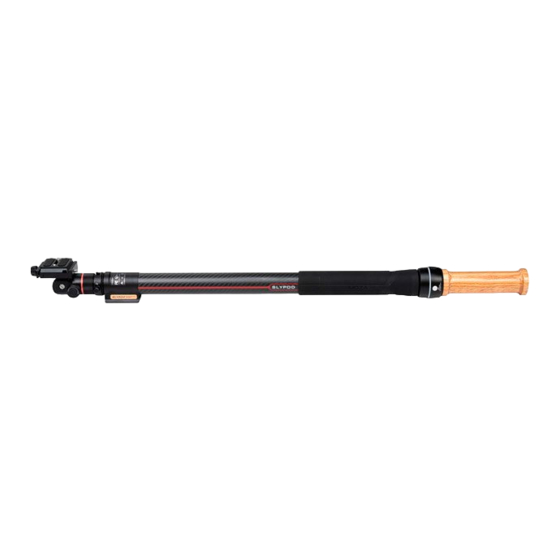

- Page 3 MOZA Slypod Overview Pan-tilt Head Pan-Tilt Lock Arca-Swiss Quick Release Tilt Knob 1/4” and 3/8” Extension Hole Screw Pan Knob Screw Quick Mounting Port Adapter (accessory) Quick Release Screw 1/4” Extension Hole Quick Mounting Port Indicator Light Power Button Quick Mounting Port Handle 1/4”...
- Page 4 Mounting Mounting the handle Align the 1/4’’ screw hole on the handle with the 1/4’’ screw on the bottom of the pole, turn the handle clockwise to tighten it. Mounting the pan-tilt head Slide the pan-tilt head into the groove at the top of the pole, make part 1 and part 2 fully fit.
-
Page 5: Getting Started
Turn Off + Reset Press (Blinking red) App Download Scan the QR code or search in the App Store to download the MOZA Master App.(Please find the QR code at the end of the Manual.) Android Device Connection (Wireless) Download the "MOZA Master" App. -
Page 6: App Operation
App Operation Note: It's required to active the device according to instructions before the first operation. please download the latest version. Updates are subject to change without notice. please note the major application stores Slide the operation point to any position, the device will move according to the sliding path. -
Page 7: Firmware Upgrade
Uncover the rubber sleeve over the charging port, the Type-C interface is inside. The Slypod can be charged by mobile phone charger, mobile power bank, etc. It will automatically stop charging when the battery is full, please disconnect the charger then. -
Page 8: Specifications
Specifications Slypod Storage Length:522mm（grip not included） Size Expanded Length:971mm Max Diameter:54mm Main Body: 745g Weight PTZ Head: 287g Grip:278g Vertical:9kg Payload Horizontal:4Kg Highest:28mm/s Operating speed Lowest:0.15mm/s Operating Voltage 8.5v - 12.6v Battery Life 120min Working Temperature -10℃ - 50℃ Bluetooth Communication 2.4G... - Page 9 FCC Warning: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 10 电池及充电说明 Slypod使用内置锂电池，首次充电使用时，请先给Slypod充满电以激活电池，保证产品顺 利使用。红灯常亮显示设备充电中，蓝灯常亮显示充电完成Slypod使用Type-C接口，手机 充电器、移动电源等都可以给Slypod充电，电池充满后将停止充电。 1.使用Slypod过程中，请使用包装内提供的原装充电线！ 2.切勿过充、过放电池，否则将对电芯造成损害； 3.若长期闲置电池，请每隔3个月左右重新充放电一次以保持电池活性。...
