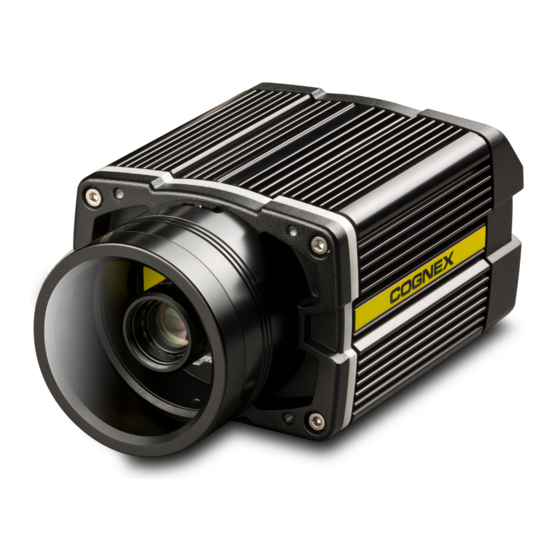

Cognex DataMan 503 Quick Reference Manual
Hide thumbs
Also See for DataMan 503:
- Quick reference manual (27 pages) ,
- Reference manual (173 pages) ,
- Quick reference manual (12 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Cognex DataMan 503
Summary of Contents for Cognex DataMan 503
- Page 1 ® DataMan Quick Reference Guide 2021 May 26 Revision: 6.1.10-SR1.3...
- Page 2 Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: Route cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other irregularities in the power supply.
-
Page 3: Product Overview
Product Overview External illumination mounting point Mounting holes (M3 x 5mm) Trigger button Power Train status Good/bad read Network Error Tuning button Peak meter Synchronized Acquisition RS-232... - Page 4 External light control Ethernet Power I/O...
-
Page 5: Dataman 503 Accessories
DataMan 503 Accessories 16 mm, 25 mm and 35 mm lens (LEC-CFFxx-F8) (xx specifies focal length) Connection cable 24V, I/O (CCBL-05-01) Ethernet M12 to RJ45 cable (CCB-84901-y00x-xx) (y straight/angled, x-xx specifies length) External light cable (CCB-M12x4MS-xxx) (xxx specifies length) Only compatible with CLRR / CLRB / CLRO / CLRS / CLRD illumination... - Page 6 Xpand 15 (DMA-FOVE-15) Xpand 25 (DMA-FOVE-25) SVL Light Bar (IVSL-YLW300-xxx) Bar light, blue (IVSL-LX520-470) Bar light, red (IVSL-LX520-650) DM503 high power illumination (DM503-HPIA-xxx)
- Page 7 Dimensions...
-
Page 8: Field Of View And Reading Distances
Field of View and Reading Distances 16 mm lens for 1D codes (green) 25 mm lens for 1D codes (blue) 35 mm lens for 1D codes (red) Device Distances in mm/1D min. code Distances in mm/1D min. code Distances in mm/1D min. code 16 mm lens 25 mm lens 35 mm lens... - Page 9 DM503 5 MIL 5 MIL 1100 5 MIL 10 MIL 1530 10 MIL 1270 13 MIL 1990 13 MIL 1460 15 MIL 16 mm lens for 1D codes (green) 25 mm lens for 1D codes (blue) 35 mm lens for 1D codes (red)
-
Page 10: Connecting The Reader
Device Distances in mm/1D min. code Distances in mm/1D min. code Distances in mm/1D min. code 16 mm lens 25 mm lens 35 mm lens DM503 5 MIL 5 MIL 5 MIL 10 MIL 10 MIL 1070 10 MIL 13 MIL 13 MIL 1380 13 MIL... - Page 11 For information on the cable pinout and wire colors, see section Connections, Optics and Lighting in the DataMan 503 Reference Manual.
-
Page 12: Installation
Cognex > DataMan Software vx.x.x > Documentation. Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are "keyed" to fit the connectors on the... -
Page 13: Install Software And Documentation And Connect The Reader
3. Connect the cable to a 24V power supply. To configure a DataMan 503 reader, the DataMan Setup Tool software must be installed on a networked PC. The DataMan Setup Tool is available from the DataMan support site: http://www.cognex.com/support/dataman. -
Page 14: Dataman 503 Specifications
DataMan 503 Specifications Weight 1602 g Operating 0ºC — 45ºC (32ºF — 113ºF) Temperature Storage -10ºC — 60ºC (-14ºF — 140ºF) Temperature Maximum <95% (non-condensing) Humidity RS-232 RxD, TxD according to TIA/EIA-232-F 1-D barcodes: Codabar, Code 39, Code 128, and Code 93, Interleaved 2 of 5, MSI, Pharma,... - Page 15 Power Supply 24V +/- 10% Maximum current: 500 mA (at 25ºC) Requirements Maximum power: 18W (external lights) 10/100/1000 Ethernet Speed Full duplex or half duplex Duplex Mode...
-
Page 16: Dataman 503 Imager Specifications
DataMan 503 Imager Specifications Specification DataMan 503 Imager Image Sensor 2/3 inch CMOS Image Sensor Properties 5.5μm square pixels Image Resolution (Pixels) 2048 x 1088 Image Acquisition Maximum 150 fps Lens Type C-mount lens... -
Page 17: Compliance Statements
Australia AS/NZS for Class A Equipment Korea KCC-REM-CGX-DM503 Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. Safety and Regulatory European This is a class A product. In a domestic environment this product may cause radio Compliance interference in which case the user may be required to take immediate measures. -
Page 18: For European Community Users
NTRL: TÜV SÜD SCC/NRTL OSHA Scheme for UL/CAN 61010-1. CB report available upon request. TÜV SÜD, IEC/EN 61010-1. For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). -
Page 19: China Rohs
This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed. In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal. - Page 20 DM503 This table is prepared in accordance with the provisions of SJ/T 11364. 这 个 标 签 是 根 据 SJ / T 11364 的 规 定 准 备 的 。 O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB / T26572 - 2011.
- Page 22 Copyright © 2021 Cognex Corporation. All Rights Reserved.
