modway EEI-4310-CAP-WHI Manual

EEI-4310-CAP-WHI
EEI-4310-WHI-CAP

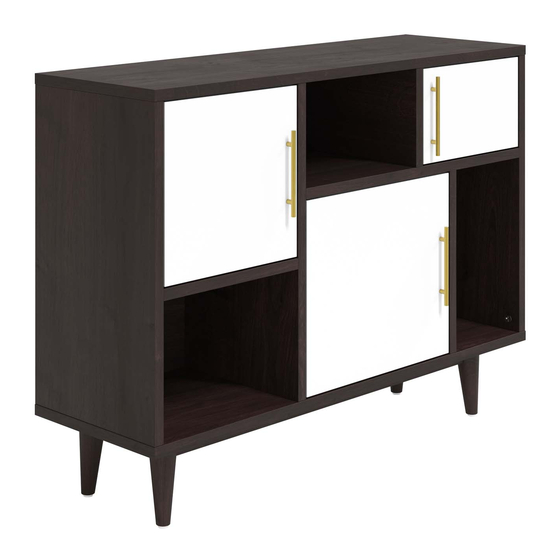

Thank you for purchasing the MODWAY DISPLAY CABINET!
Before you start, here are some helpful advice:
1. We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
Owing to the size and weight of the dining chair, we recommend that it is assembled by two adults, on a
carpeted or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
Please do not use any tools other than those provided or recommended in these instructions.
Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
Please keep all pieces out of reach of small children.
3
10
9
2
11
Customer Service 609-256-9000 / www.modway.com
DISPLAY CABINET
1
8
5
7
12
4
13
6
14
Hardware:
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Handle
Cam Bolt
Cam Lock
Wood Dowel
Allen Wrench
Magnetic Catch
Plastic Hinge
PH M4 x 20mm
CSK M3 x 12
CSK M3.5 x 16mm
JCBC M6 x 70
Spring Washer M6
Flat Washer M6
Anti Tipping Kit
Sticker Cover (Cam Lock) x 20
Matel Plate
Warning Label
Page 1 of 11
x 3
x 28
x 28
x 28
x 1
x 3
x 6
x 6
x 16
x 12
x 8
x 8
x 8
x 1
x 4
x 1
