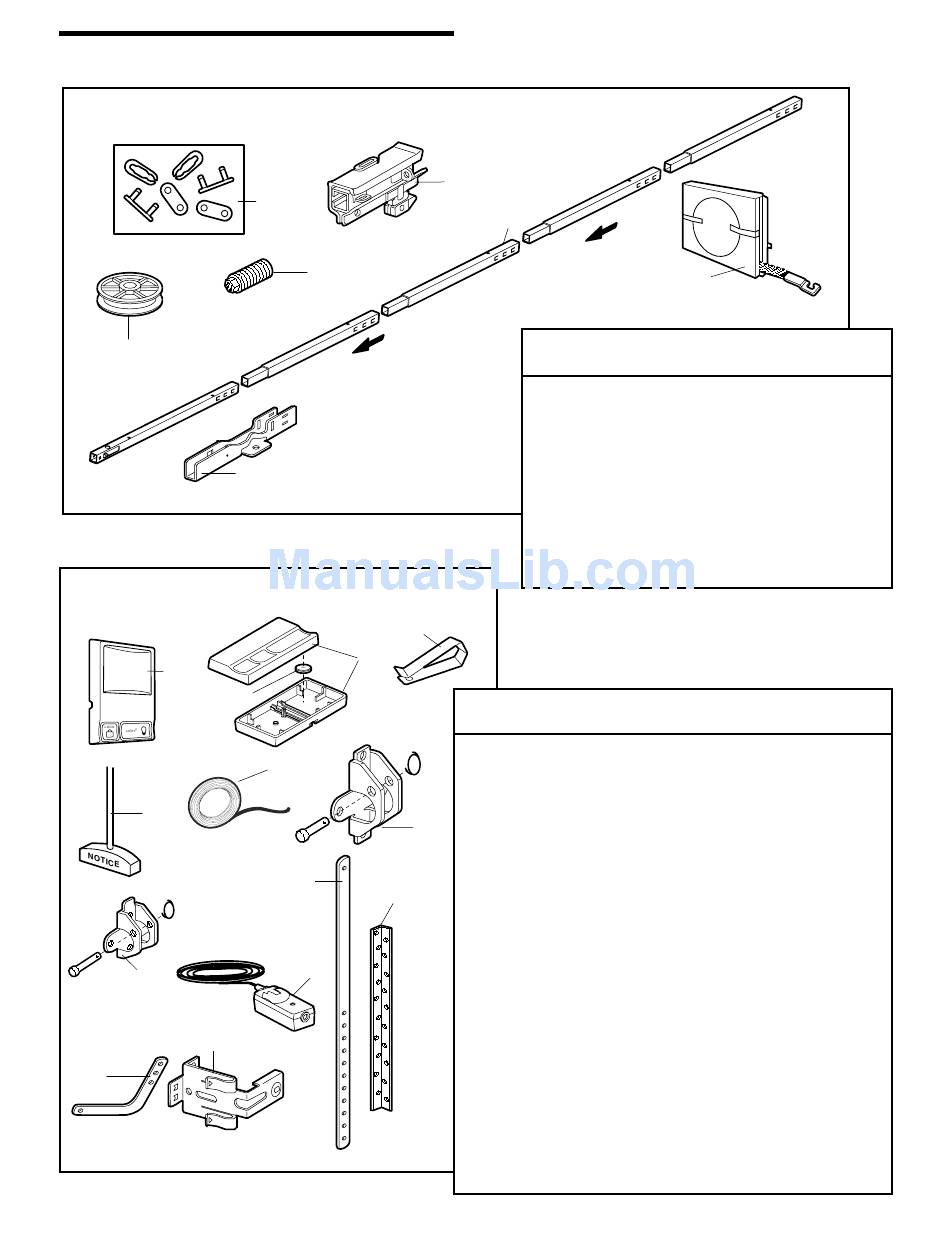

REPAIR PARTS

Rail Assembly Parts

5

Installation Parts

1
5
8
13
12
1
4
7
4
2
3
6
7
10
11
9
2
3
KEY PART
NO. NO.
1 4A1008
2 41C5141-1
3 41A5665-2
4 41B4103
5 144C54
6 41A5250
7 12D598
183A163
KEY PART
NO. NO. DESCRIPTION
1 41C494-1 Multi-Function door control panel
2 953C 3-Button remote control
3 10A20 3V2032 Lithium battery
4 29B137 Remote control visor clip
5 41A2828 Emergency release rope and handle
assembly
6 41B4494-1 2-Conductor bell wire, white and
white/red
7 41A5047-1 Door bracket w clevis pin & fastener
8 41A5047-2 Header bracket w/clevis pin & fastener
9 41A5034 Safety sensor kit (receiving and sending
eyes) with 3' 2-conductor bell wire
10 178B34 Straight door arm section
11 12B776 Hanging bracket
12 178B35 Curved door arm section
13 41A5266-1 Safety sensor brackets (2)
NOT SHOWN
41A5257-3 Installation hardware bag
(includes hardware listed on page 7)
114A2854 Owner's manual
37
6
DESCRIPTION
Master link kit
Complete trolley assembly
Complete rail
Spring trolley nut
Idler pulley
Full belt assembly
"U" bracket
NOT SHOWN
Wear pads
