COMPLETE INSTRUCTION MANUAL
hygge home
Wireless programmable thermostat kit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the hygge home and is the answer not in the manual?

Questions and answers

Related Manuals for Seitron hygge home

Summary of Contents for Seitron hygge home

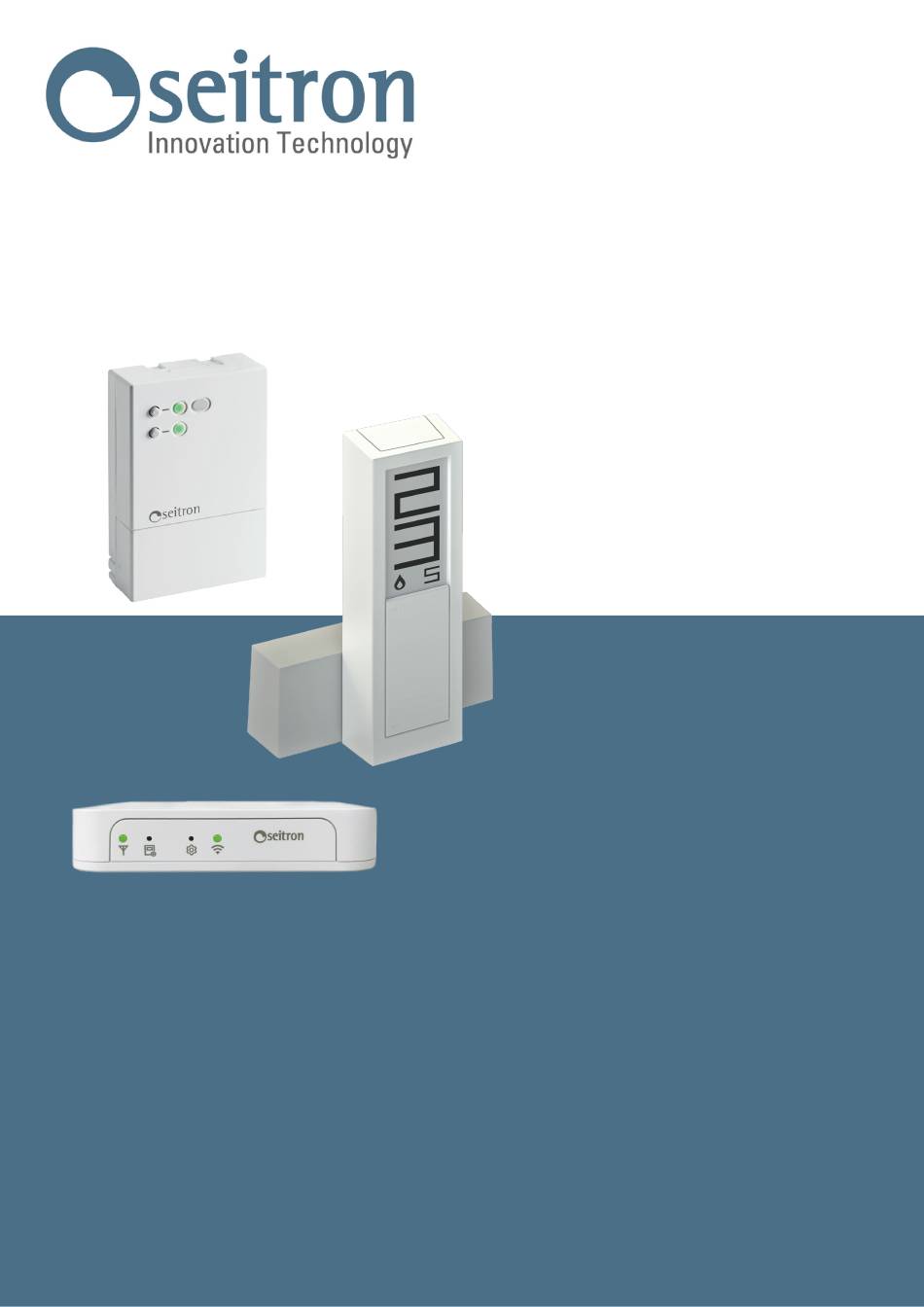

  • Page 1 COMPLETE INSTRUCTION MANUAL hygge home Wireless programmable thermostat kit...
  • Page 3 CONNECTION TO THE WI-FI NETWORK WITH SEITRON SMART APP PAIRING OF ADDITIONAL DEVICES ADDING A SECOND PROGRAMMABLE THERMOSTAT hygge TO THE hygge home KIT PAIRING Gateway hygge way <> hygge Programmable thermostat PAIRING hygge Programmable thermostat <> Relay receiver hygge radio...
  • Page 4 KTY0010001SE 036570 010321...

  • Page 5: System Reliability

    • APP Seitron Smart for mobile devices SYSTEM RELIABILITY Hygge home kit has been designed with special care for the system reliability. Especially, the hygge programmable thermostat is able to grant the correct thermoregulation of the environment even if the internet connection is not available and/or the hygge way gateway is malfunctioning.
  • Page 6 hygge radio RELAY RECEIVER CONNECTION DIAGRAMS The only electrical connections to be made are those related to the relay receiver hygge radio. The relay receiver can be powered at 230V 50Hz or at 24V . The L and N terminals power the receiver at 230V and are to be connected to the mains voltage with the neutral on the terminal N.
  • Page 7 CONNECTION TO THE WI-FI NETWORK WITH SEITRON SMART APP All components of hygge home kit are already factory pre-matched, thus ready to operate. The only operation the user has to perform is pairing hygge way Gateway to the Wi-Fi network using the Seitron Smart App.
  • Page 8 When the device has been detected, the MAC address will appear on the screen shown below. Choose the MAC address corresponding to the hygge way you want to pair to the App. The MAC address is visible on the back of the hygge way. WARNING - Multiple hygge way kits may appear in the “device searching”...
  • Page 9 Devices included the hygge home kit are already pre paired by factory default, thus ready to operate. In case it is necessary to add or change a device on the base system hygge home, it is necessary to pair all the different devices one to the other so that all the devices are recognized on the same system.
  • Page 10 Gateway hygge way <> Programmable thermostat hygge PAIRING WARNING A SINGLE hygge PROGRAMMABLE THERMOSTAT, CAN BE PAIRED TO ONLY ONE hygge way GATEWAY. Power on the hygge way Gateway using the power plug adapter (insert the connector well to the bottom until you feel the click).
  • Page 11 (one for each relay). The hygge home kit has by default the relay n°1 of the hygge radio relay receiver paired with the hygge programmable thermostat. The radio receiver relay n°2 is free and can be used by another hygge programmable thermostat.
  • Page 12 On the relay receiver, press for one second the key related to the channel on which pair the hygge programmable thermostat: the “F” key, related to relay 1 or the “G” key, related to relay 2. Press the button related to the free relay (according to the the off LED). The LED related to the key pressed (1 or 2), makes some yellow flashes and then remains still yellow for 7 seconds.
  • Page 13 ERASING DEVICE ERASING all the pairings from the hygge way Gateway In case of pairing errors, it is recommended to delete all possible pairings on the hygge way gateway memory and then proceed to repeat the necessary pairings. With a sharp tool, press and hold the “ “ button for more than 10 seconds on the hygge way. Once the memory is erased, the “...

  • Page 14: Installation

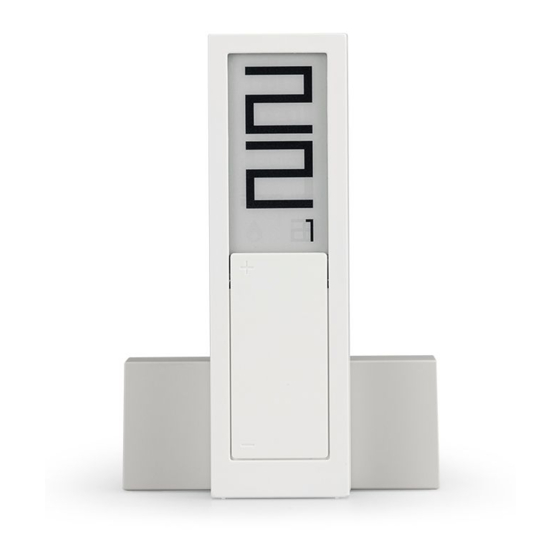

    OPERATION hygge INSTALLATION The hygge programmable thermostat does not need any electrical connection and it can be placed on any flat horizontal surface or on a wall with the special hook. USING THE PROGRAMMABLE THERMOSTAT WITH THE TABLE STAND The hygge programmable thermostat can be placed on any horizontal surface thanks to the special magnetic table support.

  • Page 15: Operation Logic

    Seitron Smart APP. The setpoint temperature can be changed by acting on the ‘+’ and ‘-‘ keys of the hygge programmable thermostat as well as on the Seitron Smart APP.

  • Page 16: Advanced Configuration

    Seitron Smart APP. Indicatively with a retransmission rate of 30 seconds the battery life is 2 years.
  • Page 17 hygge TECHNICAL FEATURES Power Supply: Batteries 2x1.5V size AAA Frequency: 868,450 MHz Modulation: GFSK Max. RF power transmitted: 1 mW Antenna type: Internal Max. distance from the receiver: >300 m in free field >50 m inside buildings (depending on the building and the environment) Temp.
  • Page 18 OPERATION hygge radio This device is a radio receiver with two relays designed for the activation of loads (precisely solenoid valves or circulators or boilers) in radio heating/cooling systems for home or office environments. To the two relay outputs it is possible to associate two different hygge programmable thermostats.

  • Page 19: System Configuration

    Red: The received signal is weak: unreliable communication. When the actuator status is off, it is shown by the corresponding Led dimly lit instead of completely off. So it is always possible to check the radio signal strength. Normally the Led shows the “long term” signal quality analysis, which is an assessment of the amount of correct commands received within the last 30 minutes of operation.

  • Page 20: Troubleshooting

    SIZE TROUBLE SHOOTING SYMPTOM: The receiver shows no signs of life. PROBABLE CAUSE: There is no supply voltage. REMEDY: Check the connection to the mains voltage. Normally Leds can stay off, but when the device is switched on, they perform a sequence of flashes “green-red-green-green-red” to signal the good operation. SYMPTOM: One of the receiver Led continuously flashes red.
  • Page 21 Its function is to collect the bidirectional data stream from the hygge programmable thermostat, via 868,450 Mhz wireless communication and to convey this information to the Seitron Wi-Fi 2.4GHz Cloud, to allow remote control of he hygge programmable thermostat through Seitron Smart App.
  • Page 22 Fixed Red: Wi-Fi router connection problems Blinking red: Problems connecting to server Fixed Green: Wi-Fi working Alternating Green/Red: Wi-Fi configuration mode BUTTONS “ “ and “ “( On the front panel of the device there are two buttons: Button “ “ Short press (<3 sec.) Start the association procedure (Pairing)

  • Page 23: Warranty

    WARRANTY In the view of a constant development of their products, the manufacturer reserves the right for changing technical data and features without prior notice. The consumer is guaranteed against any lack of conformity according to the European Directive 1999/44/EC as well as to the manufacturer’s document about the warranty policy.
  • Page 24 KTY0010001SE 036570 010321...
  • Page 26 SEITRON S.p.A. a socio unico Via del Commercio, 9/11 36065 - Mussolente (VI) ITALY +39 0424 567 842 - info@seitron.it - www.seitron.com...
